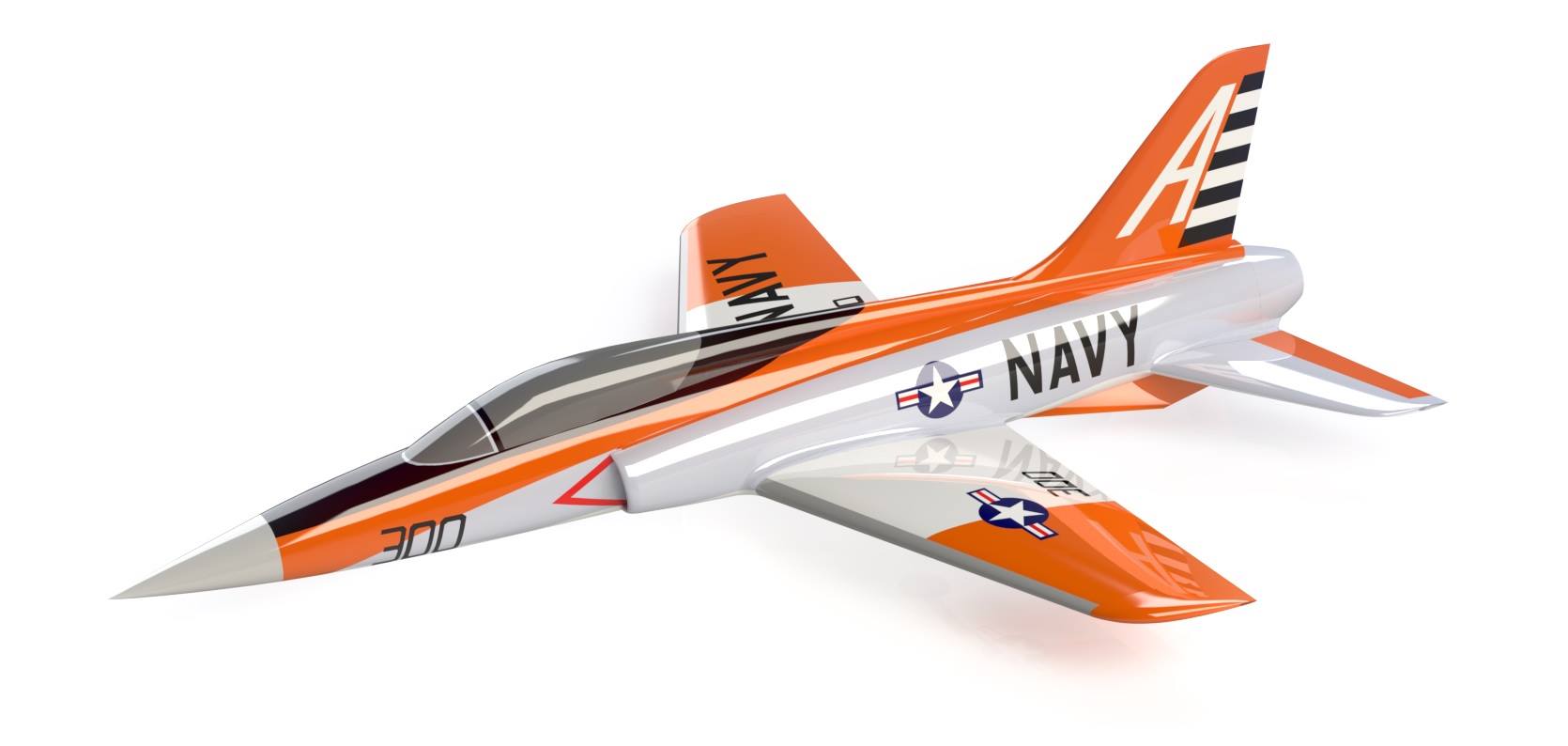

UAS ROGUE UAS

UAS ROGUE UAS

Specifications:

• Wingspan: 2.50m / 98 inches
• Length: 3.11m / 122 inches
• Weight: 45-90 Lbs Dry
• Turbine: 200-400N




Retractable Electronic Landing Gear suitable for 125lbs max weight.  Gyroscopic braking assist

Fuel capacity 8.0L + /Diesel, JetA, Kerosene

Max Takeoff weight 125lbs

Payload 30lbs +

Max speed 220 knots +

20G maneuverability

Max Endurance 15 min at cruise

Takeoff Roll <500ft/ Landing Roll <500ft

Made of the latest composite sandwich technology

Fuel cell

Carbon reinforced for strength. Reinforced wing structure

Generous payload area for any instrumentation/equipment layout

Painted outside mold finish with clear coat and customizable paint scheme

Center hinge rudder for precise centering and maximum throw

2 piece fuselage, detachable wings, stabs and fin.  Compact and comes apart quickly and easily for transport

Removable fin and stabs with one bolt.  Removable ventral fins

All carbon fiber laminated formers and equipment tray

Carbon fiber wing tube and spar tubes

Protective Fuse, wing, fin and stab covers included

Reinforced landing gear structure and wings suitable for 125lbs

Full CAD drawings are available for UAS version at additional cost

Pilot available



2021 ROGUE /UAS Price list

ROGUE UAS version which includes electronic retractable landing gear, standard pipe, fuel tank

$25,999.  Includes priority production

Landing gear(included)

Conformal fuel cell (included)

Standard pipe(included)

Hardware included





OPTIONAL ACCESSORIES

High flow Fuel fittings $150

300N Pipe $450

400N pipe $450

3/16 high flow Fuel Line $30

8 HV High torque servos $1600

Fuel system UAT $200

Flight System Gyro $299

K320 Kingtech 320 Newton Turbine $4150.00

K450 Kingtech 450 Newton Turbine $5950.00

HD Titanium linkages $100

HD Ball links $75

8 servo arms $75

Wire harness $299

Fuel system vent $20

Festo shut off valve $45

Hysol and nozzles $100

Custom wing, stabs and fin covers $350

Fuse bags $350

Pixhawk 2.1 Standard $299

Here2 GNSS $150

HEX Technology Cube Orange Full Bundle with Here3 GNSS, RFD900X $899

Powerbox Royal SRS redundant power management system with integrated gyro, telemetry and redundancy RX $799

4 HRB 2s 5000mah 7.4V

1 6000 mah 9.9v

Powerbox Core Transmitter $2495

Build Assembly service $4000

Full CAD drawings $7000

Pilot available for hire.



**********WE CAN ASSEMBLE YOUR UAS***********

We will fully build your UAS and install all equipment.  Model would require final setup by end user.
