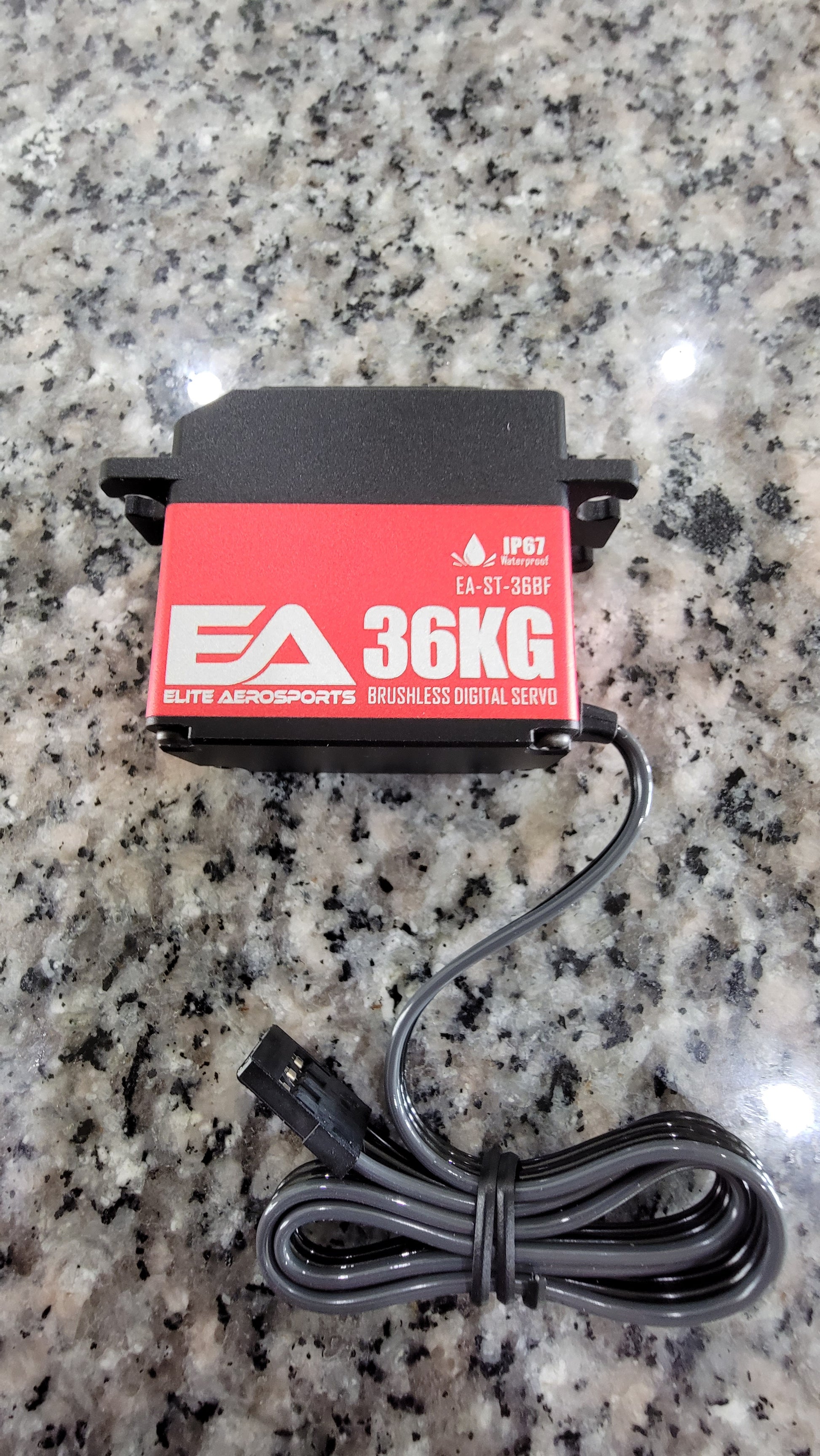

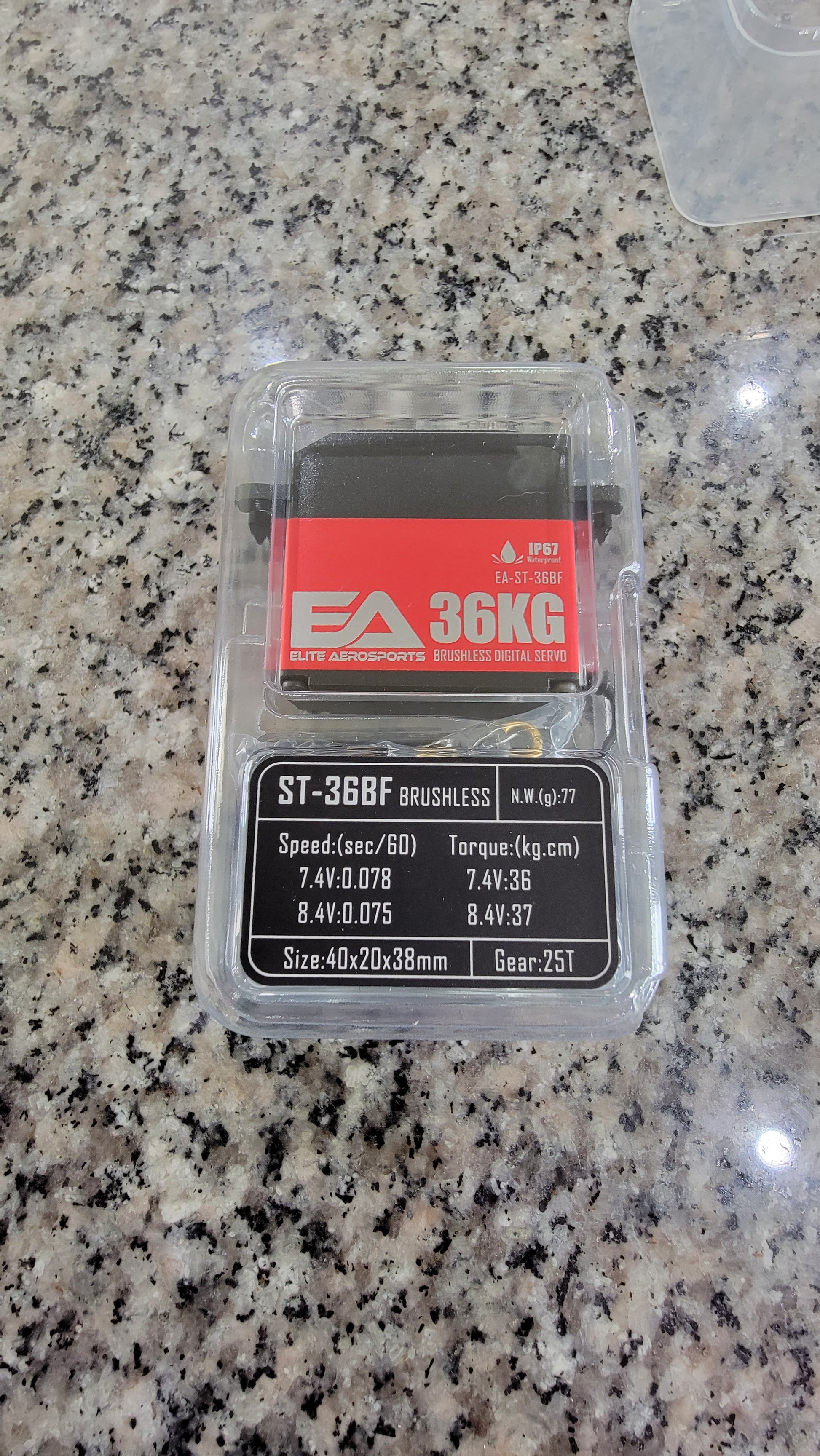

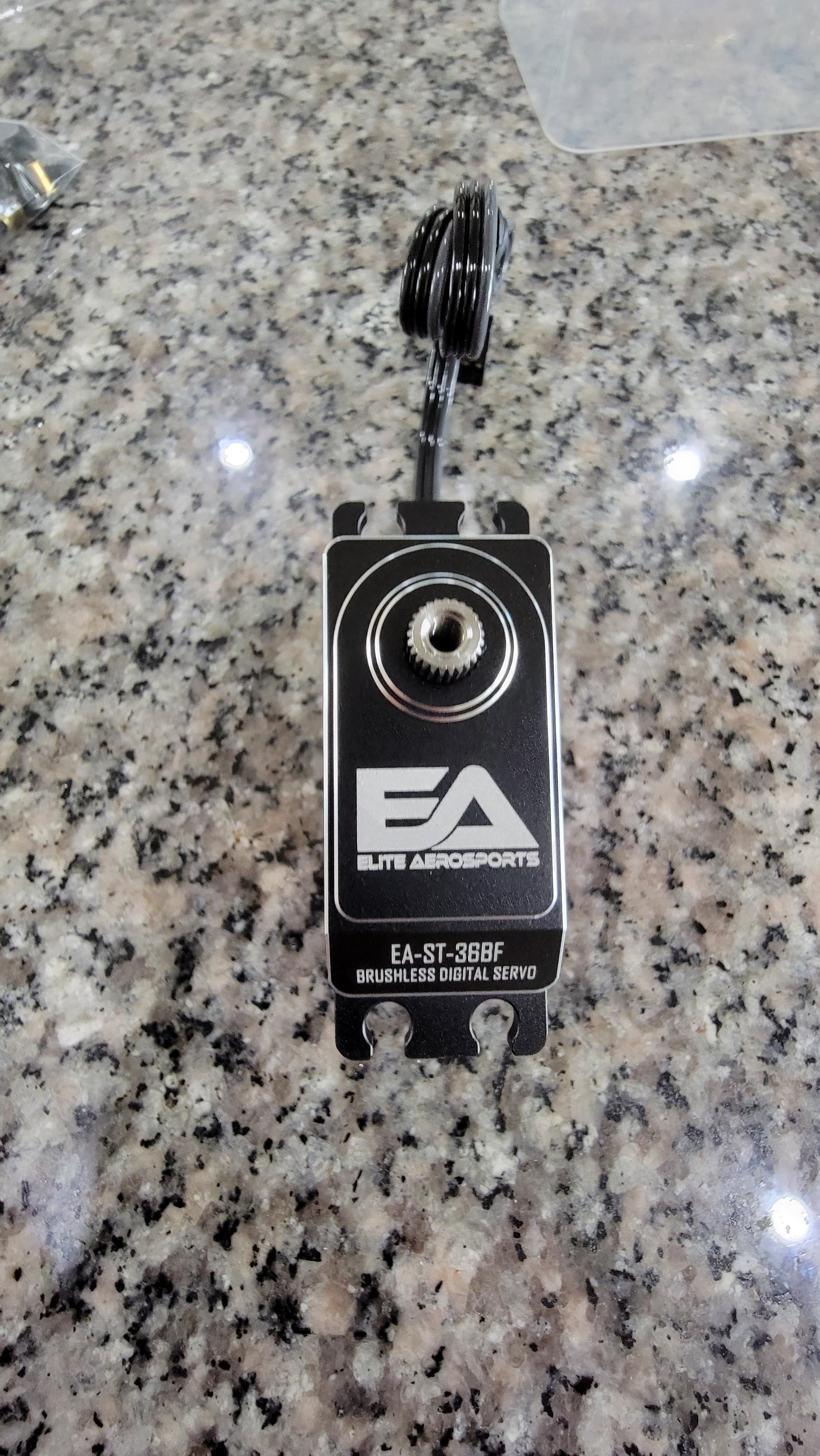

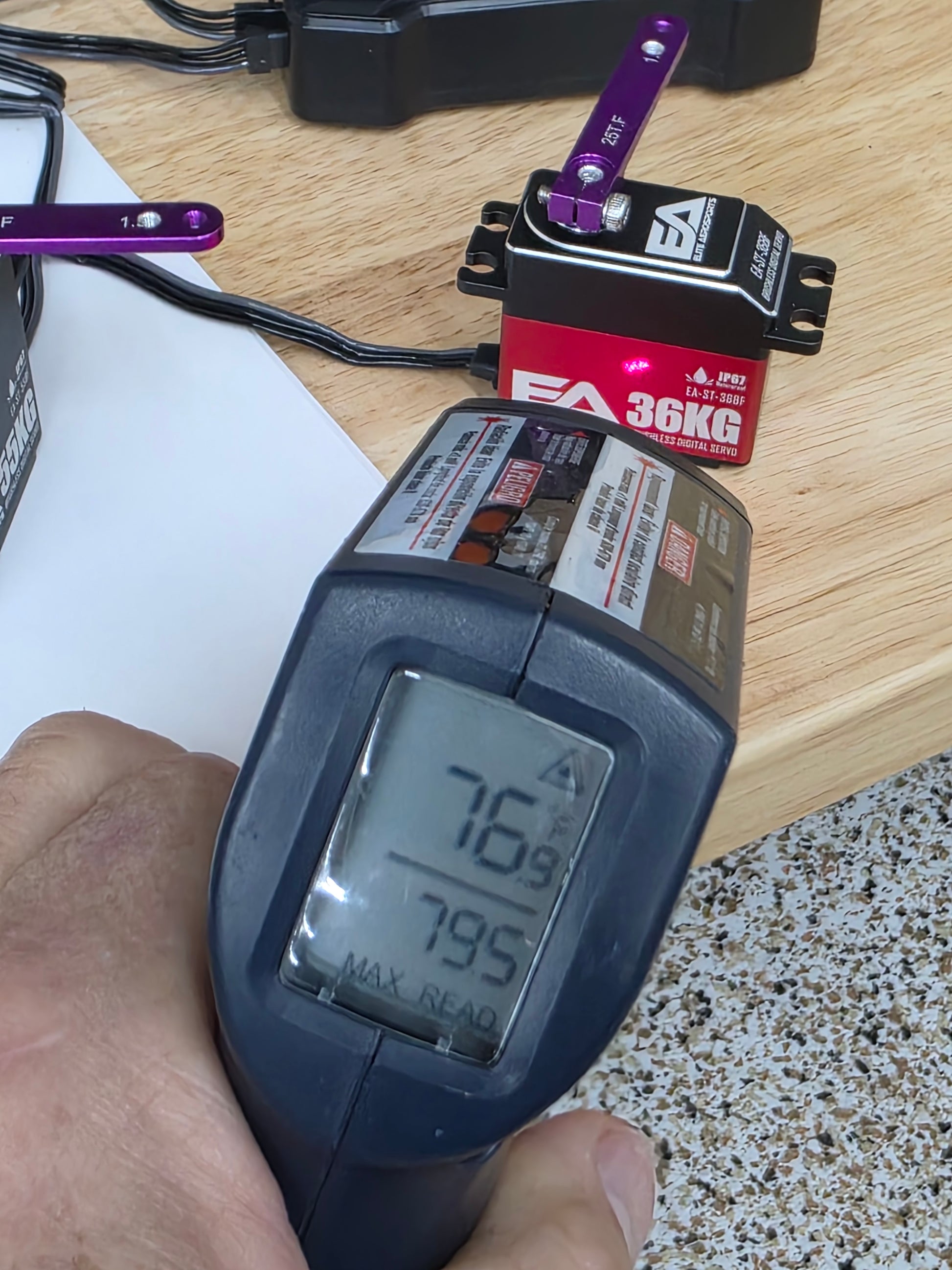

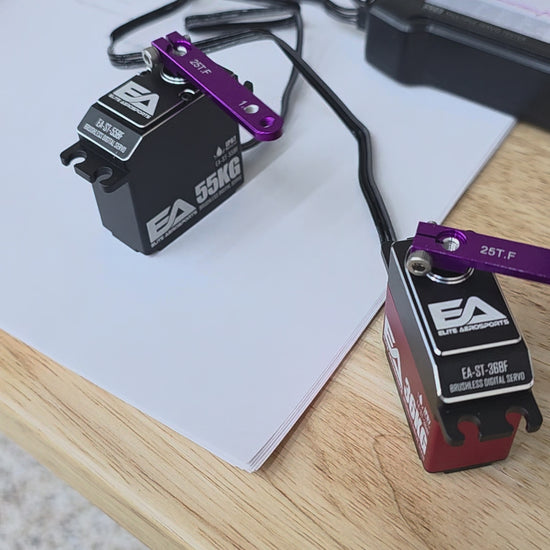

EA Digital High Voltage ST-36BF 36KG Servo

EA Digital High Voltage ST-36BF 36KG Servo

Regular price $155.00 USD
Regular price Sale price $155.00 USD
Sale Sold out
Shipping calculated at checkout.

EA ST-36BF 36KG Servo

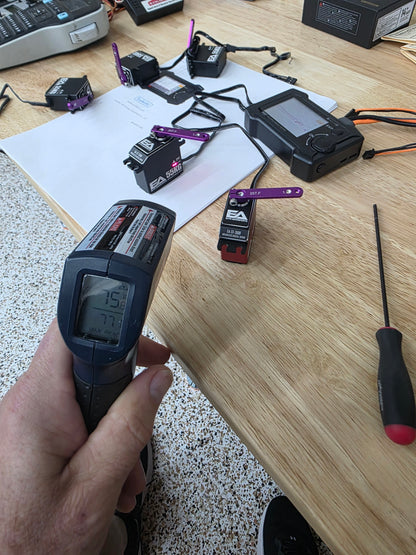

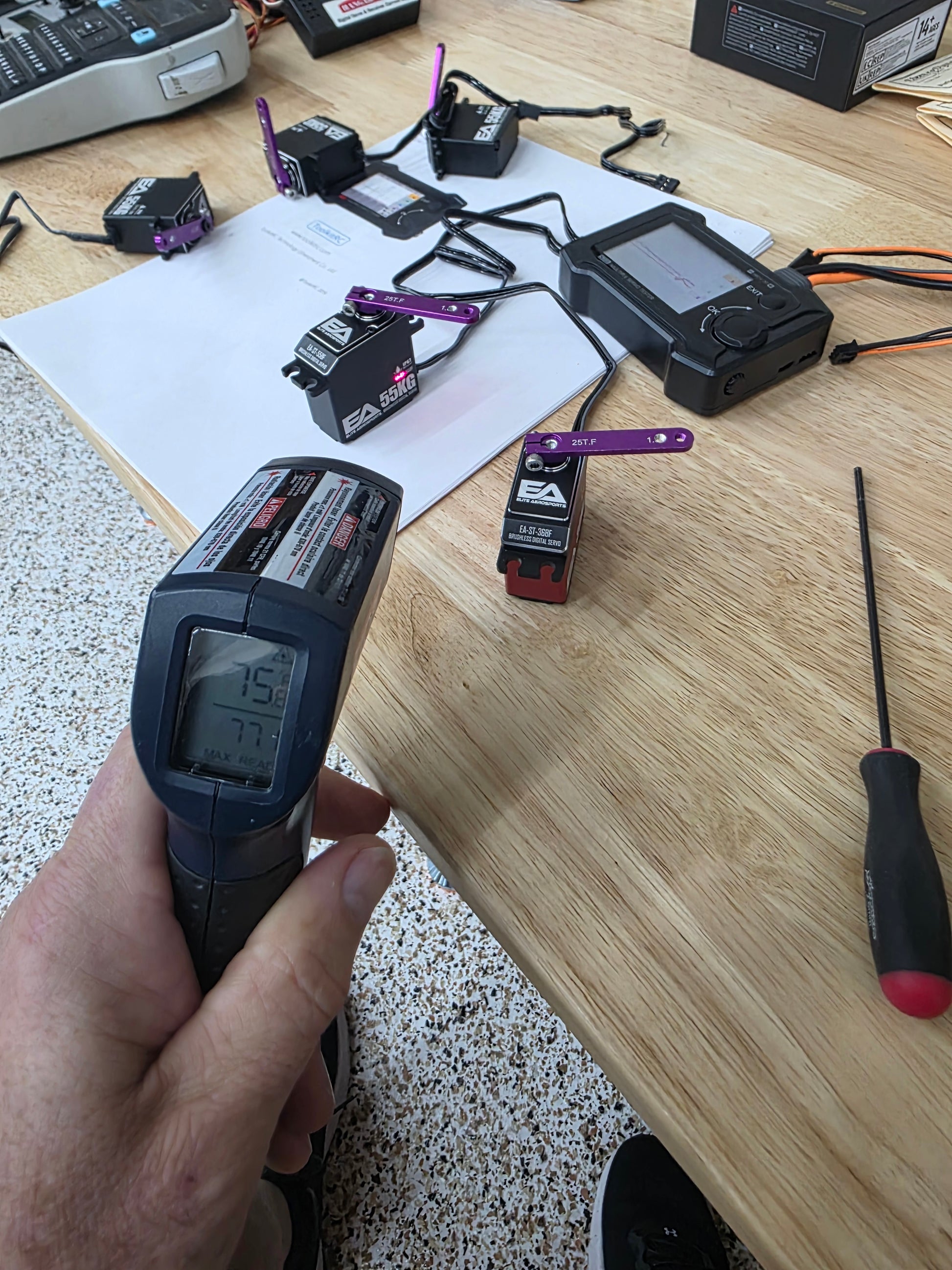

We have tested these in numerous aircraft for the last 2 years.  These servos have proven to be some of the best.  Pablo and Scott use them personally in all of their aircraft.  After 2 years of use we can say that we have had zero failures.  No twitching, no weird ratchety movement either.  Very smooth and perfectly centering servos.  We trust them enough to put our name on them and back them with a limited warranty.  Great for any size jet, all the way up to the Havoc!

Operating speed

7.4V-0.078sec/60°

8.4V-0.075sec/60°

Stall torque:

7.4V-36.0kgf.cm(500oz-in)

8.4V-37.0kgf.cm(514oz-in)

Gear Material:Stainless steel

Horn gear spline:25T Φ5.9

Size:40x20x38mm(1.57x0.79x1.5in)

Case Material:Full Metal

Weight:77g

Bearing:2BB

Motor type:Brushless Motor

Operating Temperature:-15℃~+70℃

Operating travel :≈180±10°

Frequency:1520uS

Refresh Rate:333Hz

Pules width range :500-2500μsec

Dead band width:2μsec

Connector wire length:300mm

Waterproof level:IP67

Programmable:Yes



View full details

Collapsible content

DETAILS

All composite, carbon fiber reinforced layup. Painted outside the mold with automotive base coat and clear coat. Highly prefinished ARF models requiring very little work to get flying. We also now offer PNP on certain models.

TIPS

Give us a call or email us if you have more questions reagrding our products.

SHIPPING

Shipping available via Air or Sea freight.
