Introducing our latest offering in high performance sport-jet model aircraft.

At EA, we love creating new and innovative RC model aircraft. We continuously improve/grow our product line and implement the wealth of experiences we've attained along the way.

Inspiration for the RAYZR came from modern day military stealth aircraft.  We mixed stealthy styling with classic sport jet features.  The design started as a hand sketch in 2018. In collaboration with our talented CAD designers and extremely skilled factory, we were able to bring our vision to life.

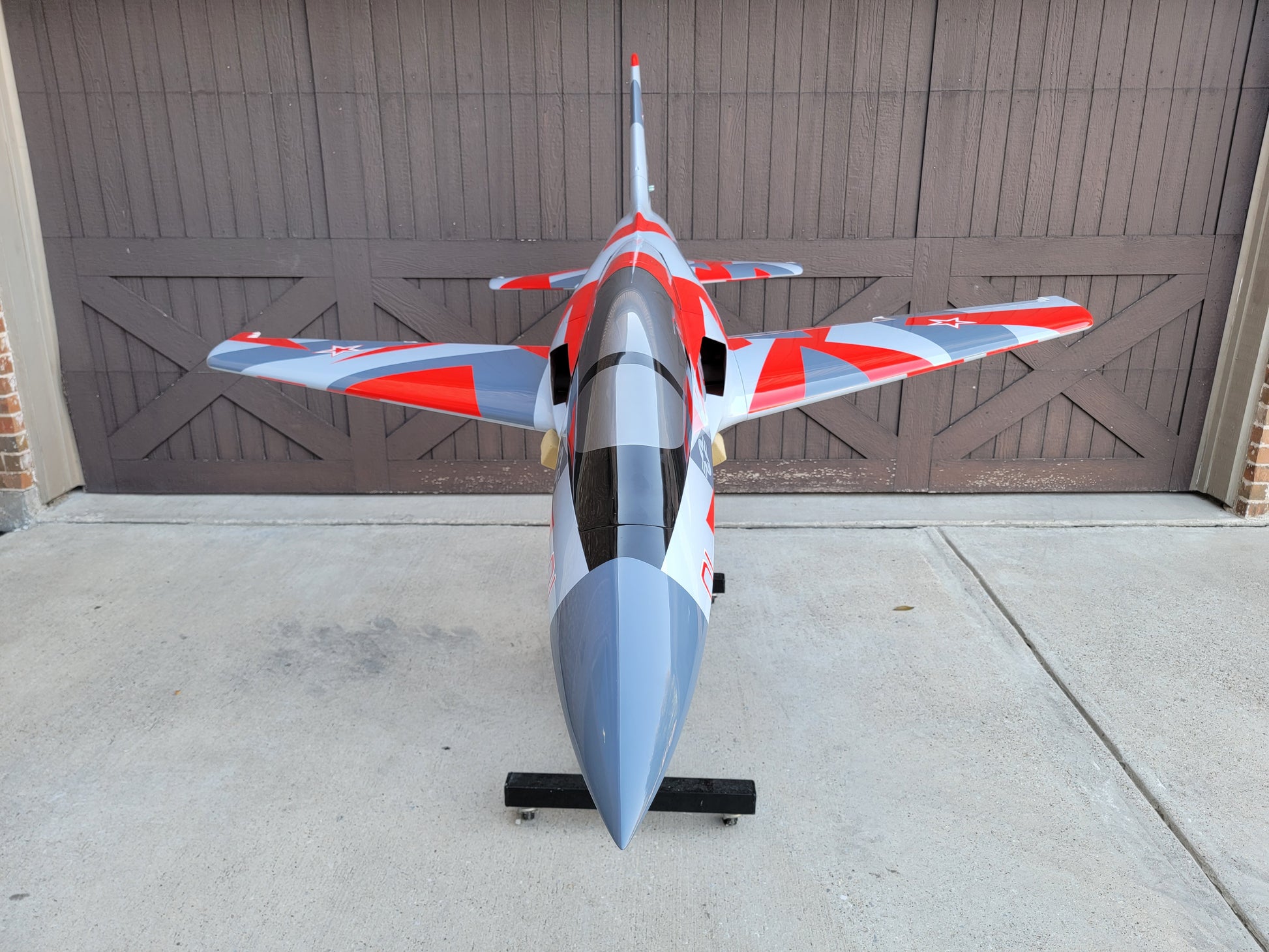

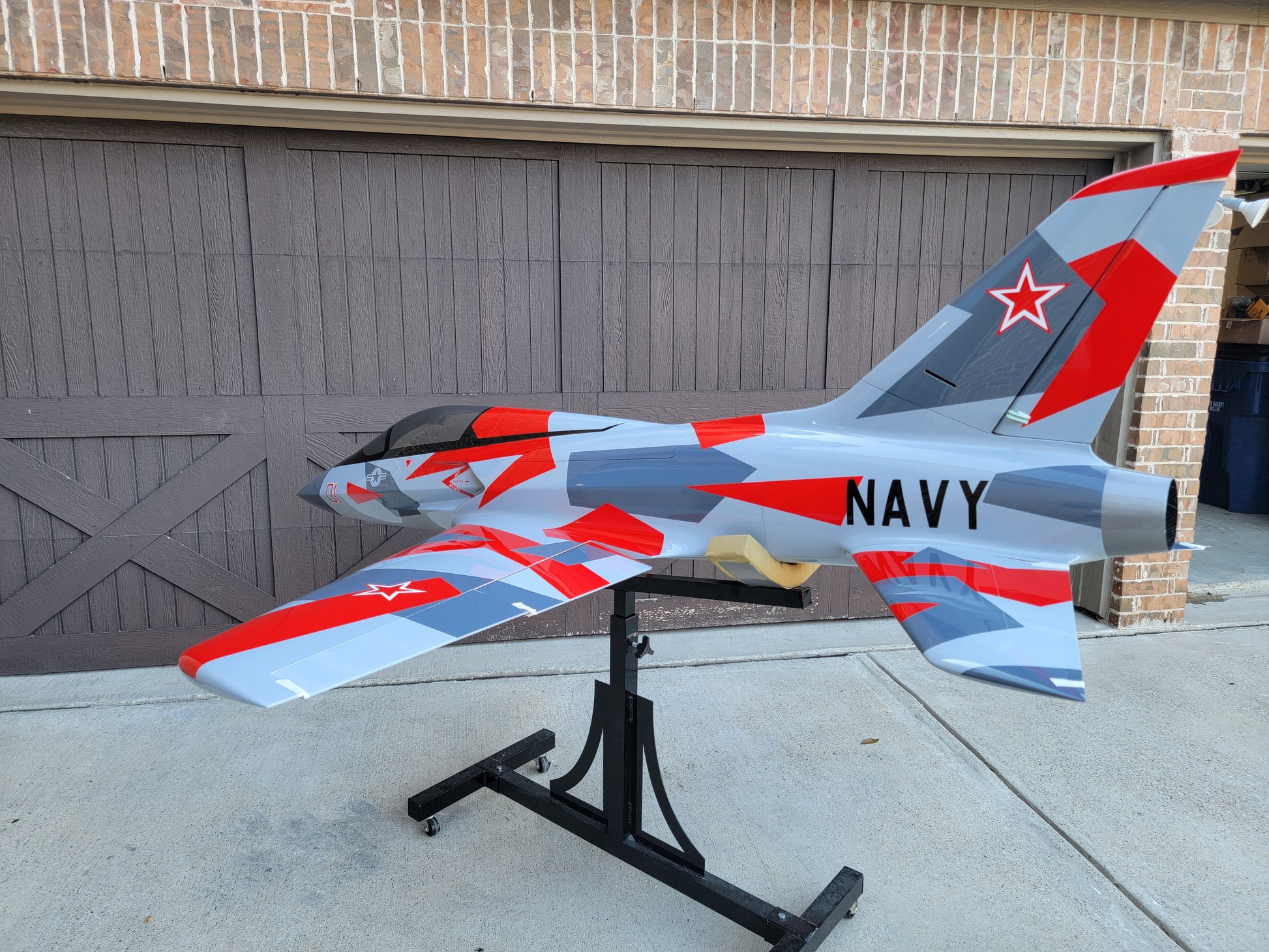

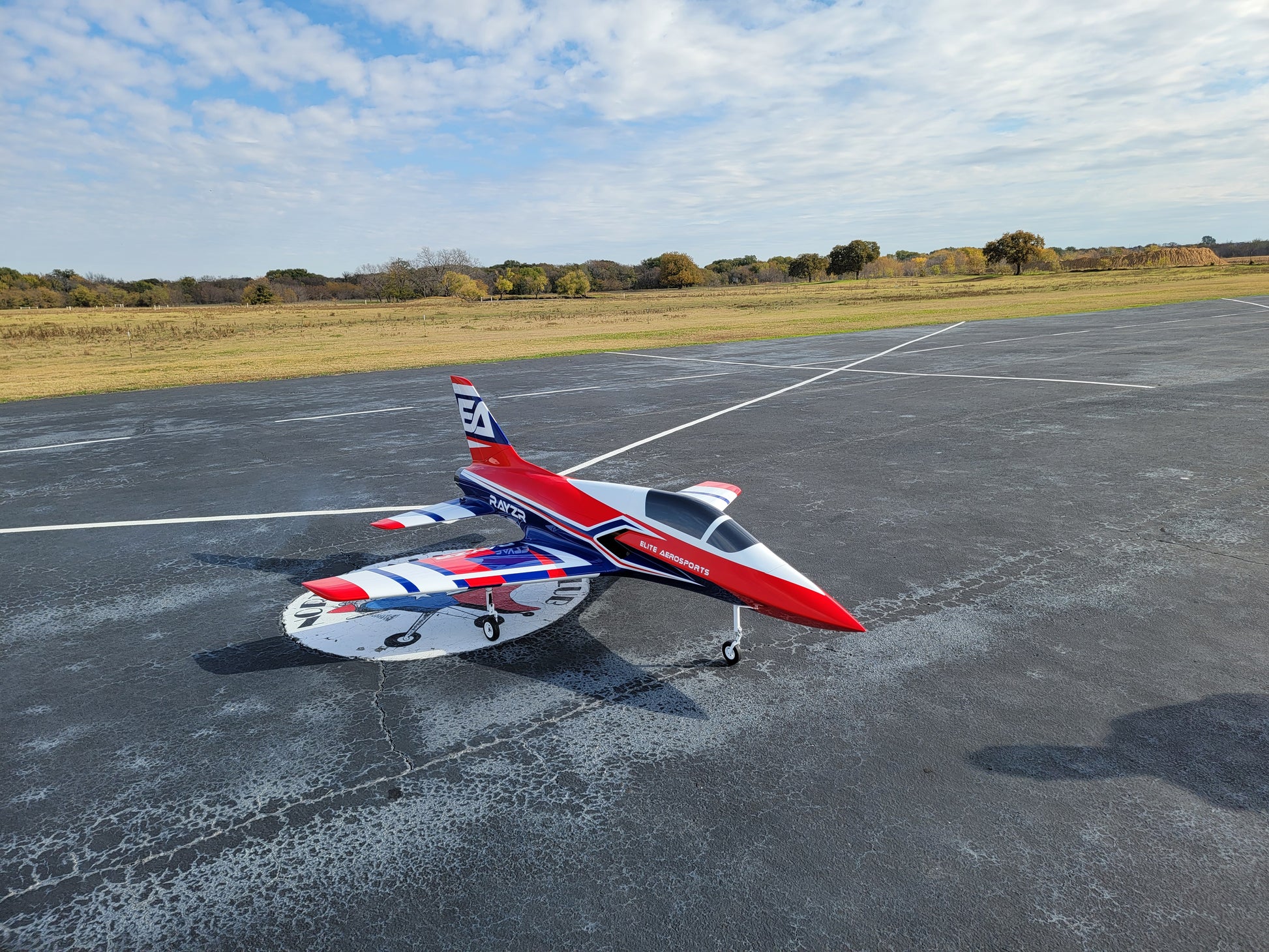

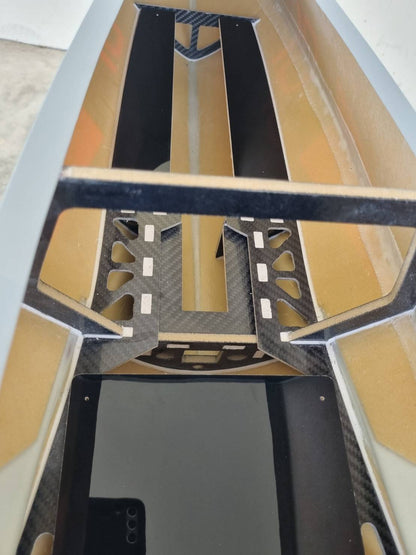

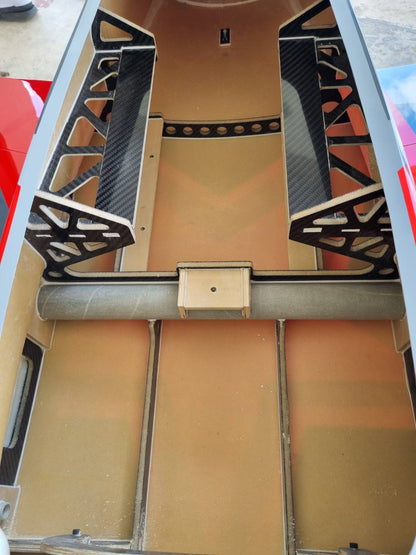

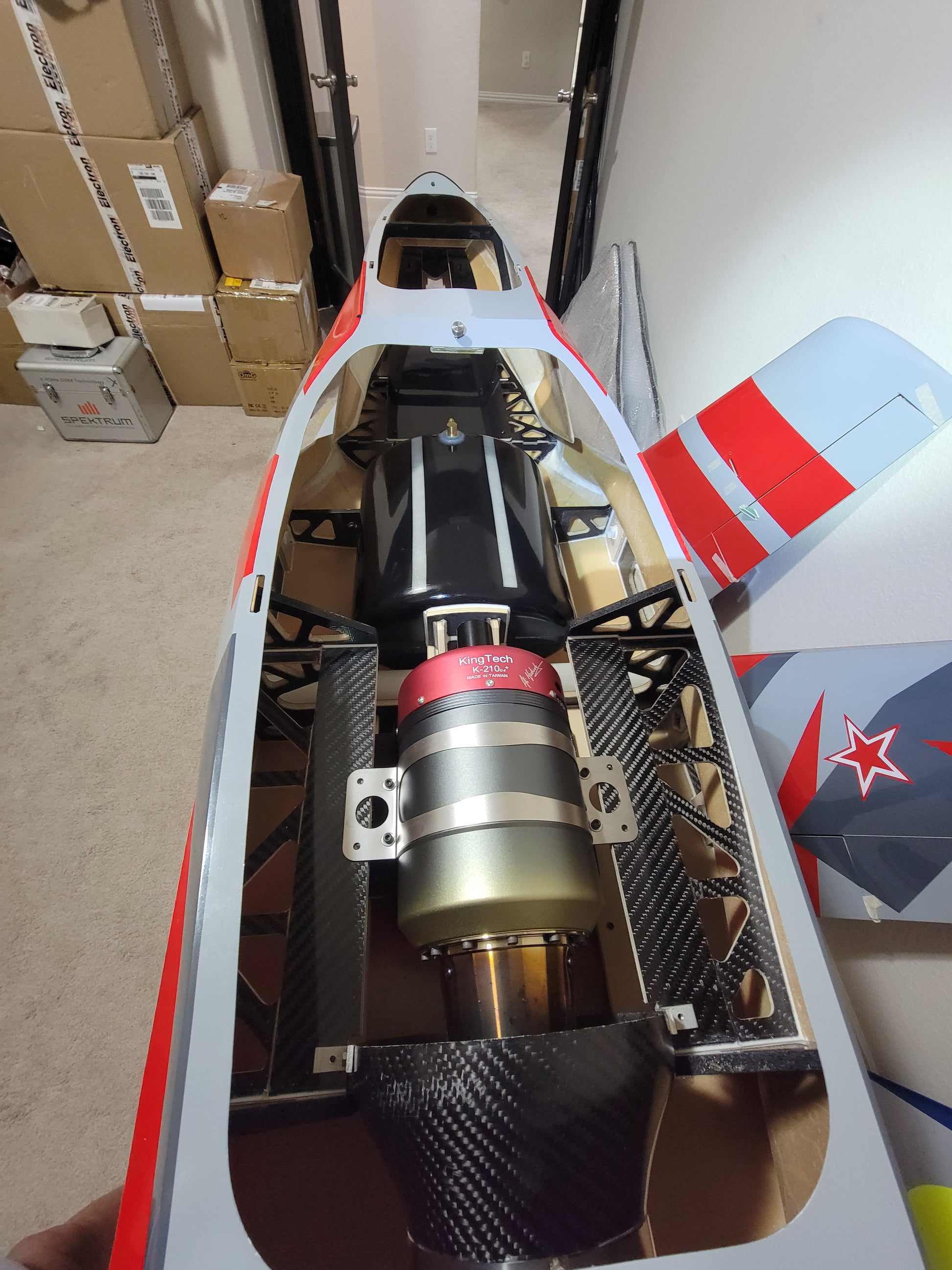

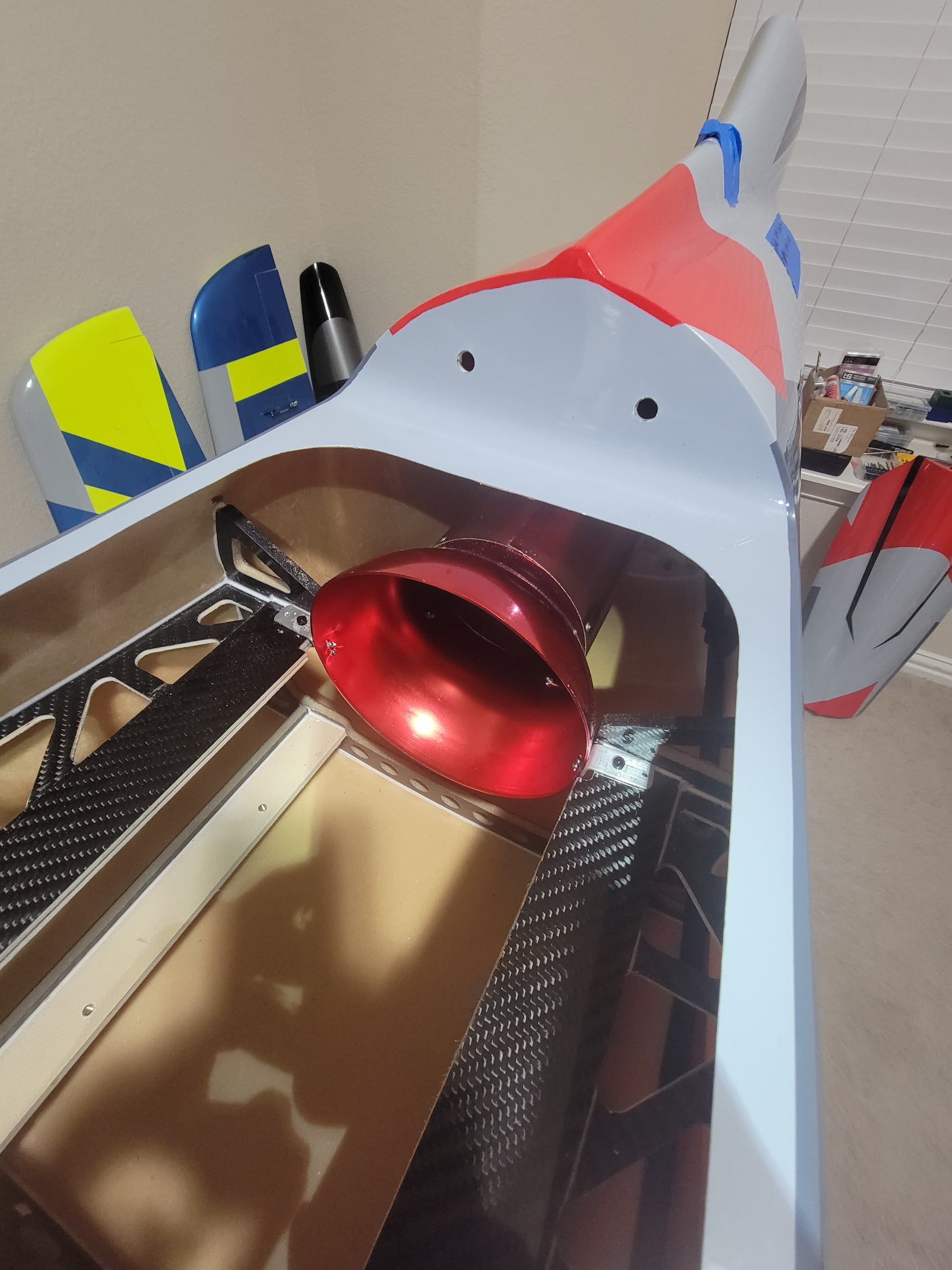

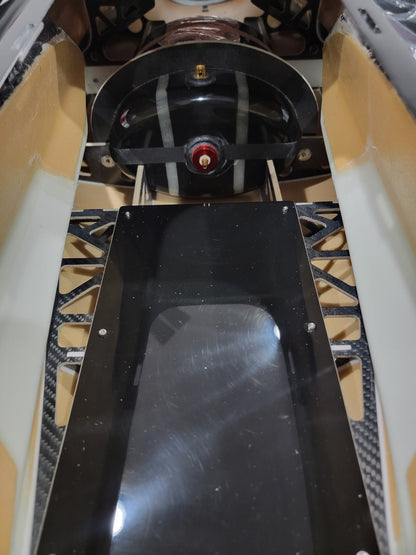

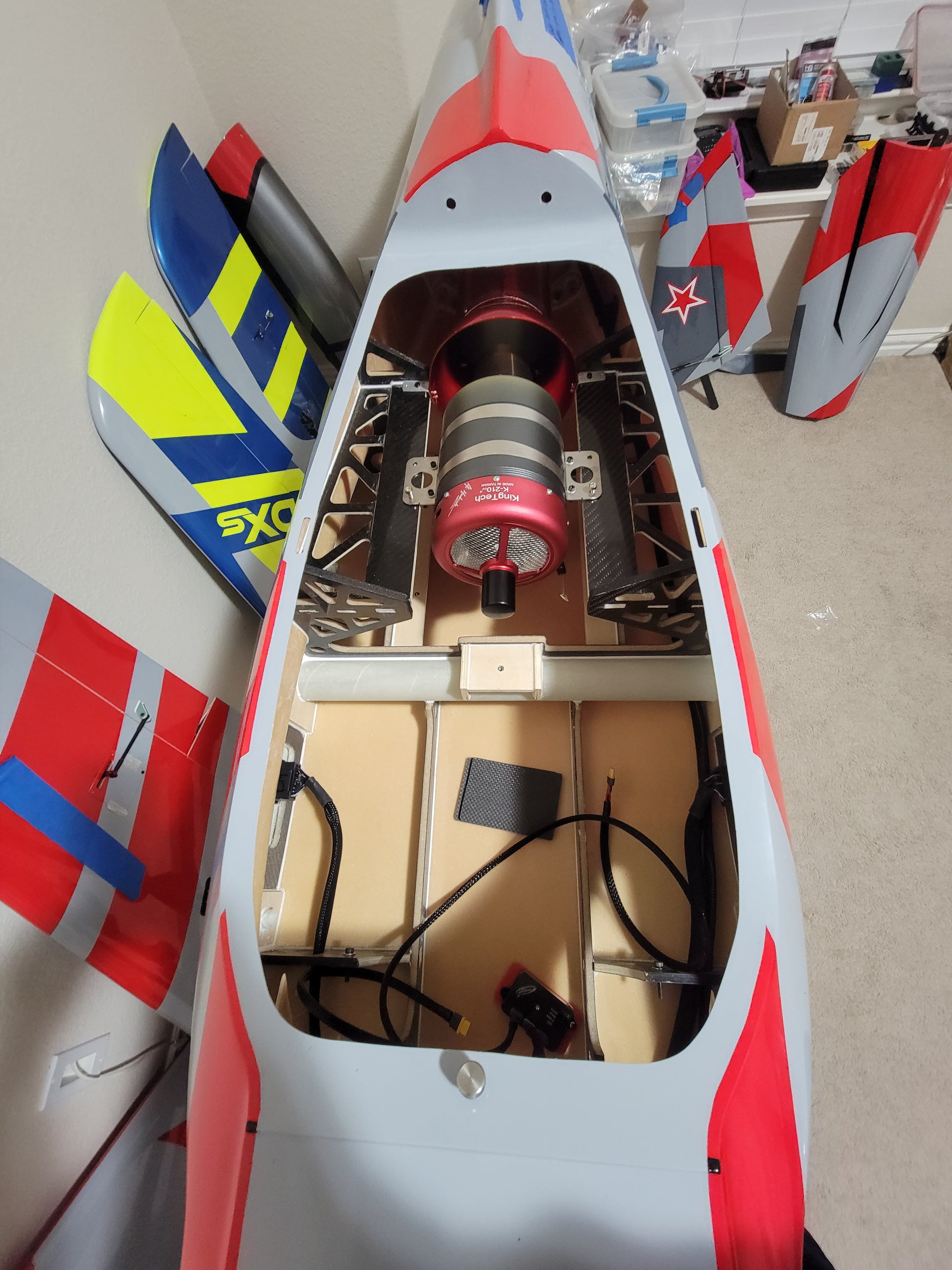

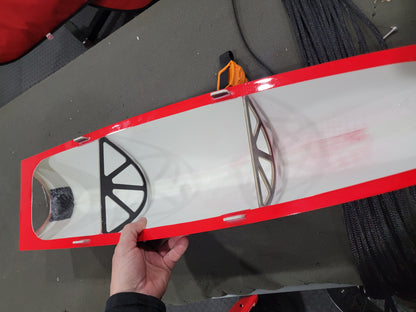

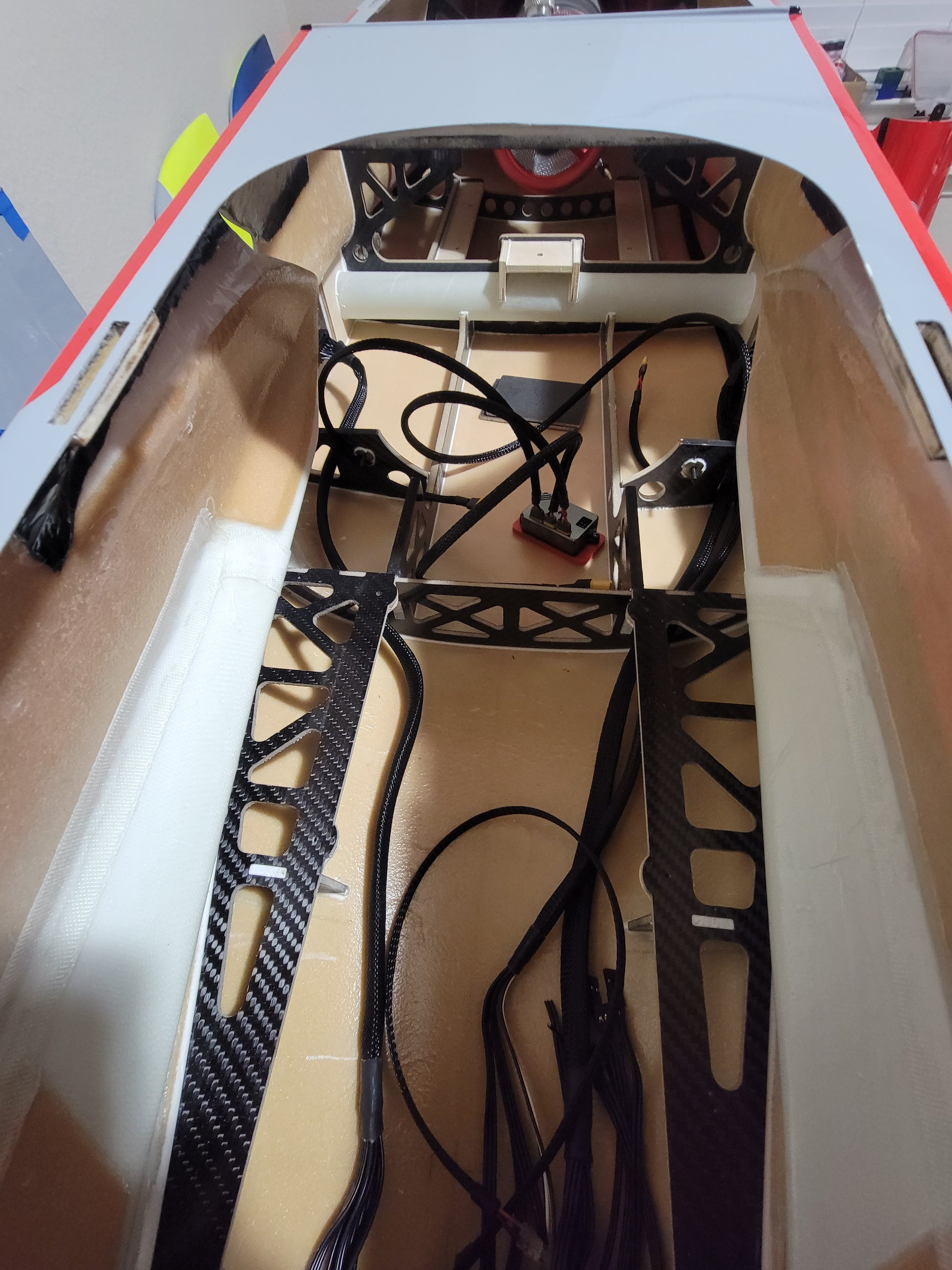

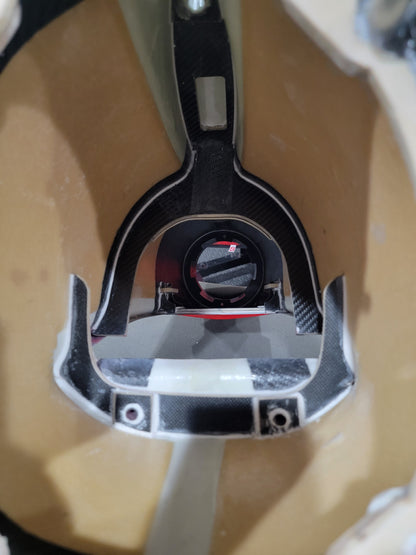

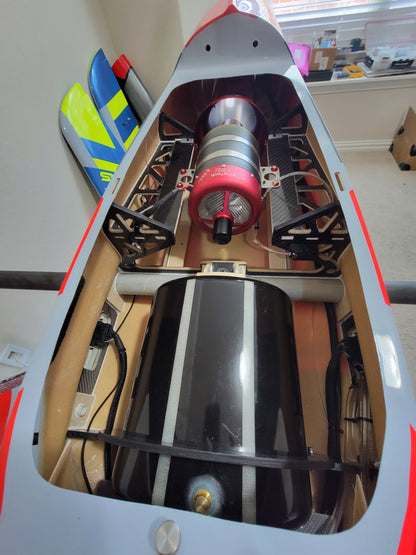

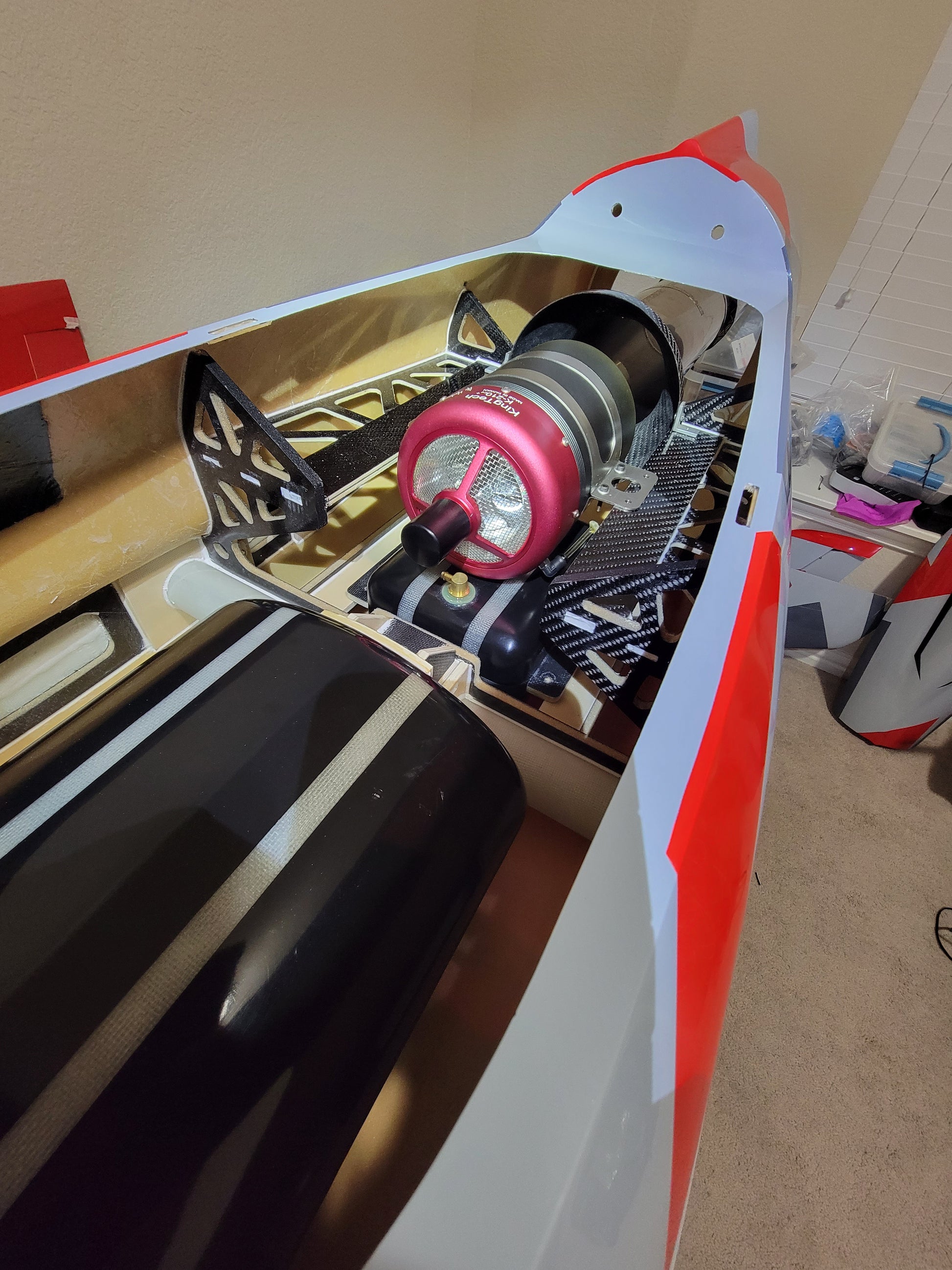

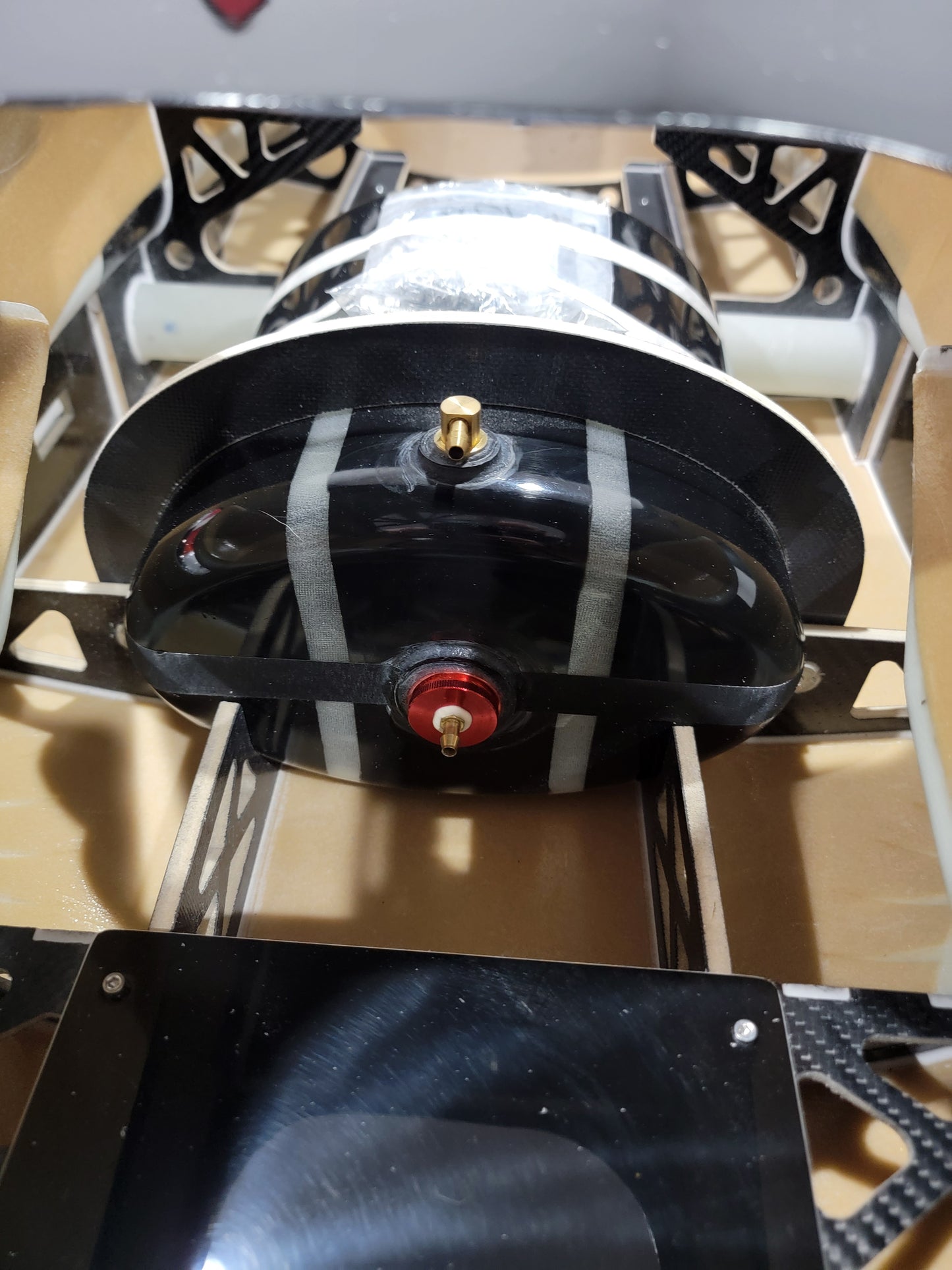

We designed the RAYZR with a one piece stab, a rear engine hatch, and a forward canopy hatch.  Some may recognize these features from our popular Shockwave model.  The separate canopy hatch is easier to manage when accessing your radio equipment and/or turbine electronics.  The engine bay is also the widest, most spacious compartment we have designed to date.  This large hatch area allows easy assembly and servicing.  We went for the simplicity of a single 6L fuel cell system and used large engine rails to create a versatile turbine mount that fits just about all turbine manufacturers.  The model's landing gear area and mounts are designed around the very popular/robust Electron ER50 landing gears.  The model has a two piece fuselage and breaks down with 4 bolts.  It can easily break down and fit in smaller vehicles for transport.  A clear canopy and cockpit for the RAYZR will be coming in the near future.

The RAYZR shares the same airfoil as the BDX, which has proven to be very forgiving, high performing, extremely aerobatic, and a low stall speed aircraft.  Short takeoffs and landings are a breeze and it can be flown from just about any sized airfield.  Slow, nose high, wheelie landings are effortless. The RAYZR has a swept wing configuration that has an increased flight performance compared to similar sized models

We chose the very popular 220n turbine size with a 2.3M wingspan X 2.65 length to start with.  This size model compliments the very popular turbine size of 180n to 220n and it's a great sized model with the perfect wing loading.

It's weight is just under 17kg dry.  At this weight in conjunction with it's abundant wing area, it is a very lightly wing-loaded aircraft.  The RAYZR is capable of just about any aerobatic maneuvers and still performs wonderful in slow fight.  Check out the specs and photos below!



RAYZR Specifications:

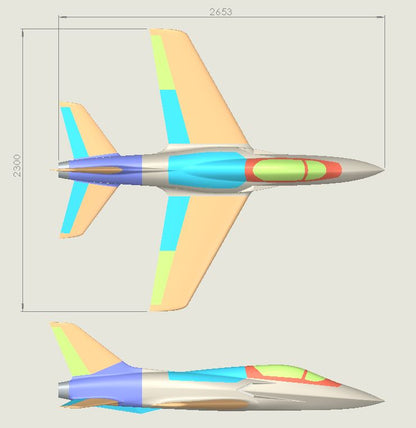

• Wingspan: 2.3m / 91 Inches
• Length: 2.65m / 104 Inches
• Weight: 17kg
• Power: 180N-220N

ARF Kit Includes:

• Hardware
• Linkages
• 6.0L Fuel Cell
• Stainless dual wall thrust pipe
• Electron landing gear ER 50 with GS200
• Standard wing, vertical and horizontal stabilizer covers
• Carbon Fiber wing and vertical and tube

PNP Kit Includes:

• (8) Pre-installed HV servos 36 kg coreless
• All linkages installed and connected
• 6.0L Fuel cell installed and all fuel line ran with vent
• UAT installed
• Wire harness installed
• Wiring completed with connectors and wire loom. Wiring is labeled and run to equipment tray
• Installed Stainless dual wall thrust pipe
• Electron ER 50 landing gear with GS200 controller installed
• Add receiver, gyro, turbine, and batteries.
• Hardware
• Linkages
• Stainless dual wall thrust pipe
• Standard wing, vertical and horizontal stabilizer covers
• Carbon Fiber wing and vertical and horizontal tubes
• Some modeling experience is required with PNP products.  Our products are built by skilled factory workers, who are not modelers, so please go over every nut and bolt before flights.  Some bolts may still require locktite.
• True Turn key services are available in USA starting at $1500 and up.

Kit Features:

• Extensive Pre-fabrication
• Painted outside mold with clear coat finish
• Very light all composite sandwich layup
• Two-piece fuselage disassembles easily

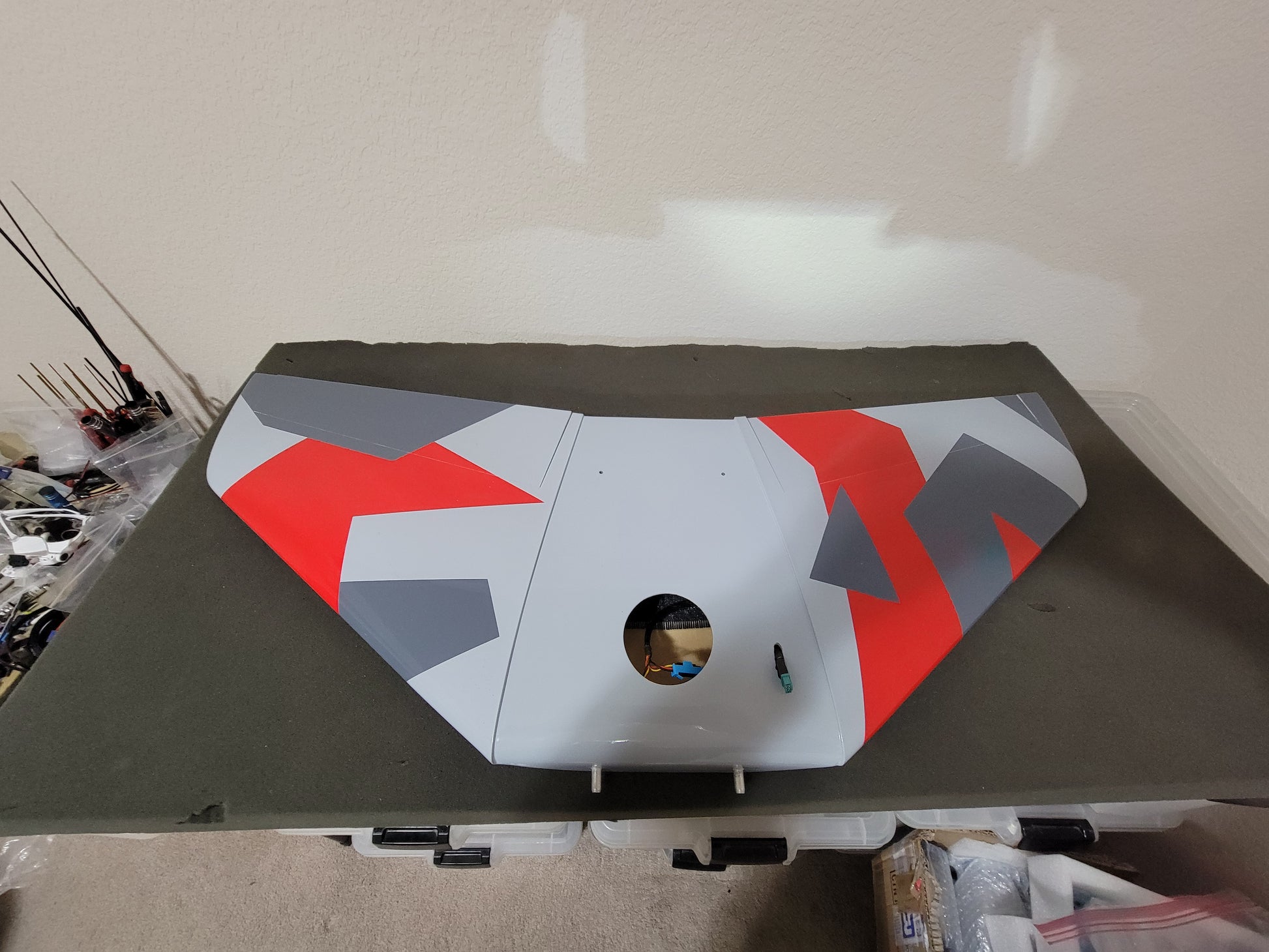

• Removable vertical and horizontal stabilizers with one bolt
• Carbon fiber reinforcement throughout
• Carbon fiber wing and spar tubes
• Fuselage, wing, rudder and stab covers
• Diverse speed envelope, highly maneuverable while maintaining outstanding slow speed performance

Pricing:

• Introductory ARF price $6995 (Electron landing gear ER50 and GS200 controller)
• Introductory PNP price $8495 $ (Electron landing gear ER 50 and GS200 controller)
• Custom paint schemes available, $500 and up.
• DHL shipping $1895
• Sea Shipping cost est. $795

Optional Accessories:

• J.E.T. Joey Pipe upgrade $320
• Smoke tank and smoke hardware $179
• Digitech UAT 160 $129 Nalgene UAT $40
• Revoc wing/stab/rudder bags in black, red or grey $350
• Light sets starting at $399
• Custom build service $1500 and up depending on options
• Discount HV servos packages available
• Kingtech Turbines
• DHL Air Shipping is available
• Sea freight average cost is $795-895
• EA 36 KG BL HV servos $150
• Wire Harness $299



 Servo pockets are standard size 20mm x 40mm, so oversized servos will require some adjustment of pockets to fit.

Linkages

Aileron 100 MM x 2

Elevator 80 MM x 2

Flap 97 MM x 2

Rudder 120MM x 1

Steering 50 MM x 1

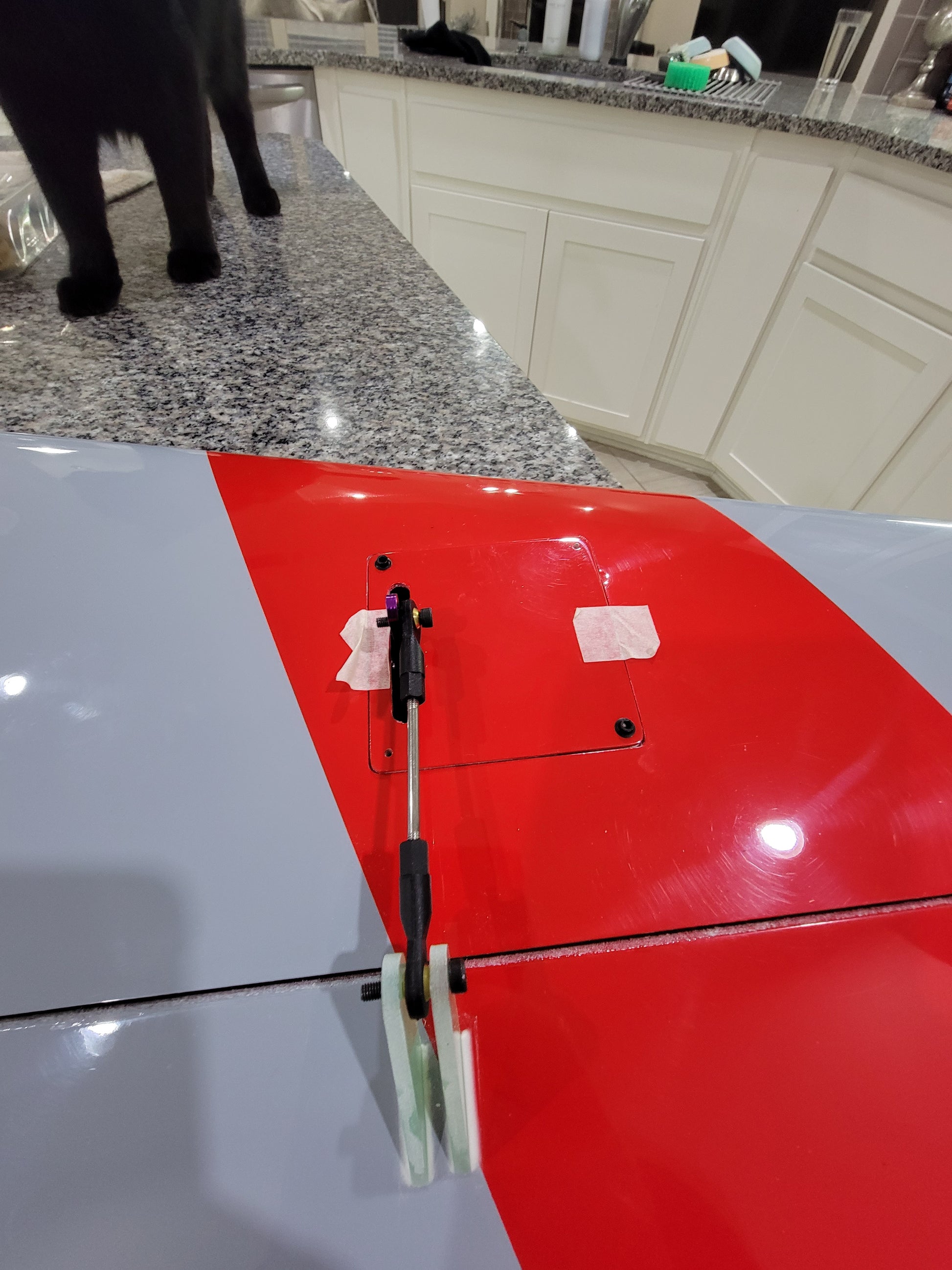

Servo arms

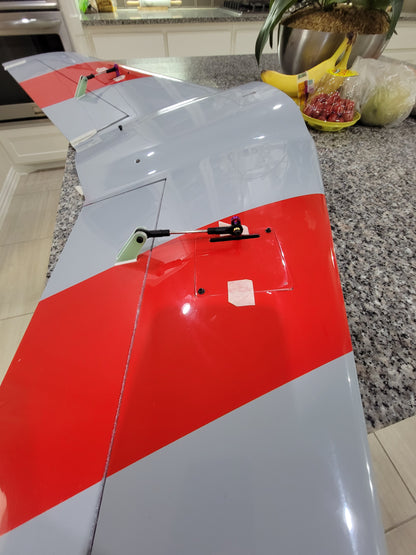

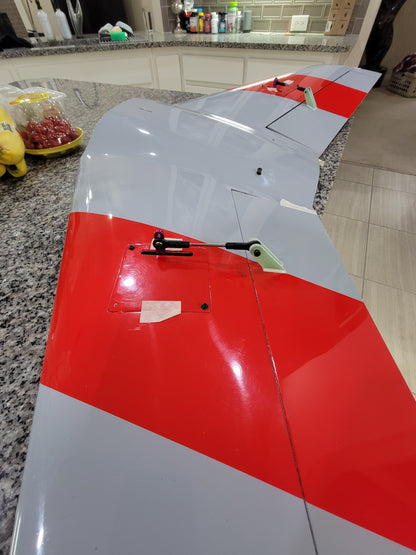

Aileron: 1.5” arm on inner hole

Elevator: 1.5” arm on inner hole

Flap: 1.0” arm on inner hole

Rudder: 1.5” arm on inner hole

CG:

Back of wing tube

Use batteries on battery tray for balance.  No lead needed.

Throws:

Aileron: 15-25mm/from tip.   low/high

Flaps:  full 90mm from aileron.  Mix 3-4mm down ele with full flap. Take off flaps 25mm from aileron

Elevator: 10.0-15.0mm from tip low high

Rudder:  75mm plus from base

Differential: 0%

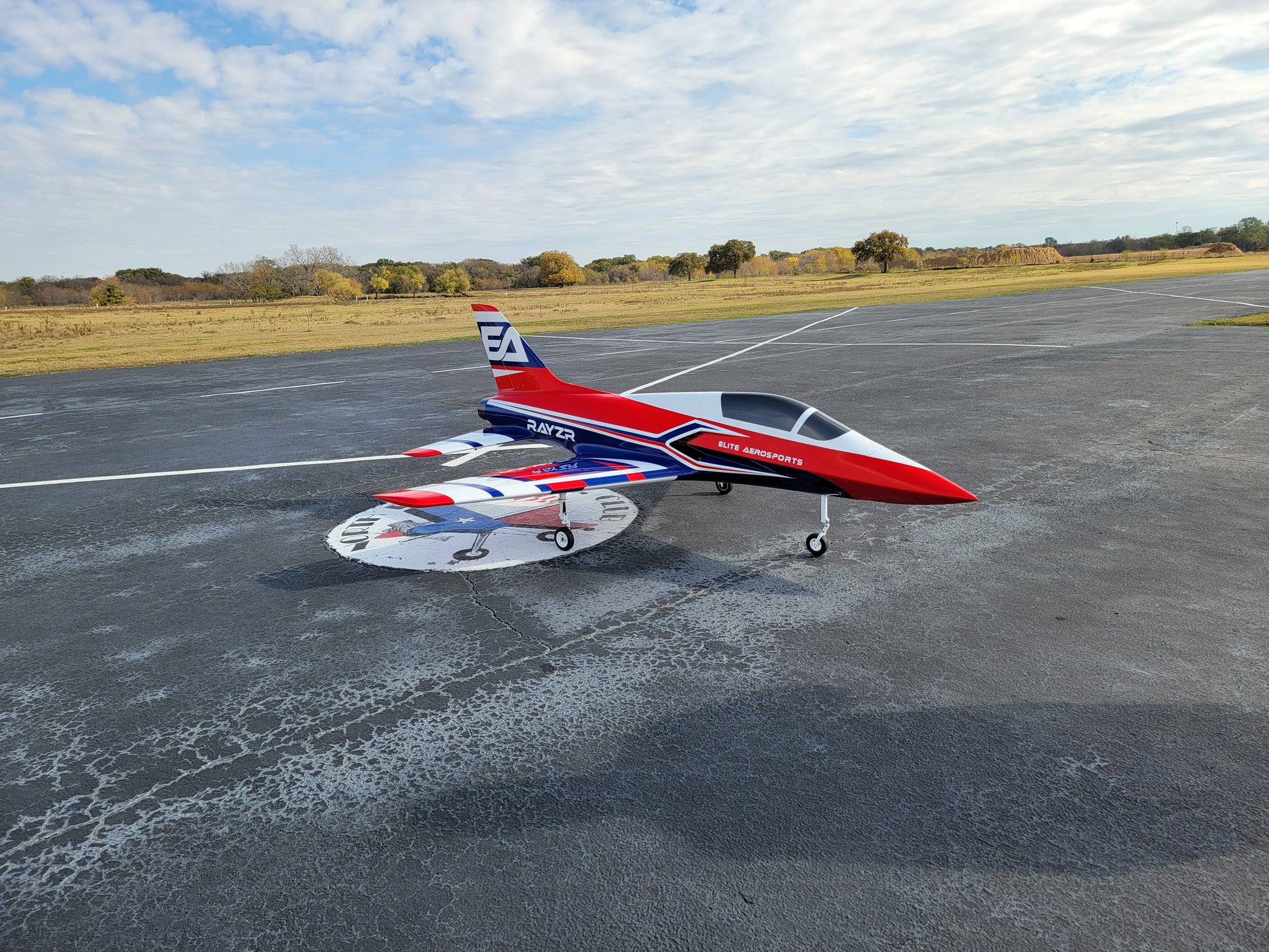

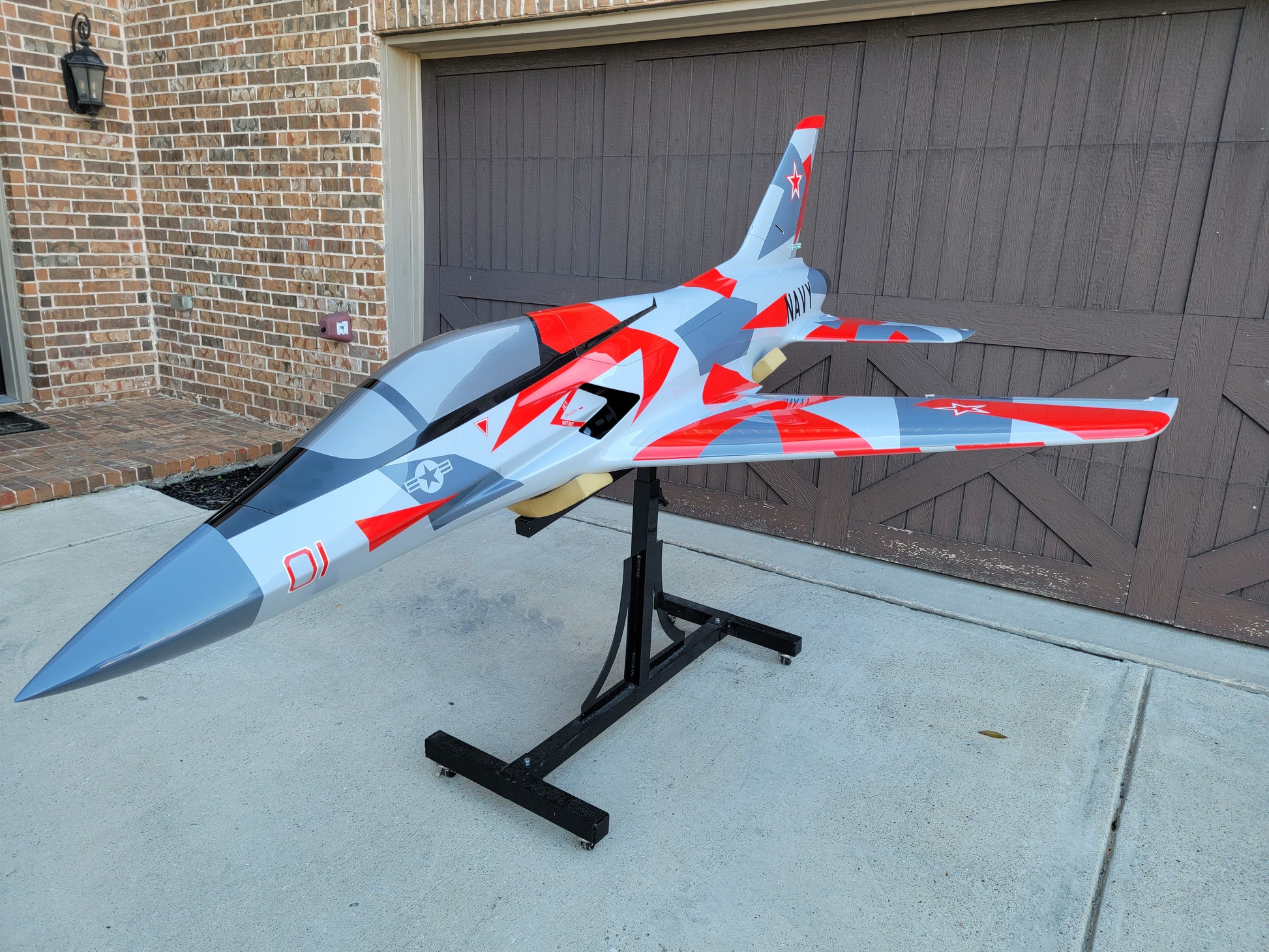

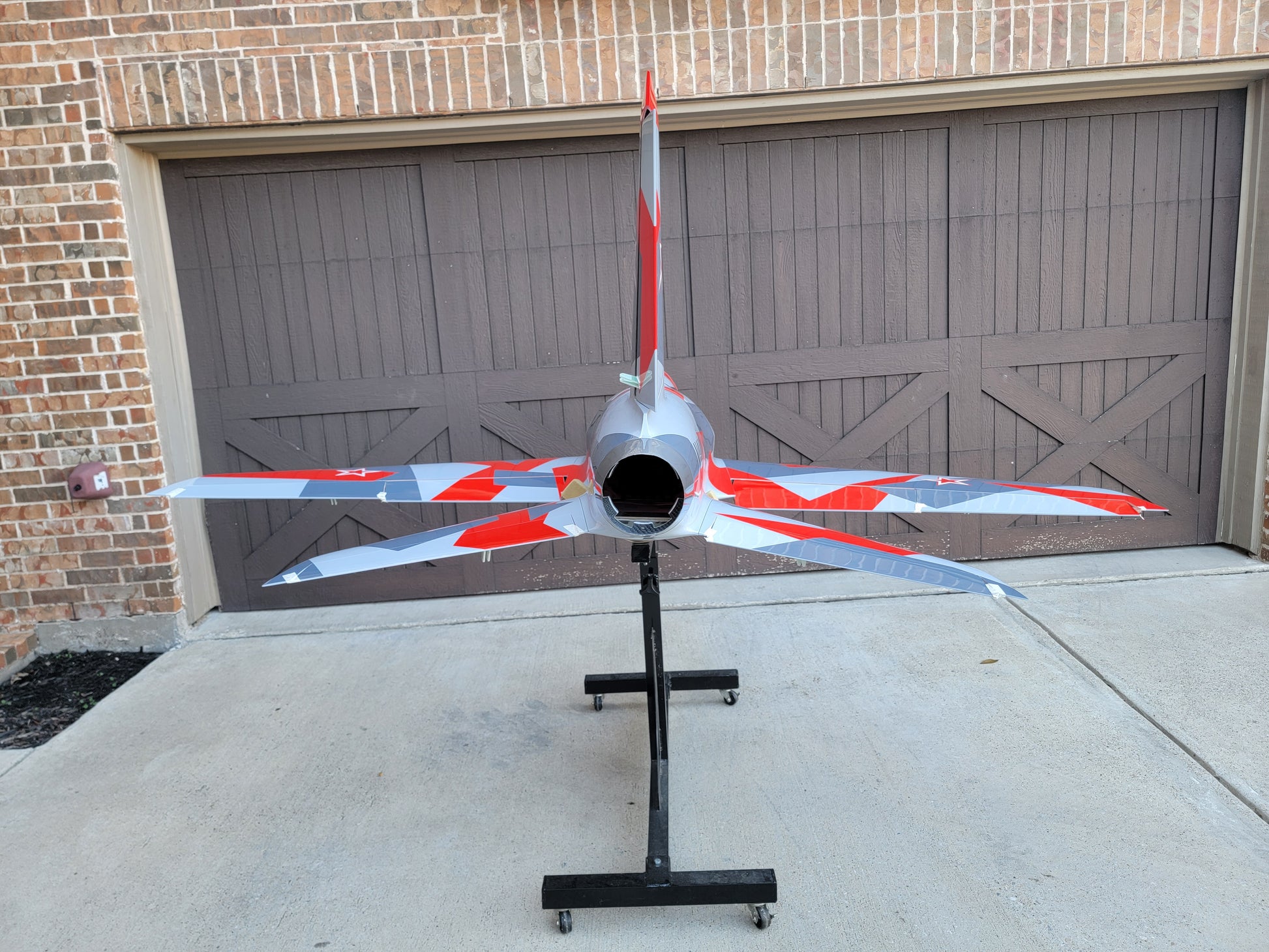

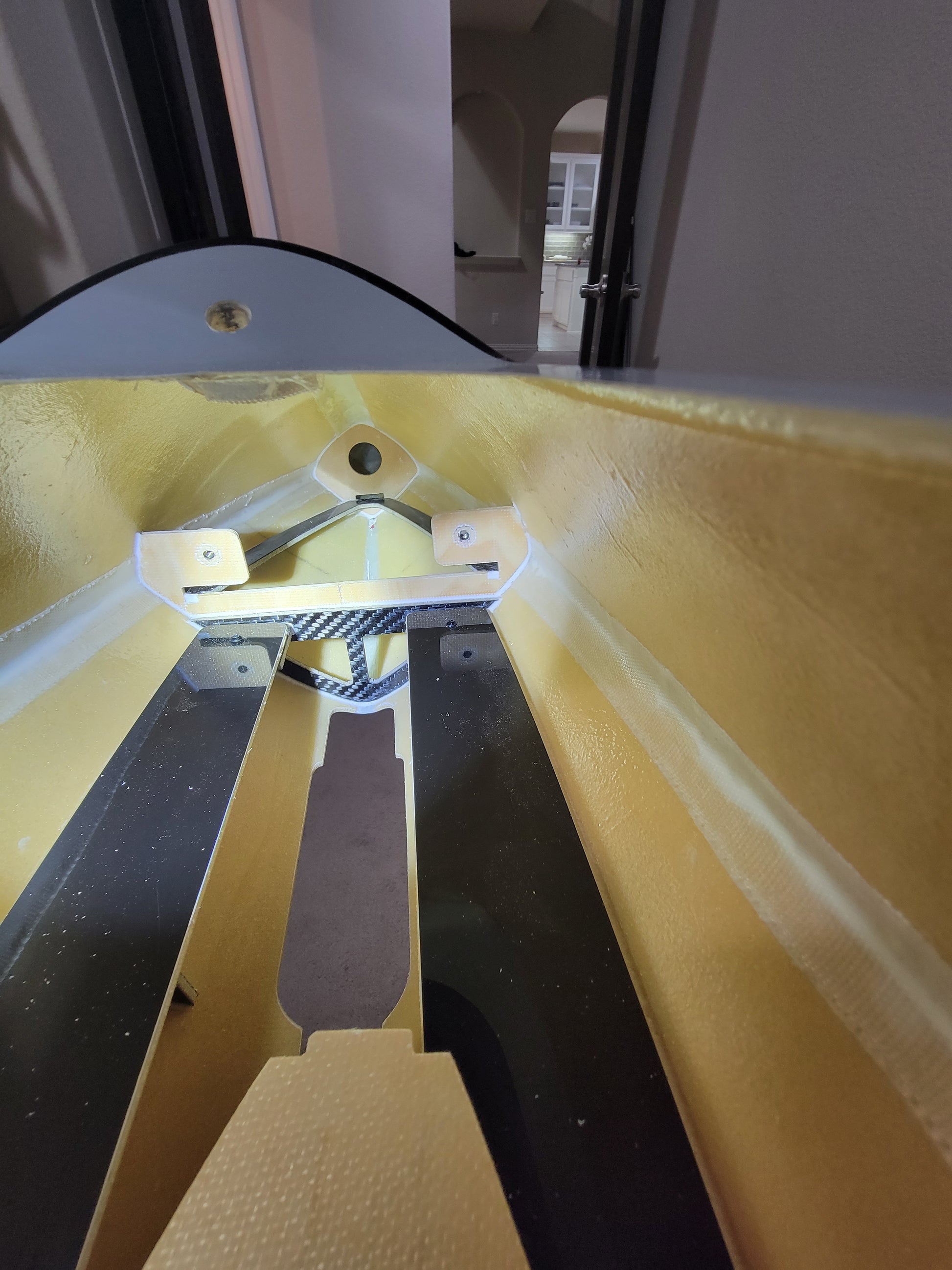

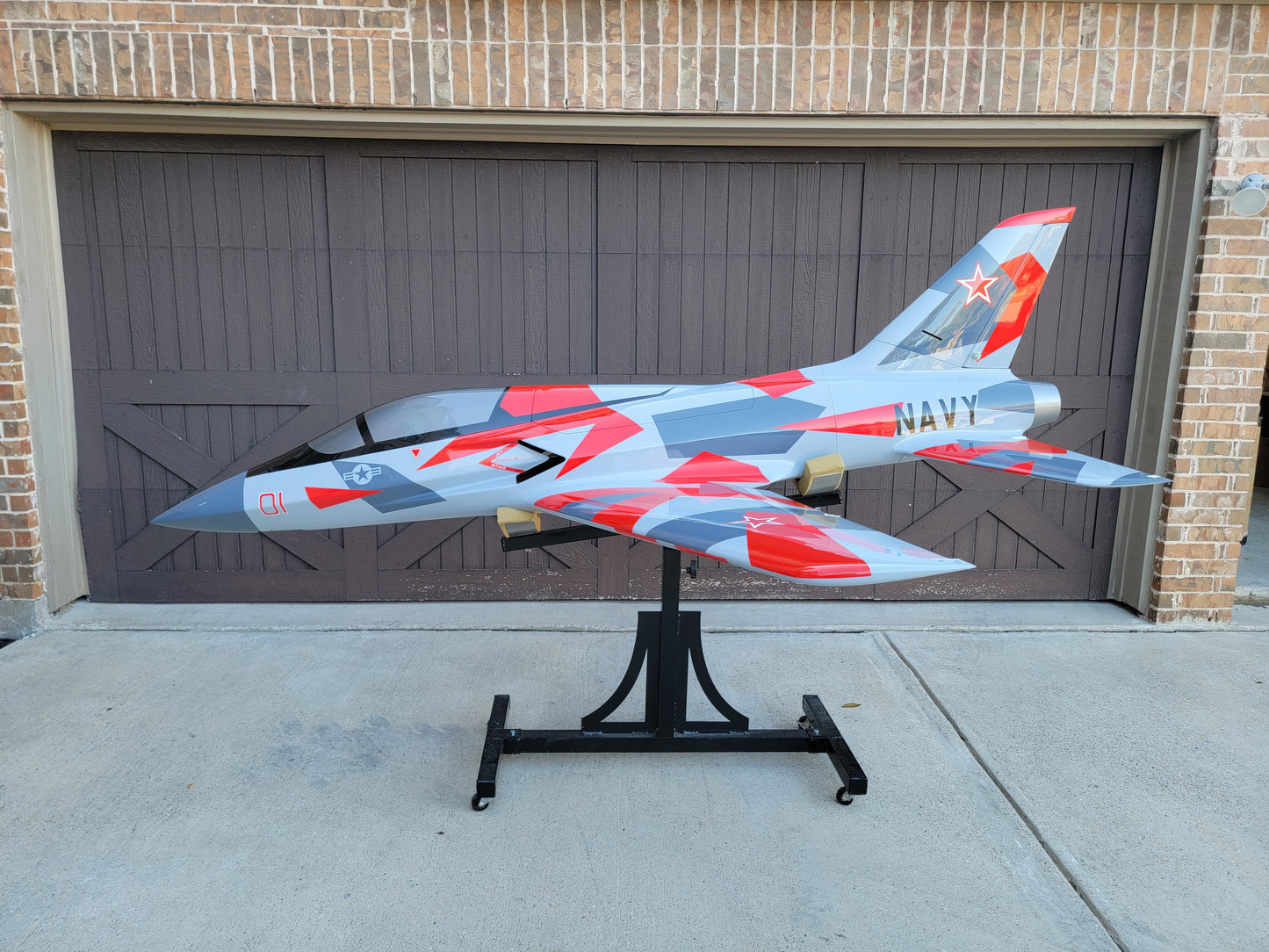

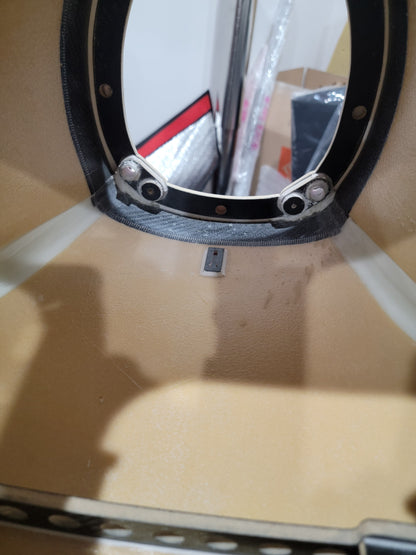

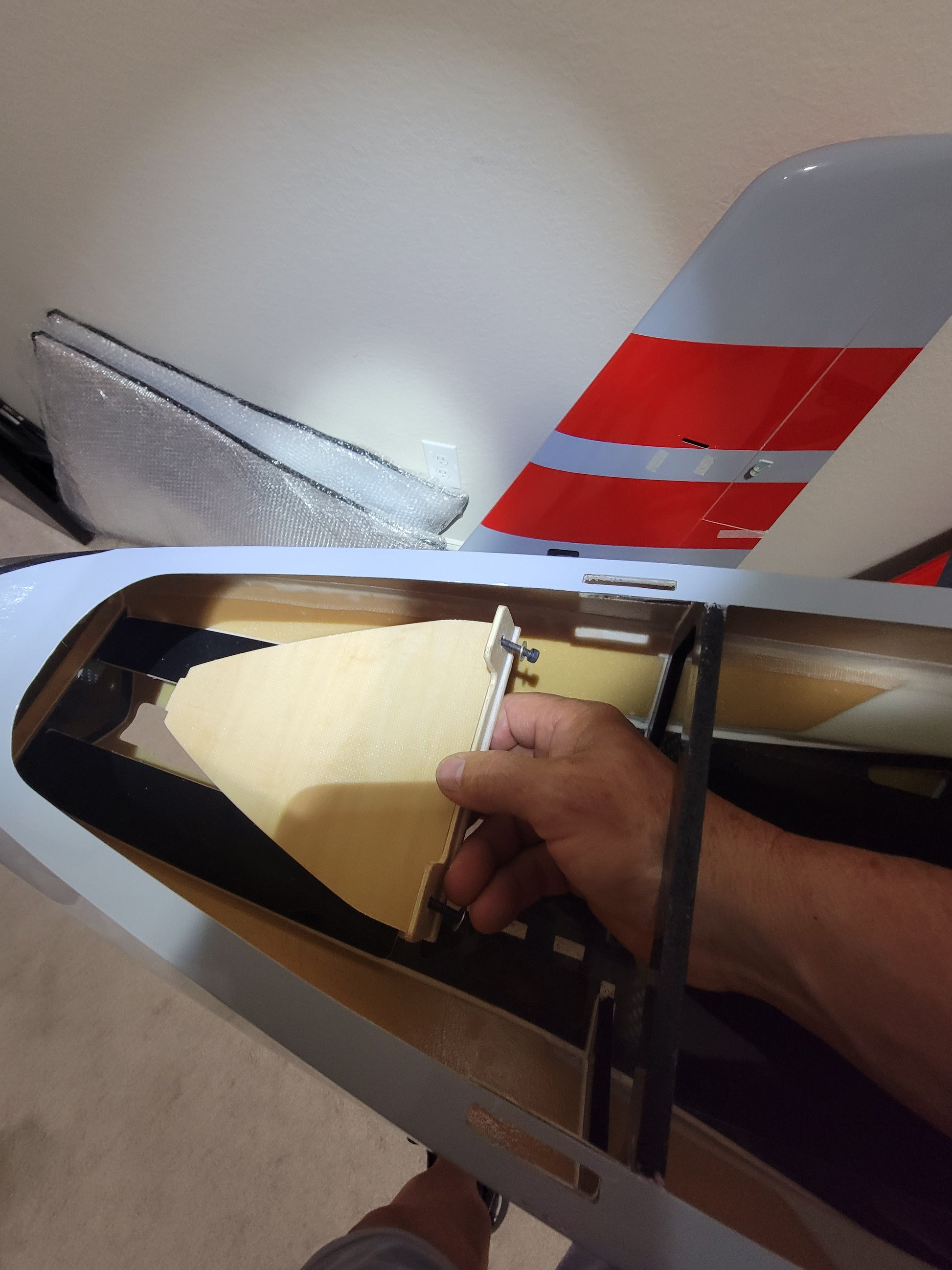

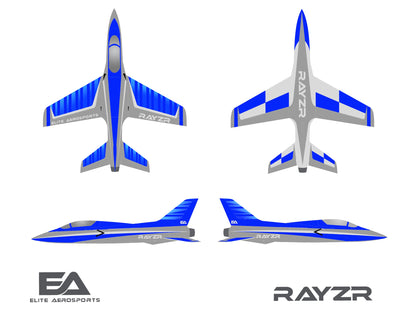

RAYZR Build Photos:

https://www.dropbox.com/scl/fo/y3l82gf0hebgttth84vq1/AEA6yTQXoELLjNjuKDViPn4?rlkey=stbq3hz432l1ib27op007n60l&dl=0

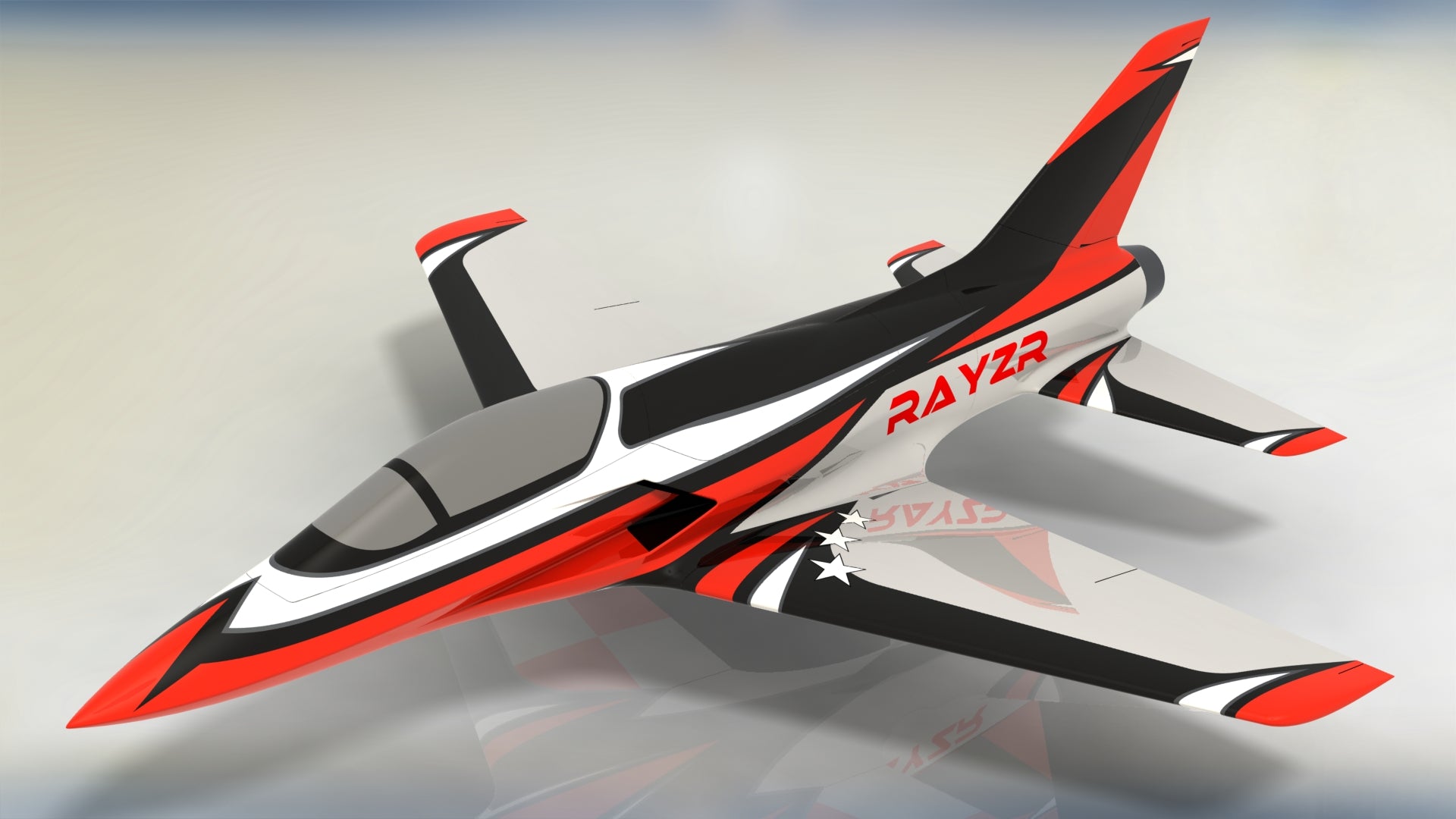

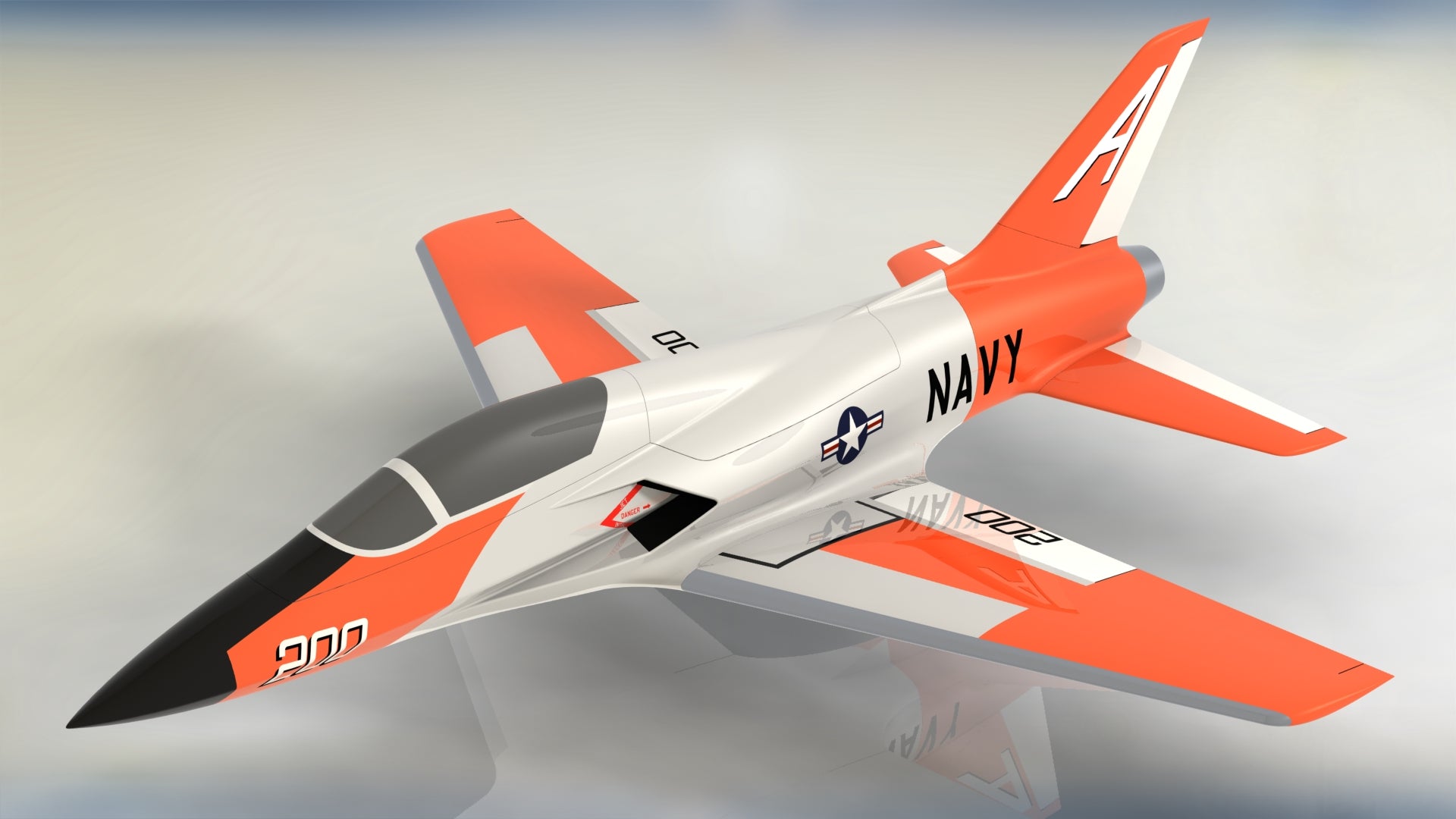

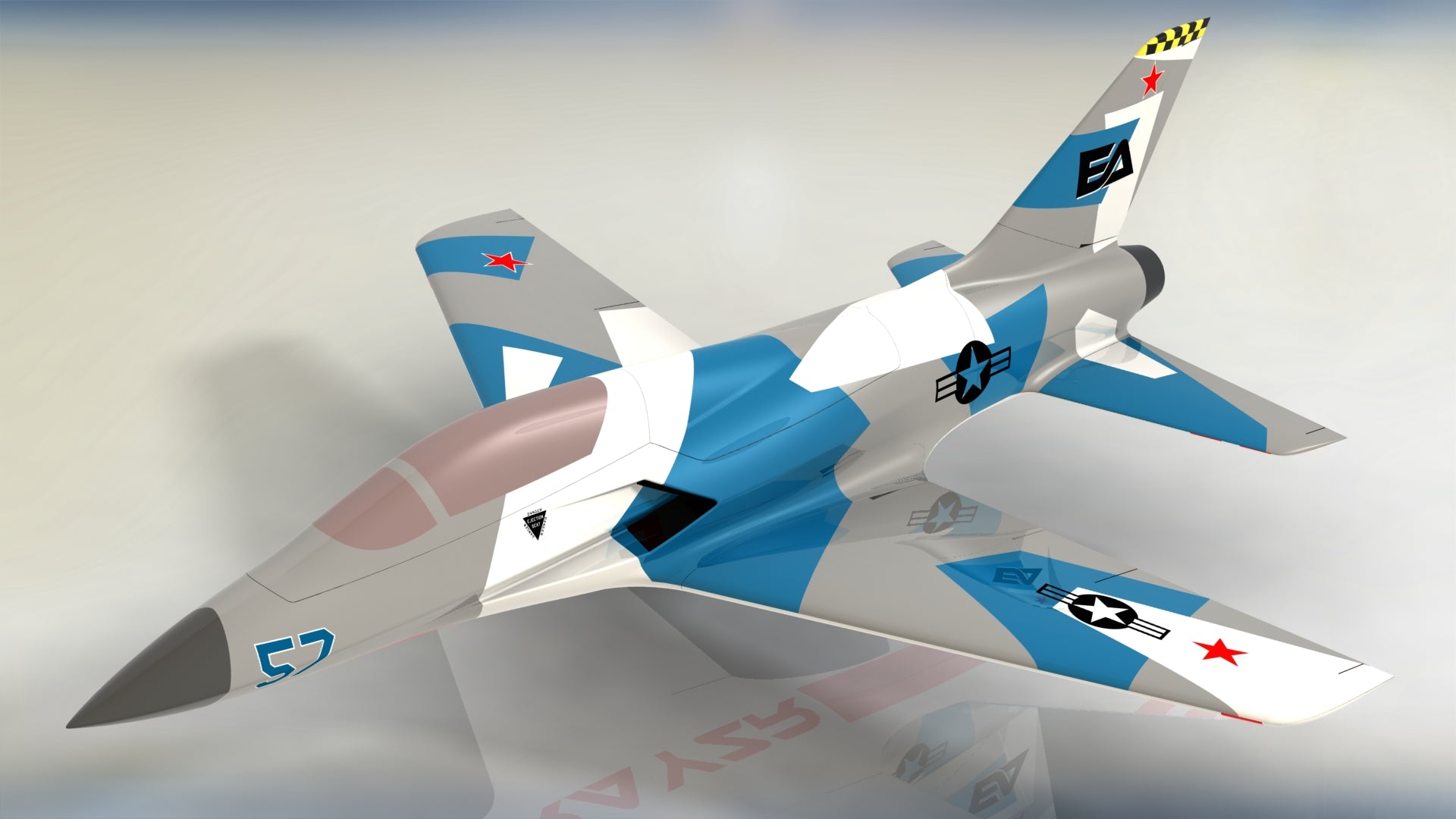

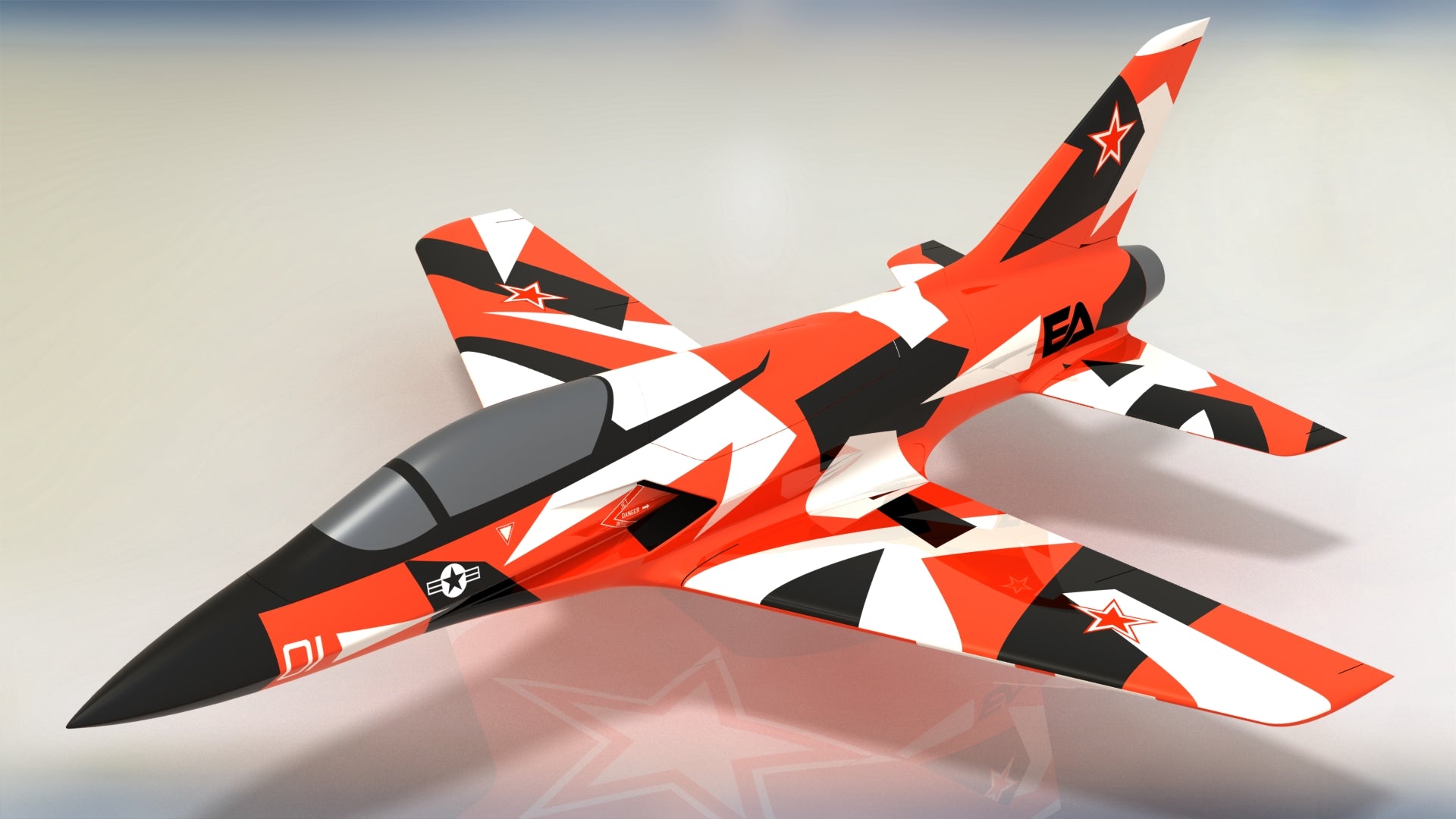

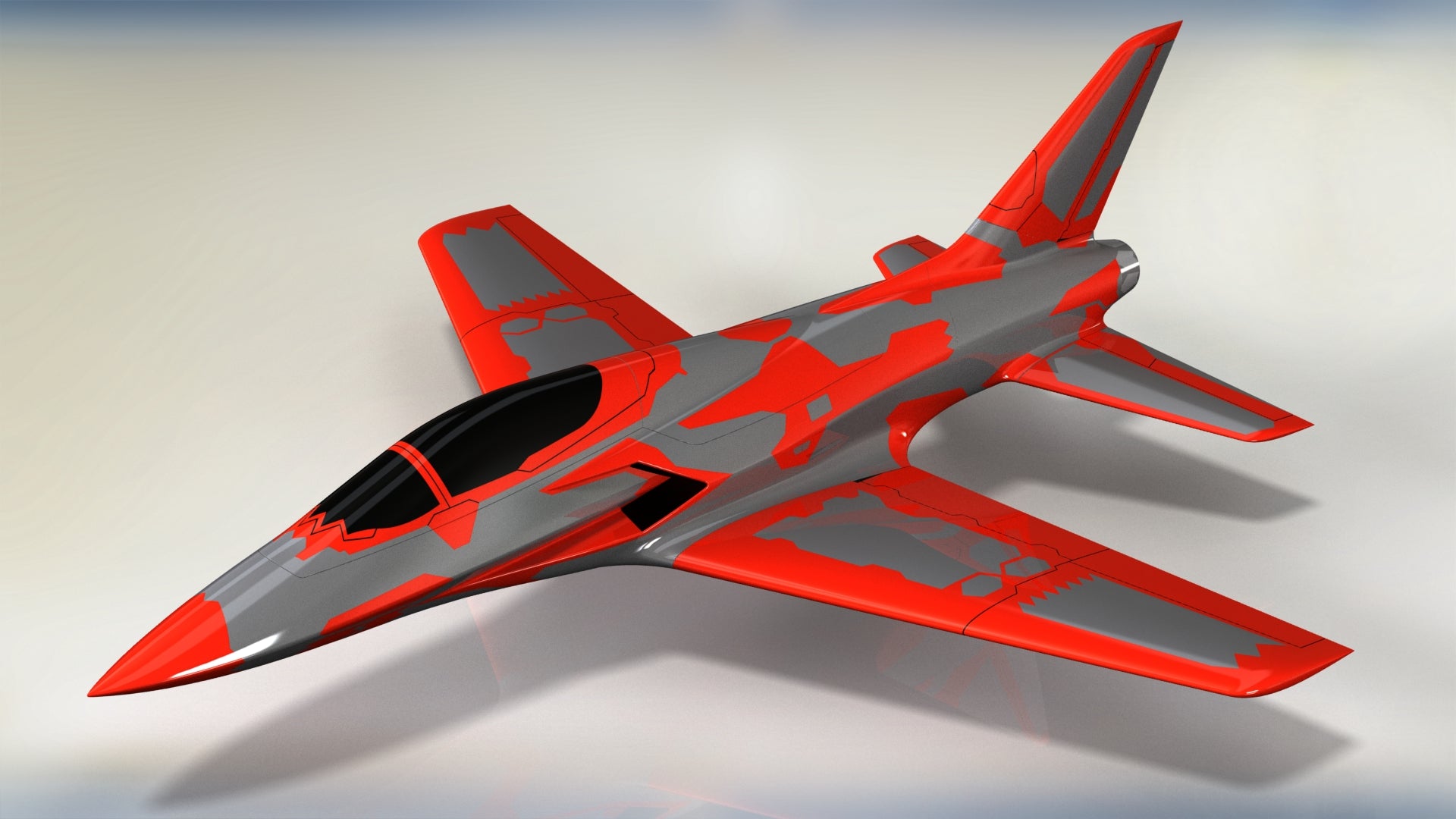

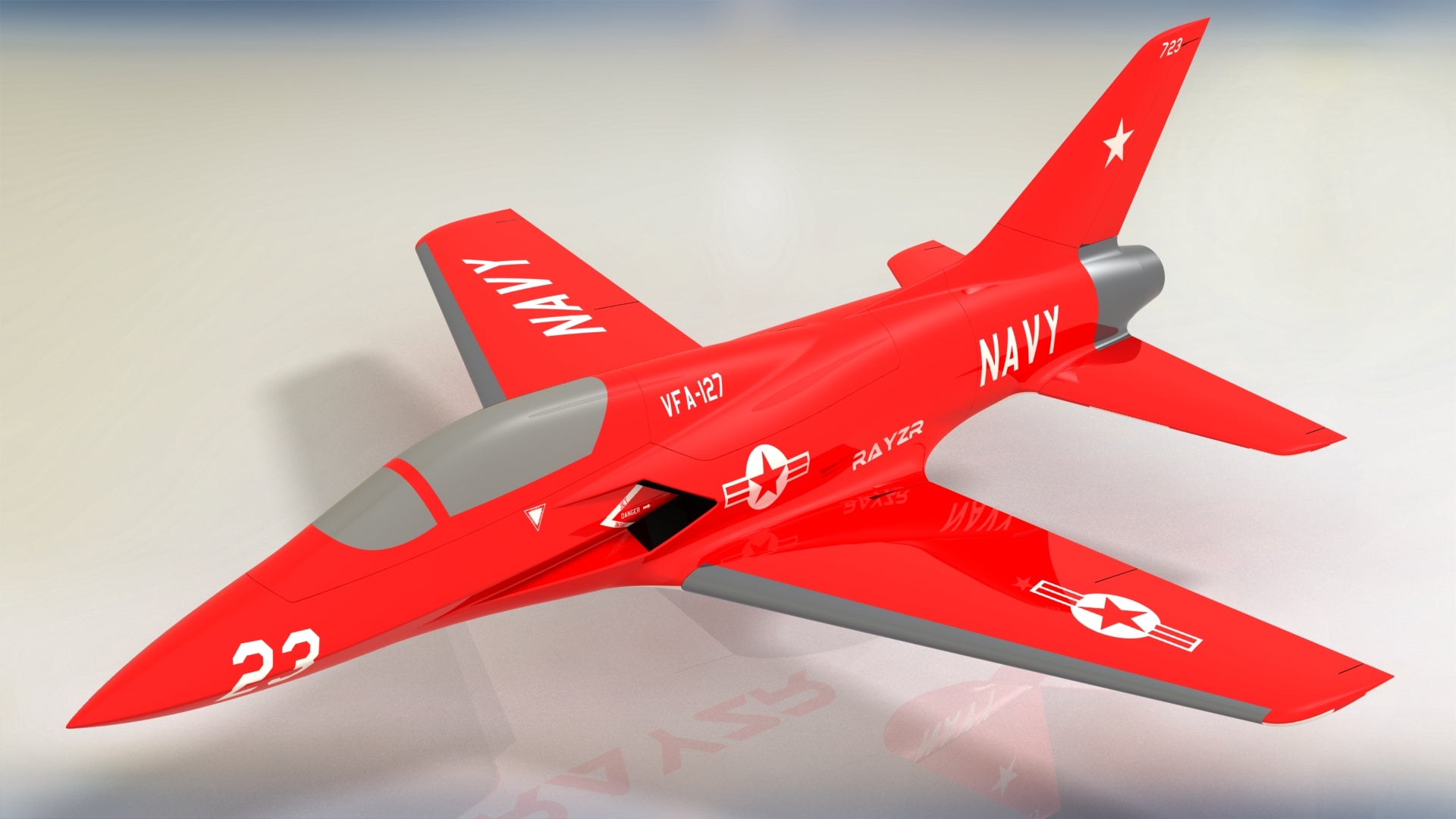

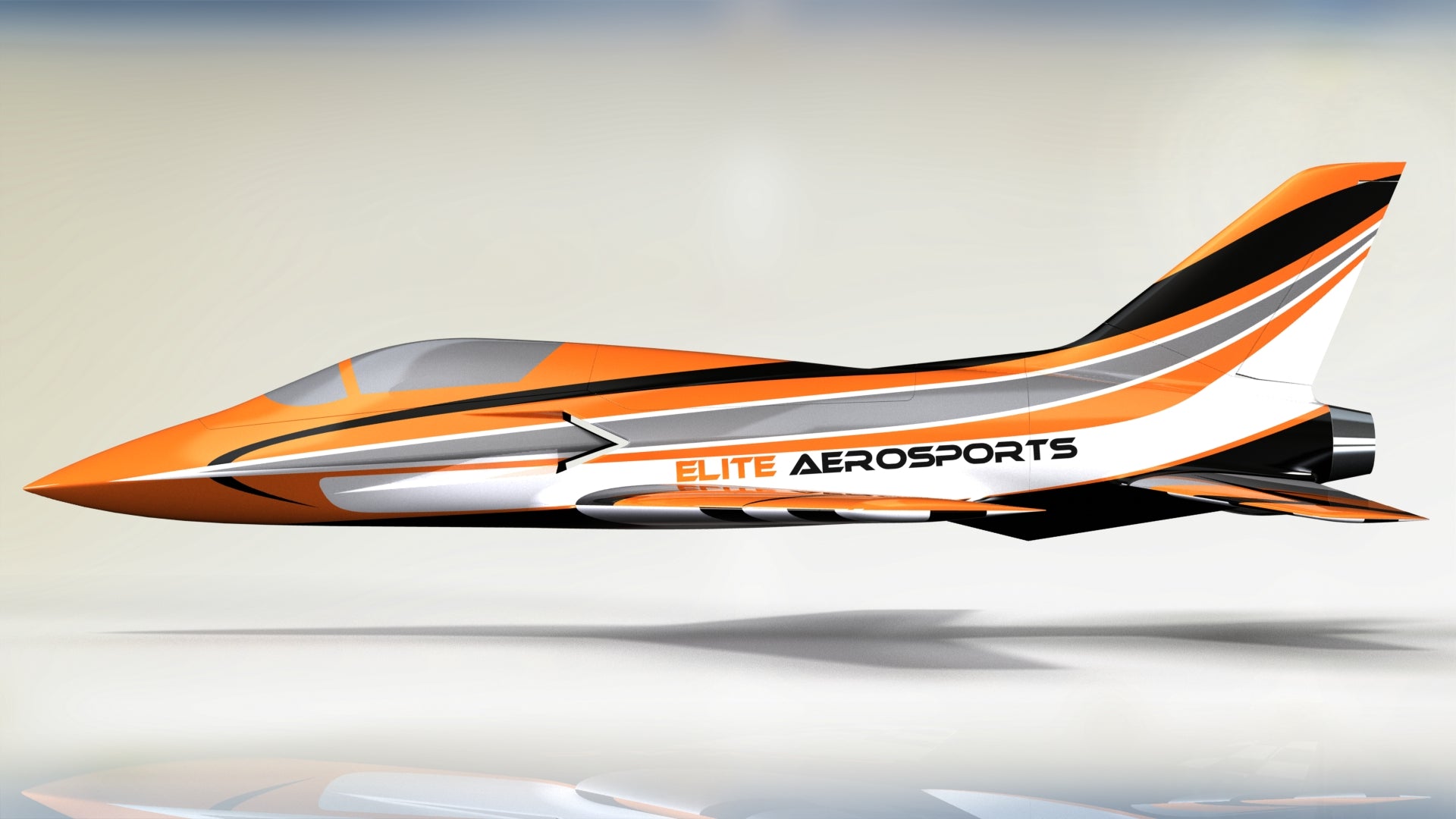

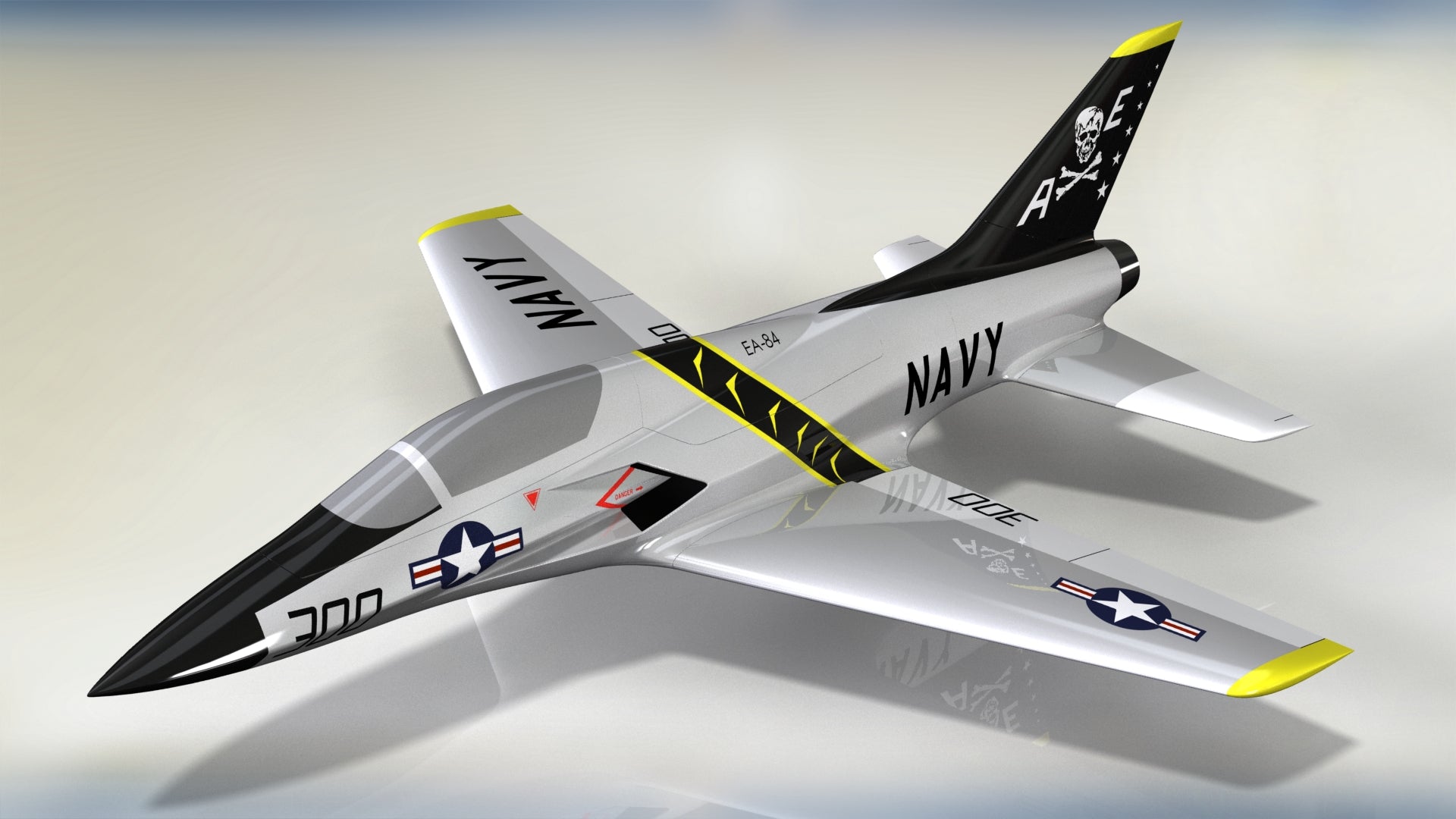

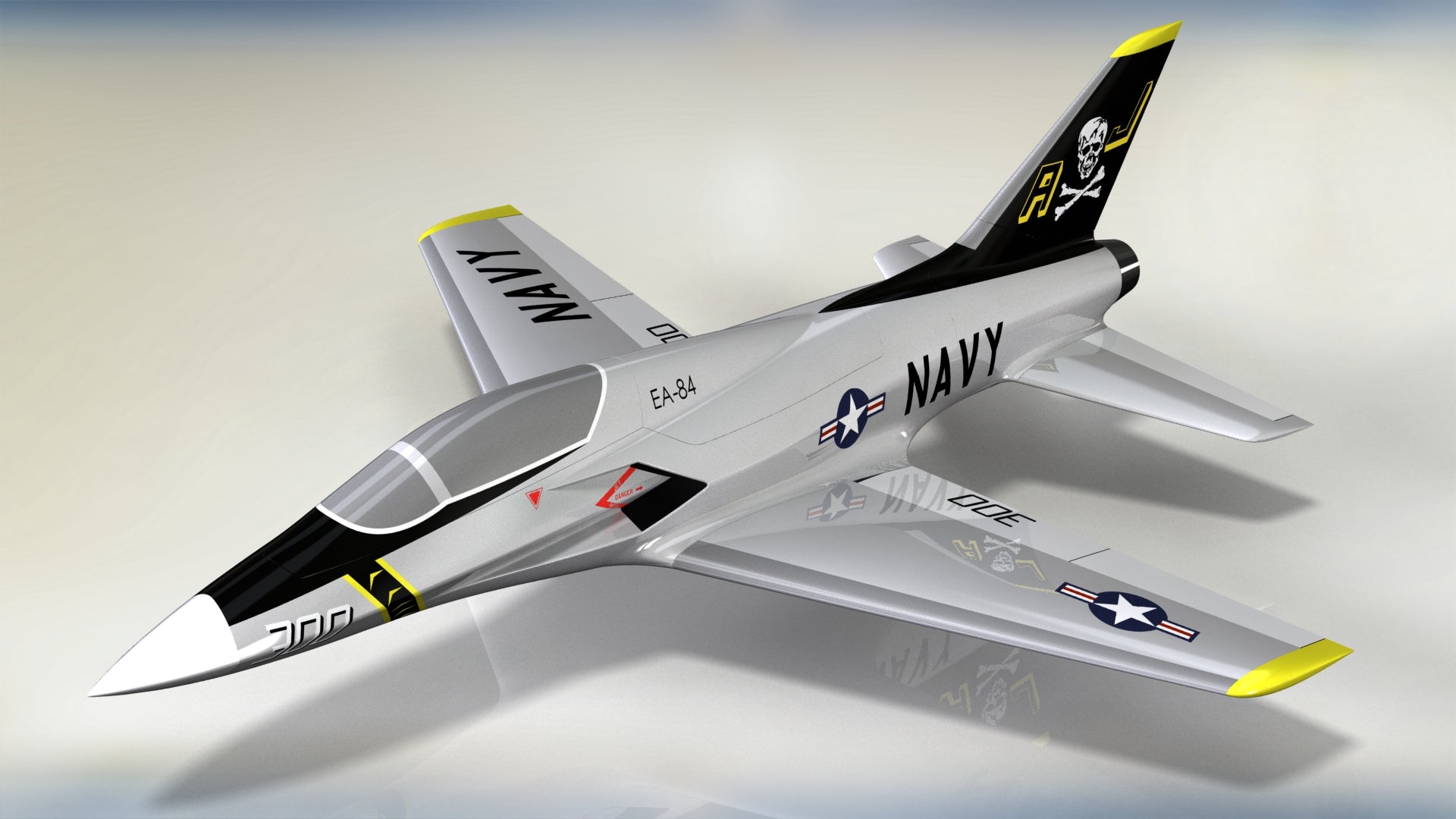

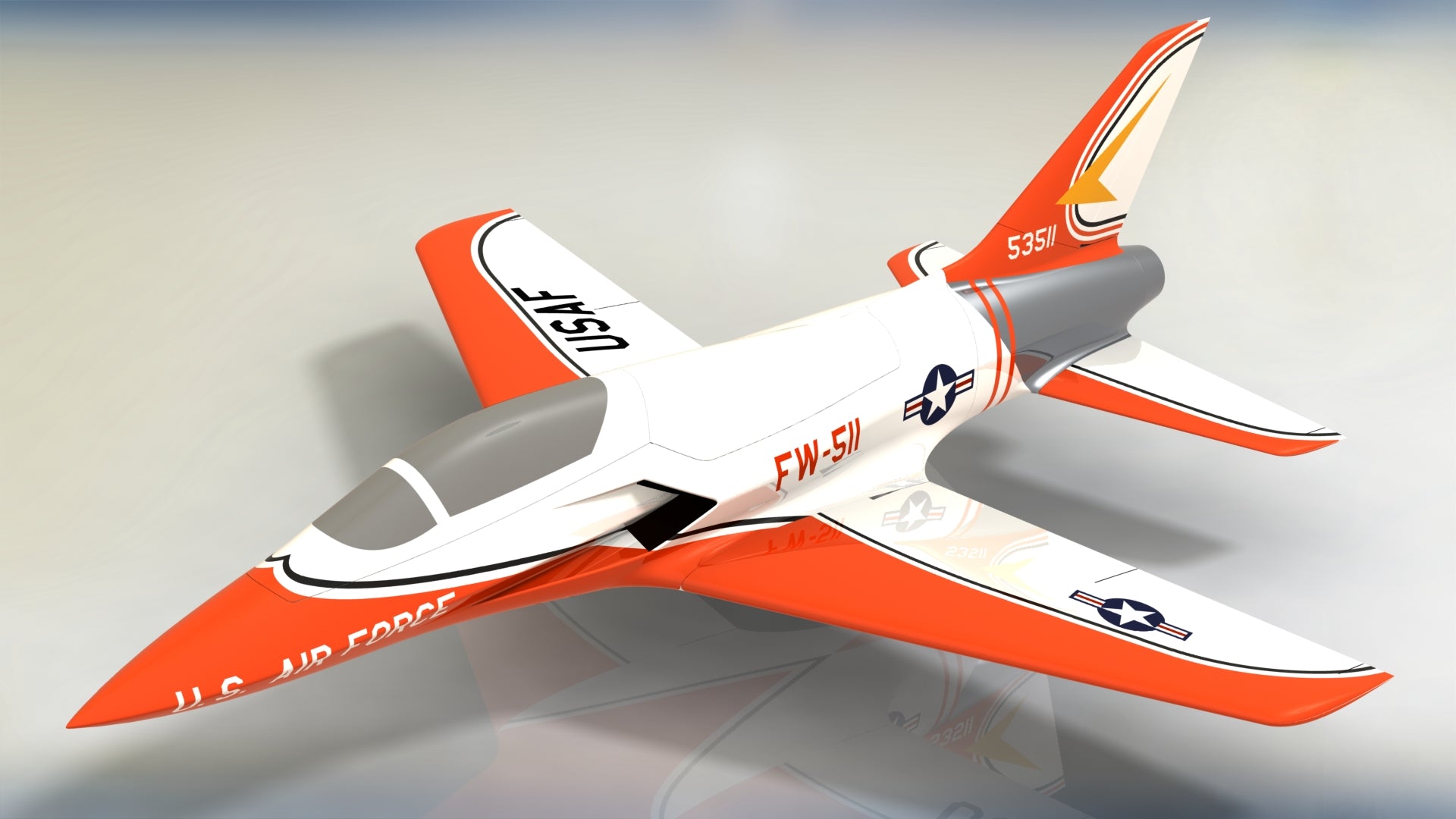

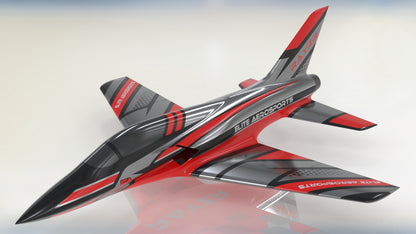

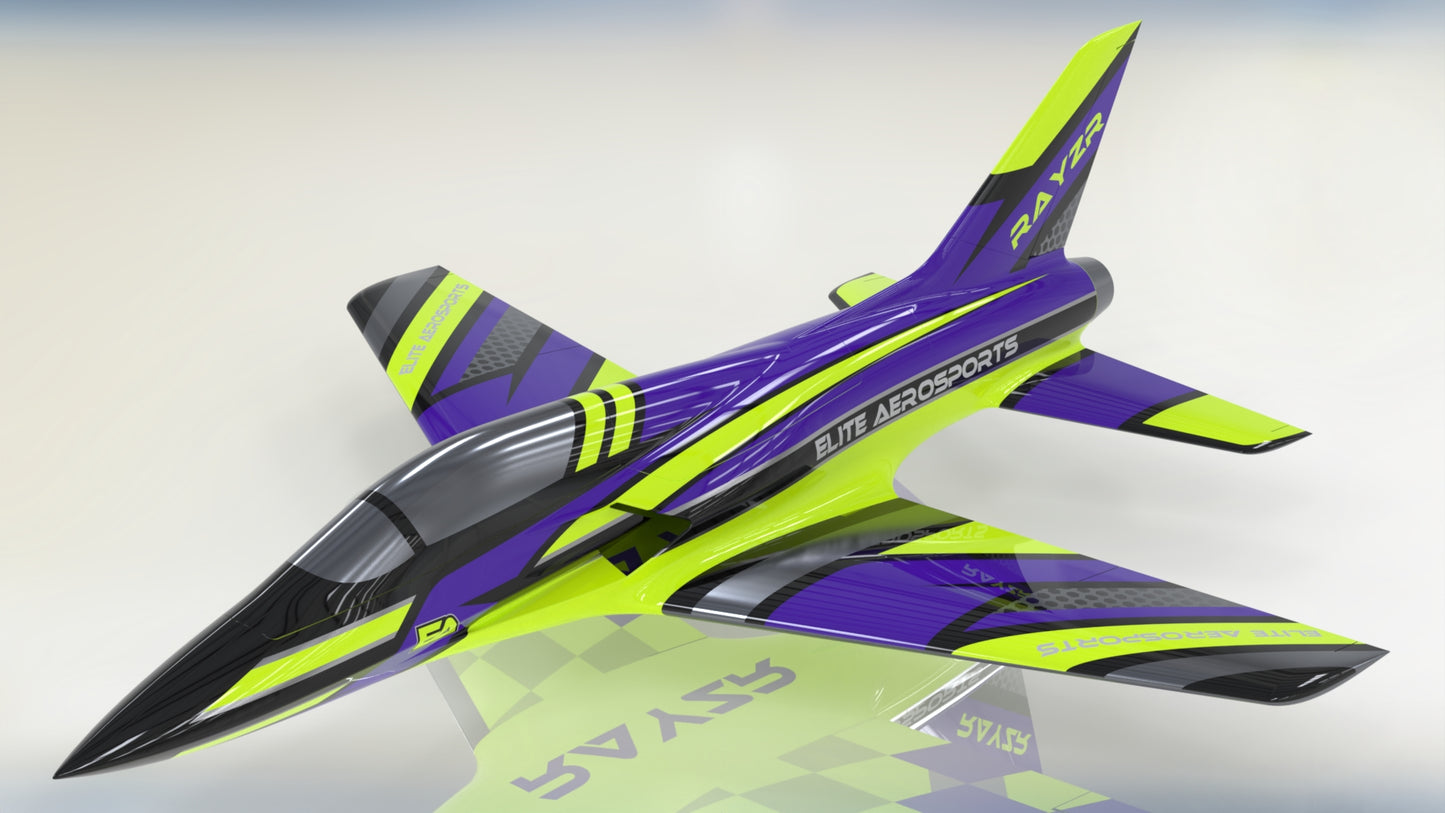

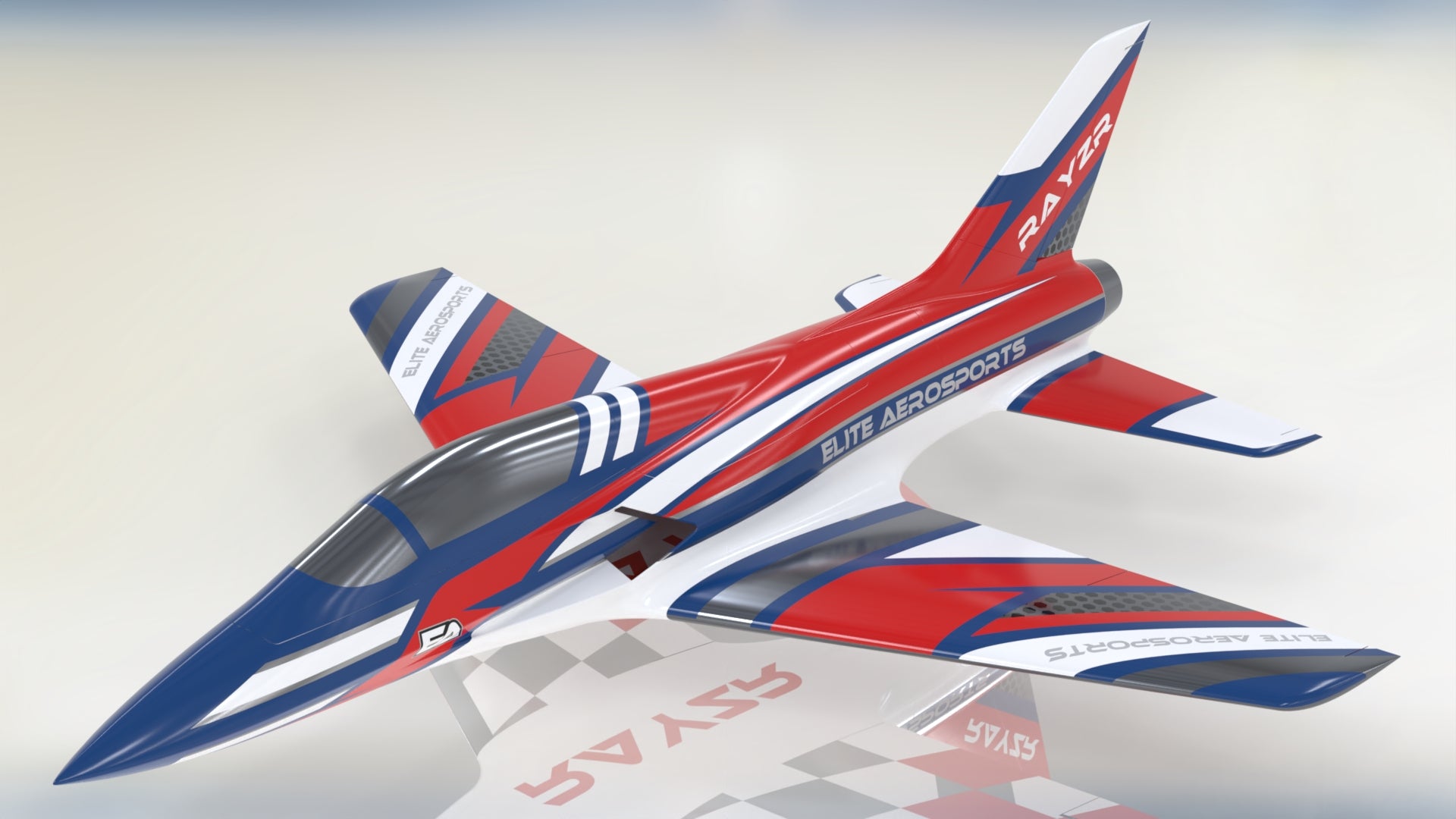

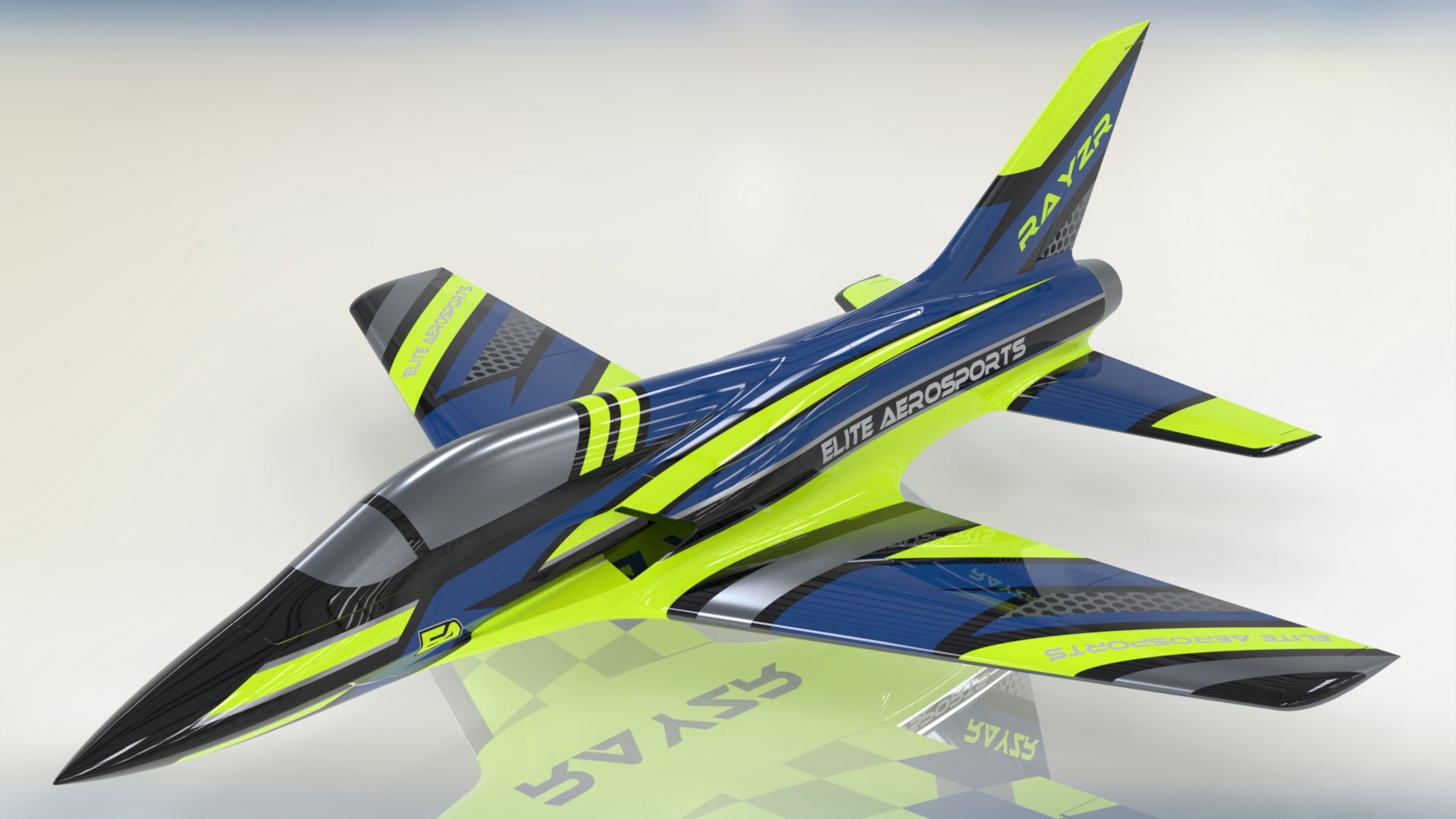

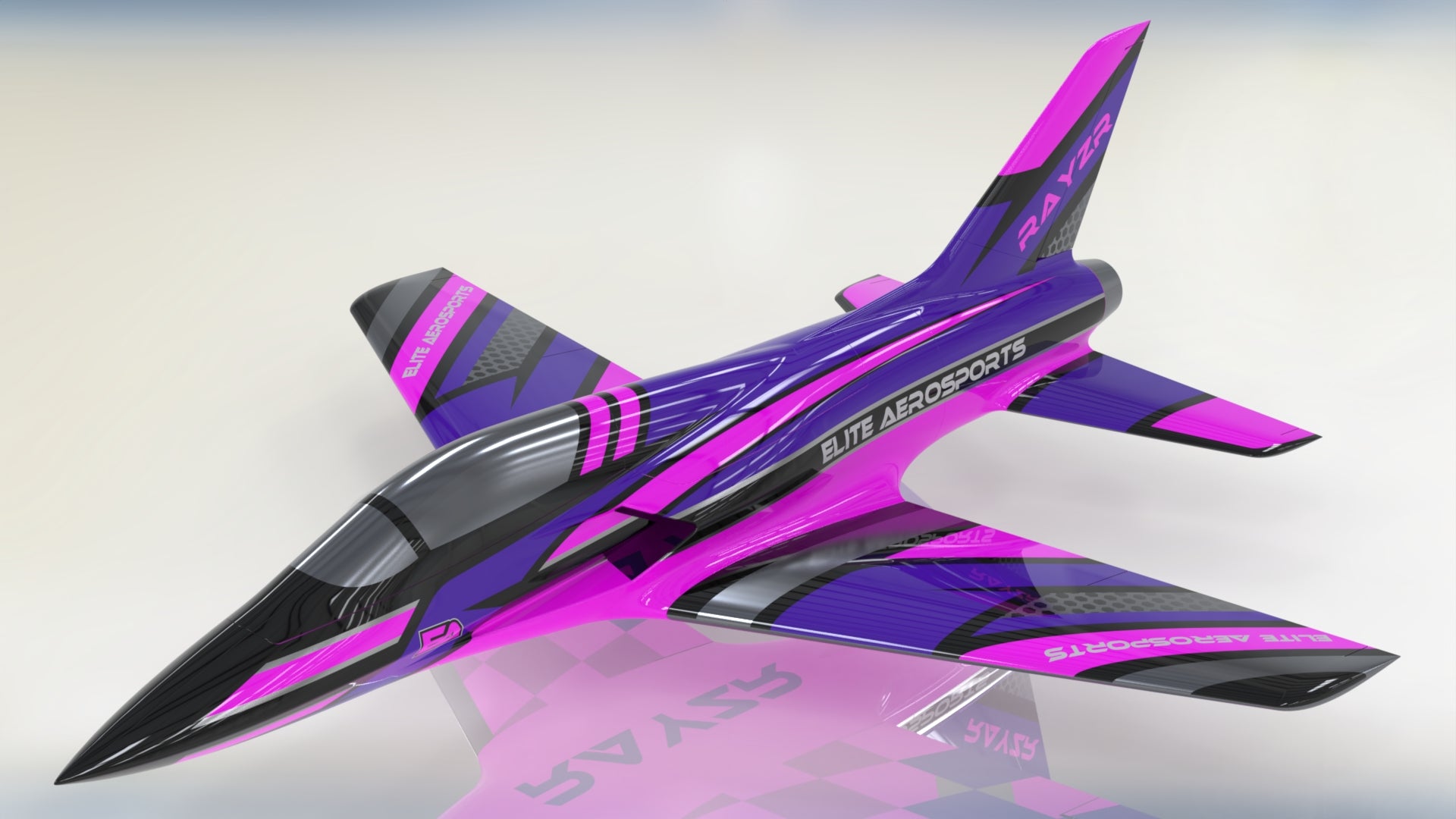

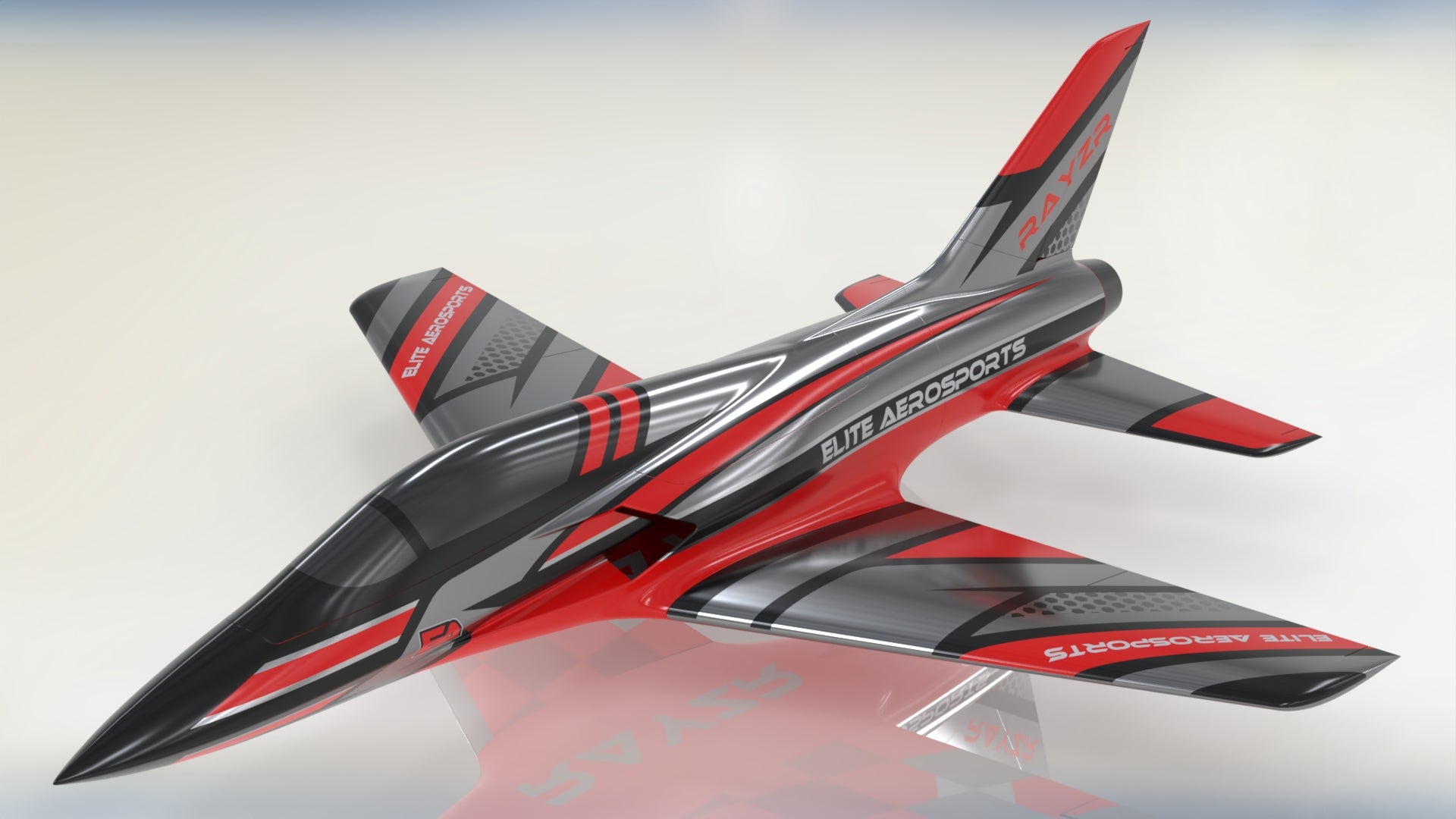

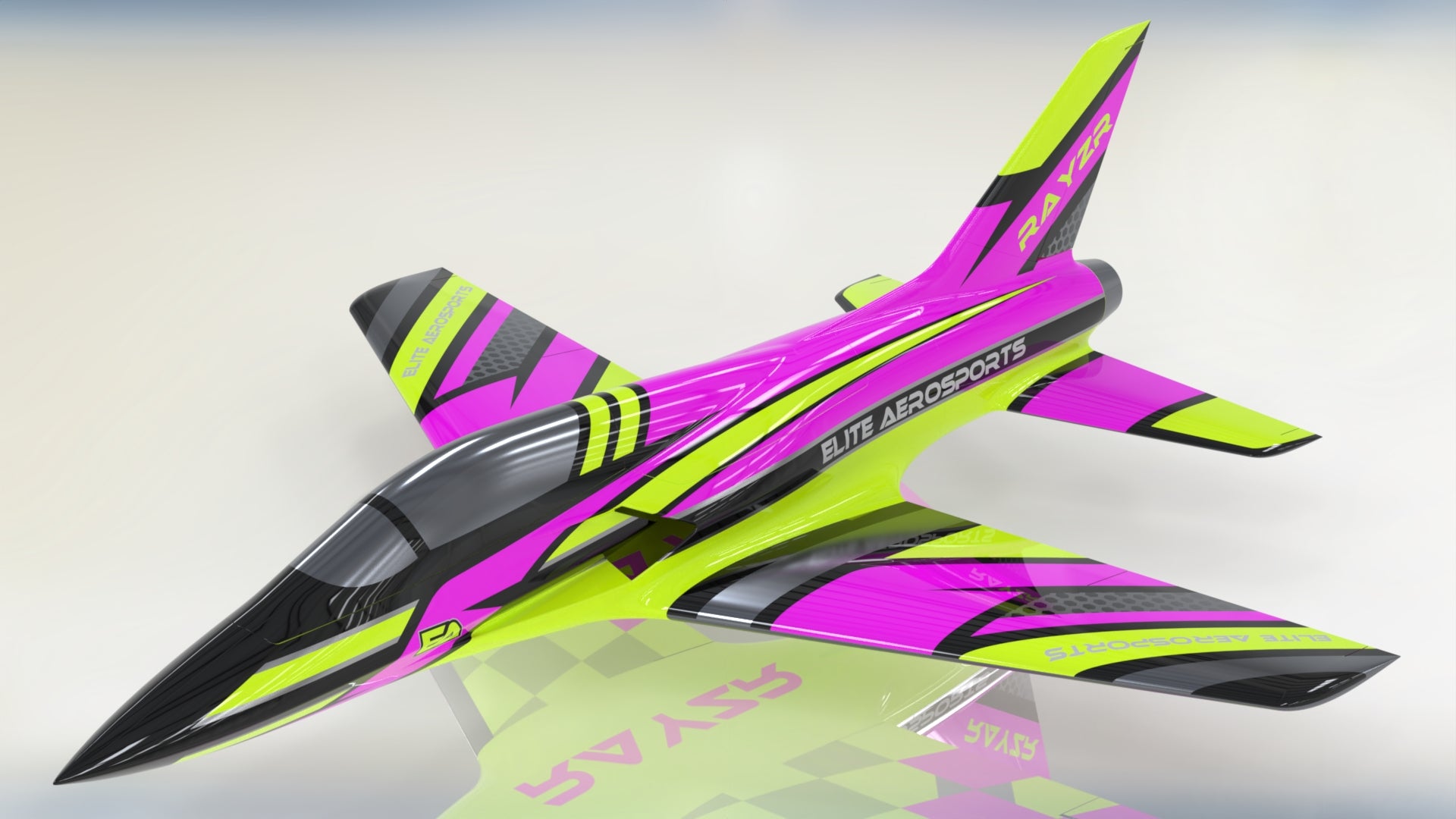

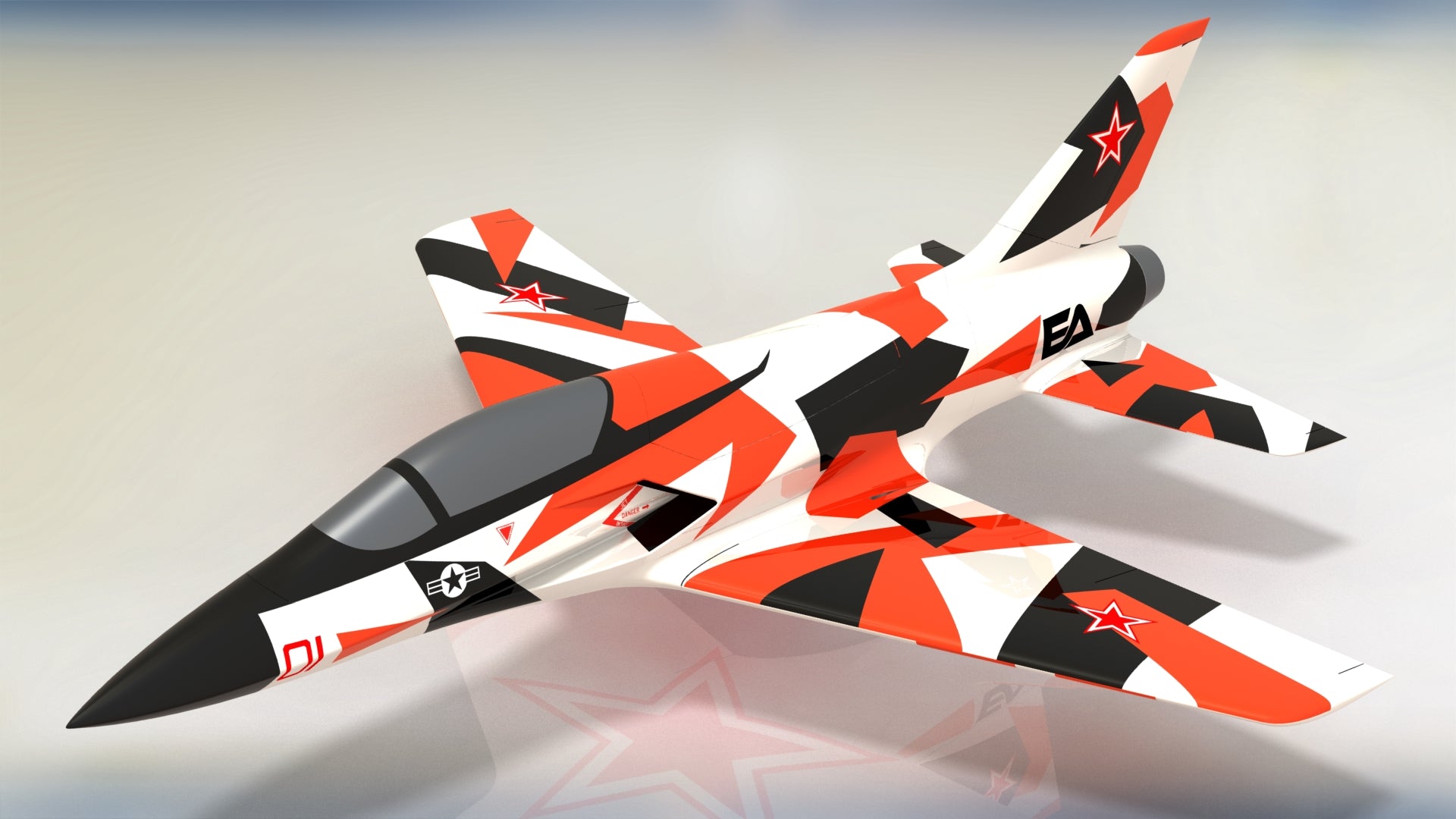

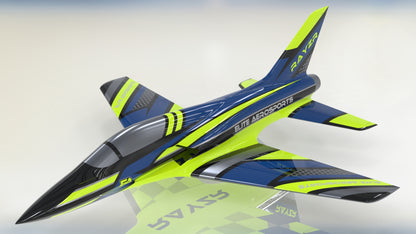

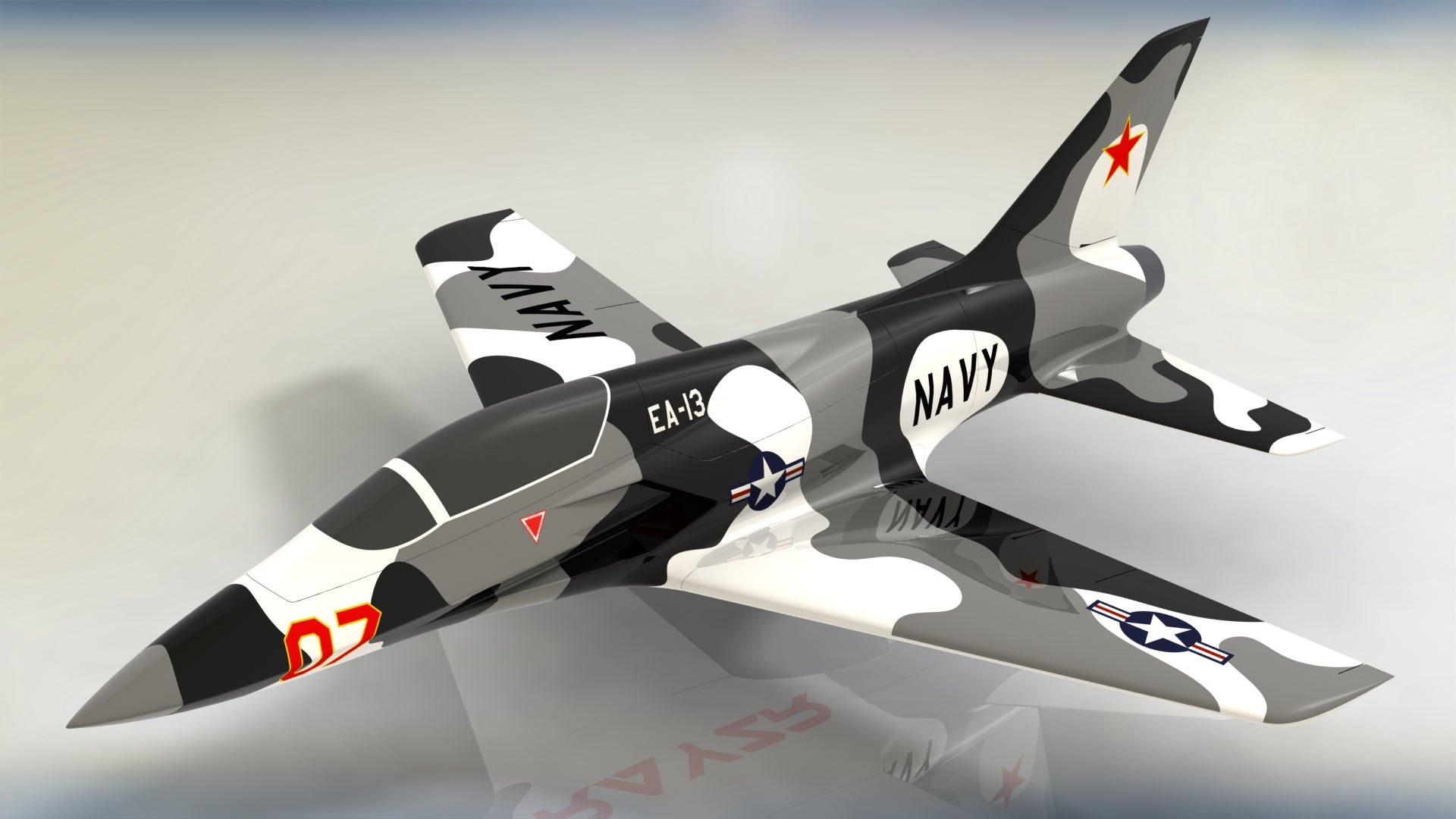

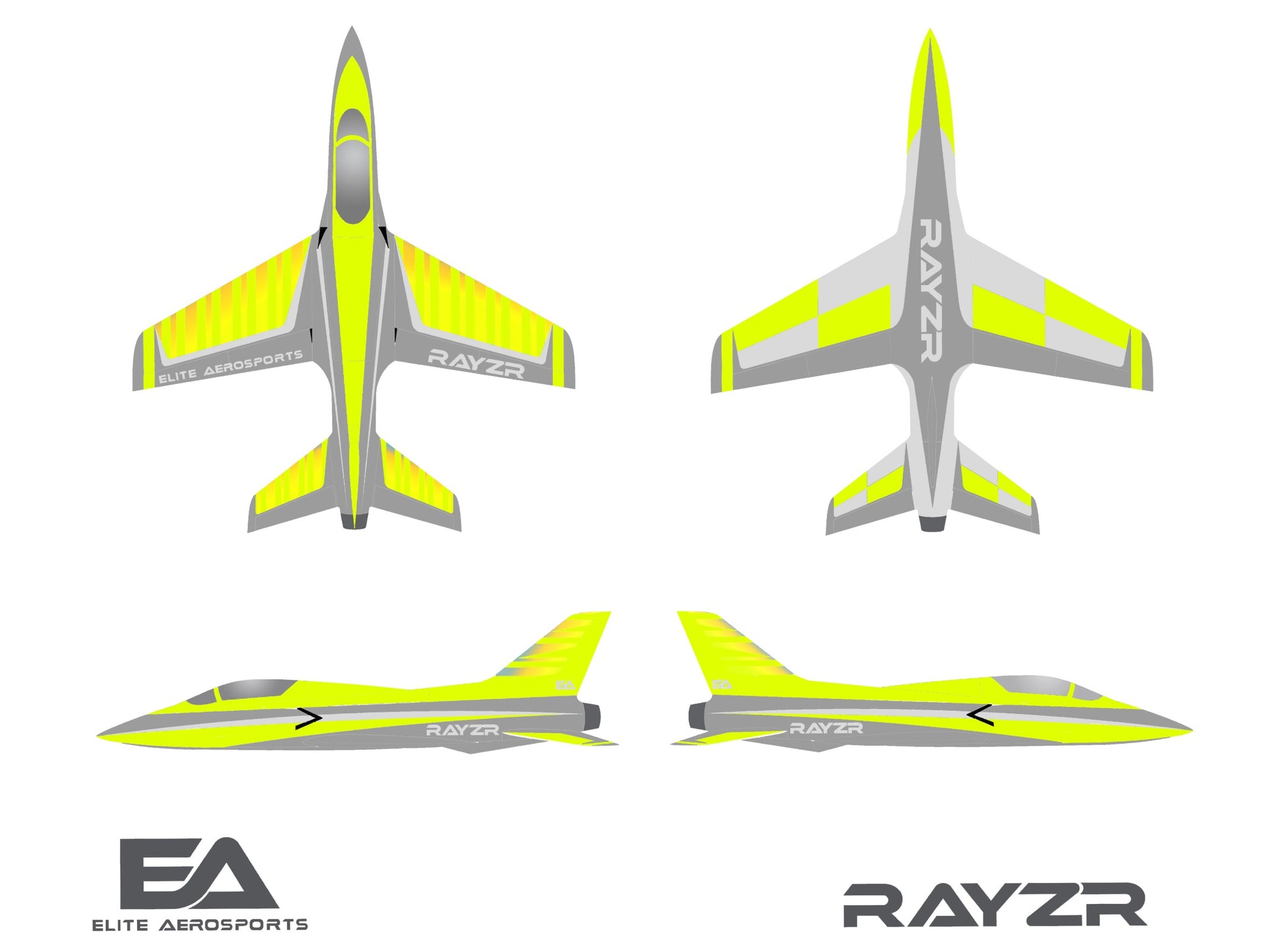

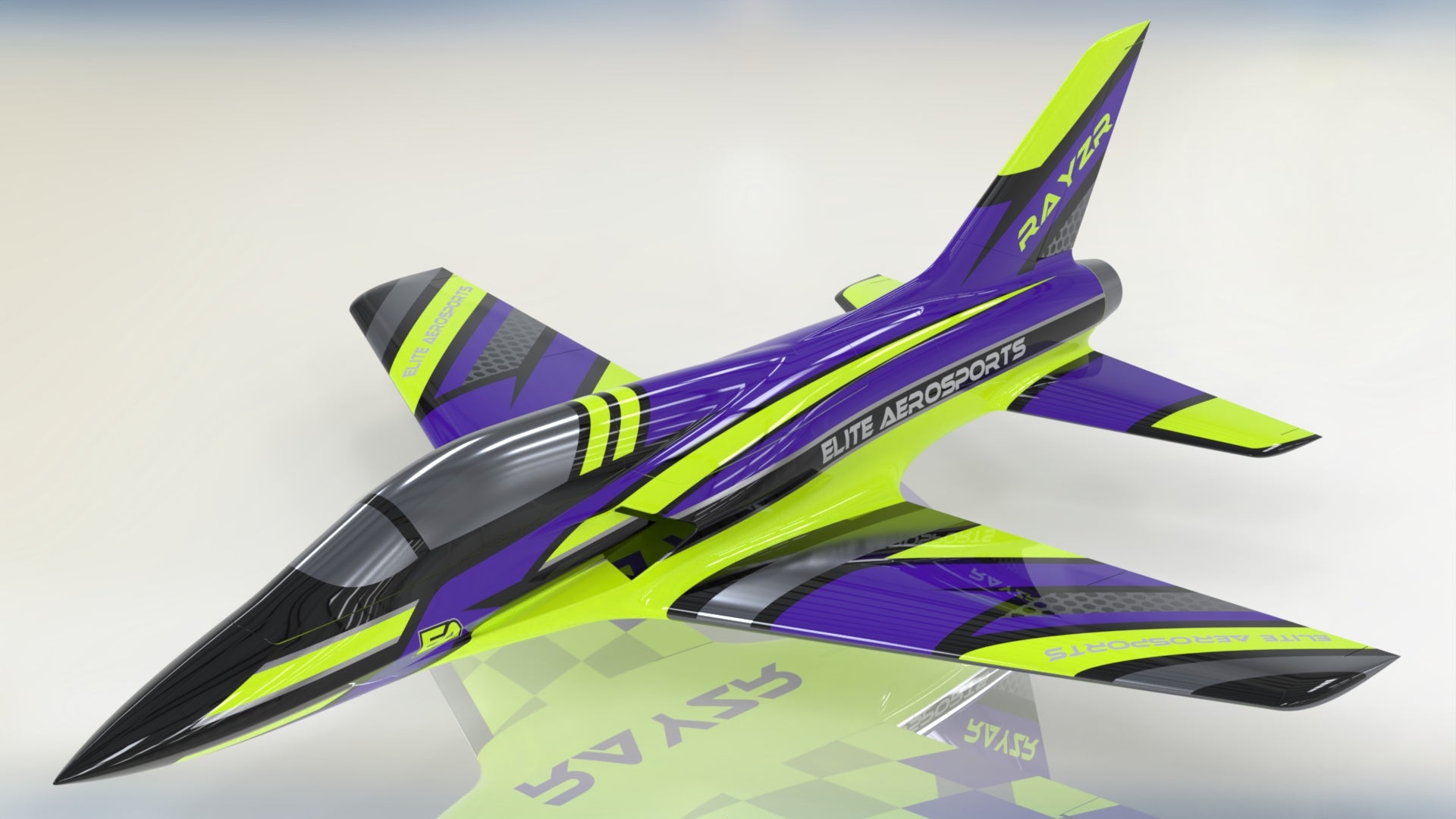

More Schemes available.  Email us for the link!
