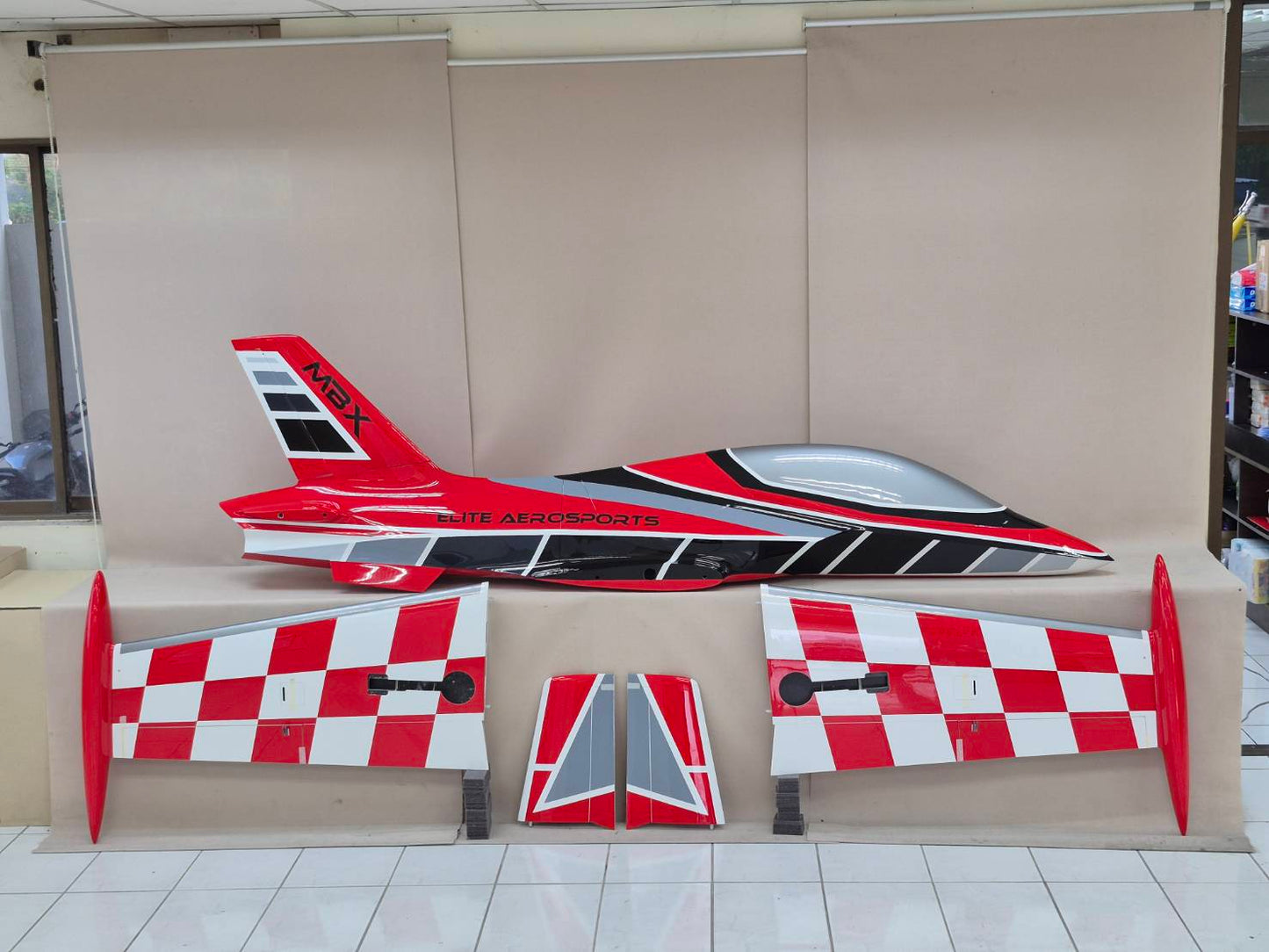

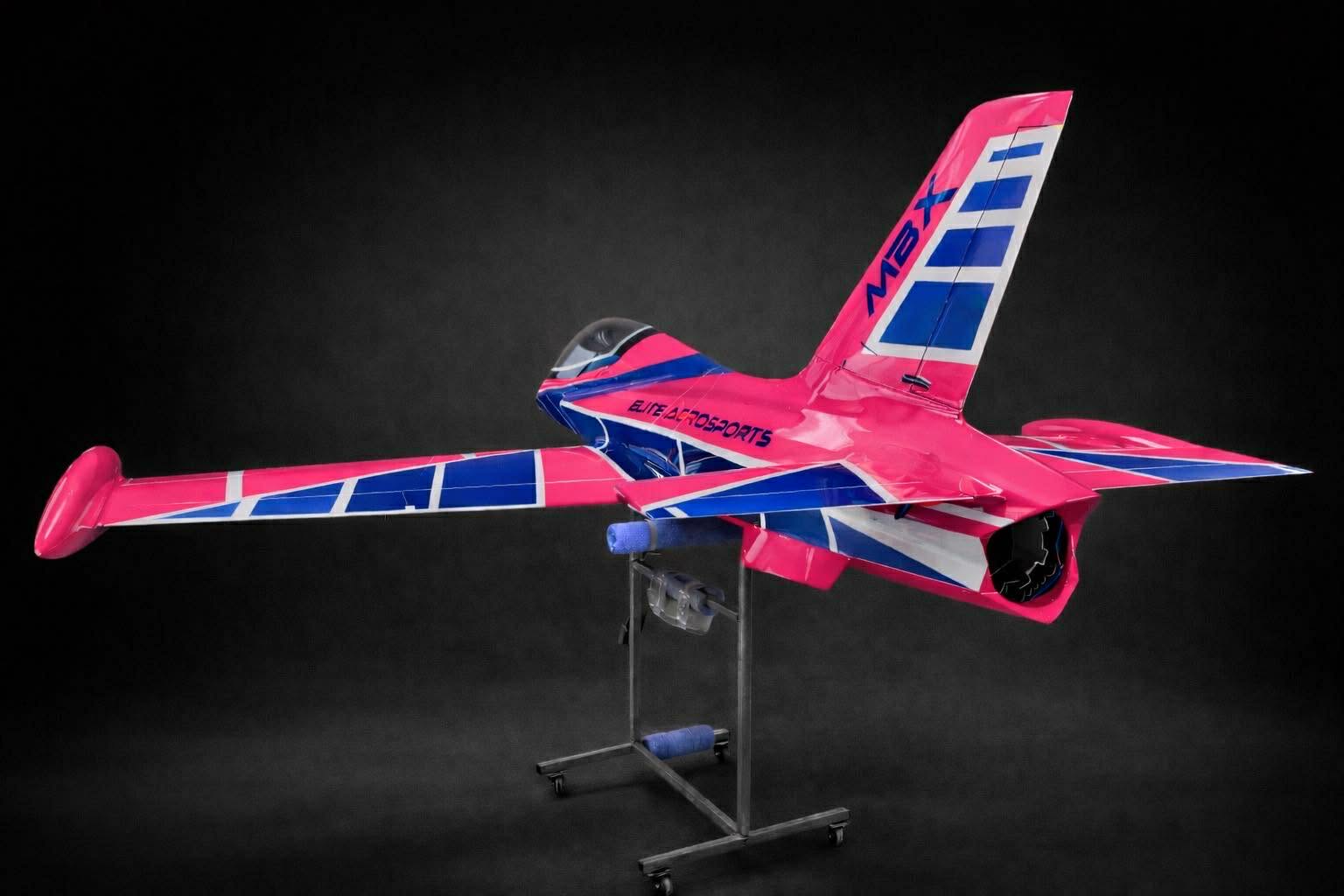

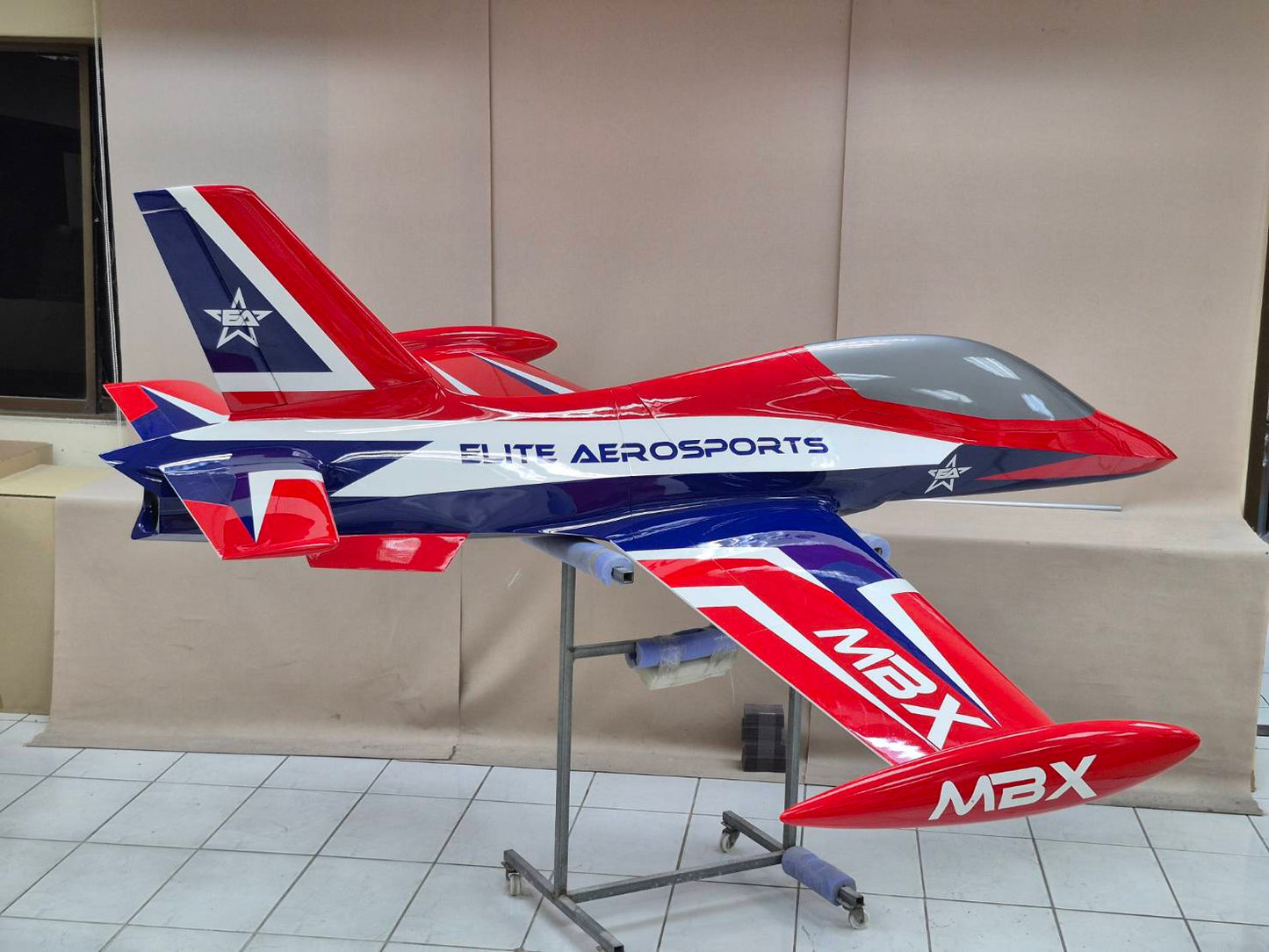

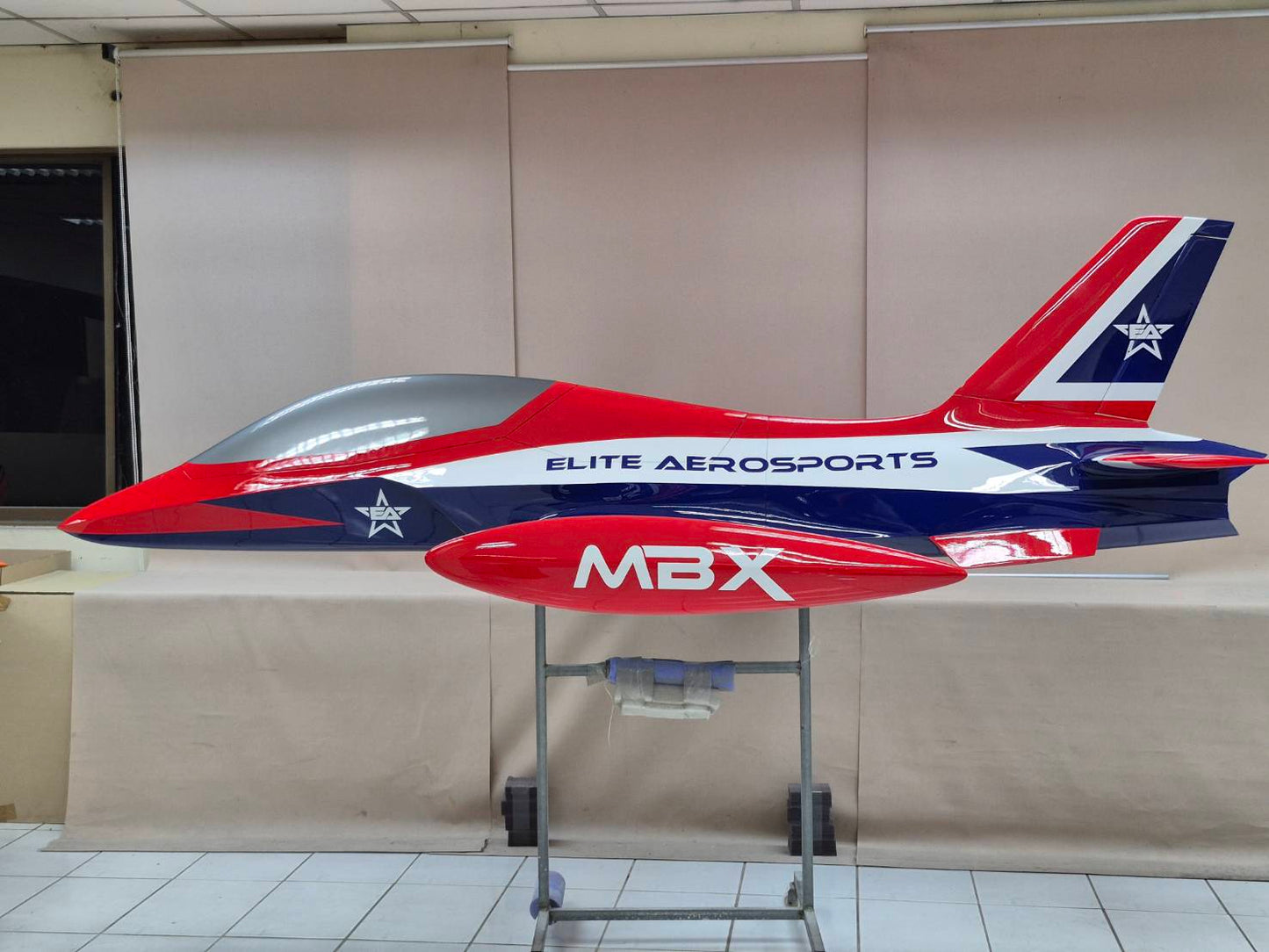

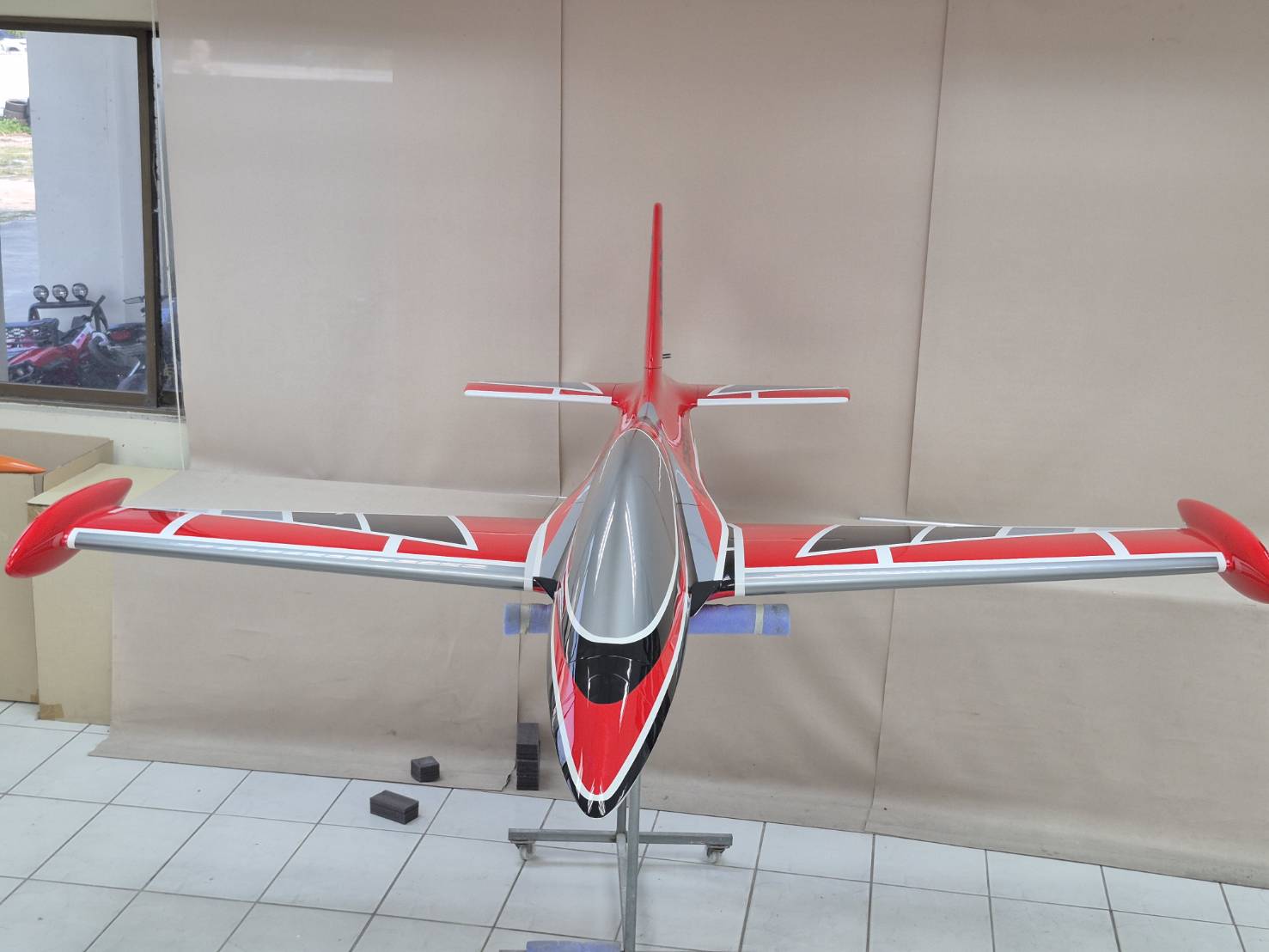

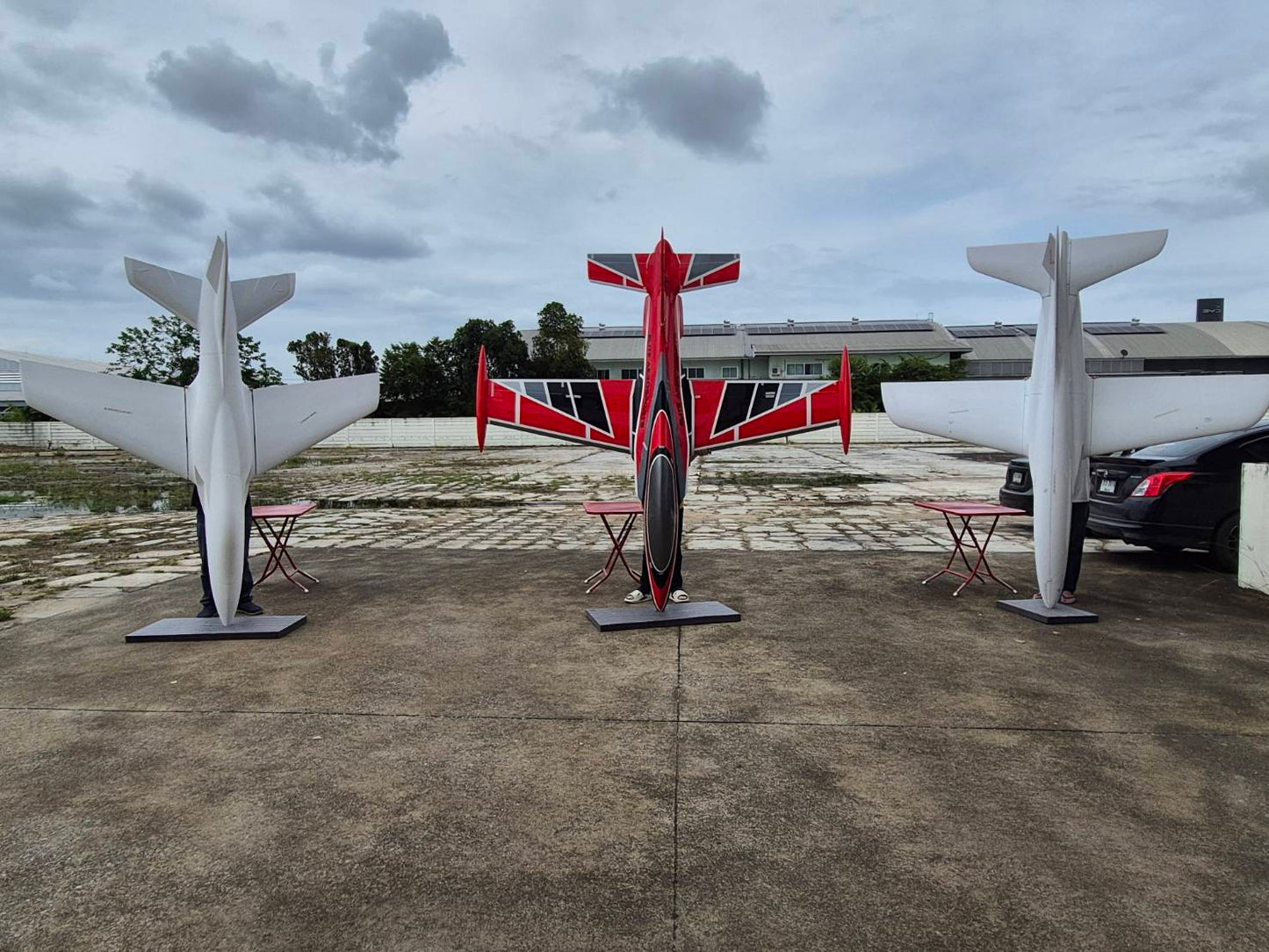

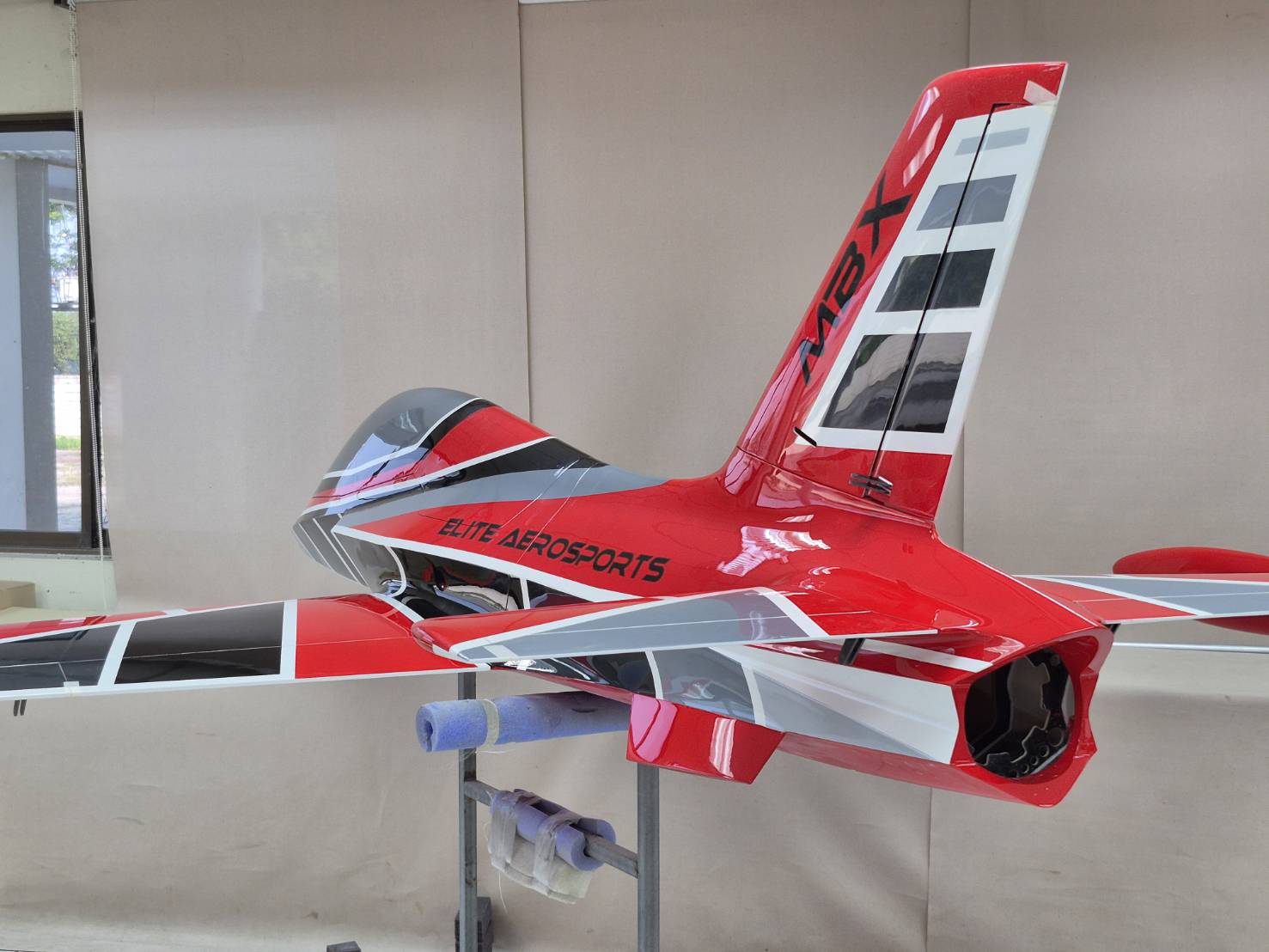

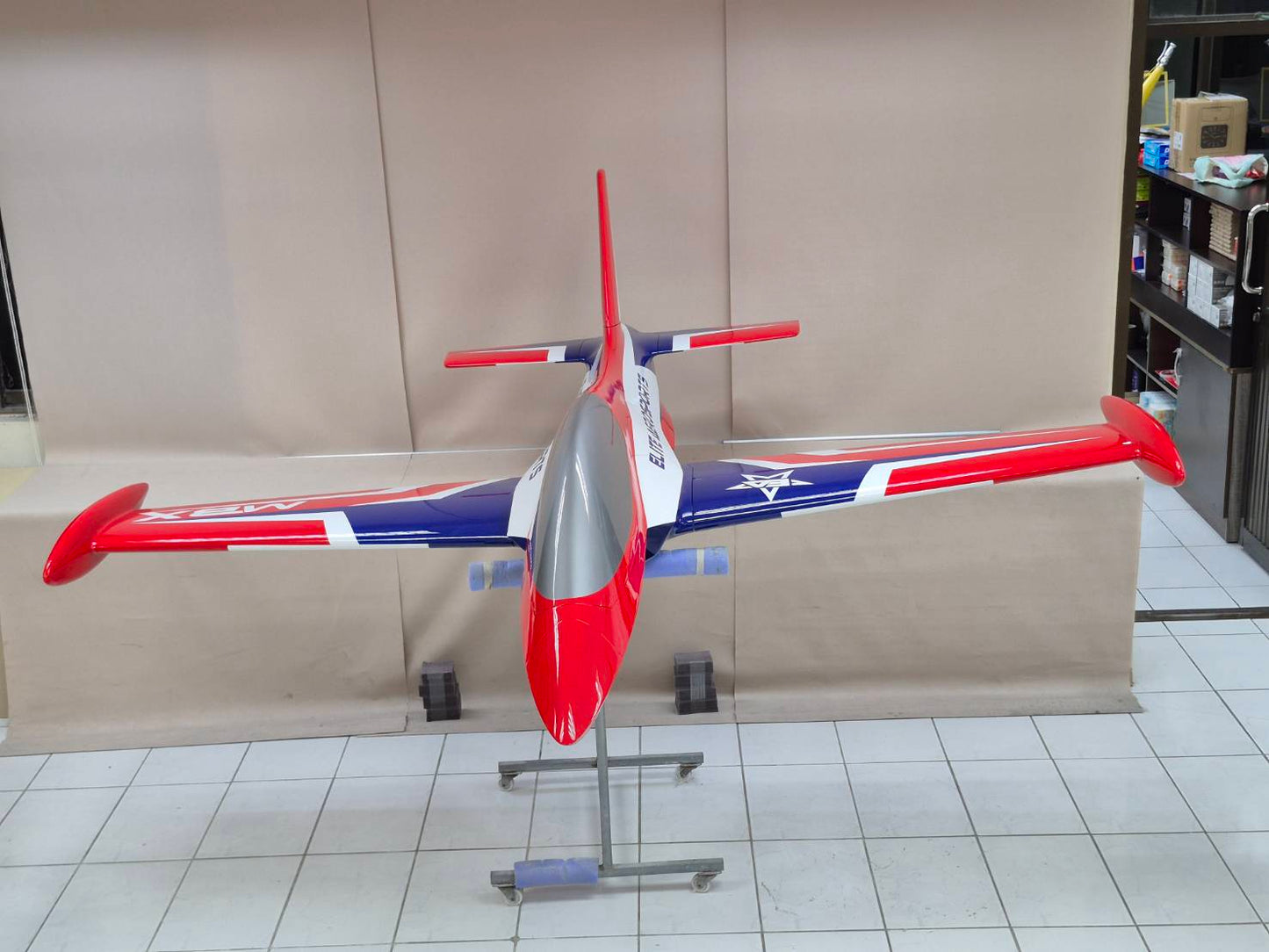

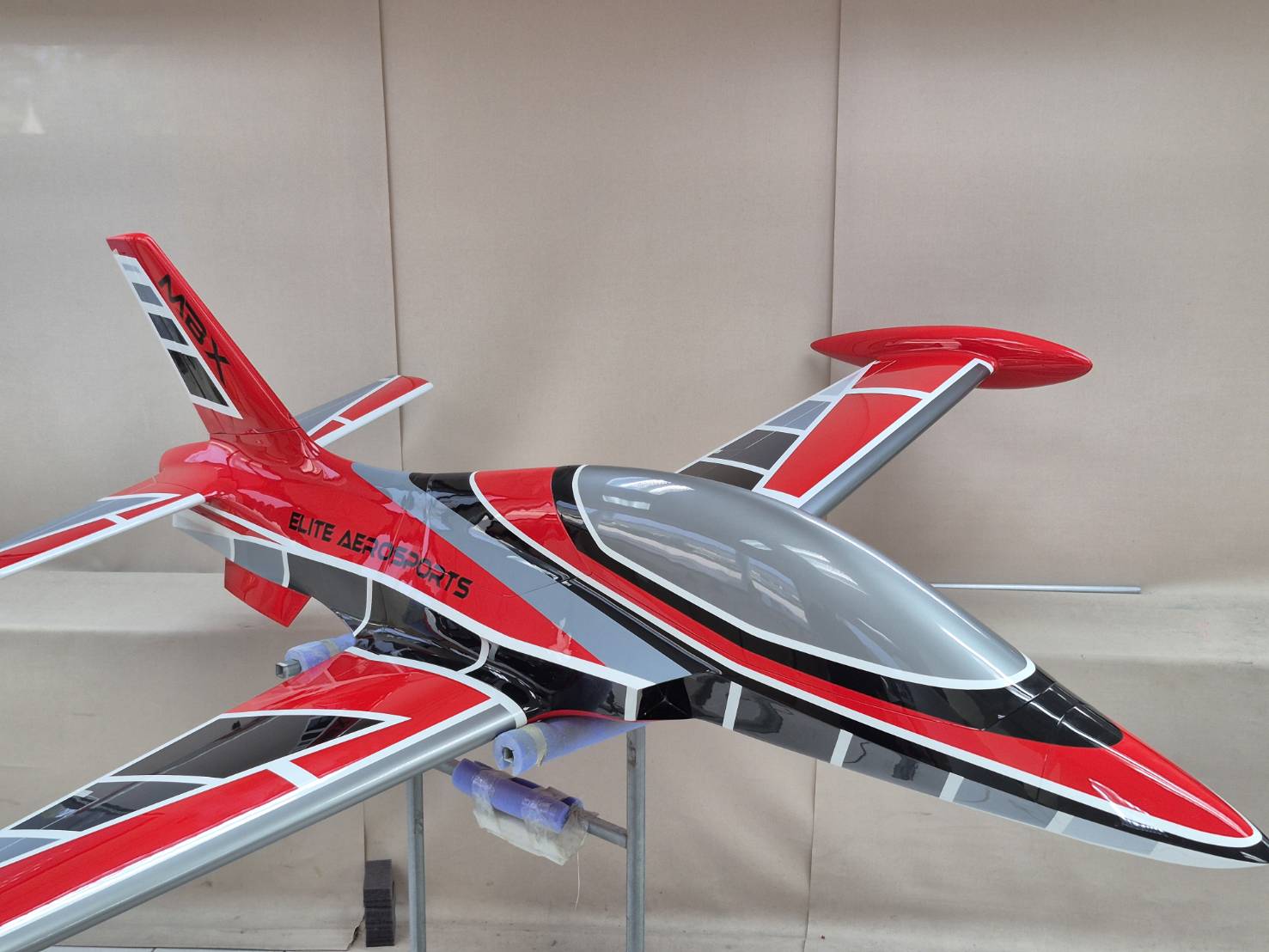

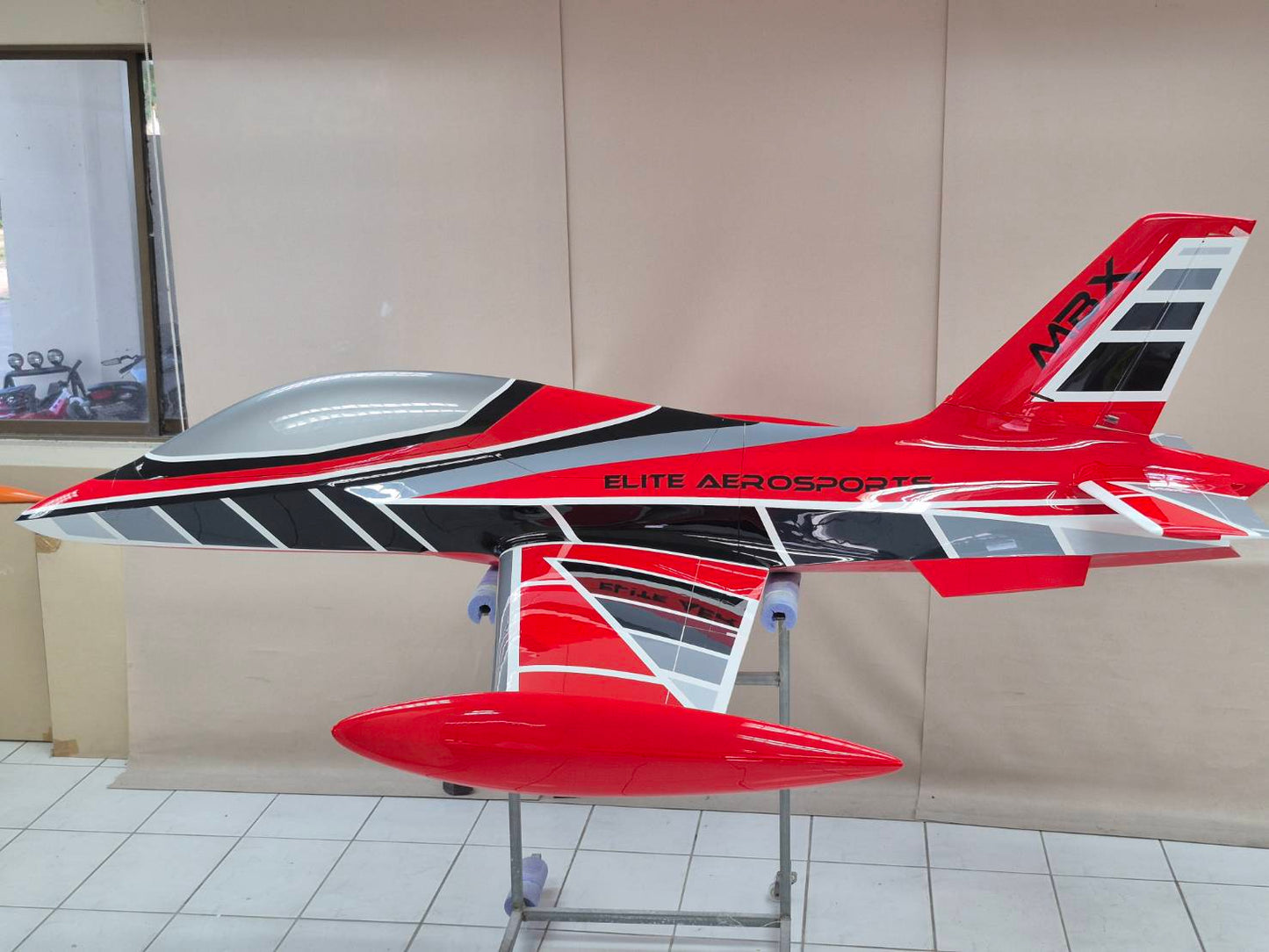

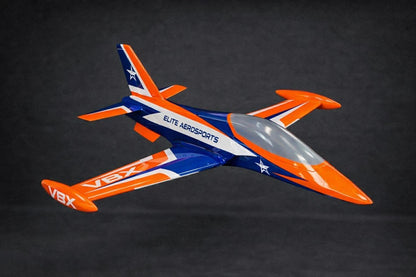

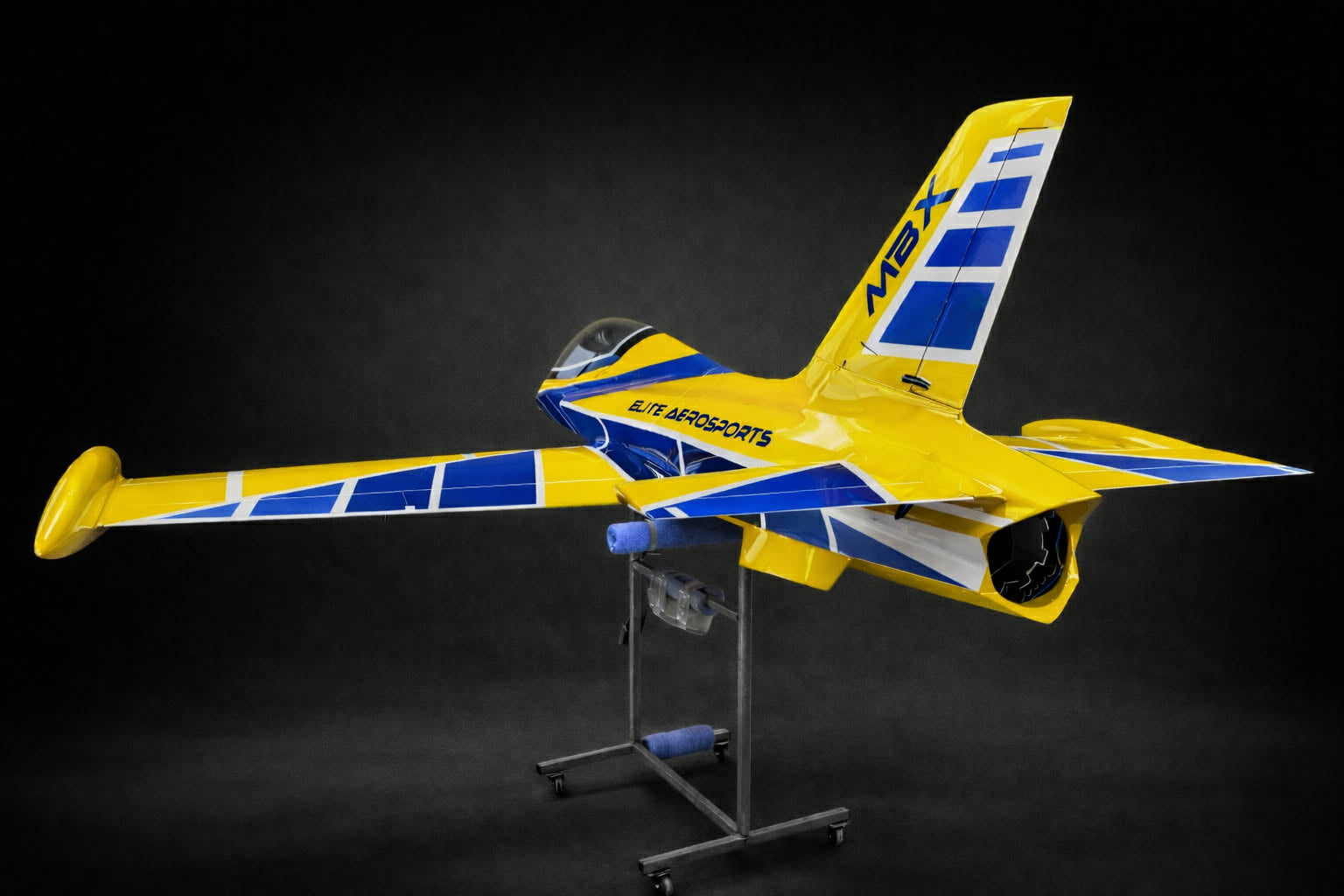

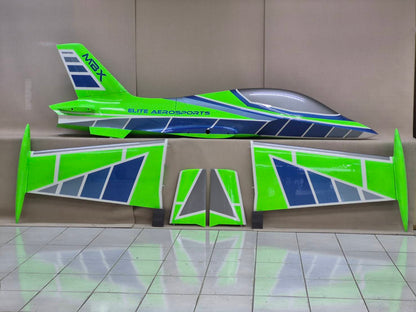

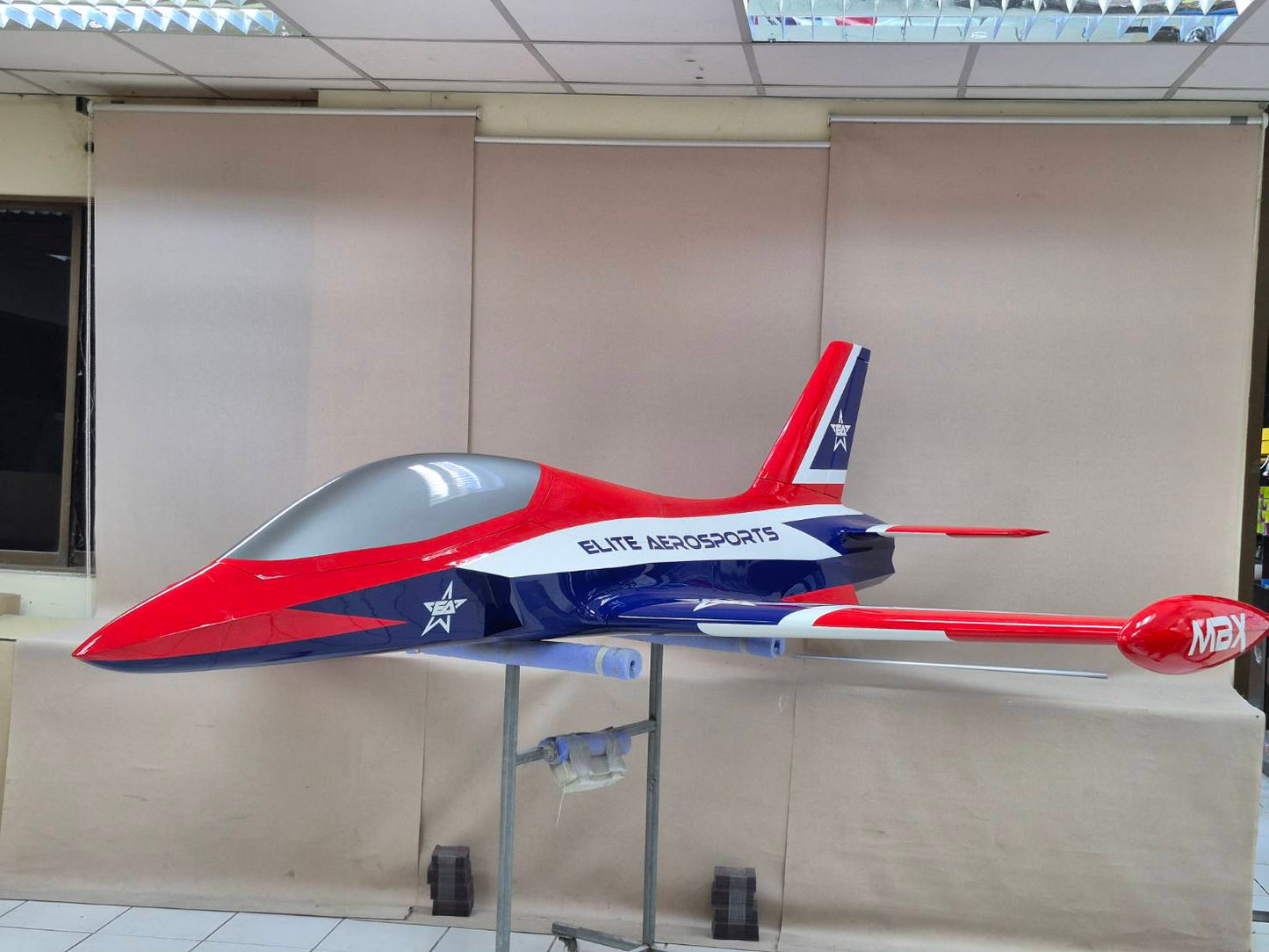

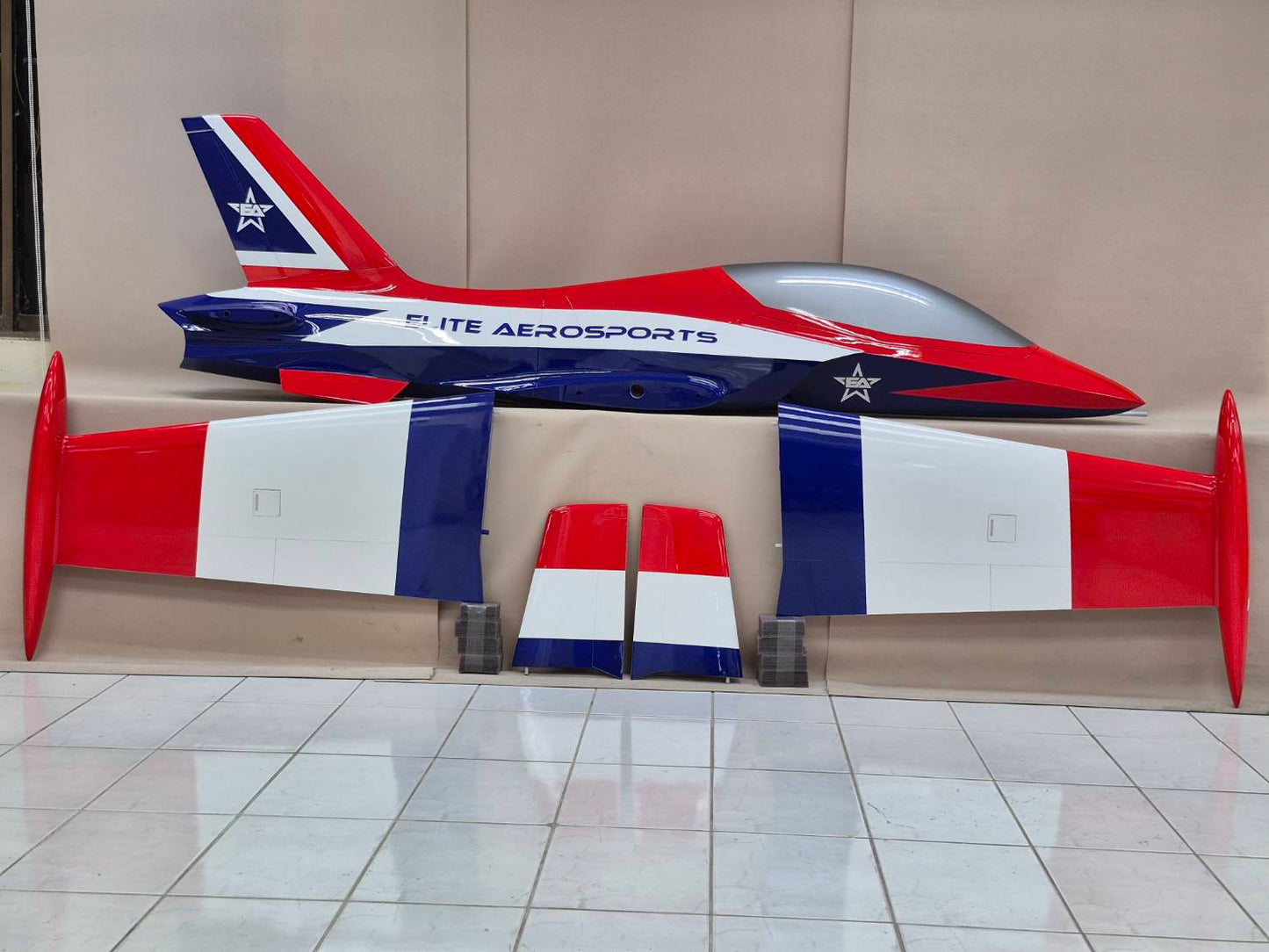

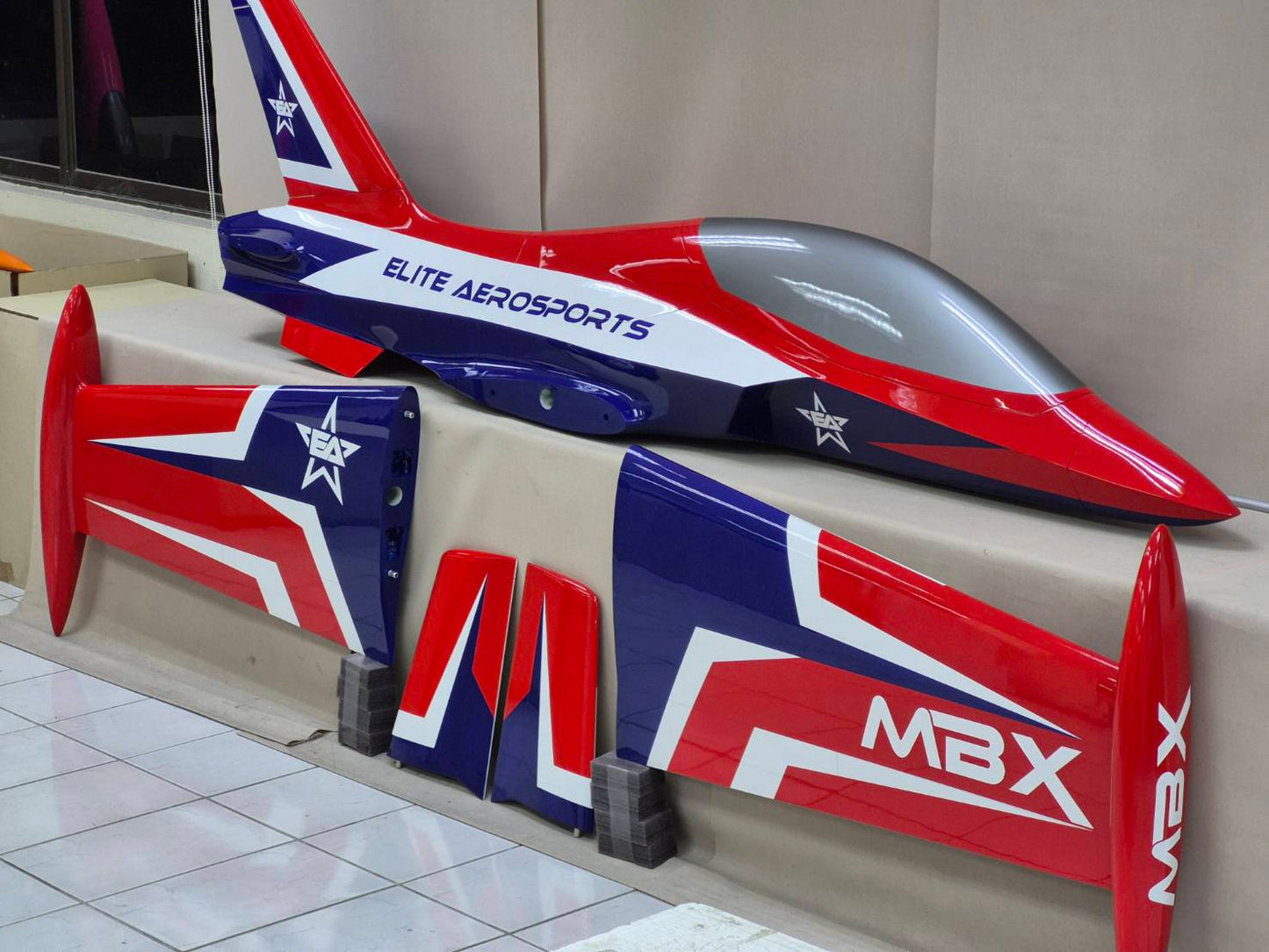

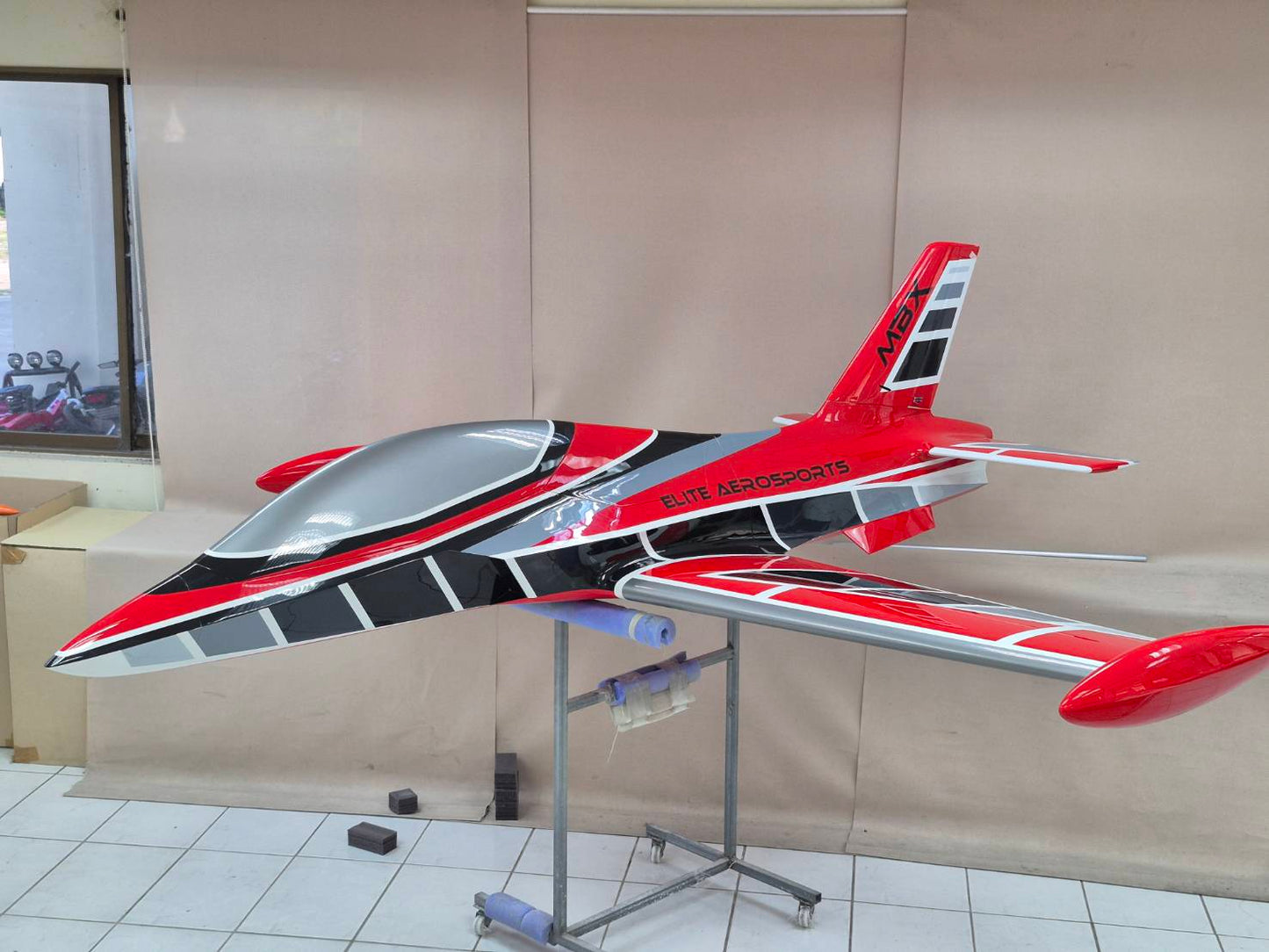

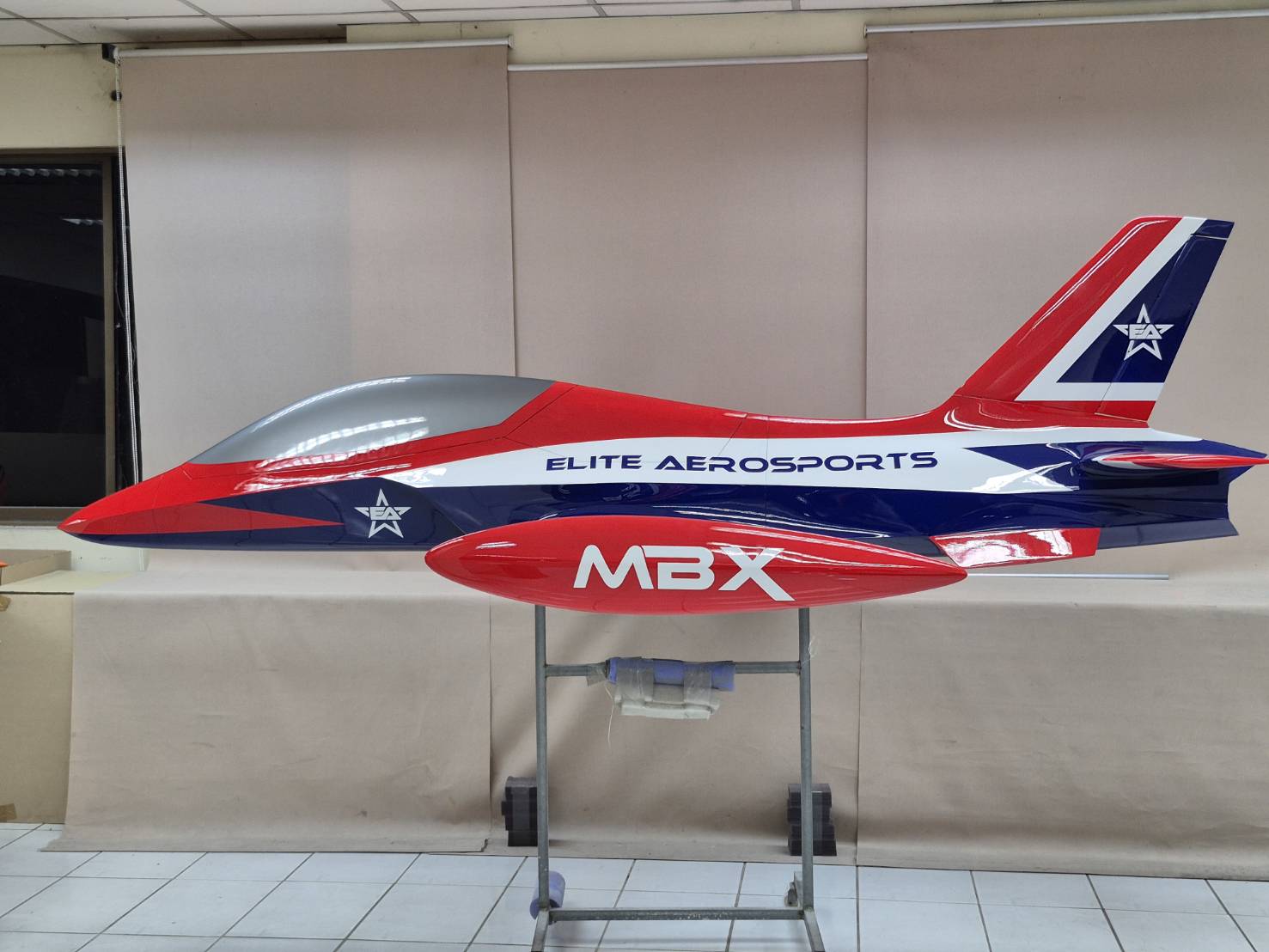

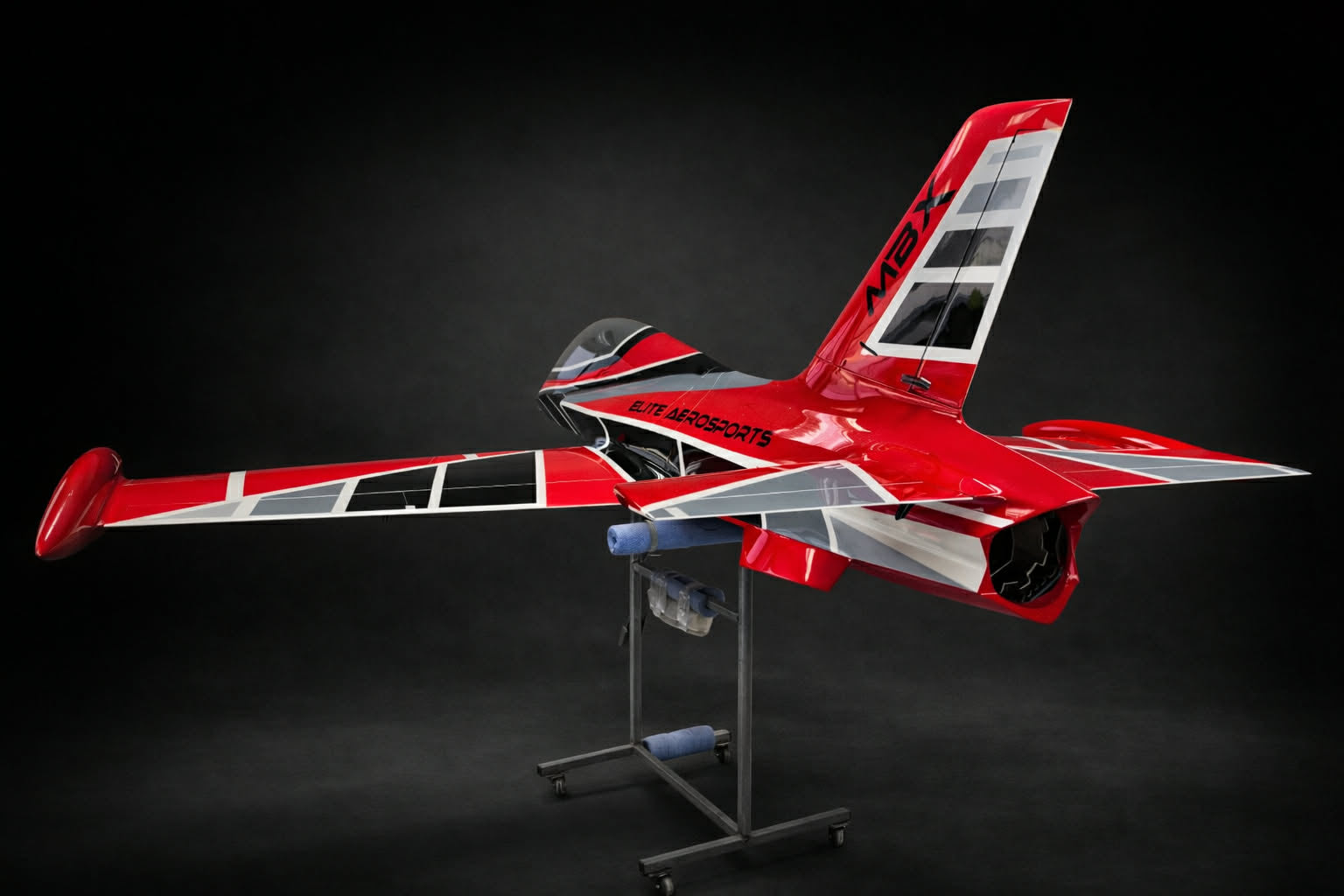

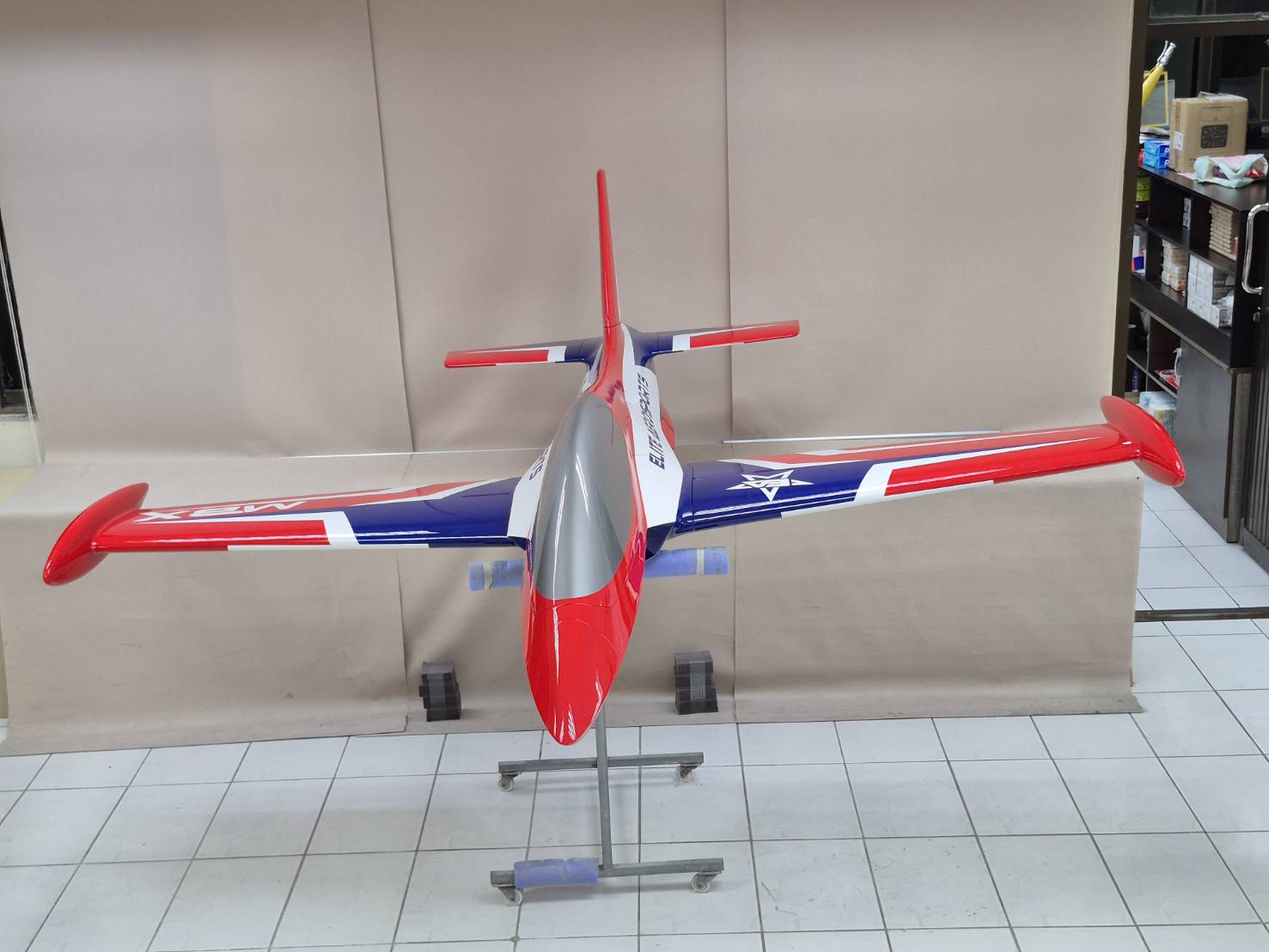

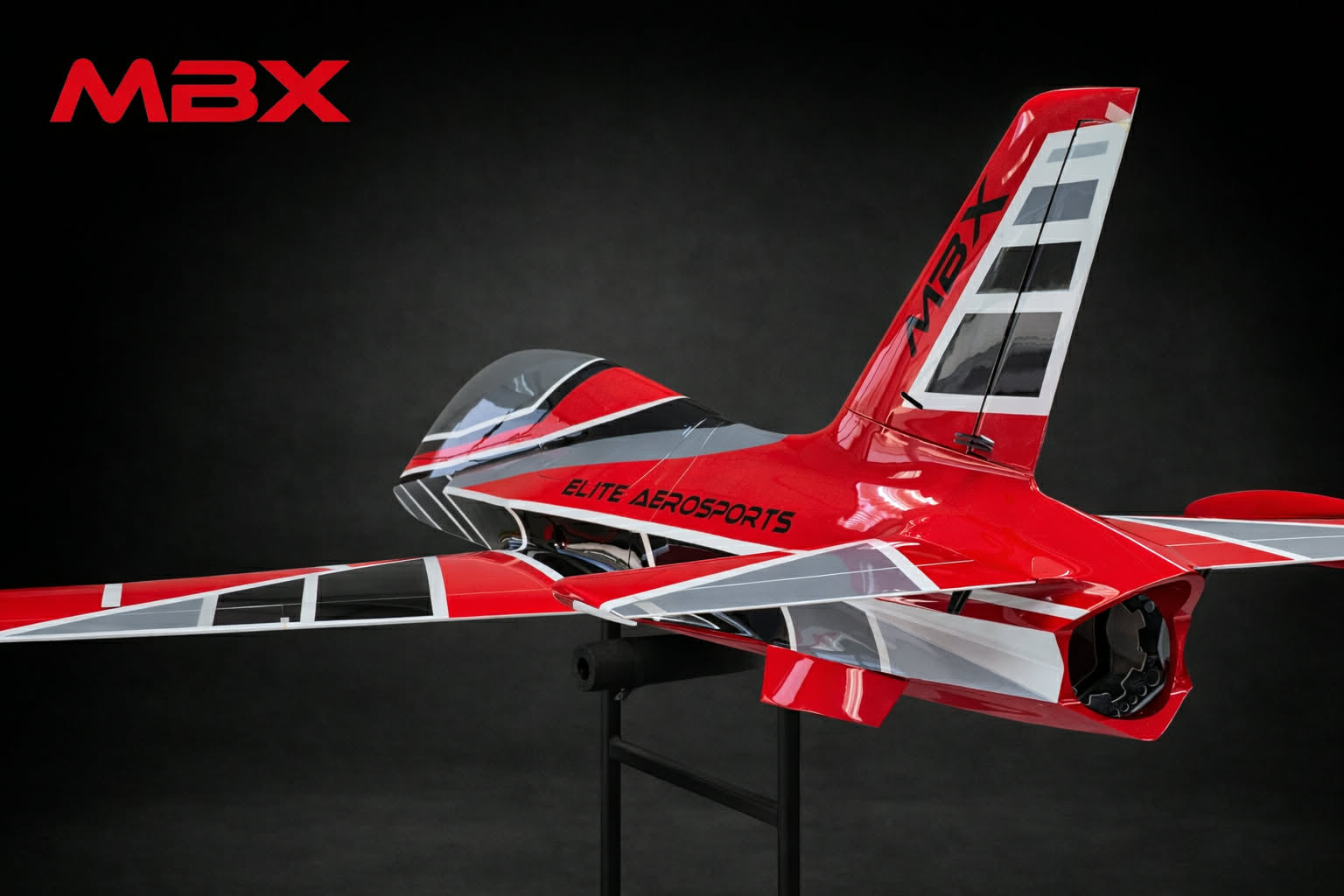

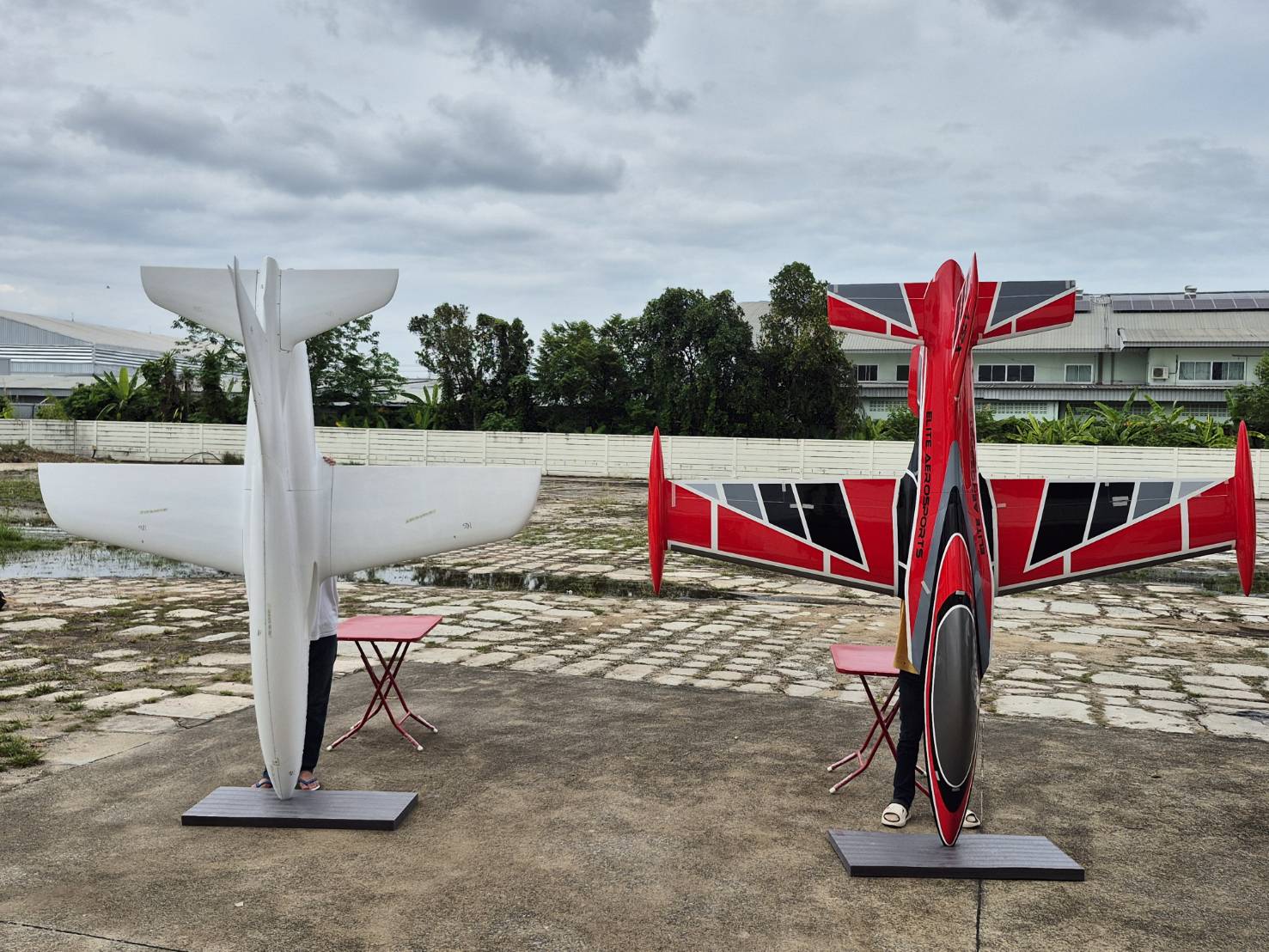

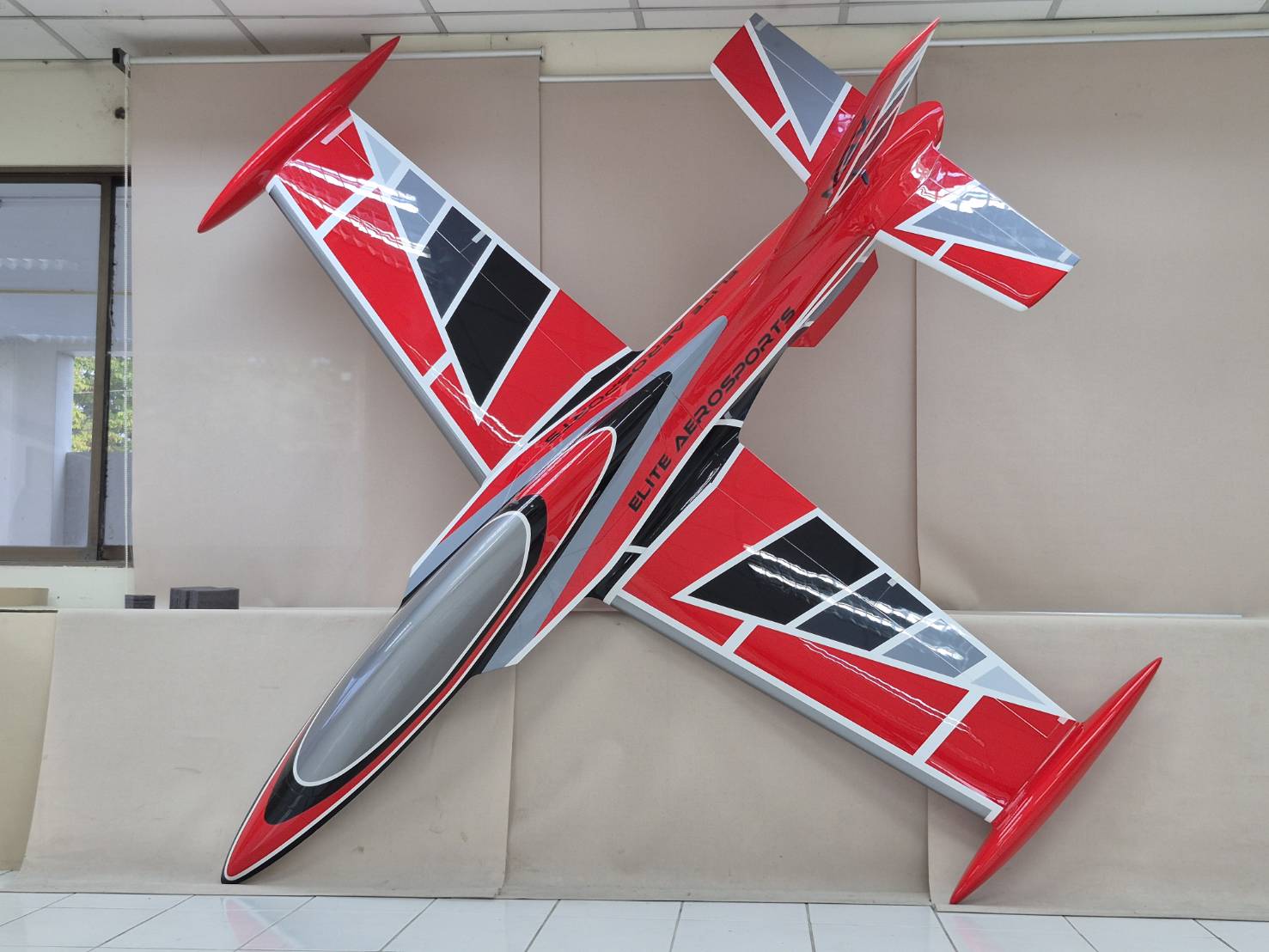

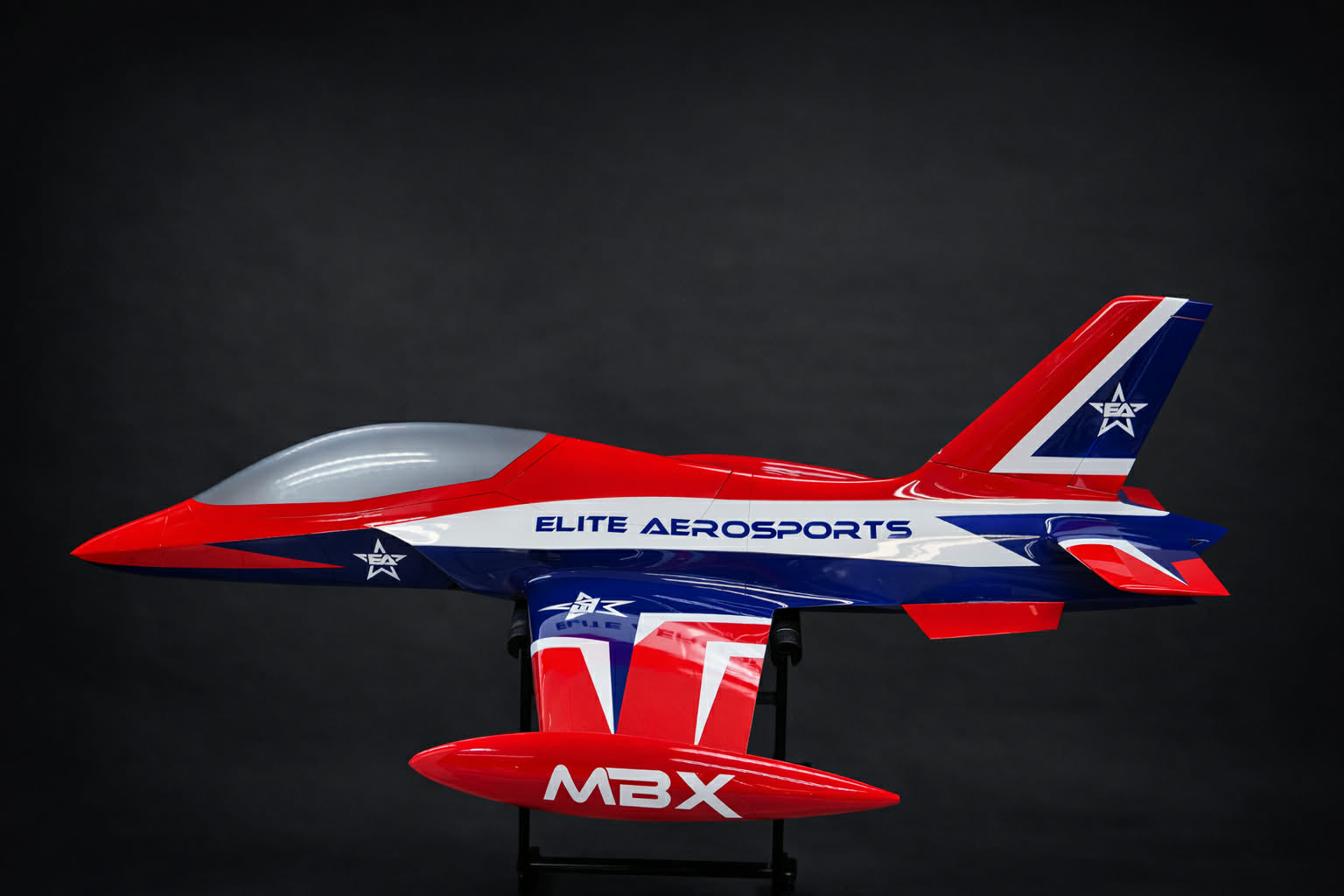

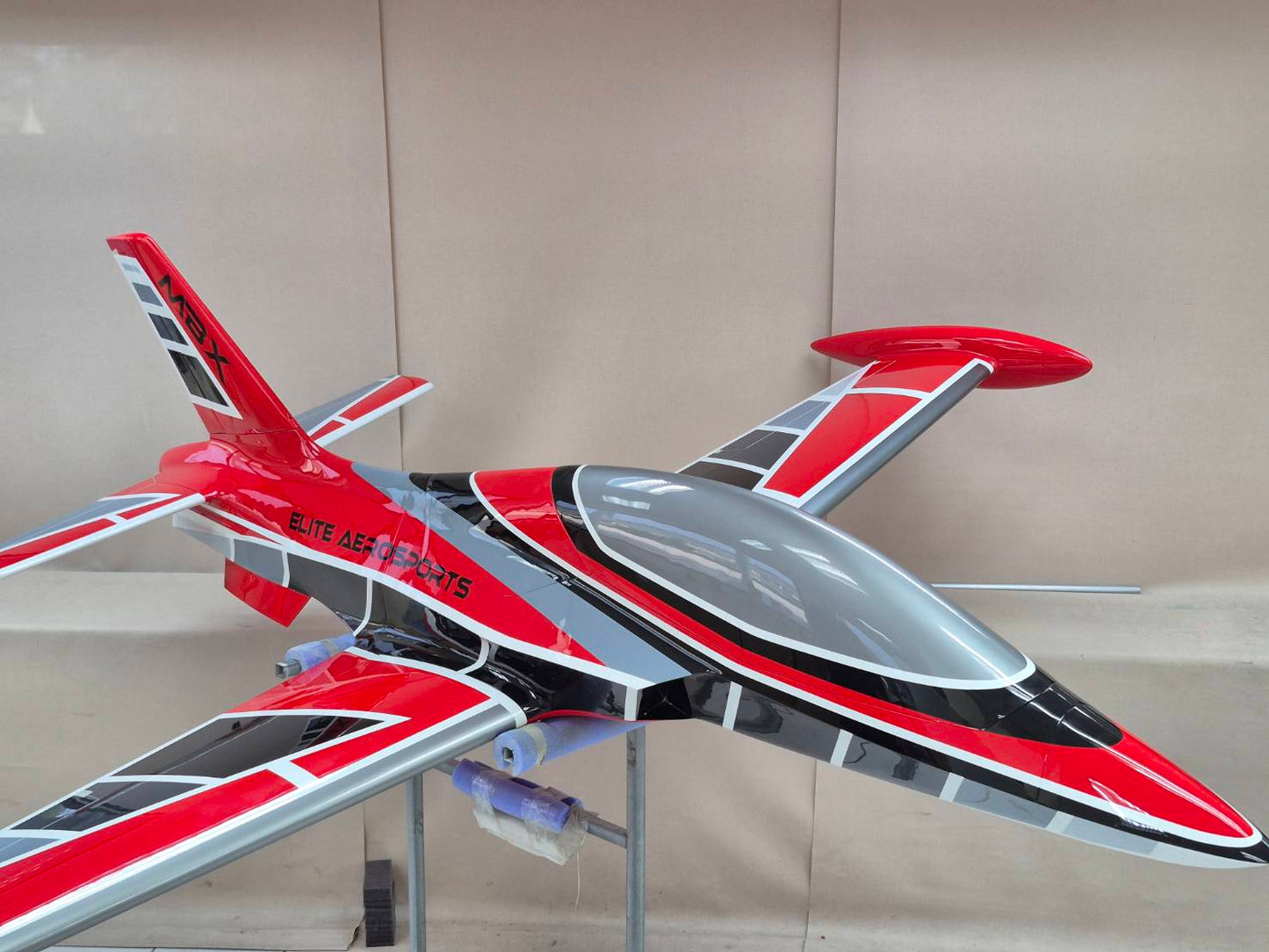

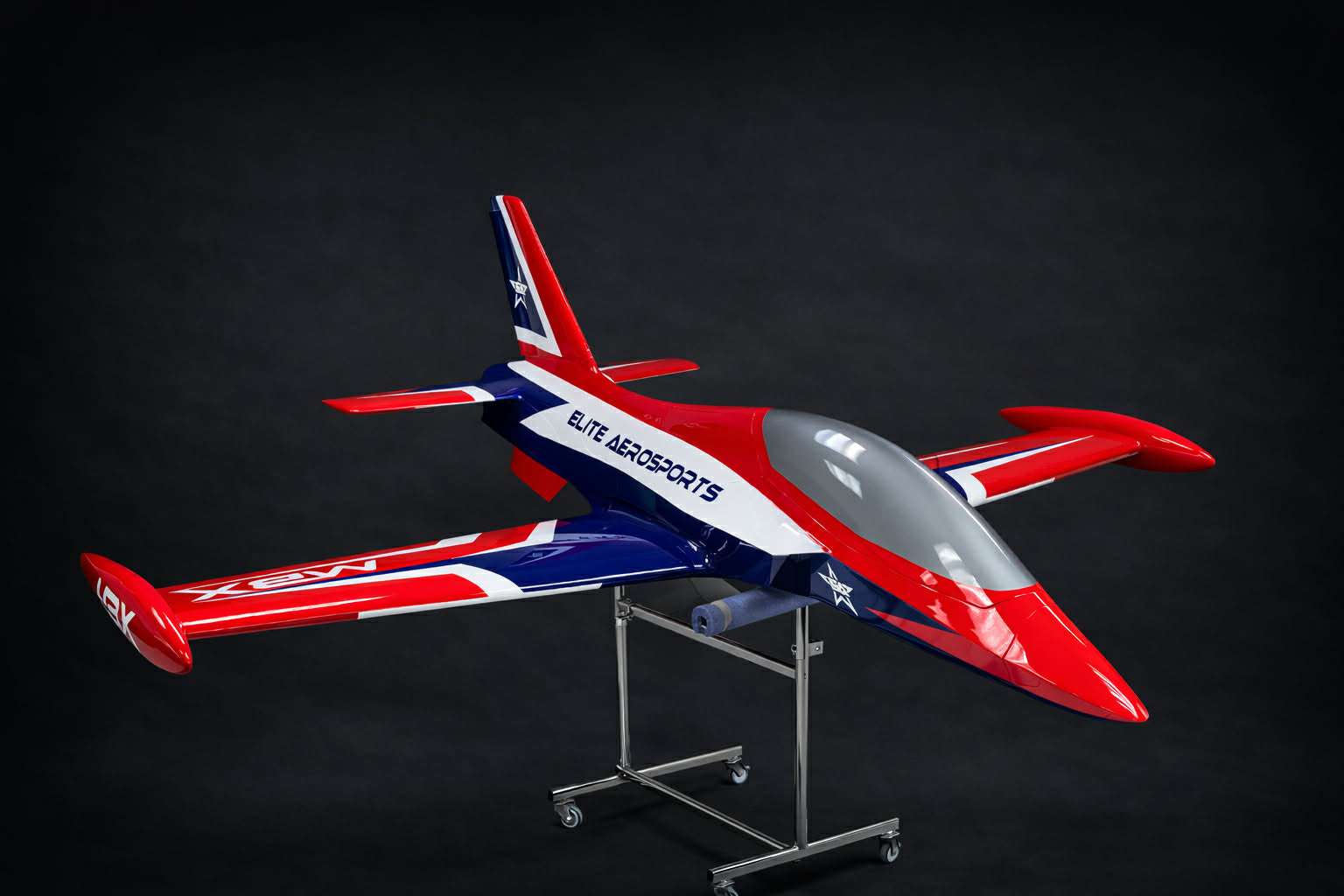

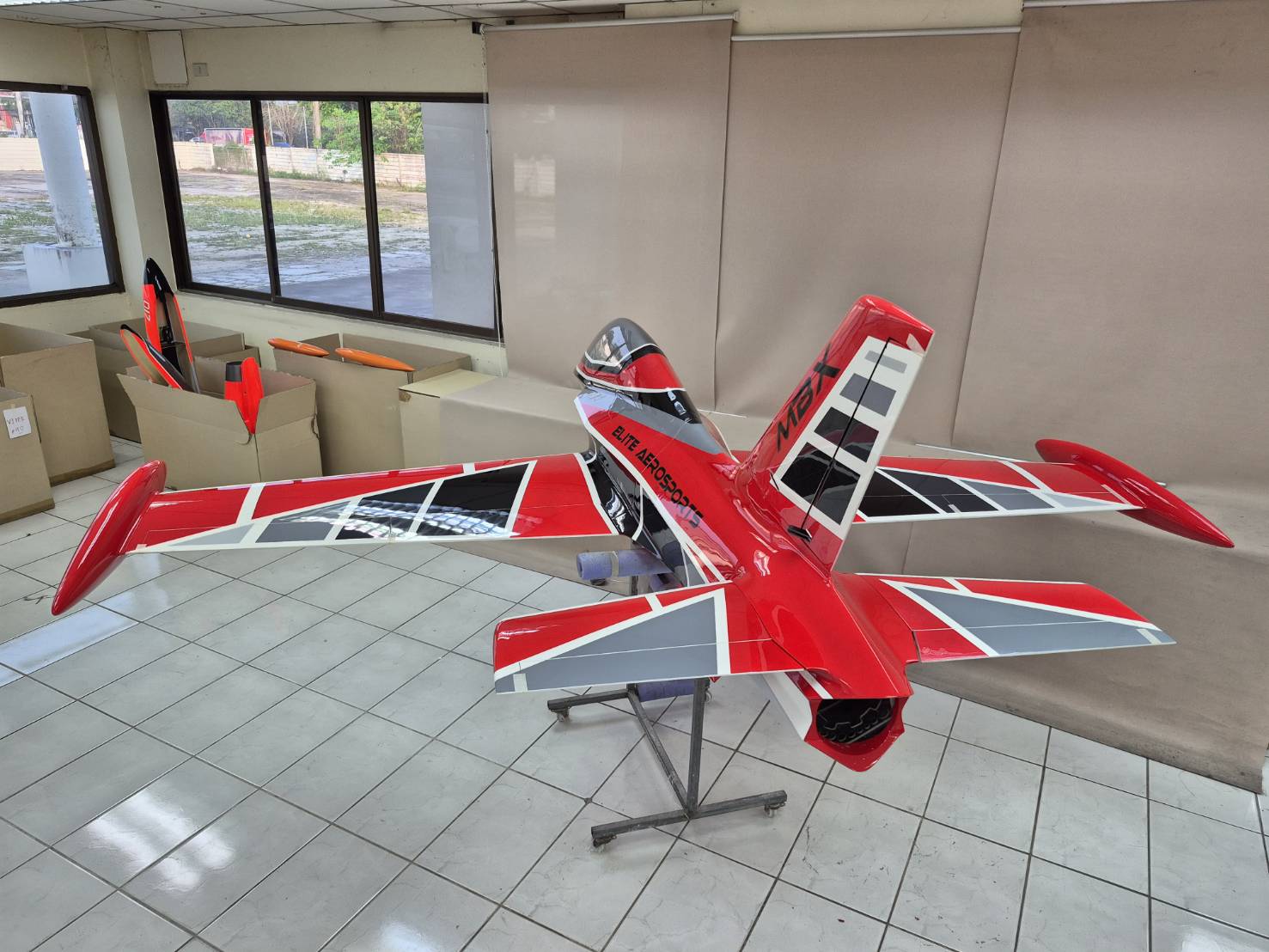

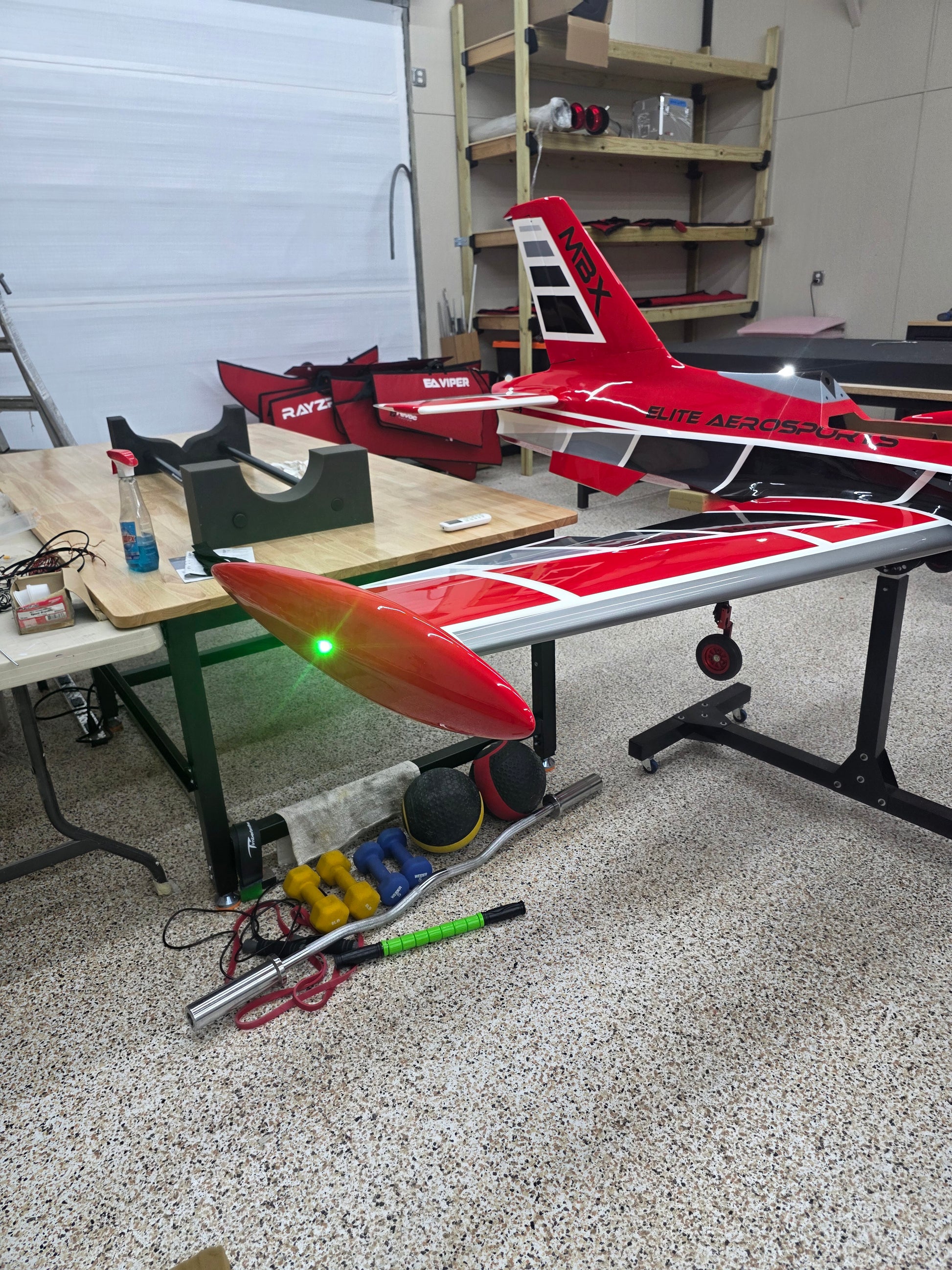

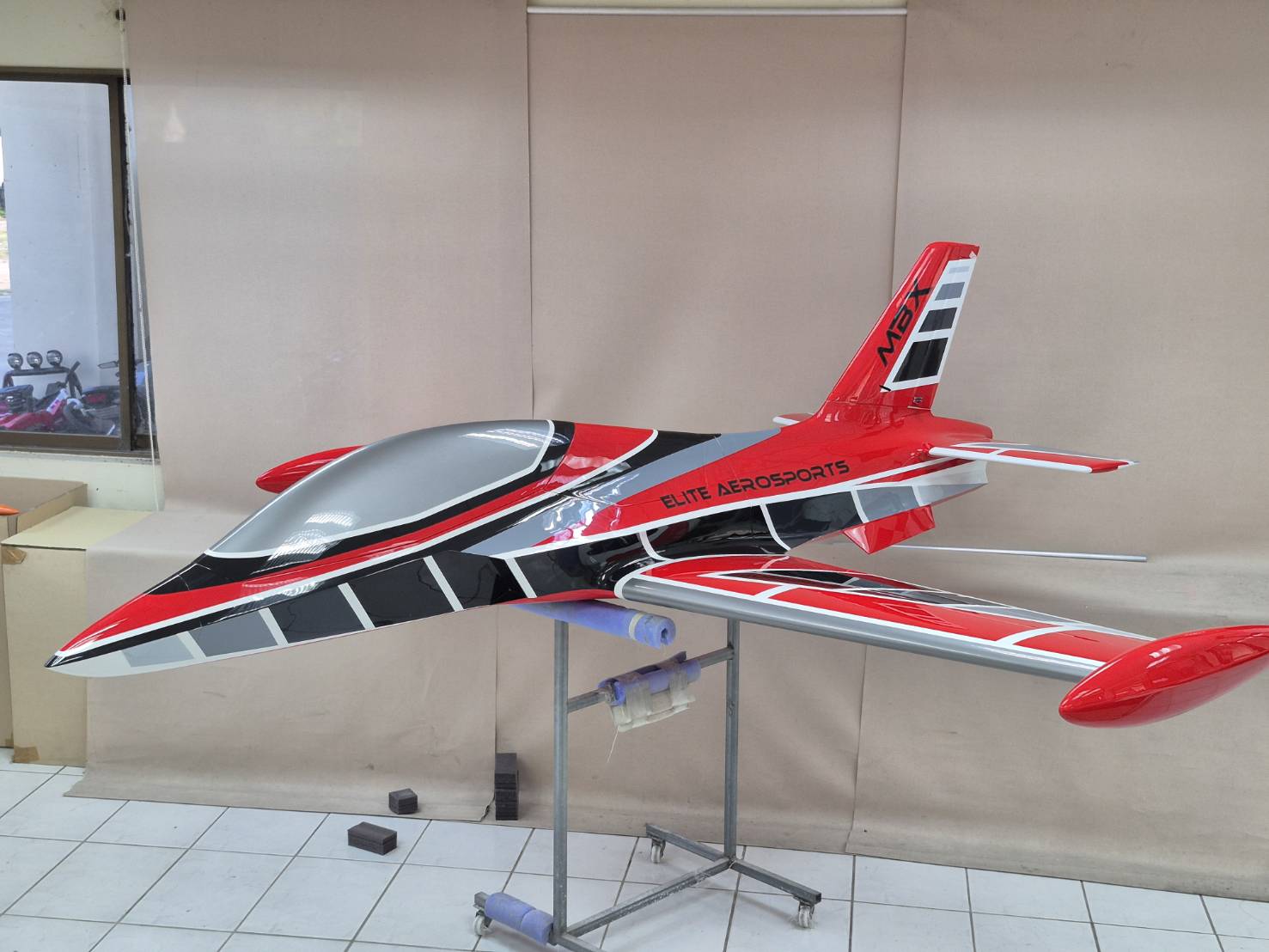

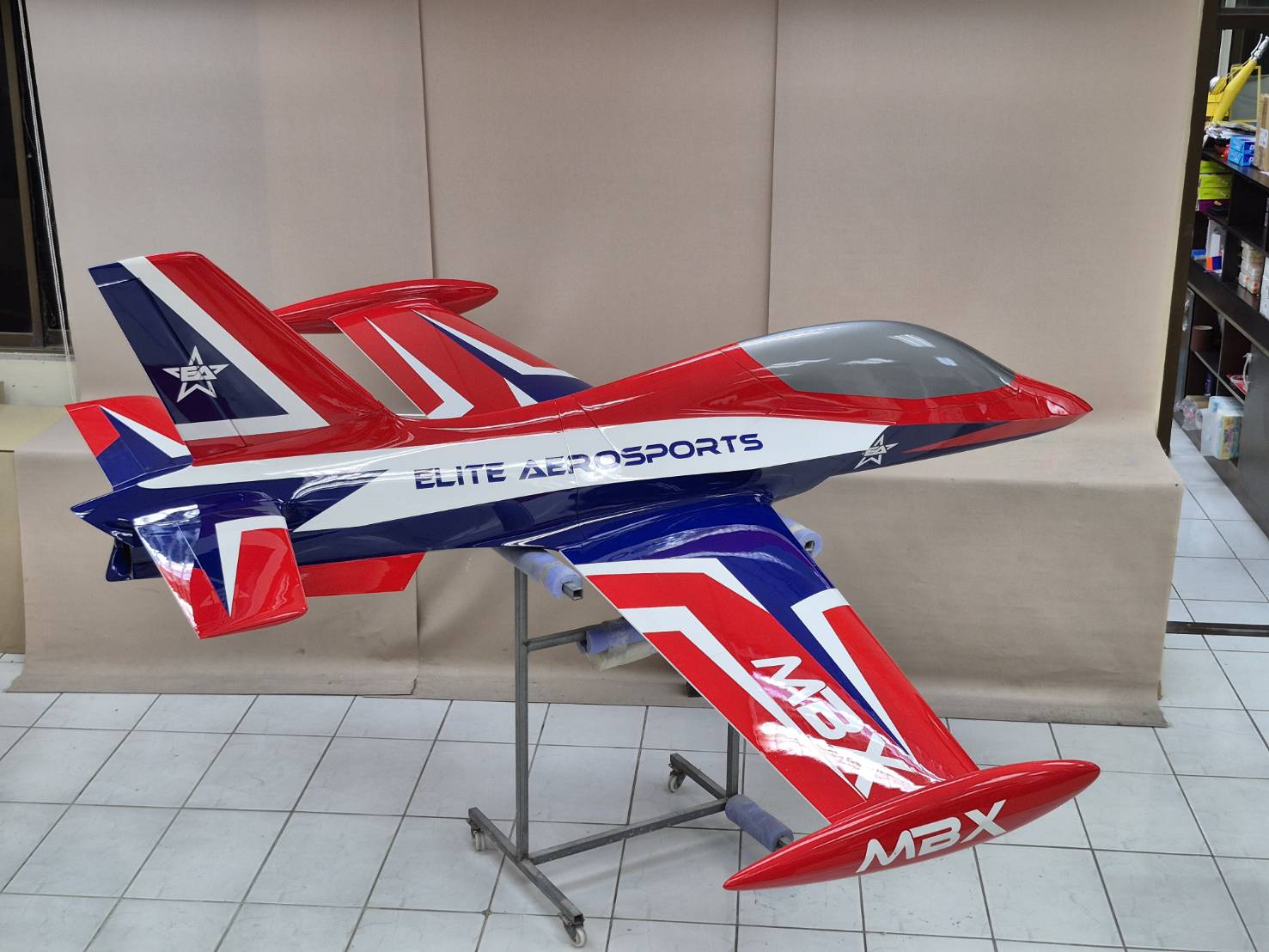

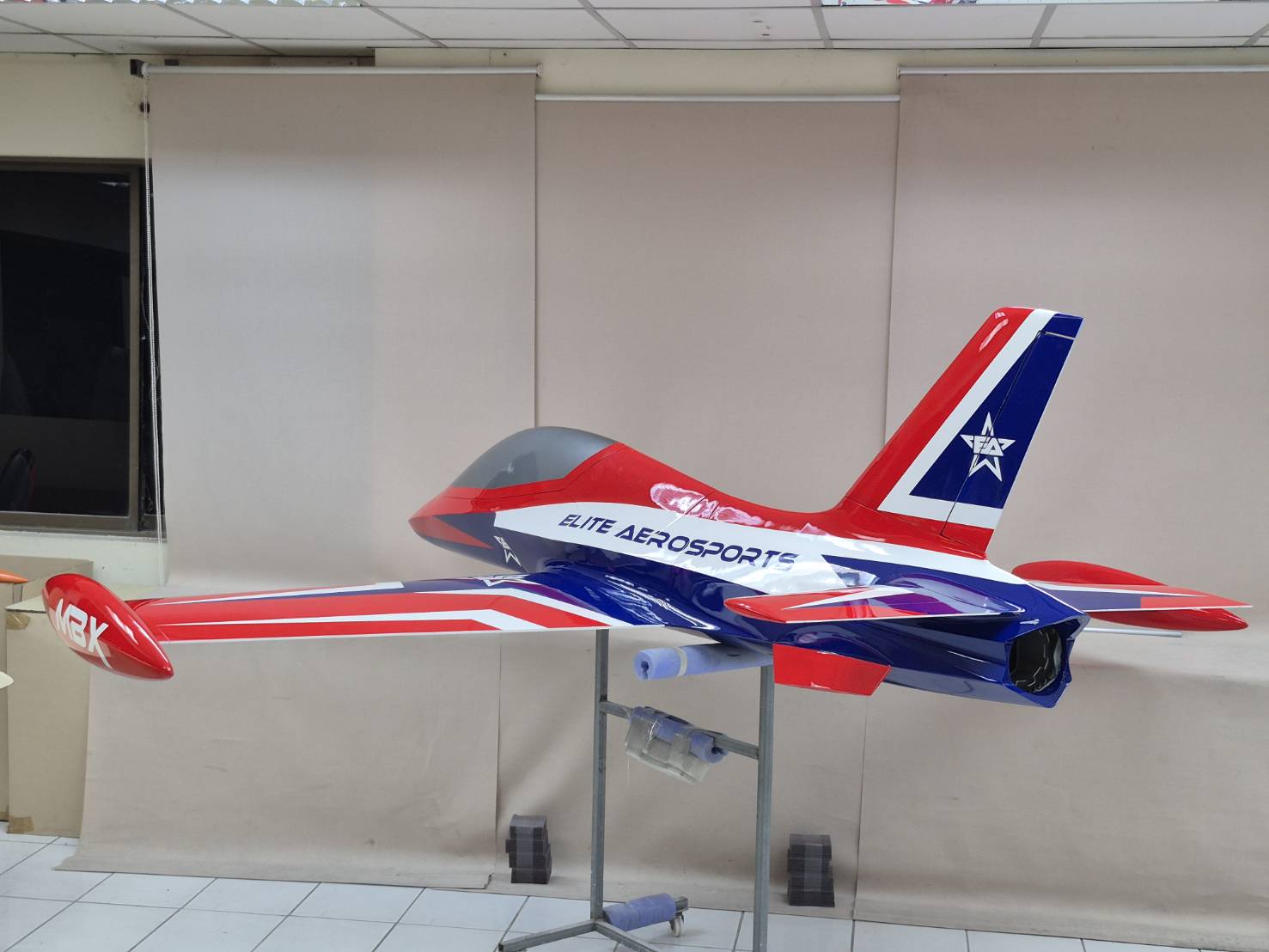

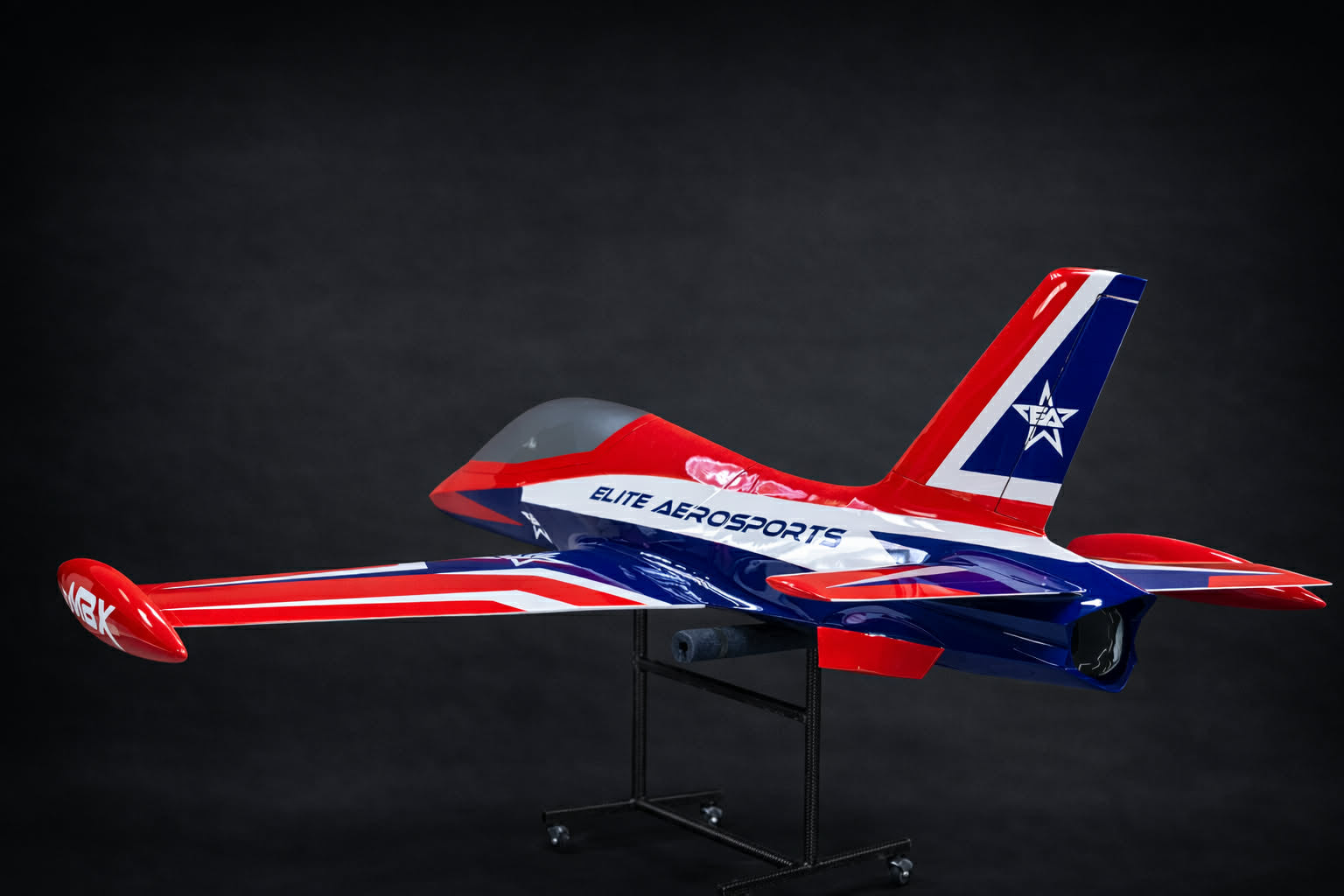

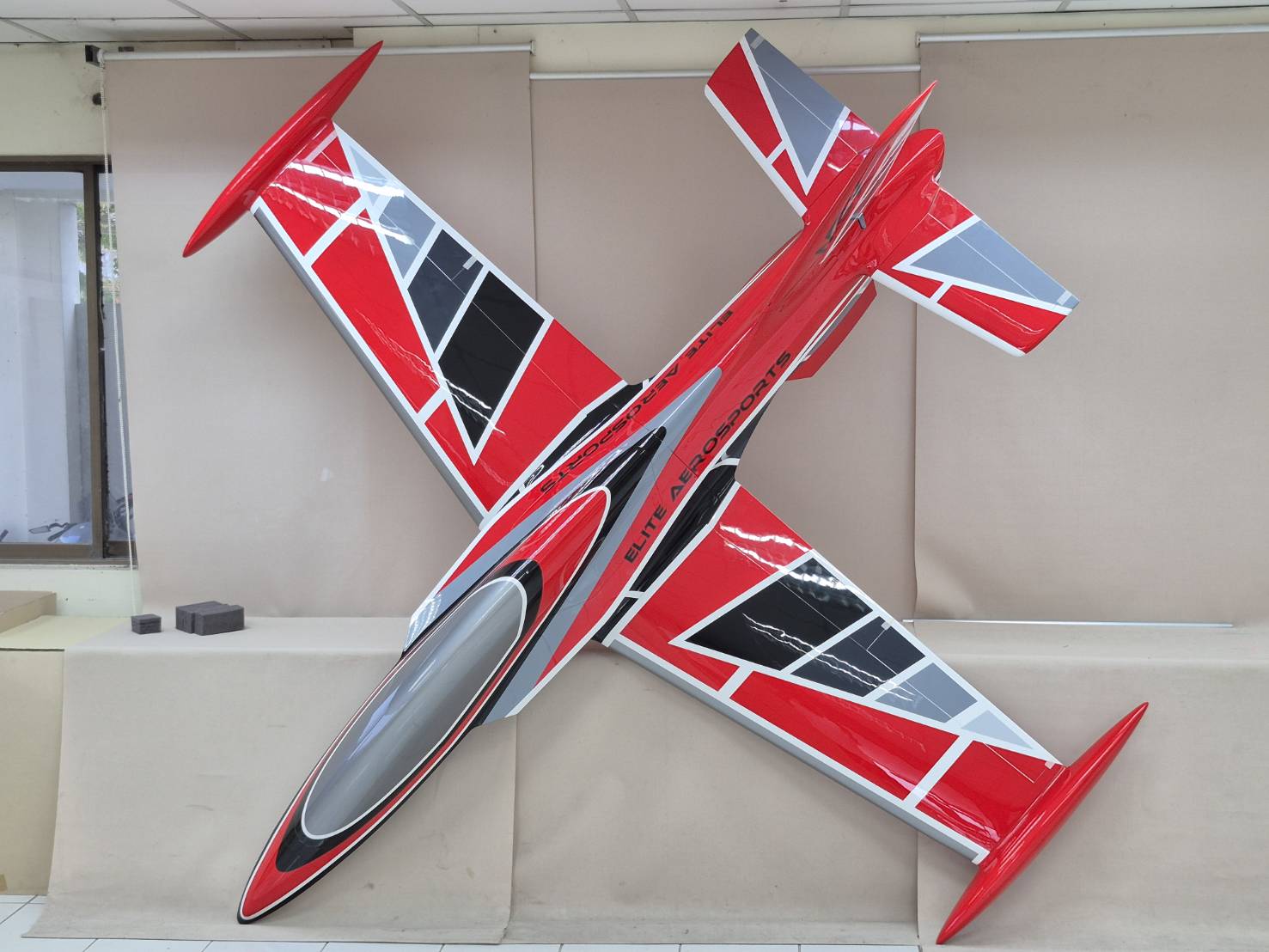

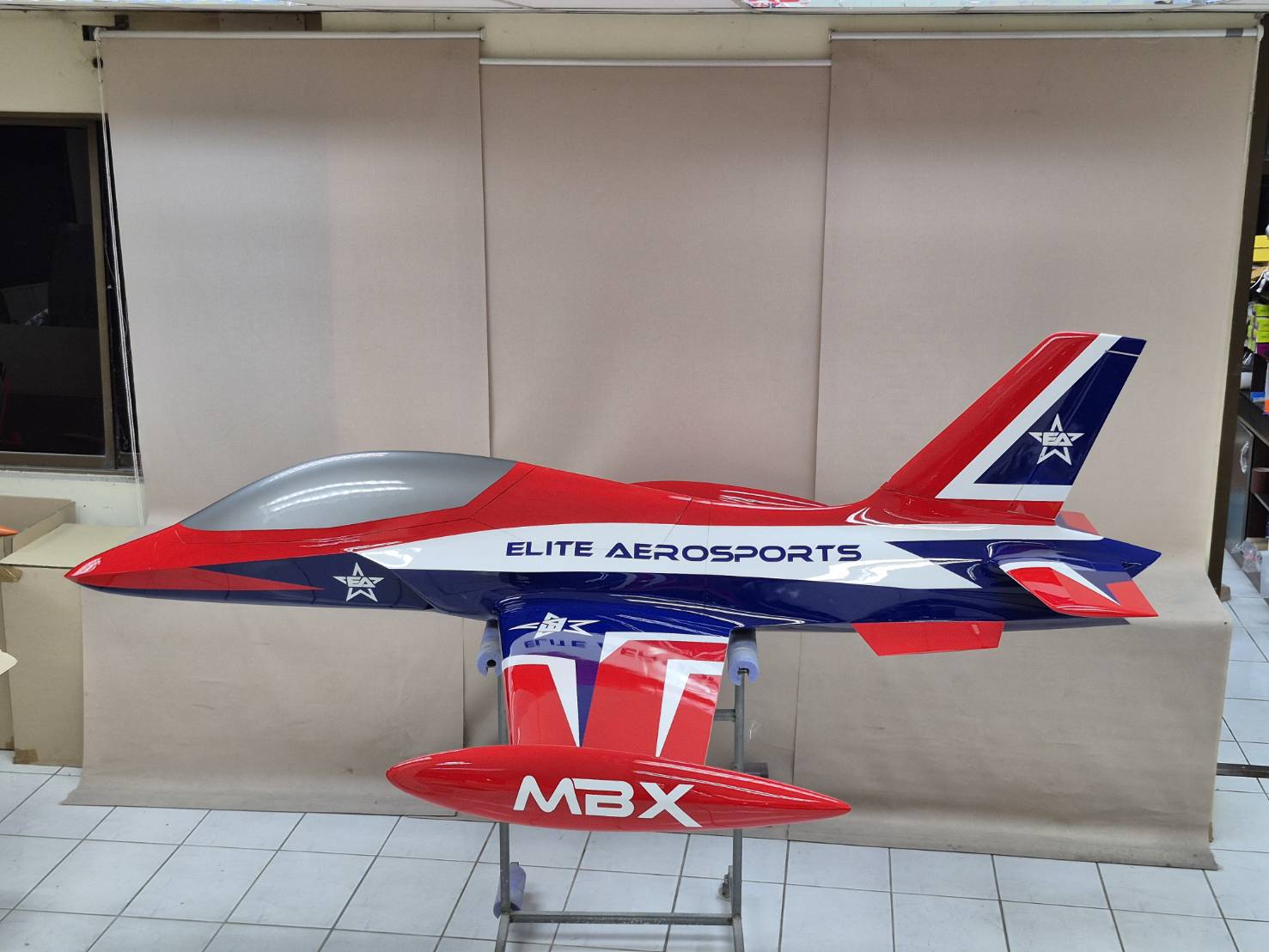

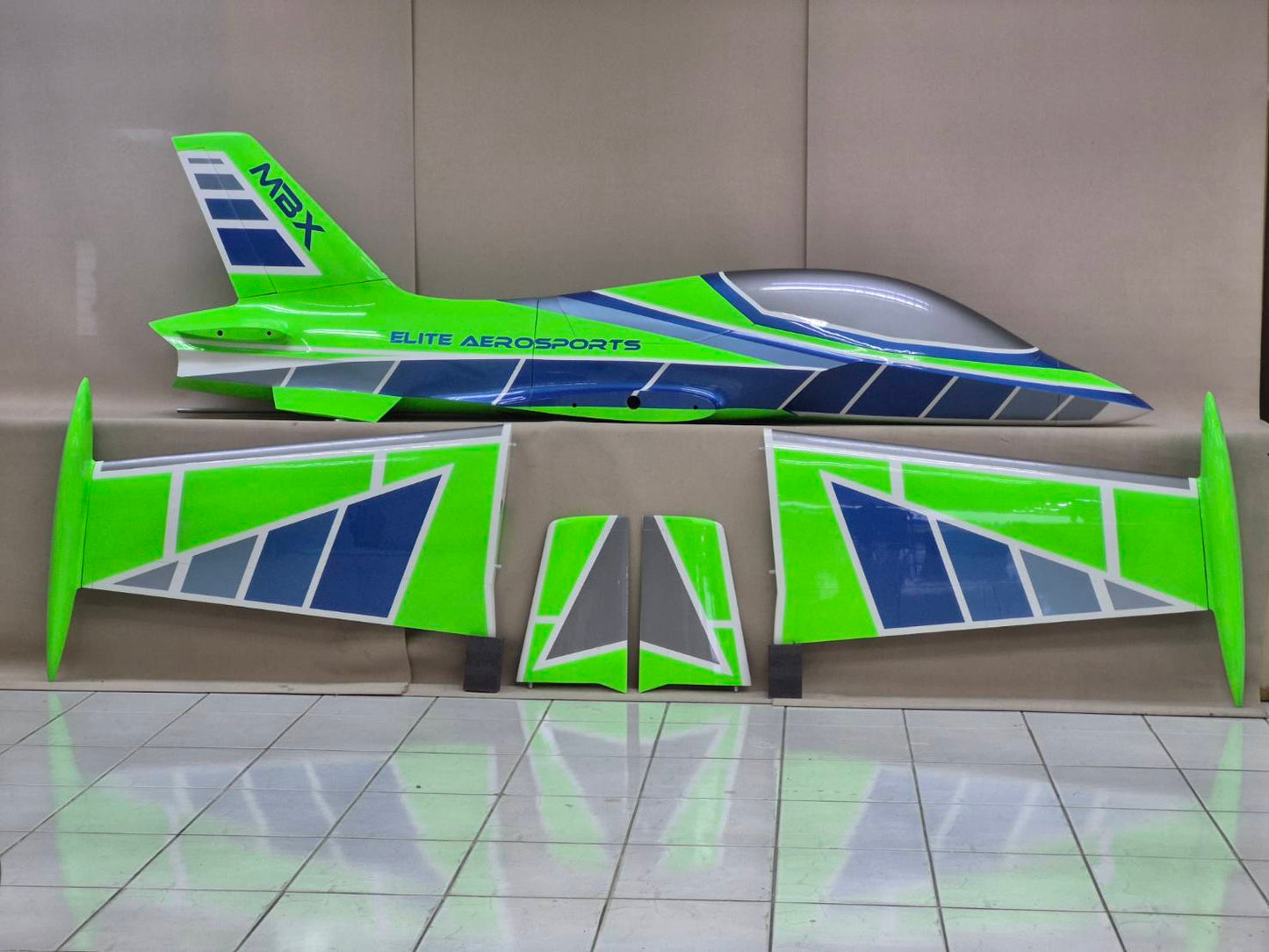

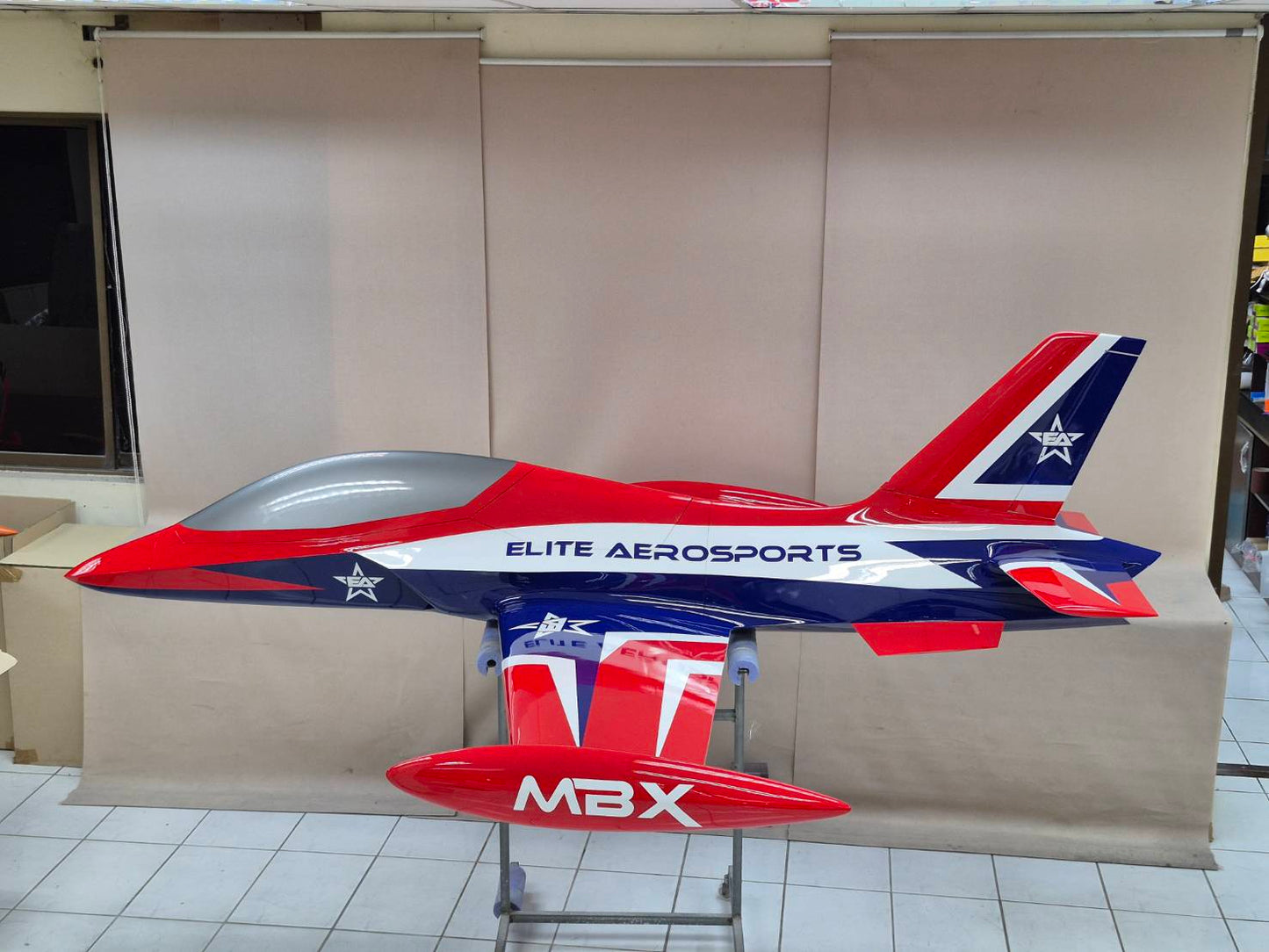

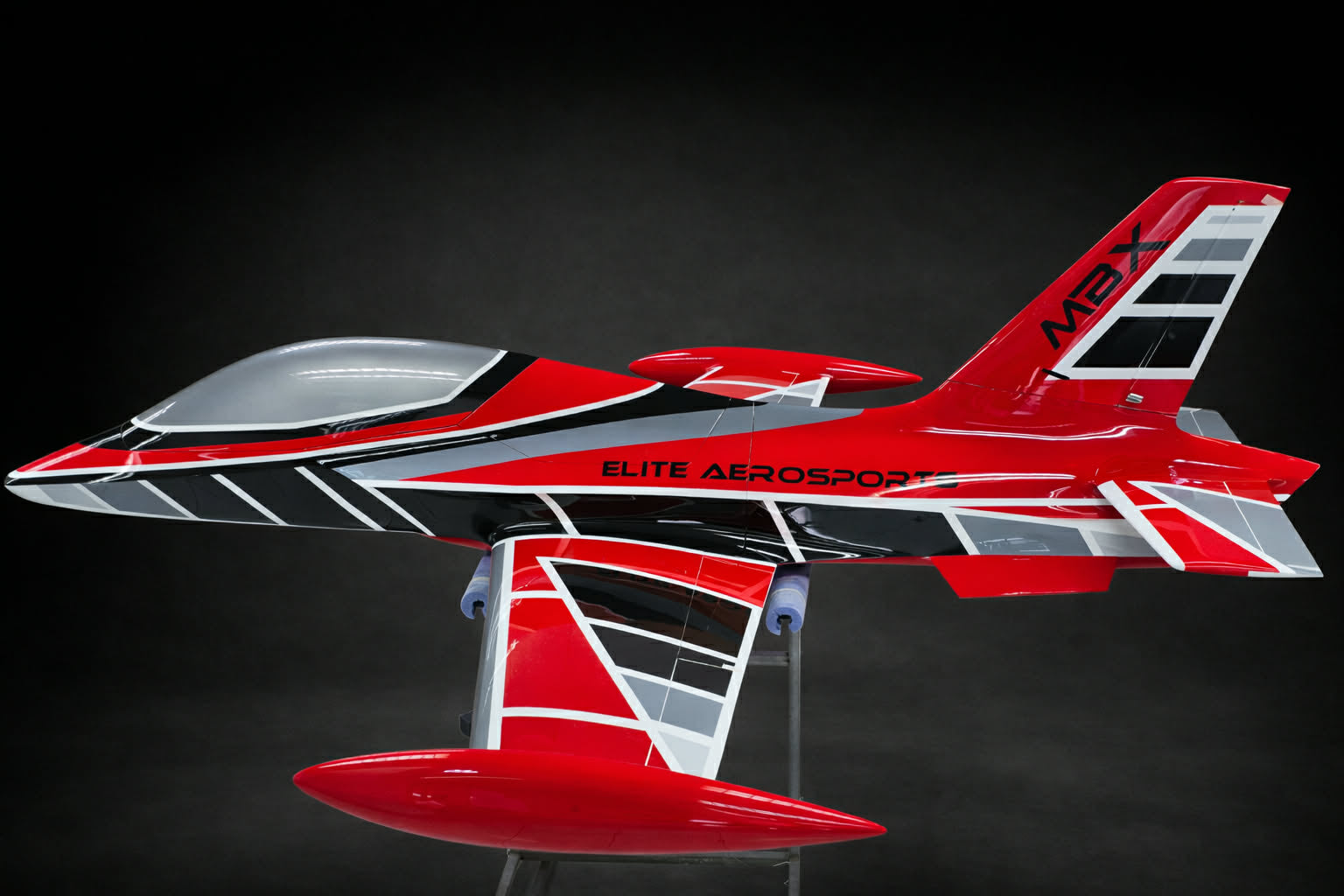

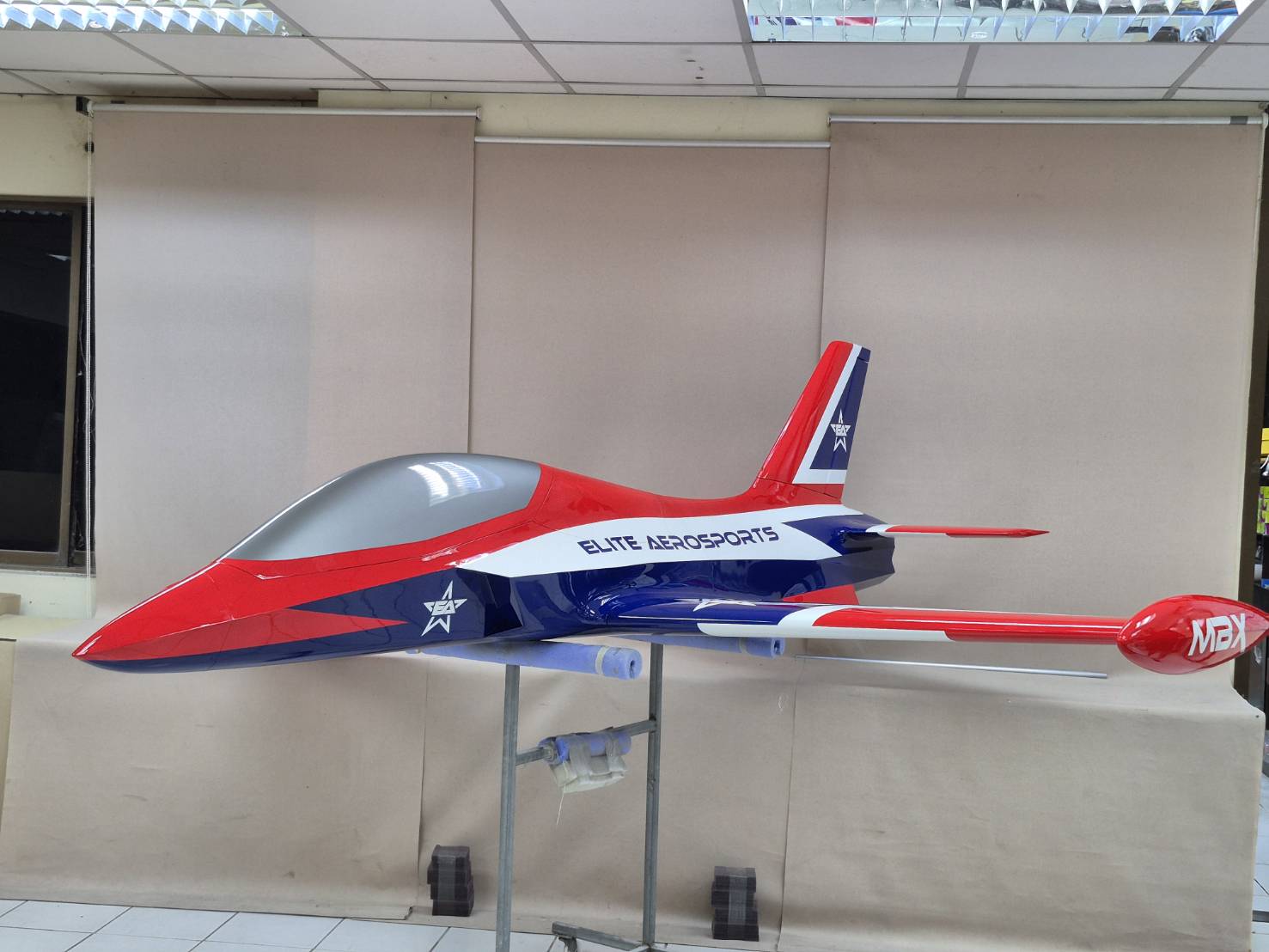

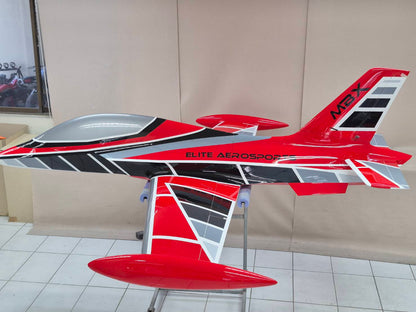

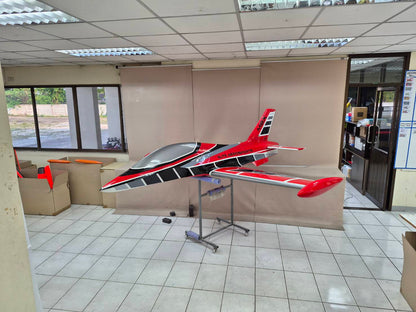

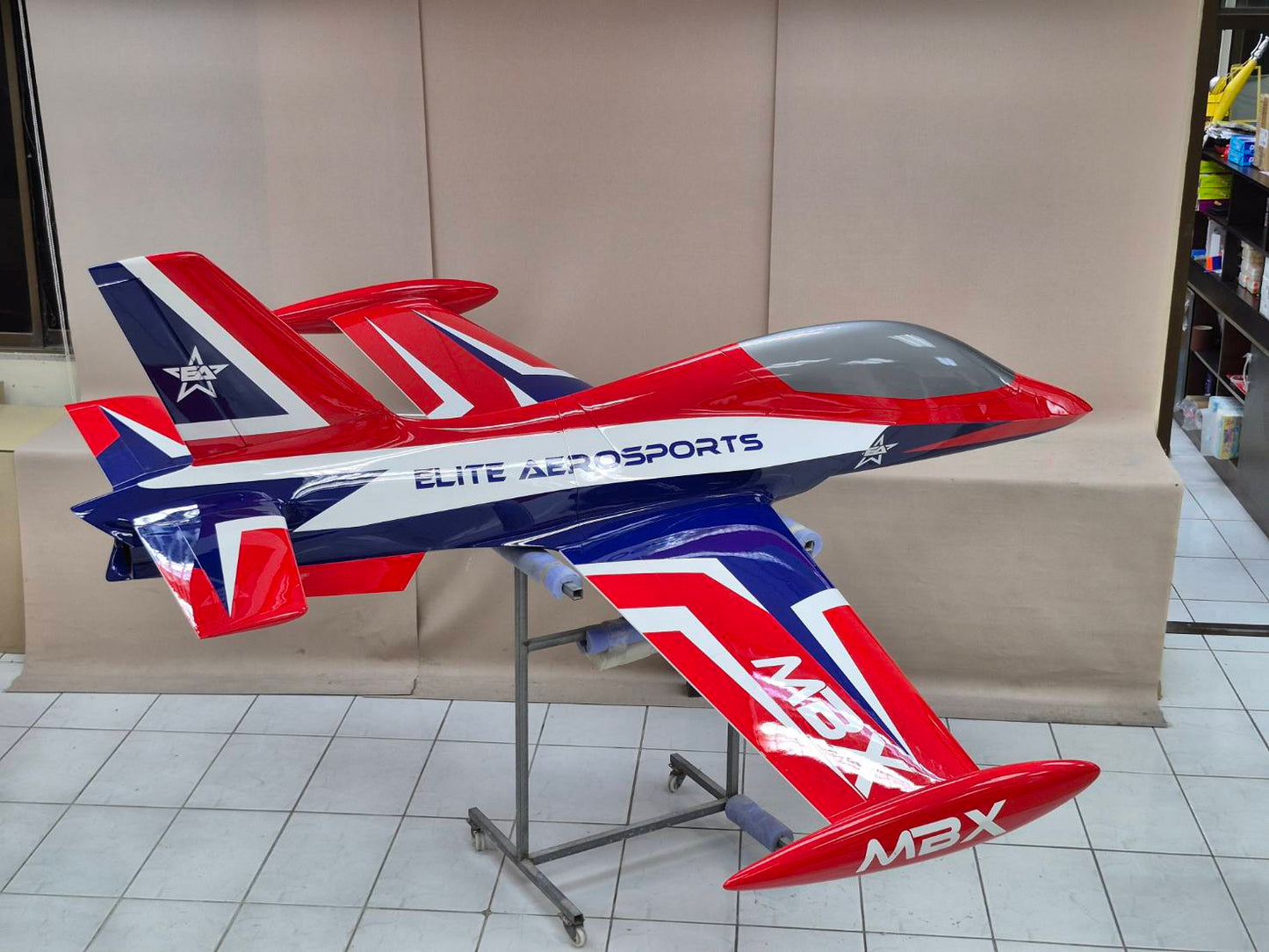

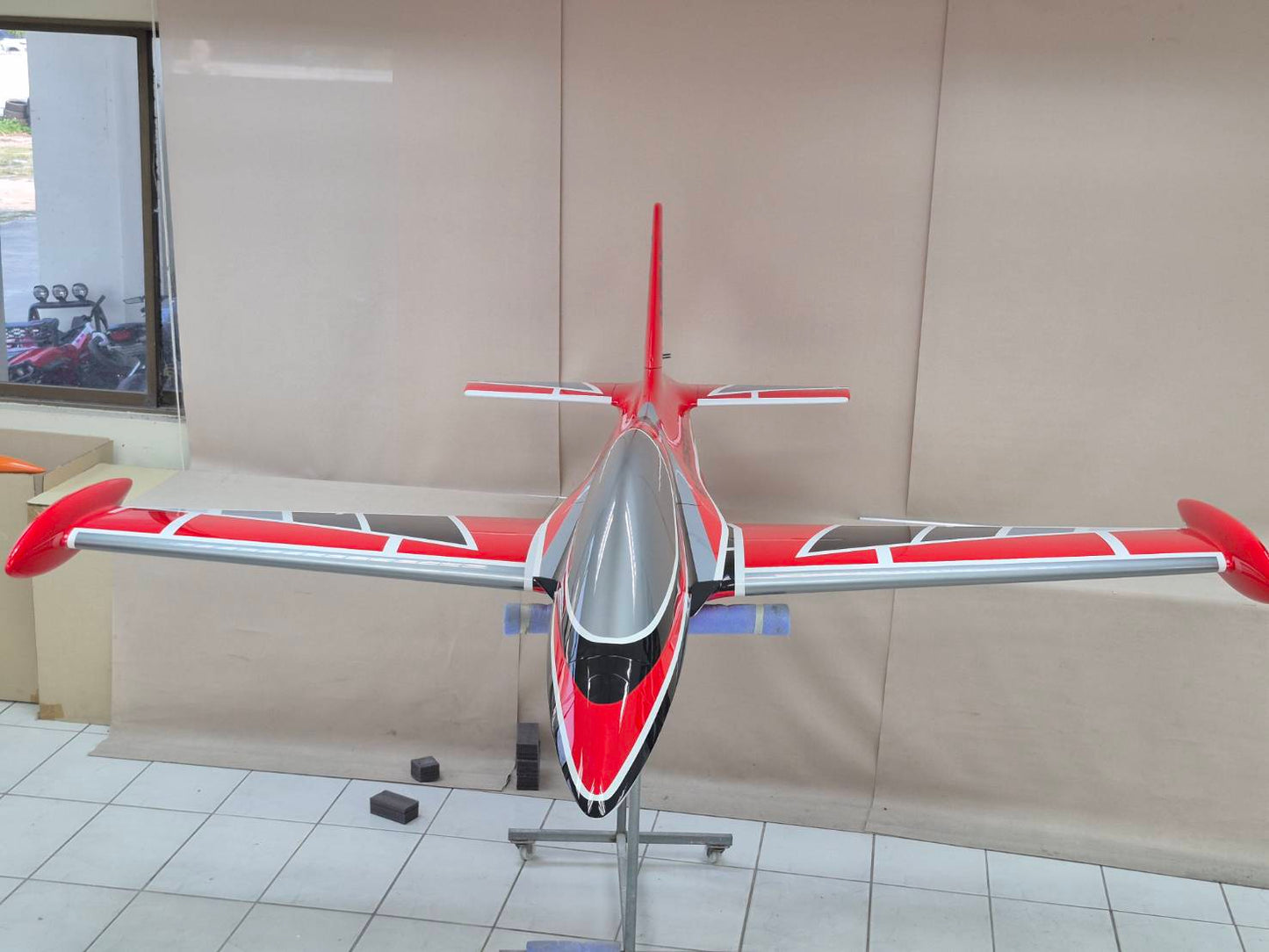

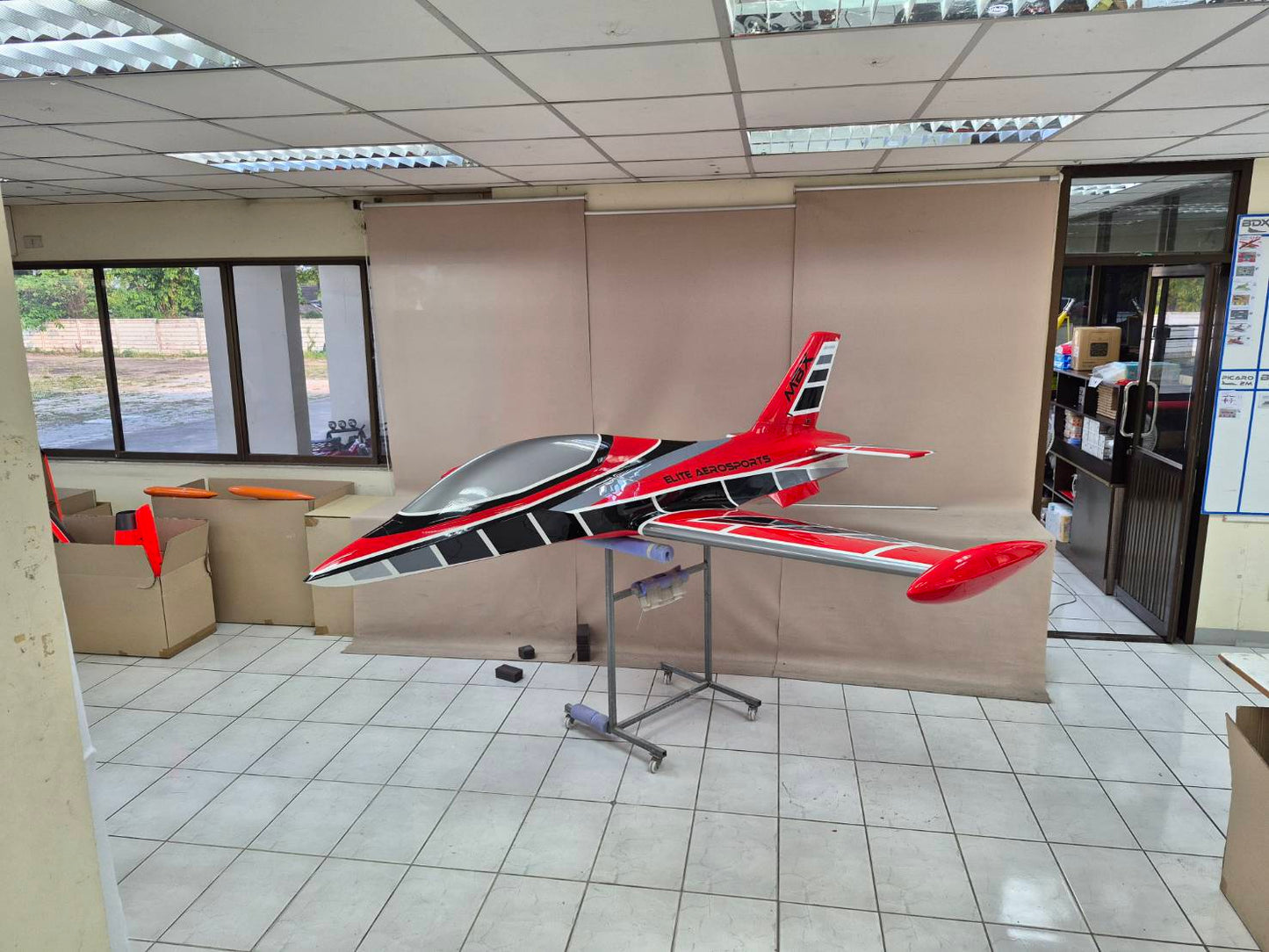

Elite Aerosports MBX
Inspired by the legendary Aermacchi MB-339, the Elite Aerosports MBX is our vision of what a modern evolution of a classic jet should be. We took the timeless lines of an icon and infused them with cutting-edge design, performance, and engineering—resulting in a model that exceeds expectations in every category.
The MBX delivers an unmatched flying experience. Its “point-and-go” handling makes it incredibly intuitive, while its wide flight envelope allows for both ultra-slow, controlled flight and blistering high-speed passes. Whether you’re performing precision aerobatics or setting up for landing, the MBX remains exceptionally stable and confidence-inspiring.
This is more than just a model—it’s a performer you’ll want to fly again and again.
⸻
Key Features
• Extremely stable and predictable flight characteristics
• Wide speed range: smooth slow flight to high-speed performance
• Effortless aerobatics and landings

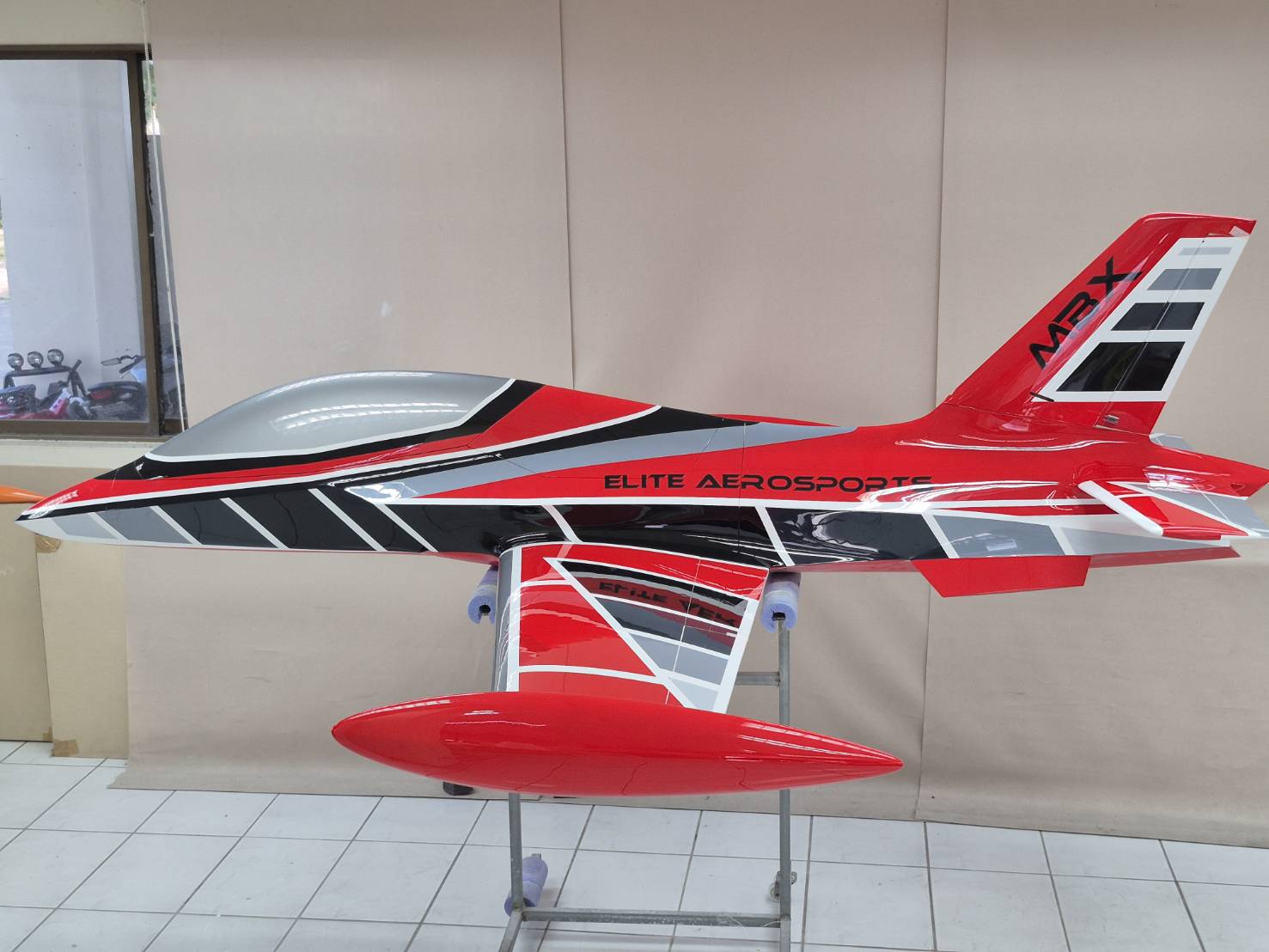

• Removable wing tanks included as standard
• Lightweight, high-strength composite construction
• Designed for both performance and ease of use
⸻
Specifications
• Wingspan: 2.9m / 114 in
• Length: 2.9m / 114 in
• Weight: 40–45 lbs
• Power Range: 180N–210N
⸻
ARF Kit Includes
• Complete hardware and linkages
• High-flow fuel system fittings
• 6.0L fuel cell
• Stainless dual-wall thrust pipe
• Electron landing gear with ControlBox controller
• Carbon fiber wing, vertical, and horizontal tubes
• Protective covers for wings and stabilizers
⸻
PNP Kit Includes
The PNP version comes fully equipped for a streamlined build:

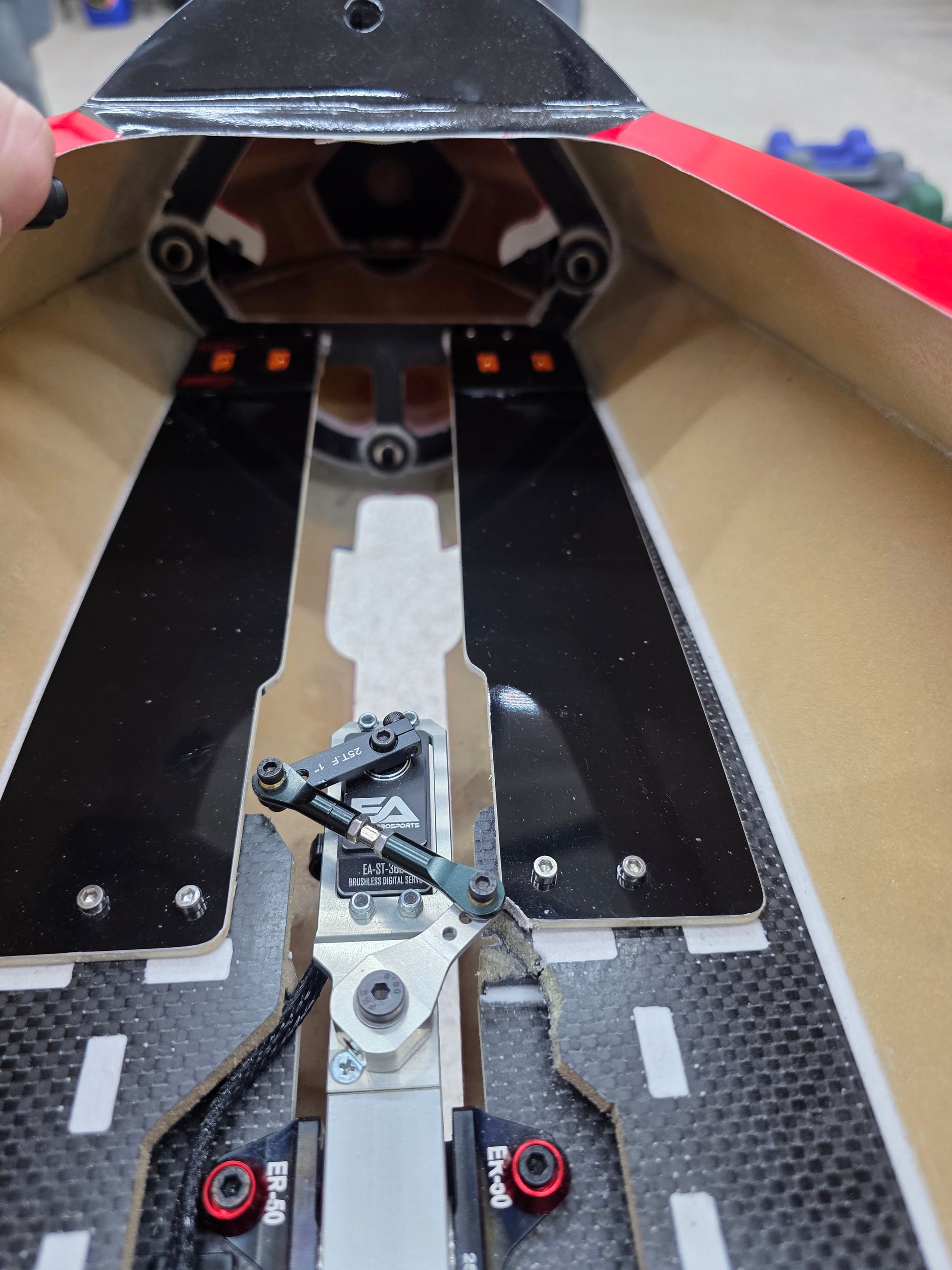

• (6) Pre-installed EA 36KG HV servos (500 oz-in torque)
• (2) EA 55KG HV servos installed on flaps

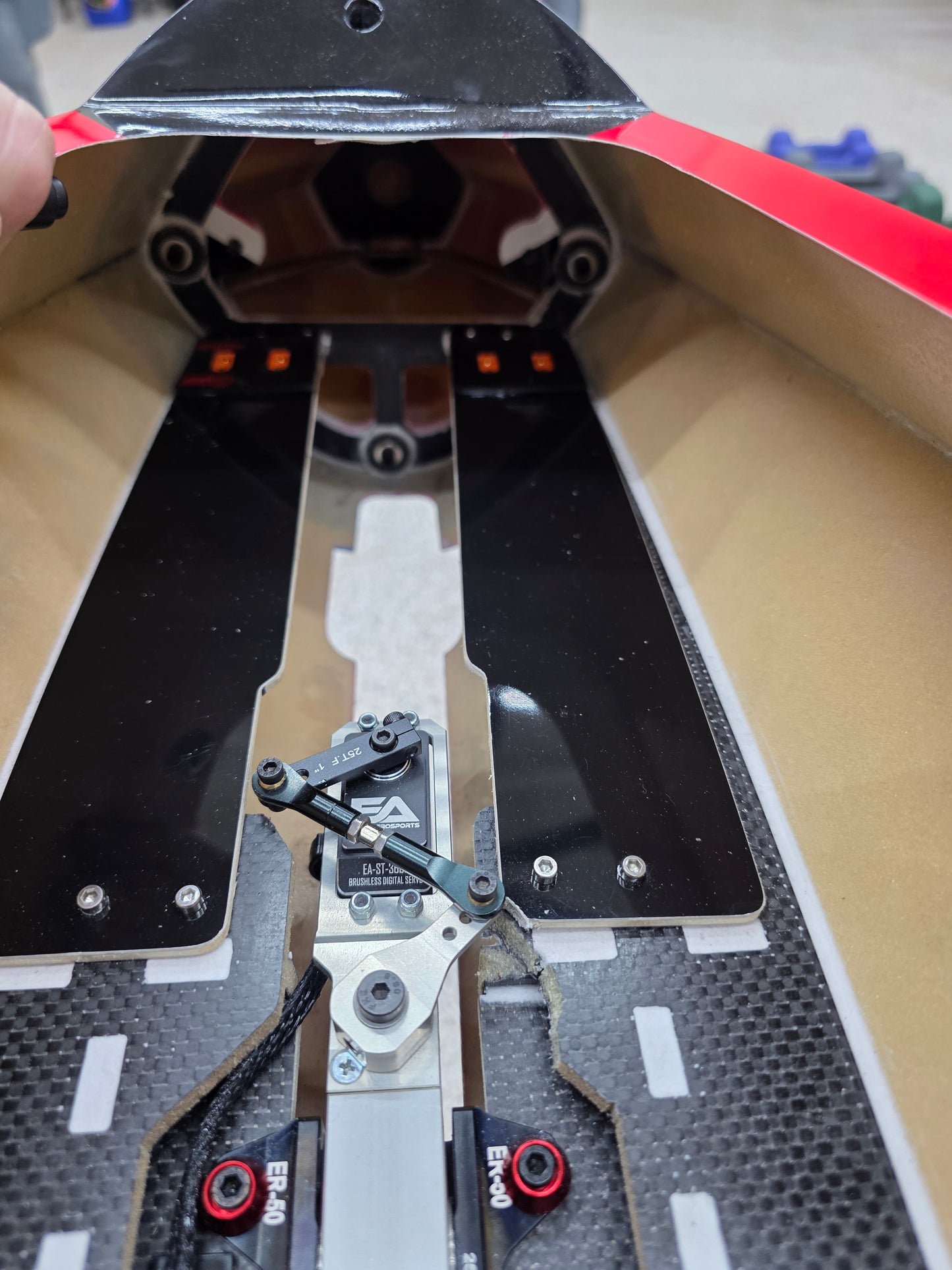

• Fully installed and connected linkages

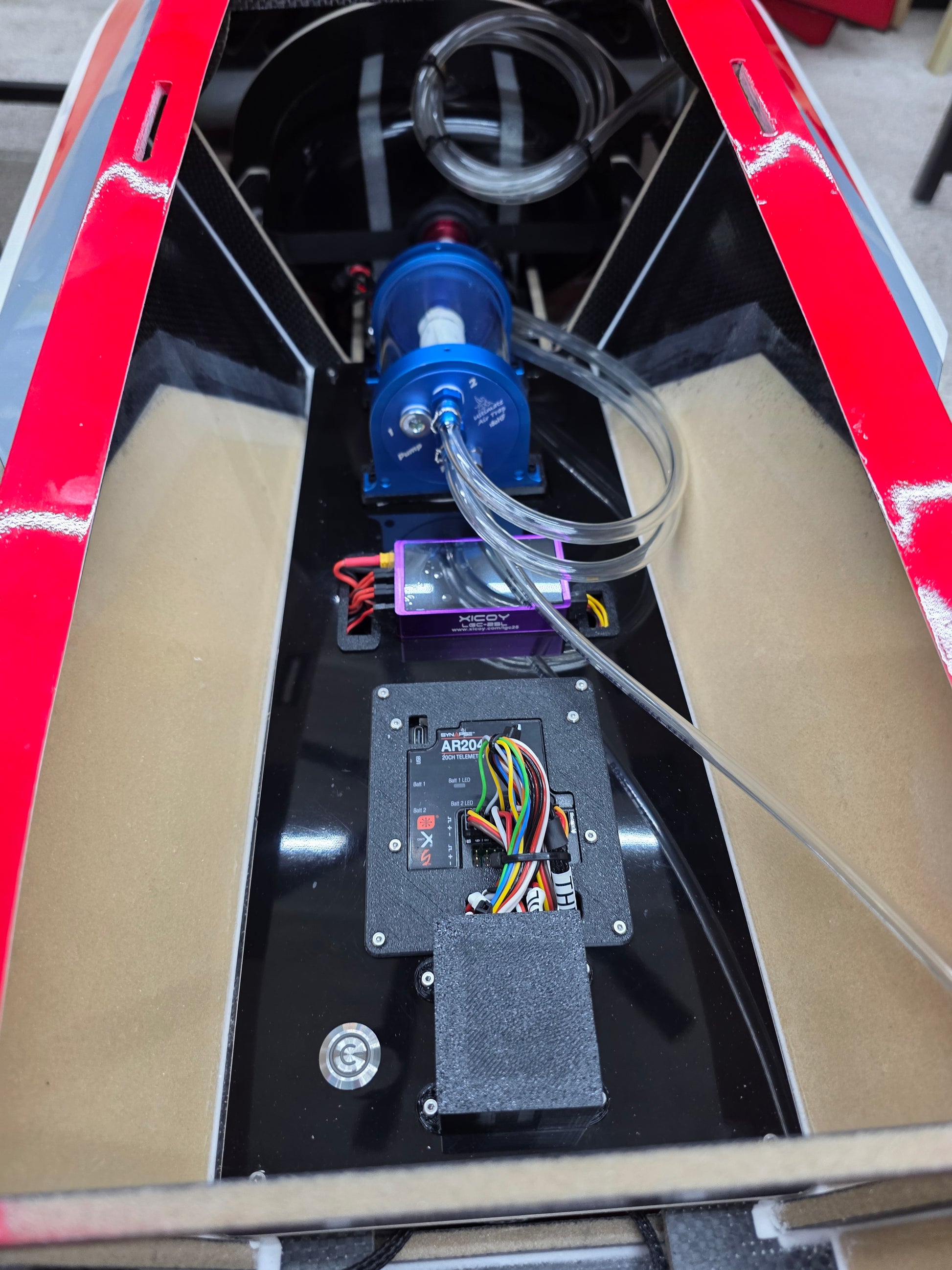

• Pre-installed 6.0L fuel system with high-flow fittings
• UAT installed
• Complete wiring with labeled connectors and loom
• Installed stainless dual-wall thrust pipe
• Electron ER-50 landing gear with ControlBox controller
Just add your receiver, gyro, and turbine—and you’re ready to fly.
Note: Some modeling experience is recommended. Please inspect all components prior to flight.
⸻

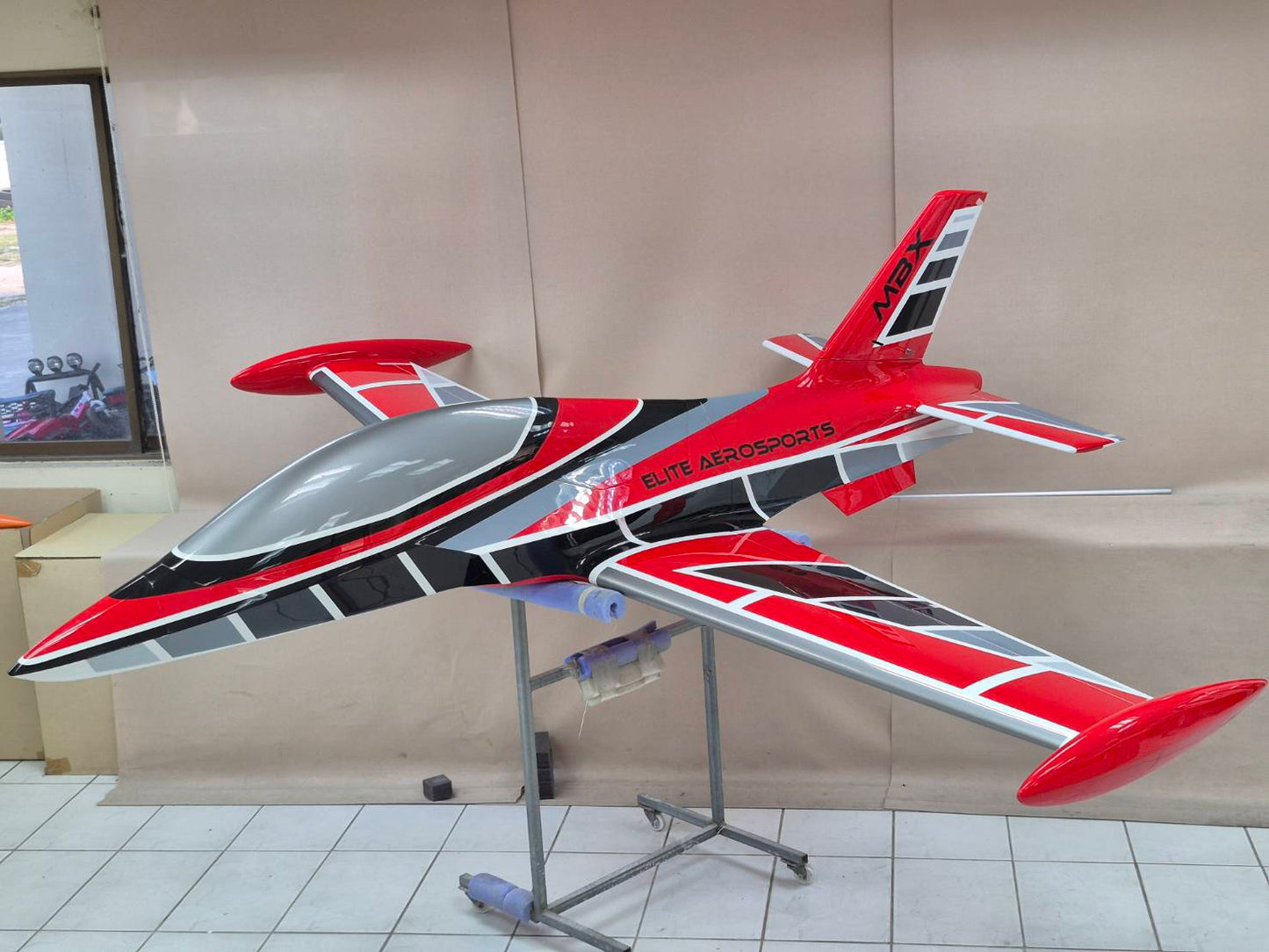

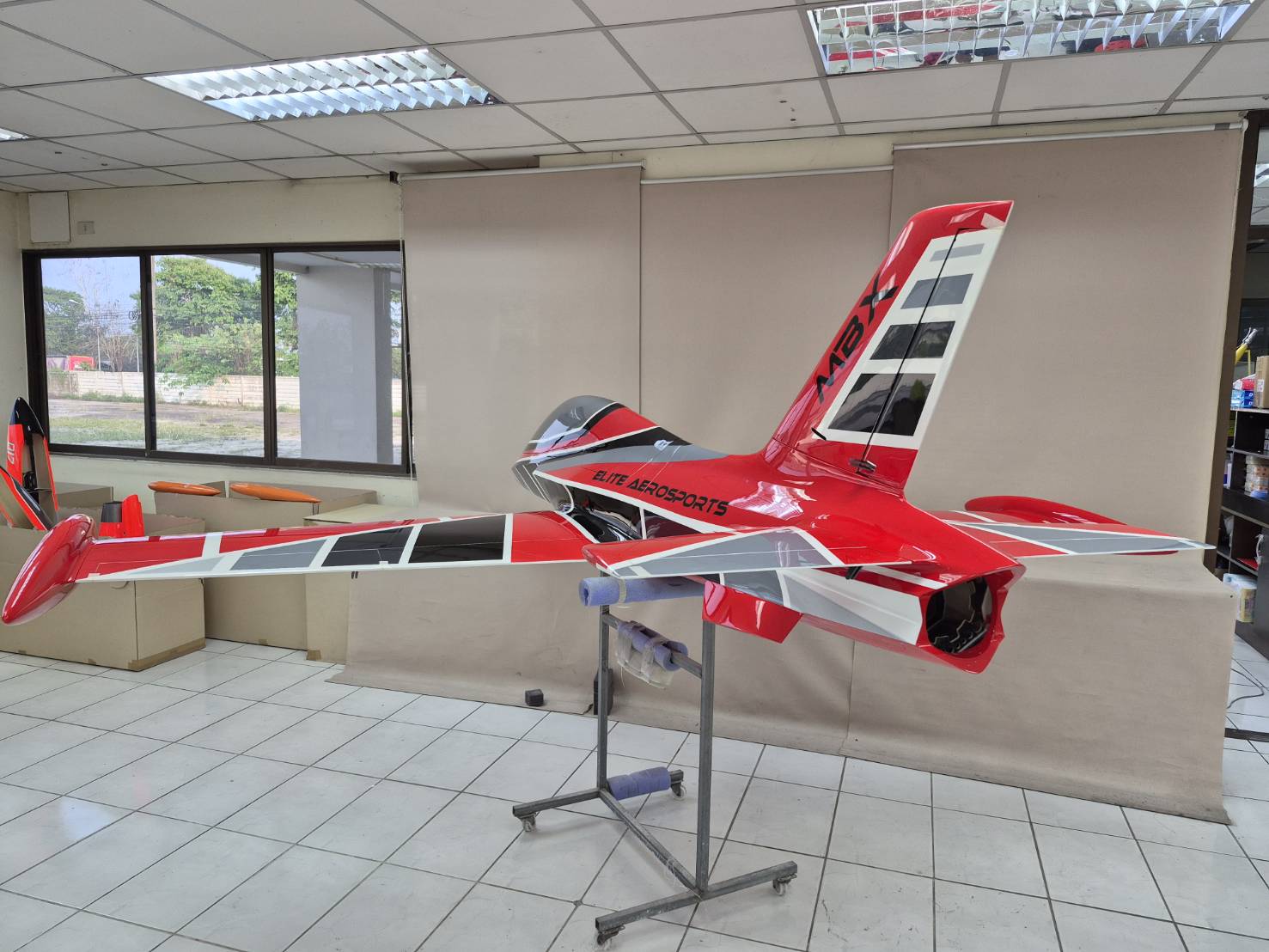

Airframe Features
• Extensive factory pre-fabrication
• High-gloss painted finish with clear coat
• Lightweight composite sandwich construction
• Center-hinged rudder for precision and maximum travel

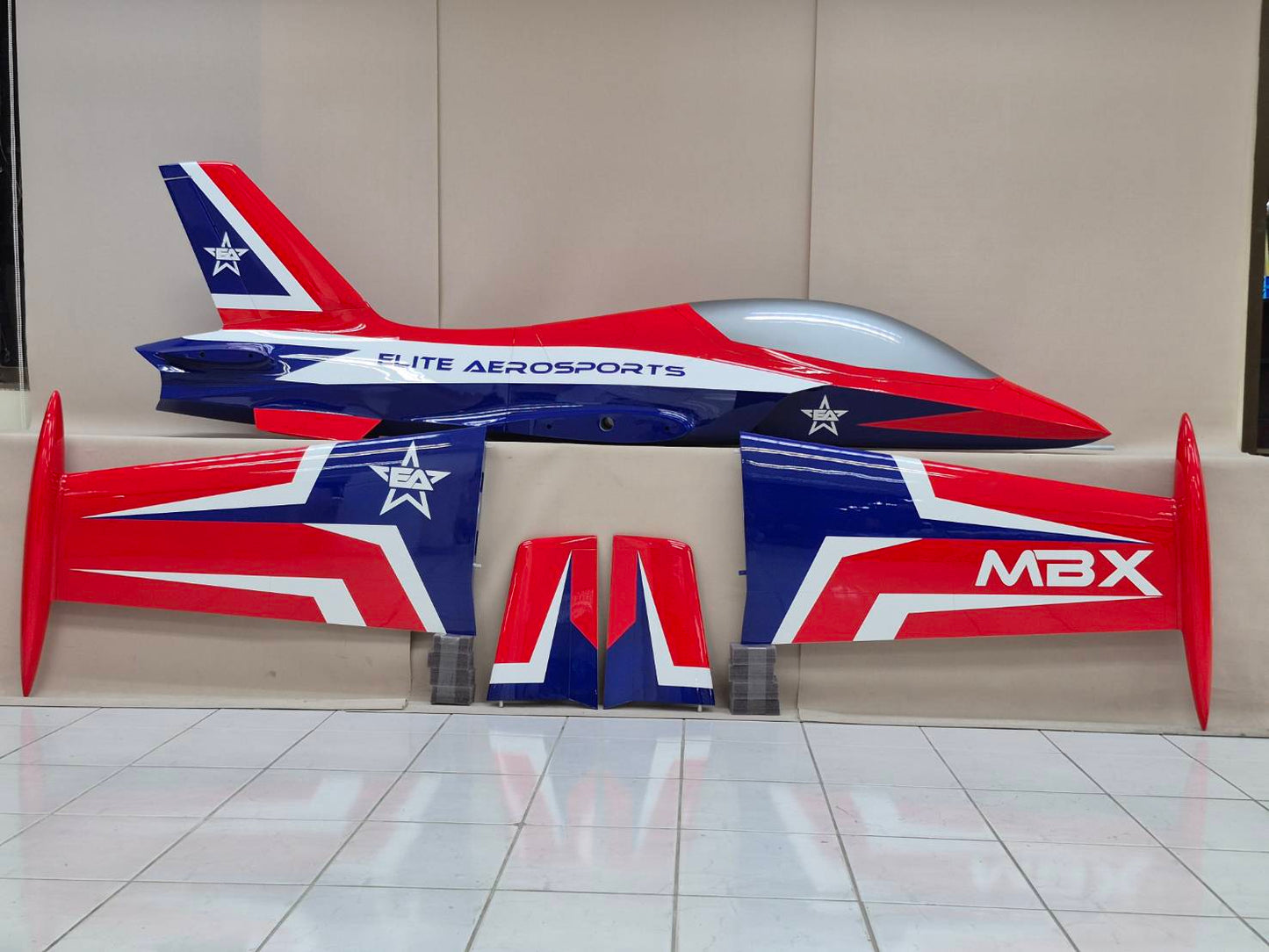

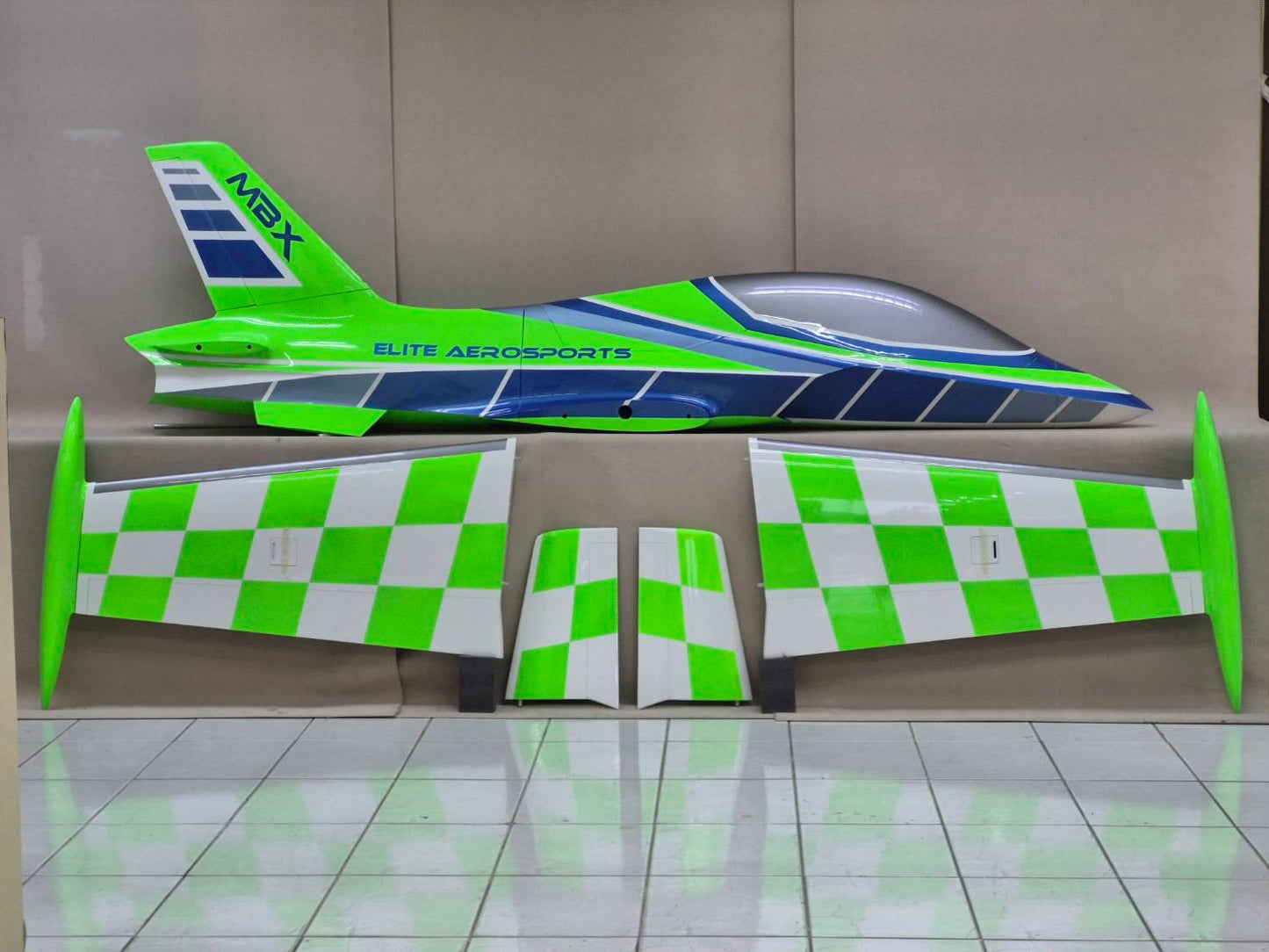

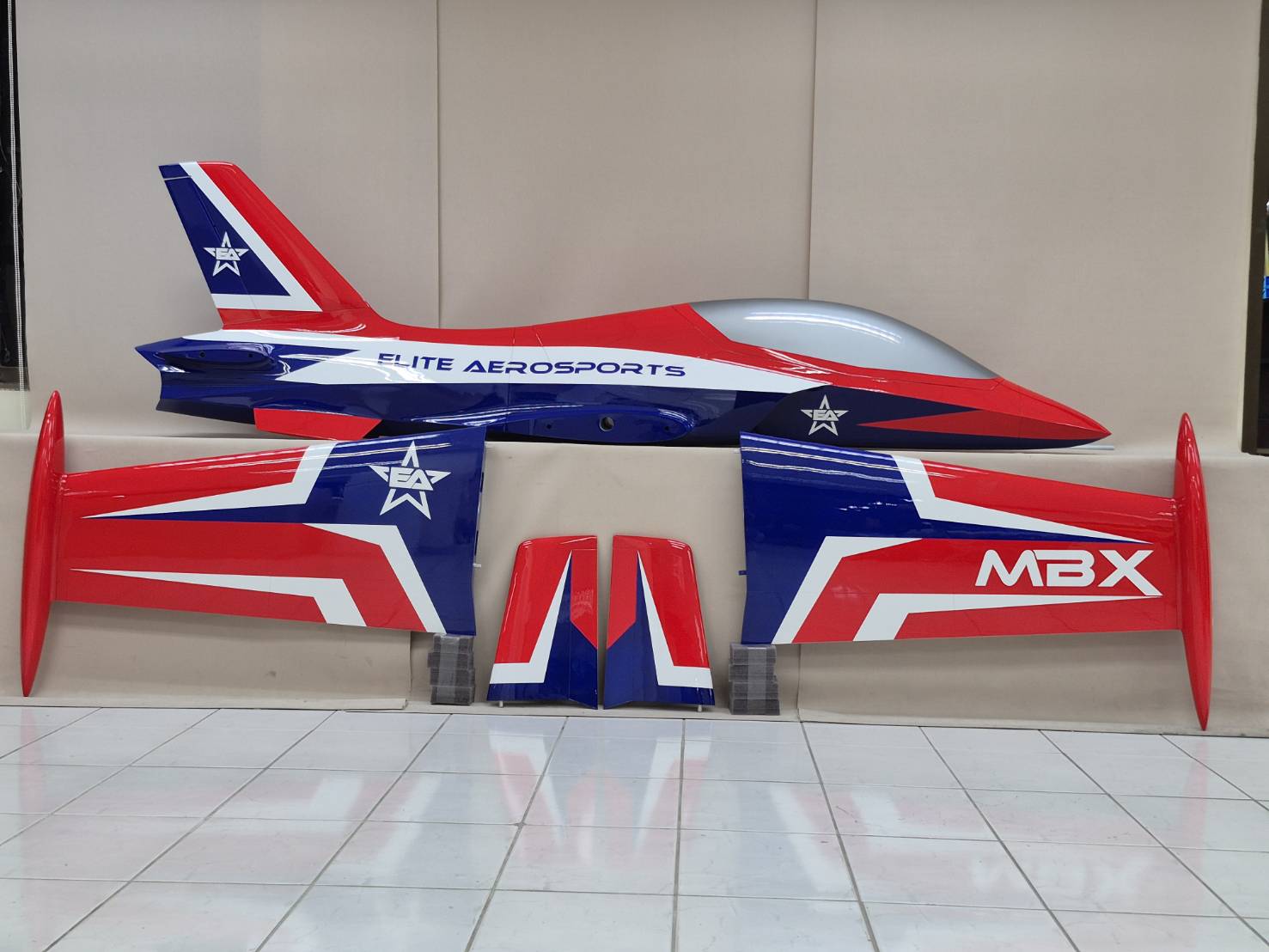

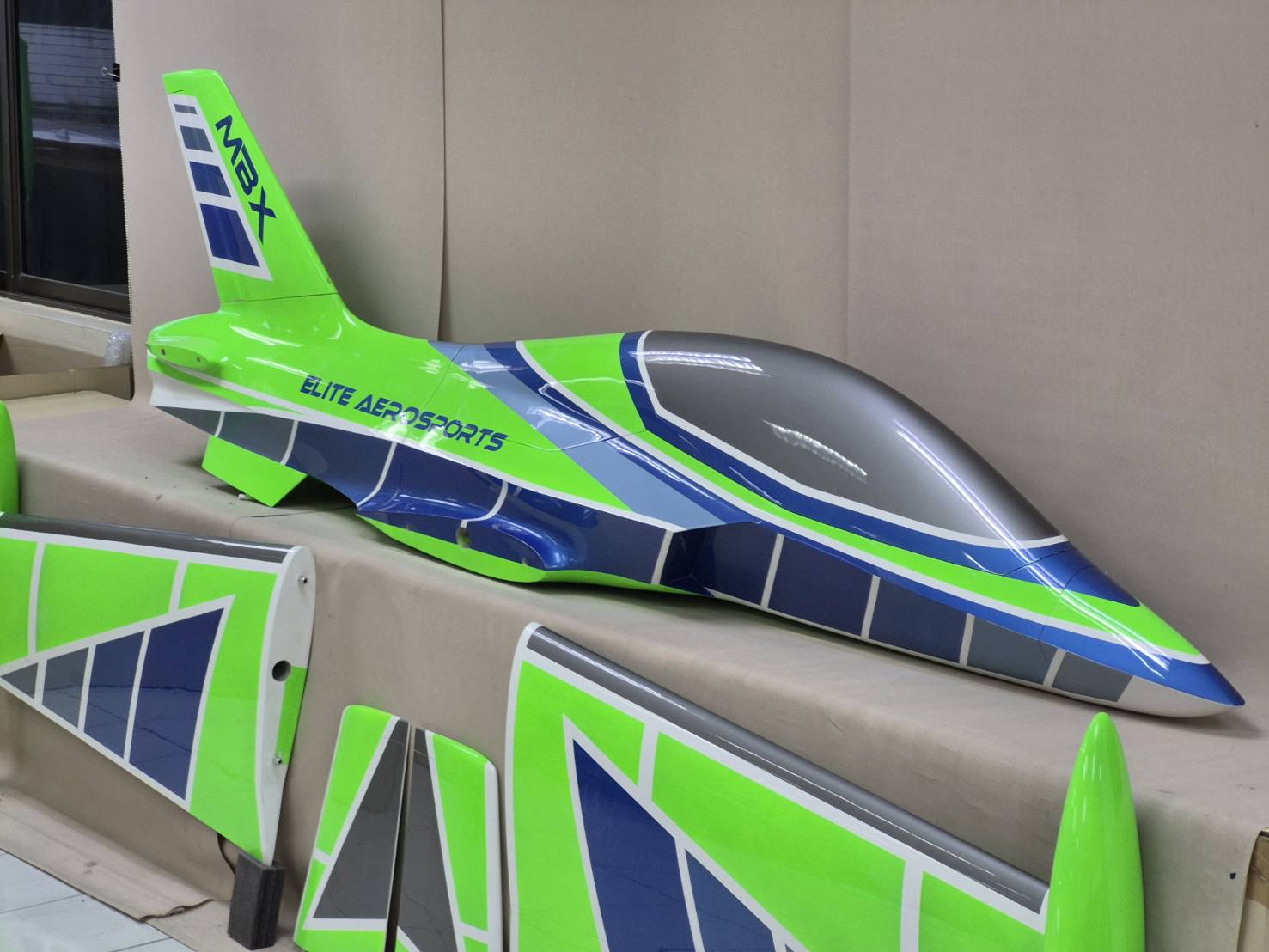

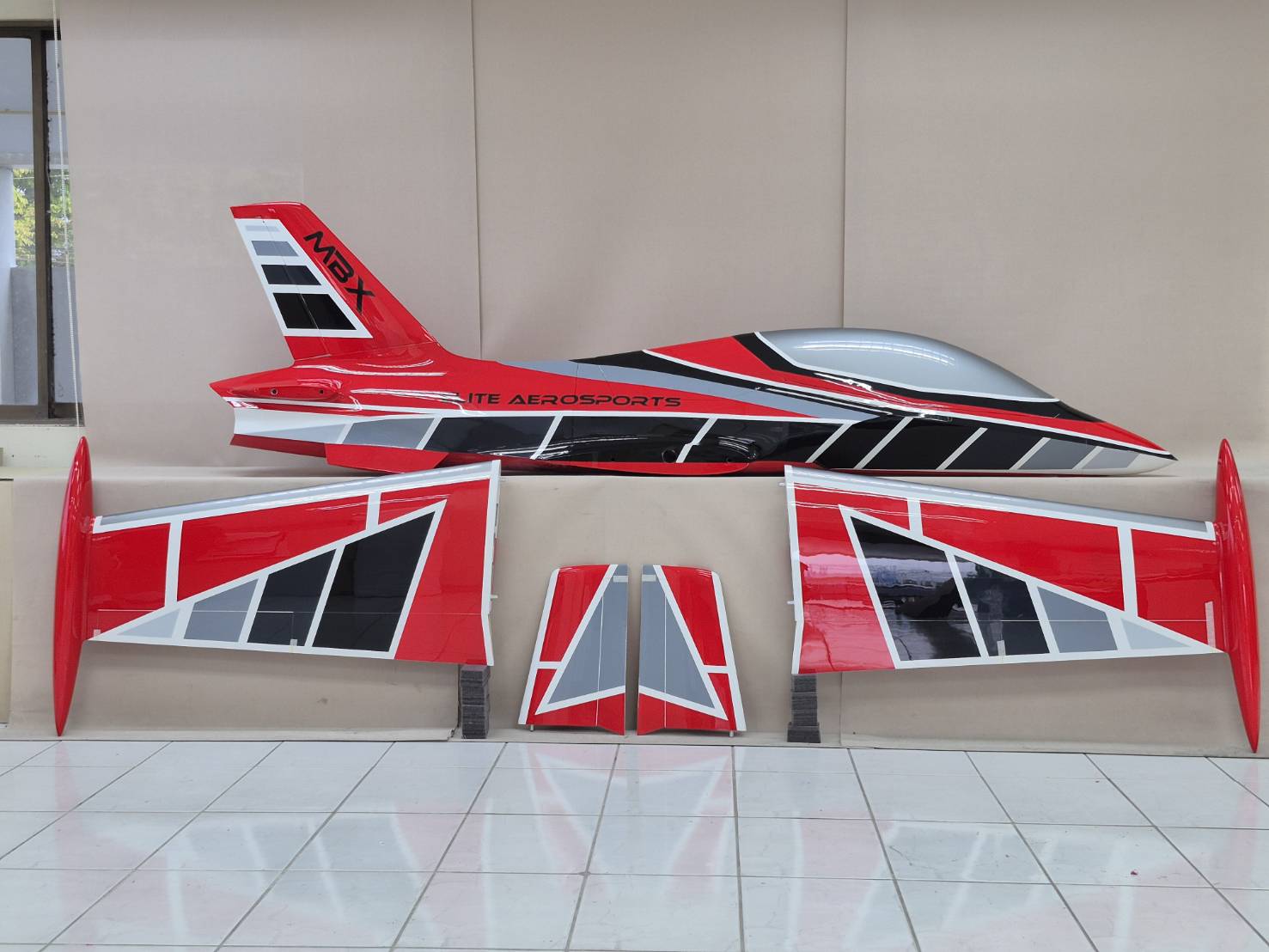

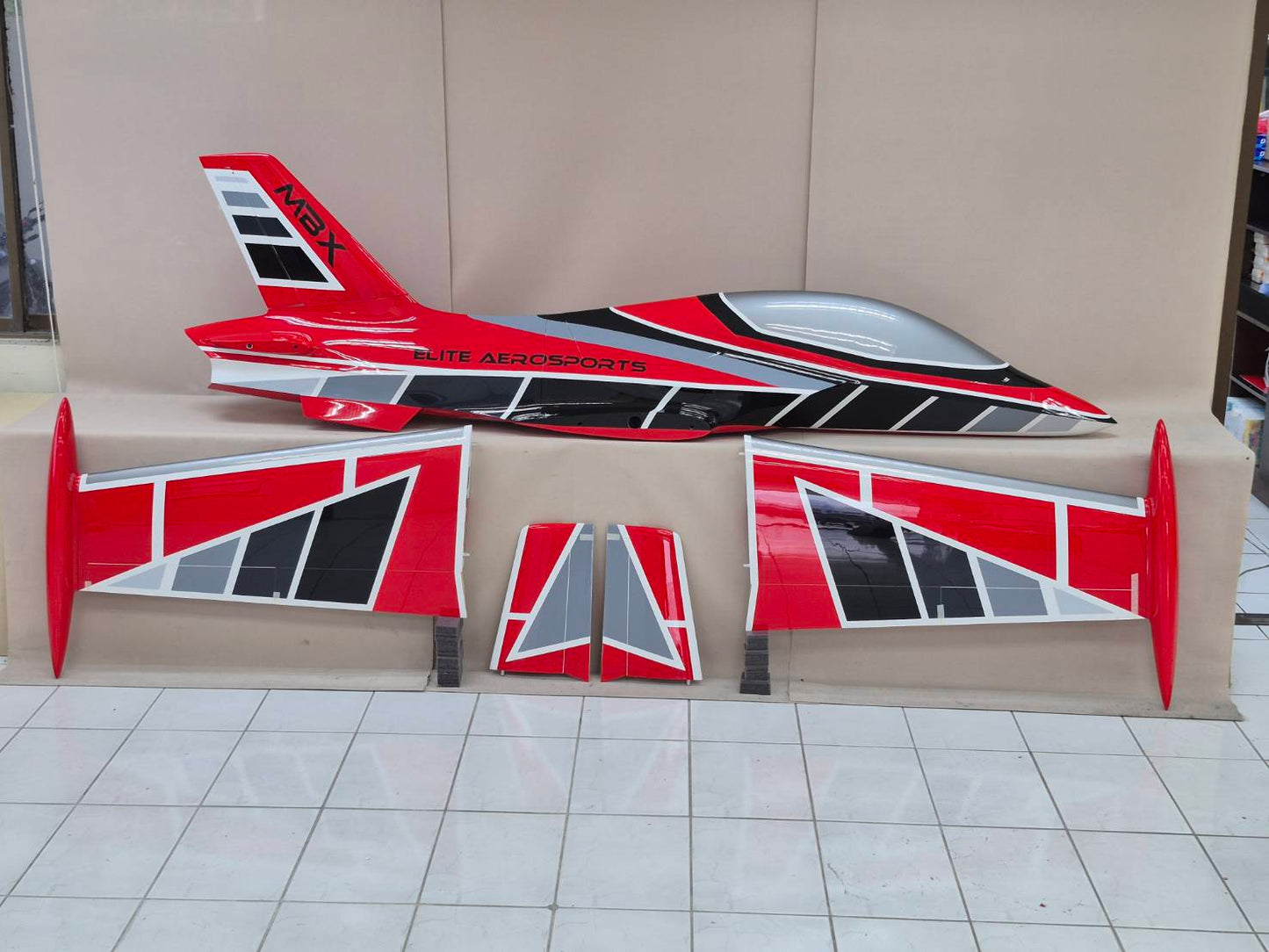

• Two-piece fuselage for easy transport
• Removable nose cone
• Bolt-on removable vertical and horizontal stabilizers

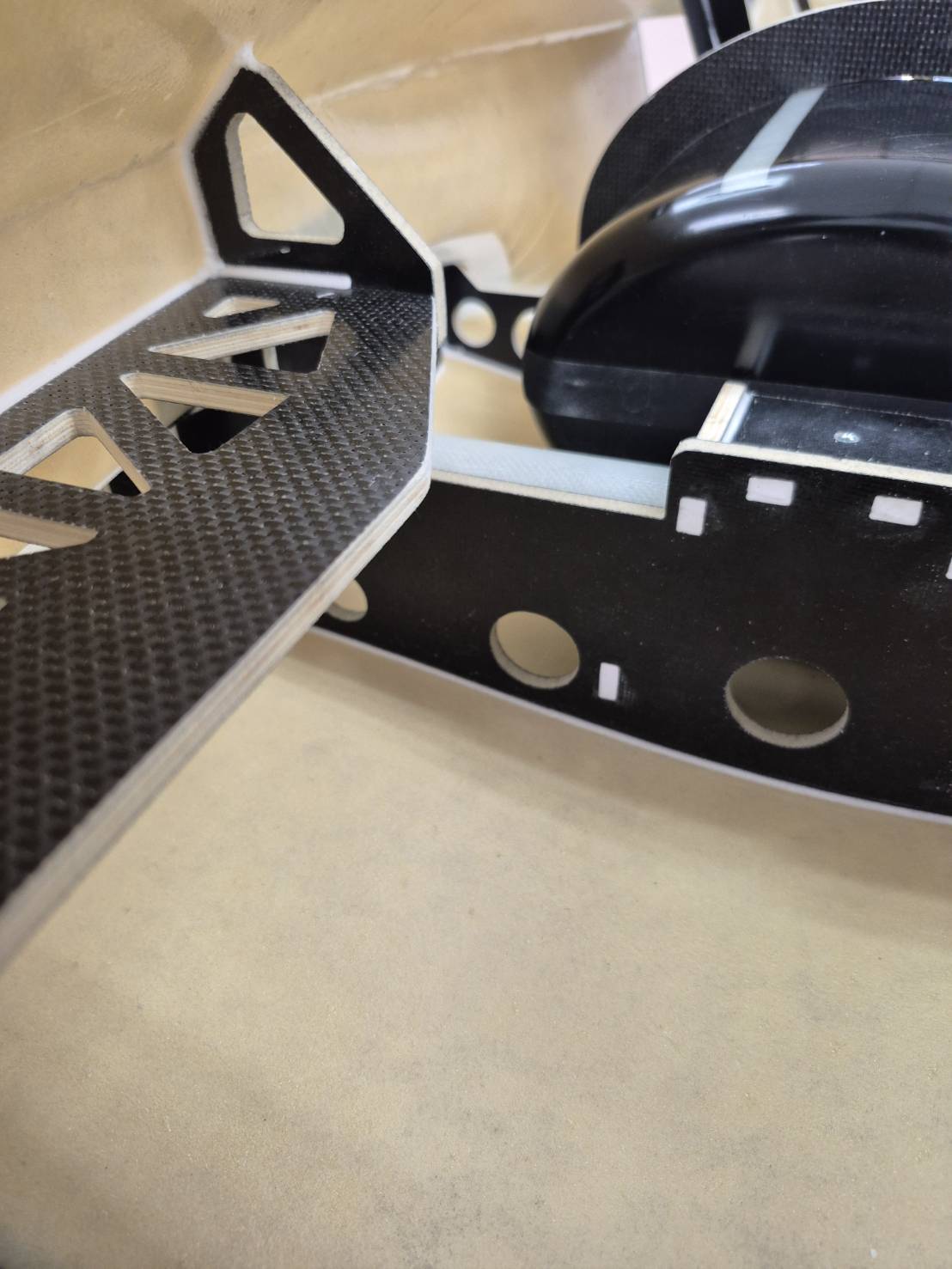

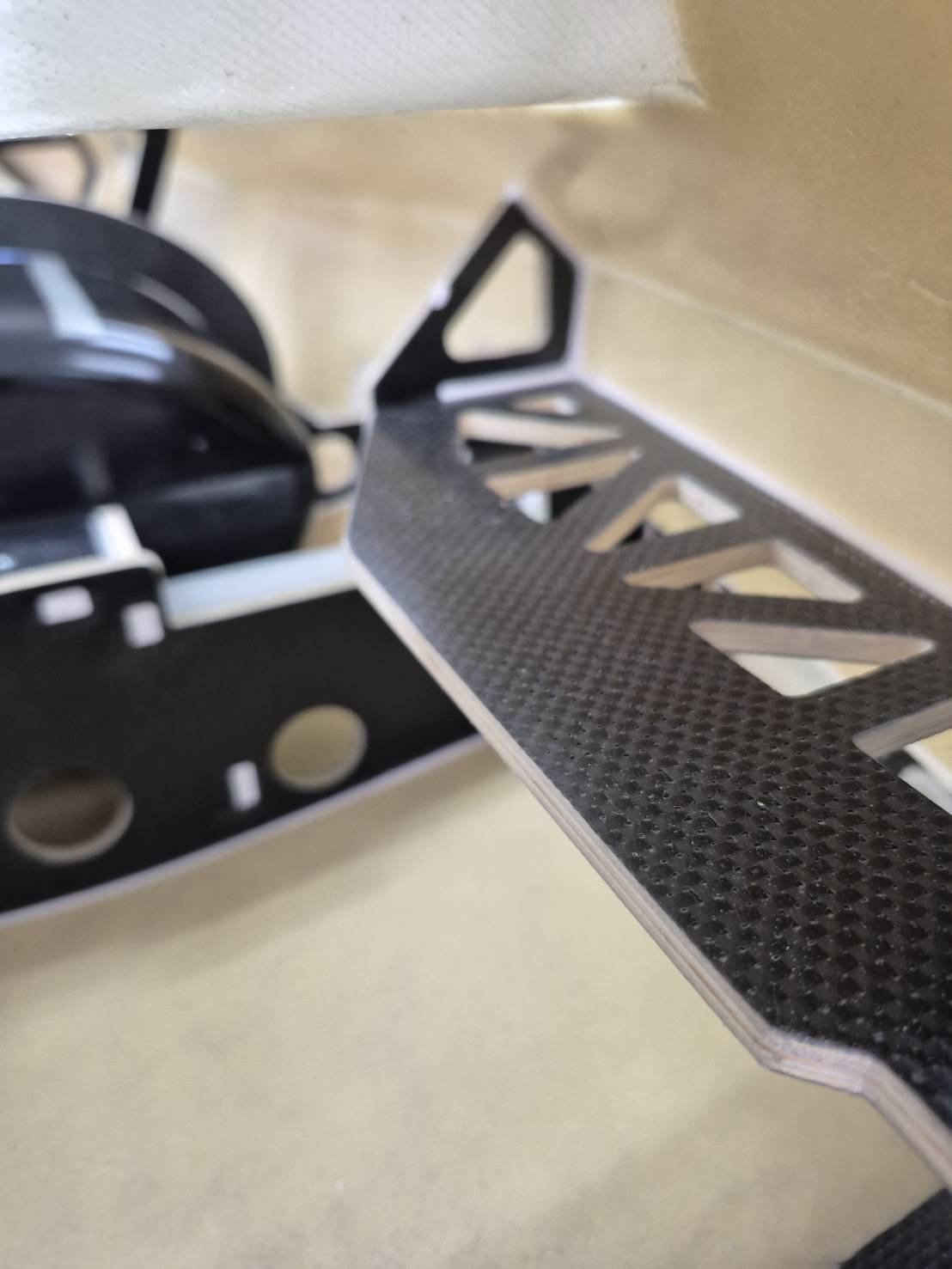

• Carbon fiber reinforcement throughout
• Carbon fiber wing and spar tubes
• Included protective covers for all major components
• Exceptional maneuverability with outstanding slow-speed handling
⸻
Pricing
• ARF Introductory Price: $6,995
(Includes Electron landing gear & ControlBox controller)
• PNP Introductory Price: $9,295
(Includes Electron landing gear & ControlBox controller)

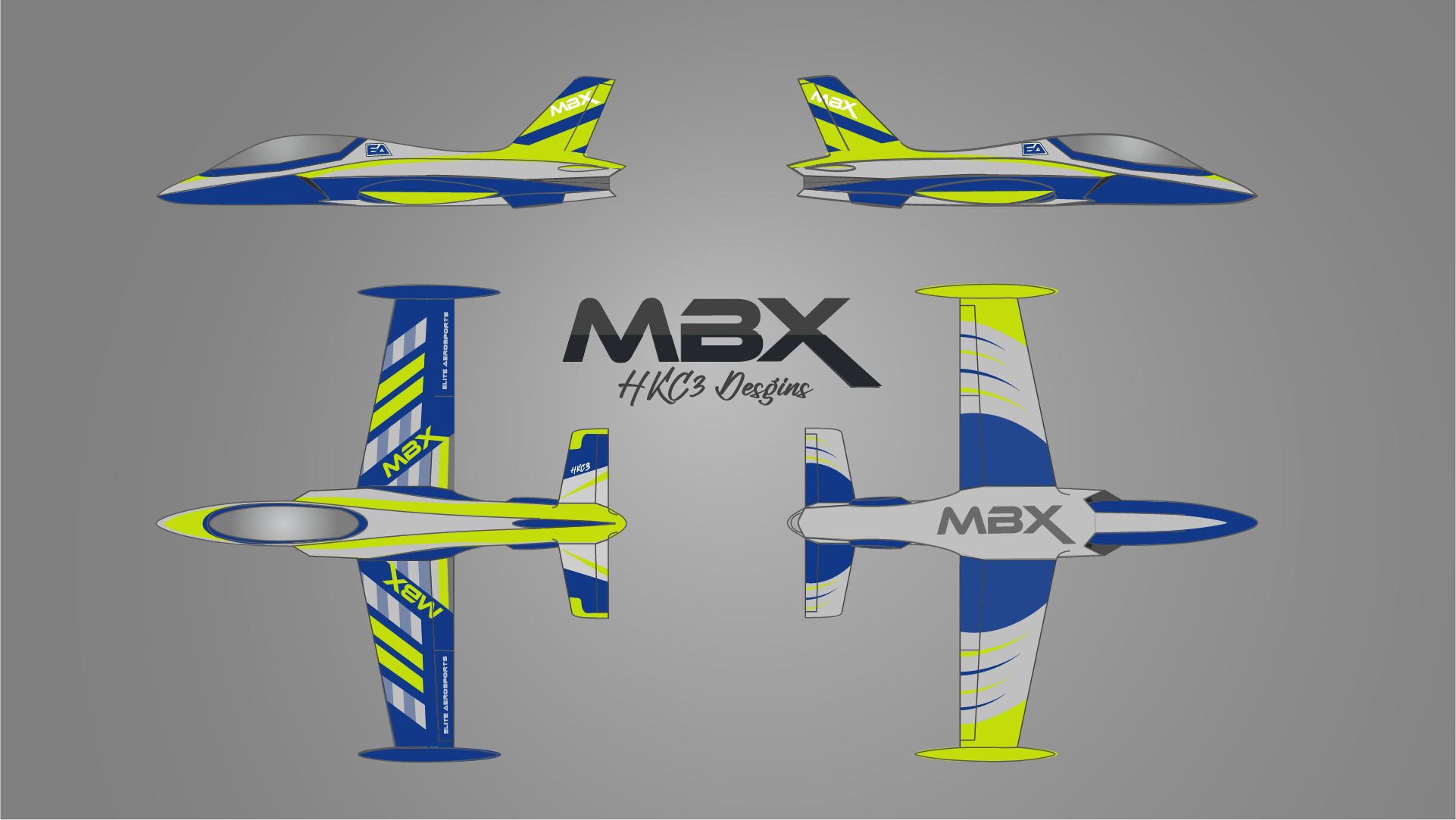

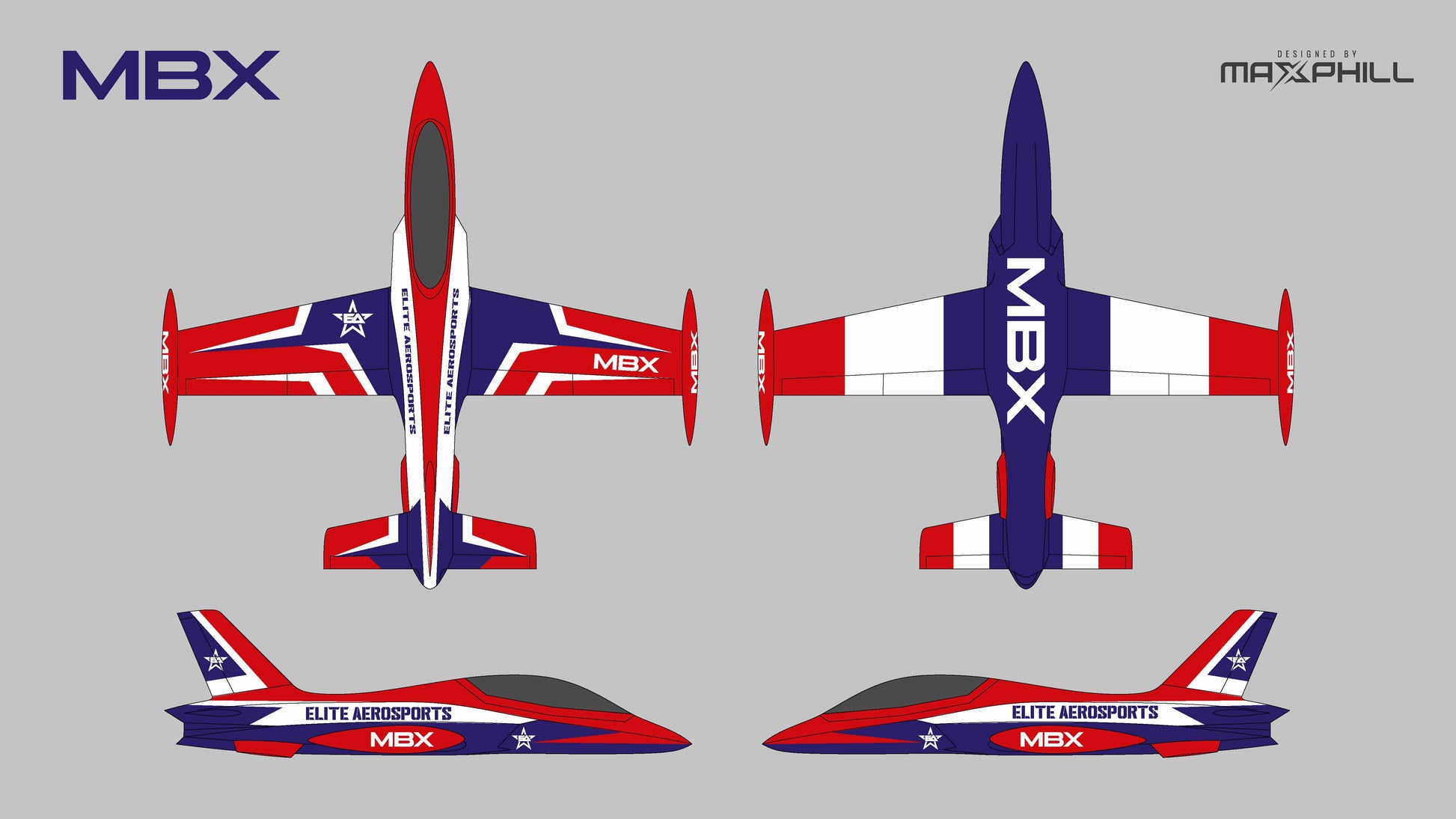

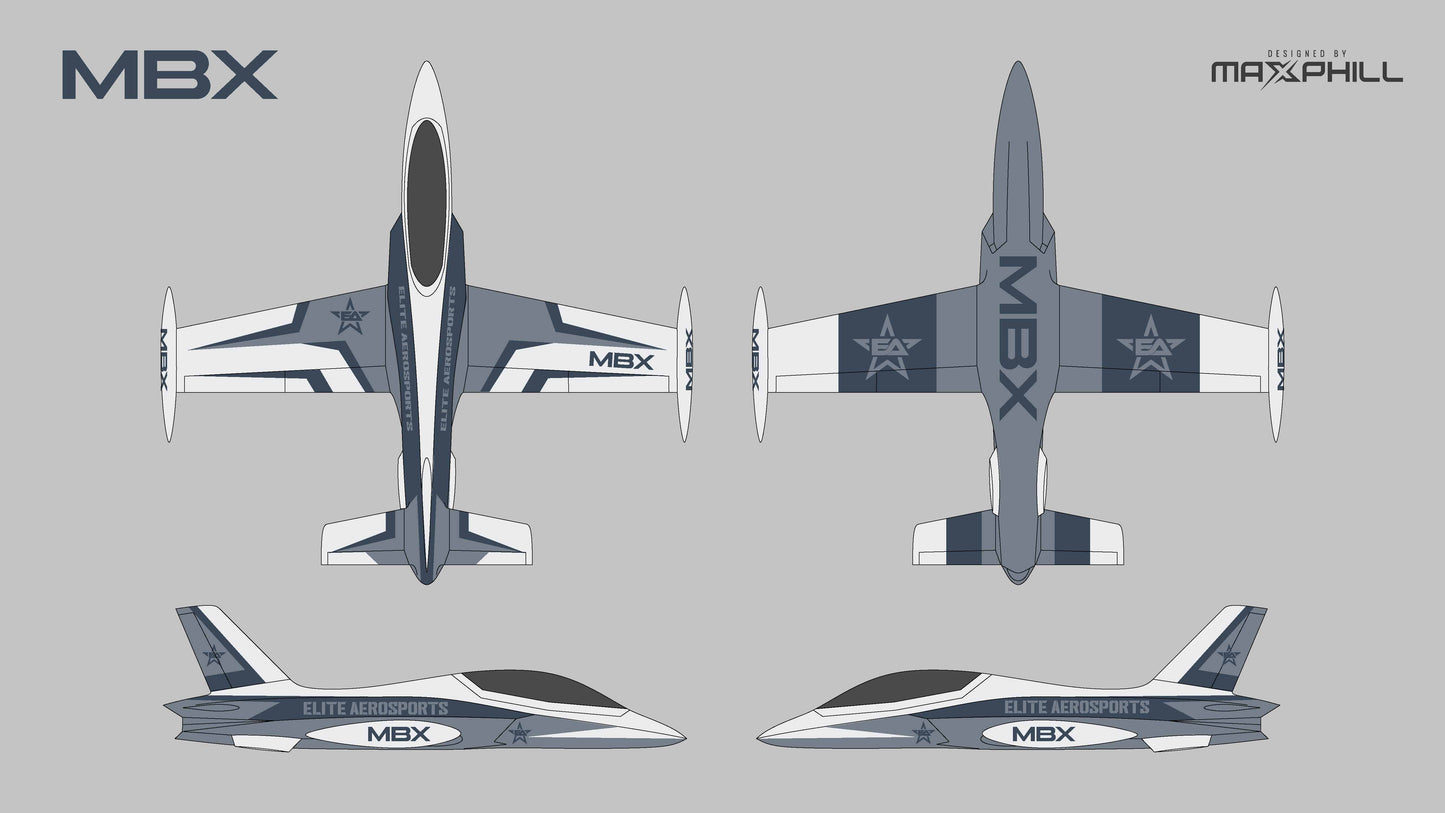

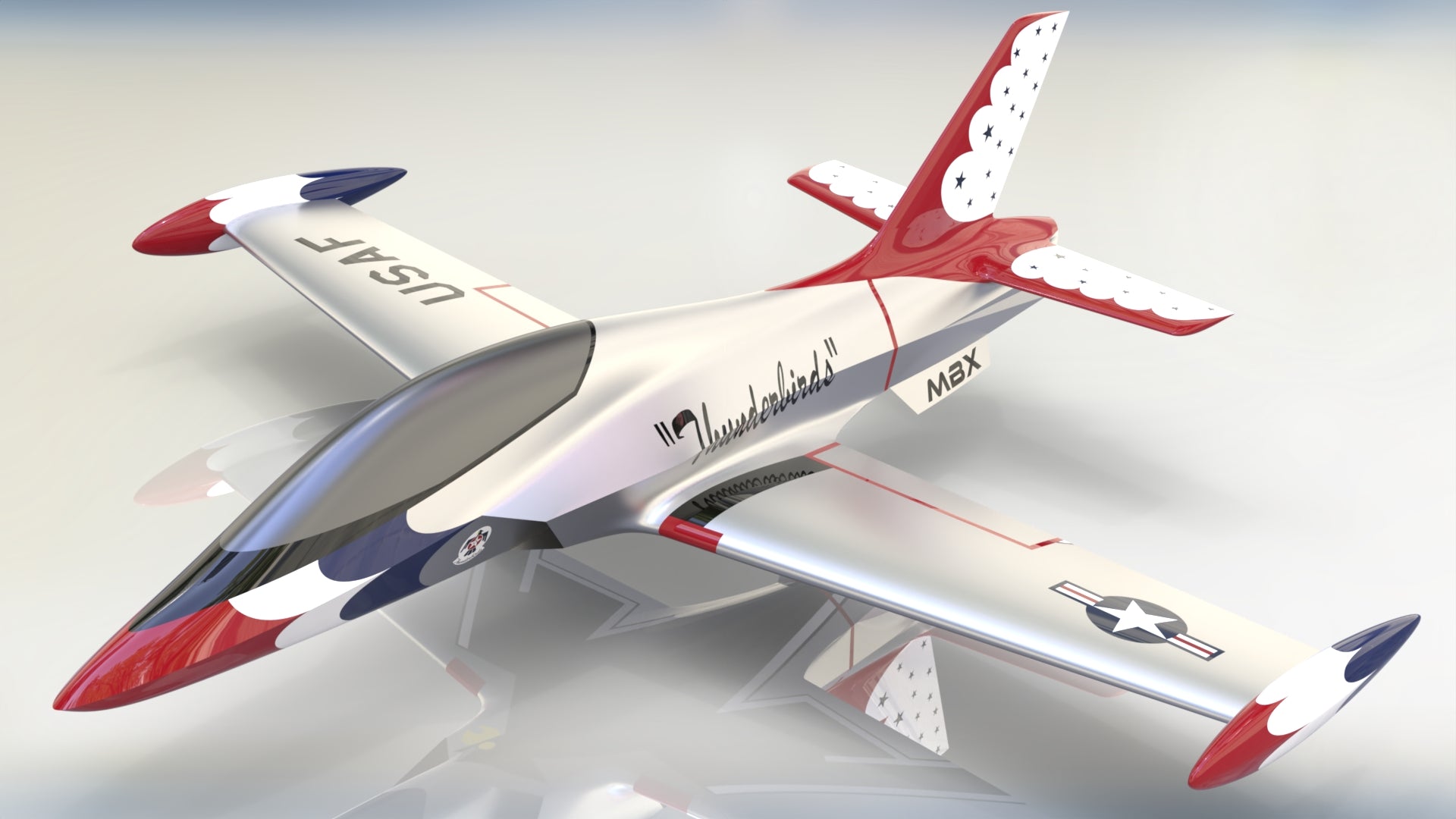

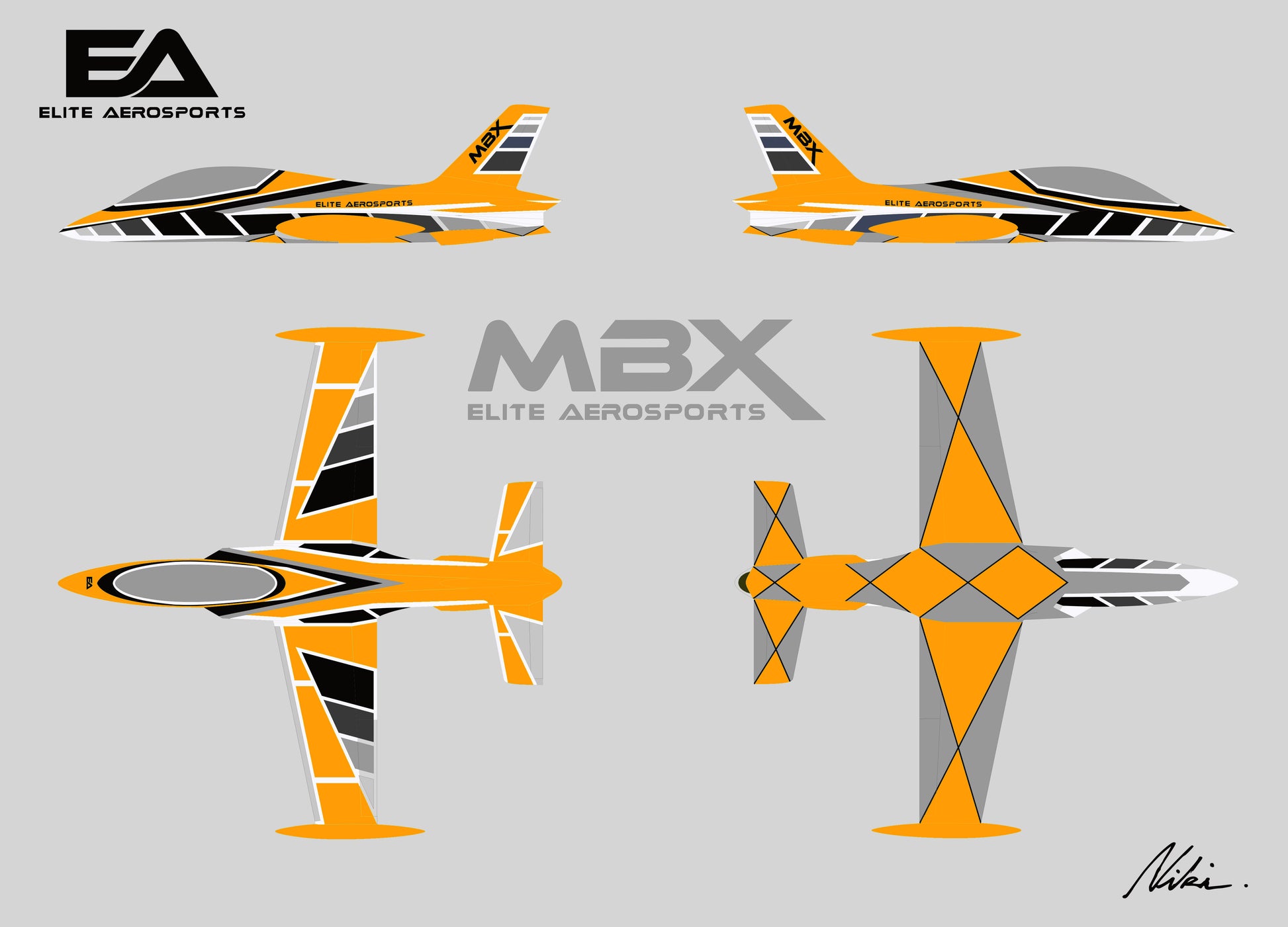

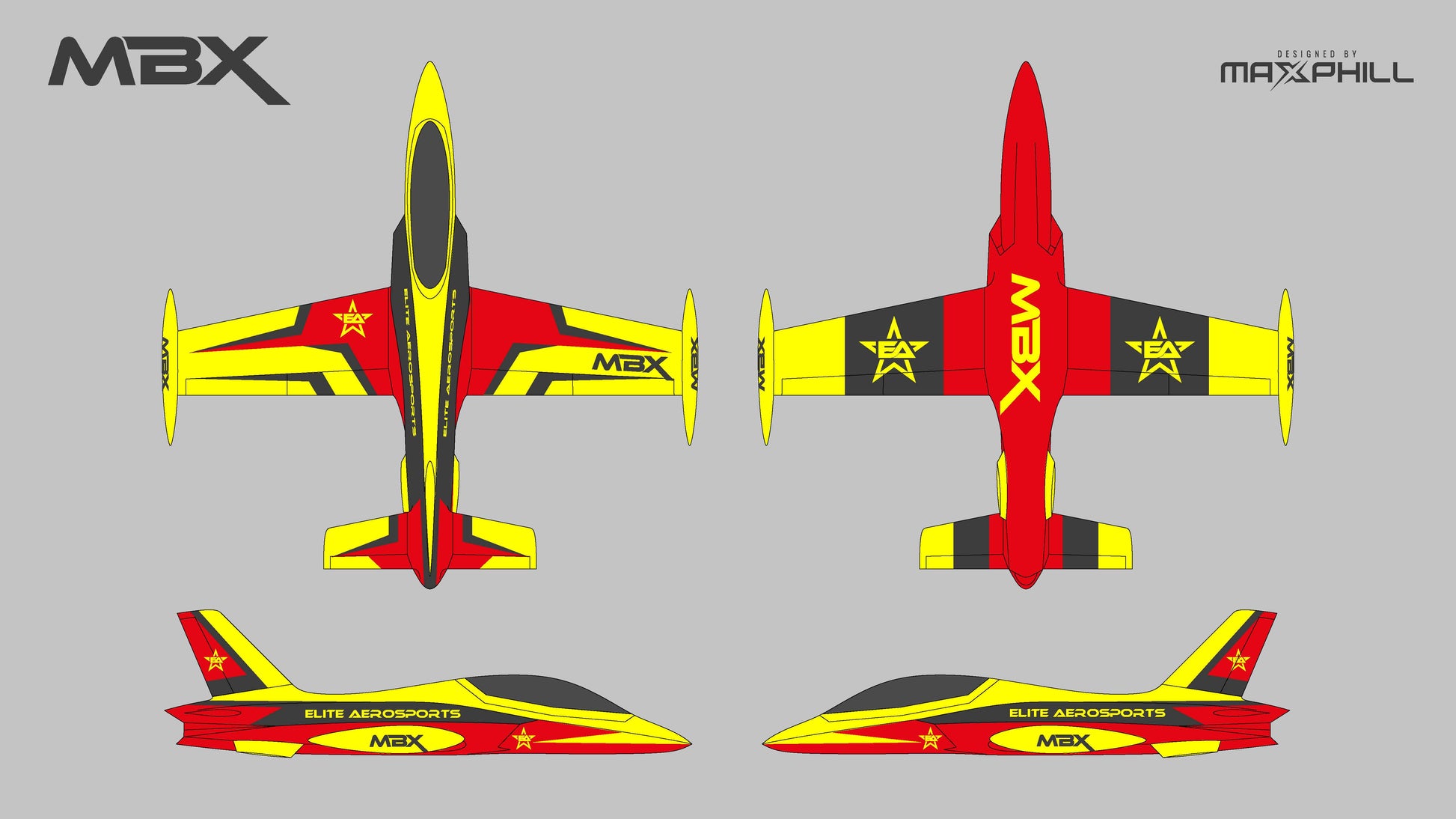

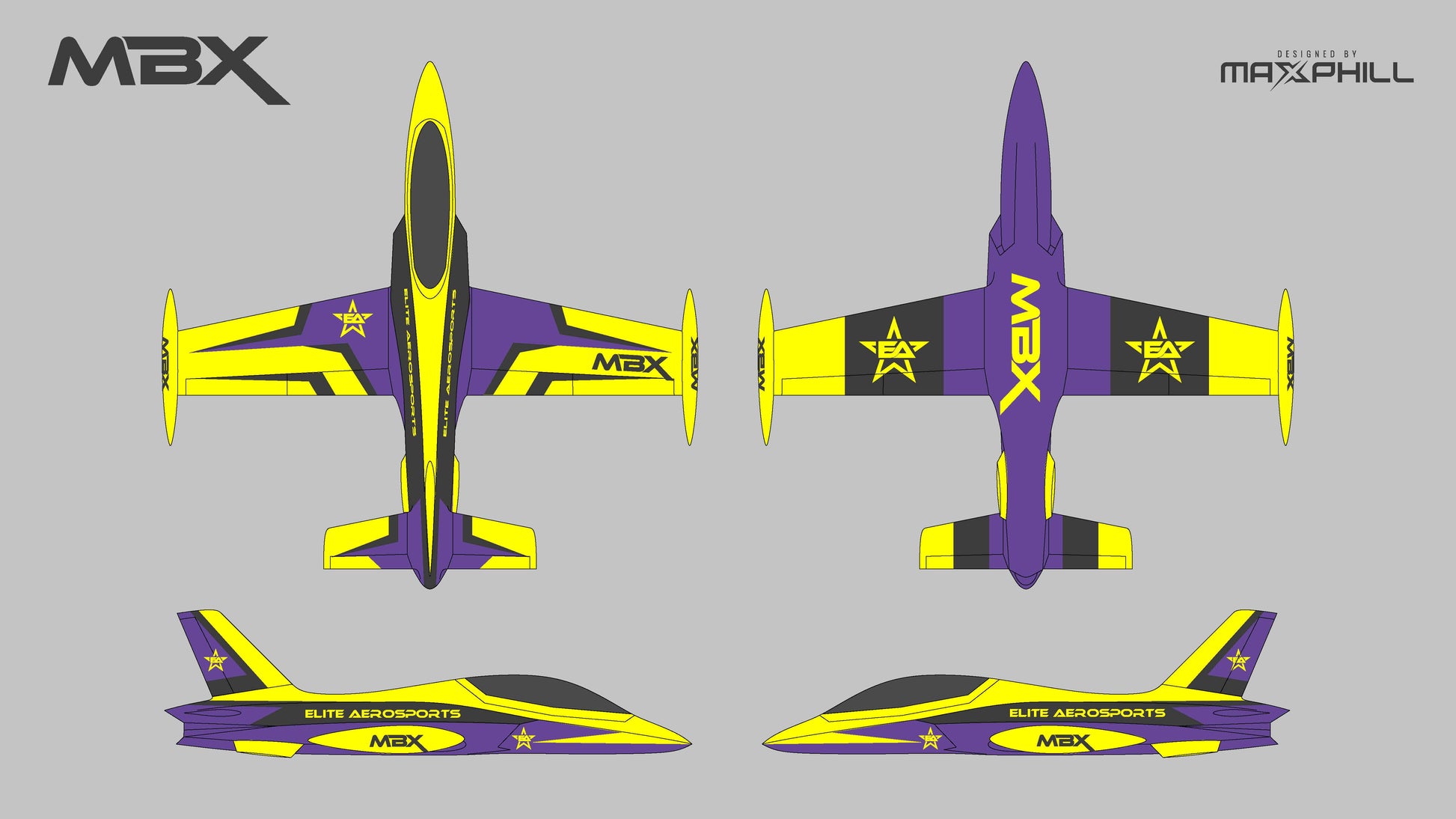

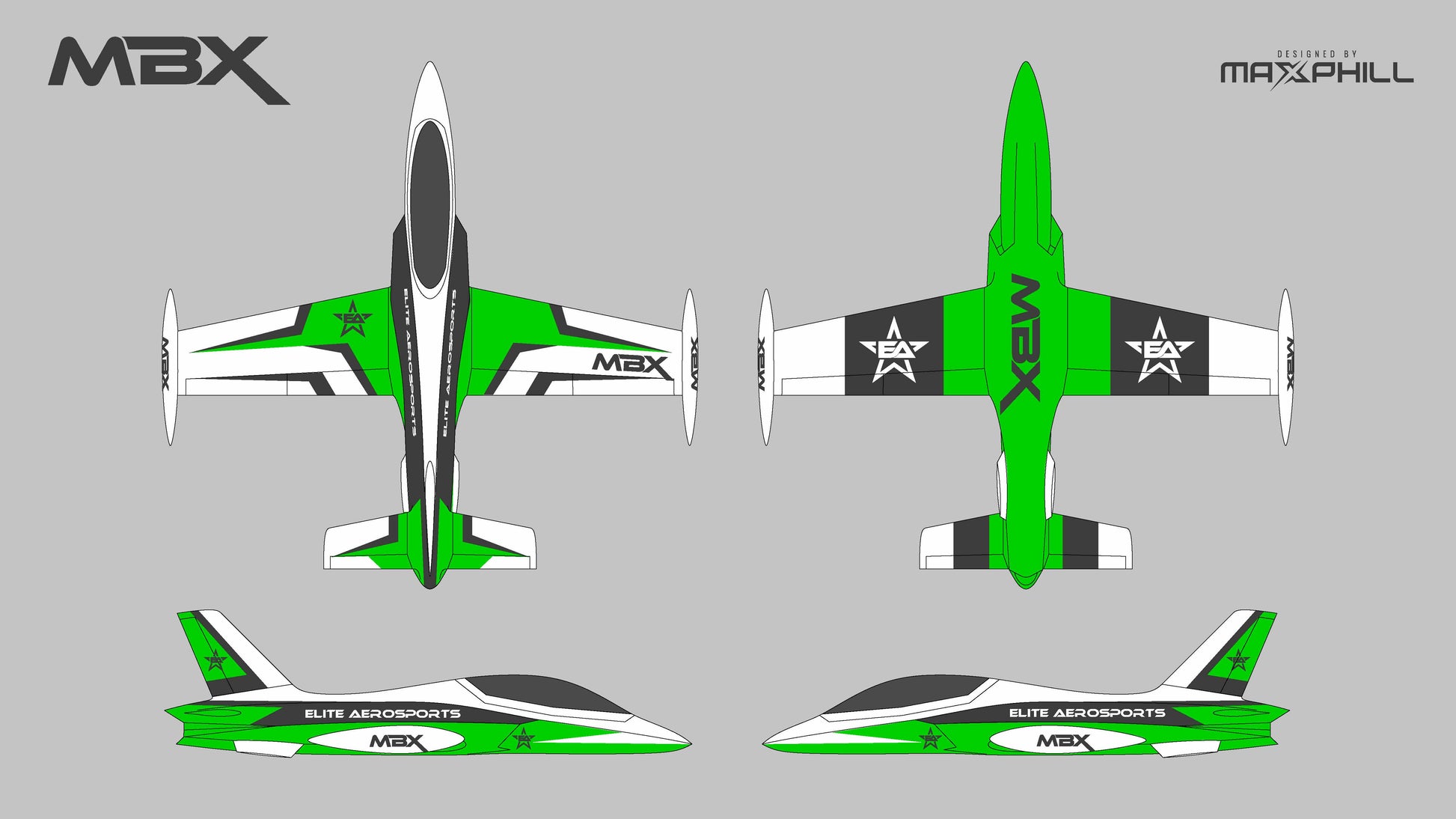

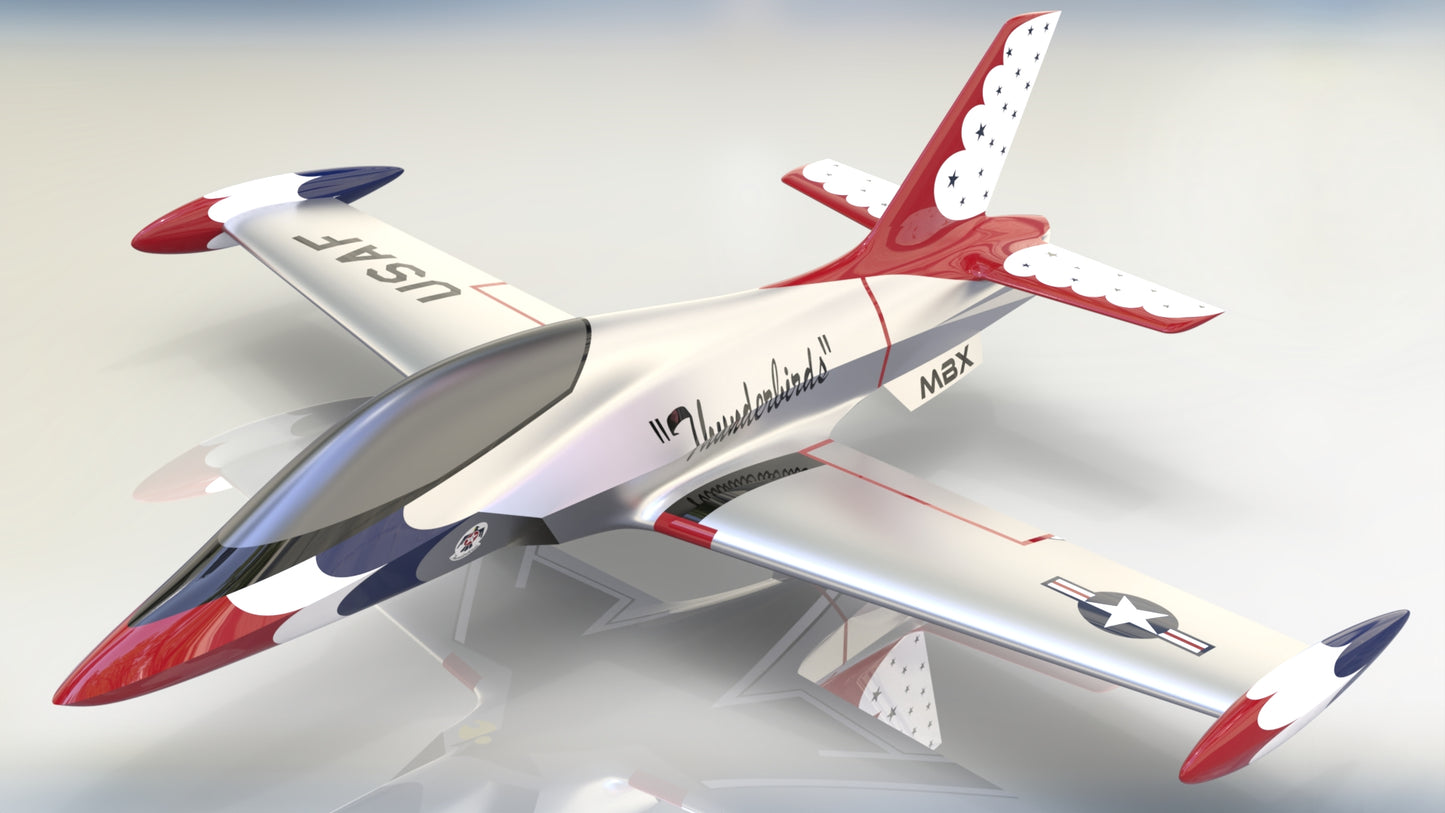

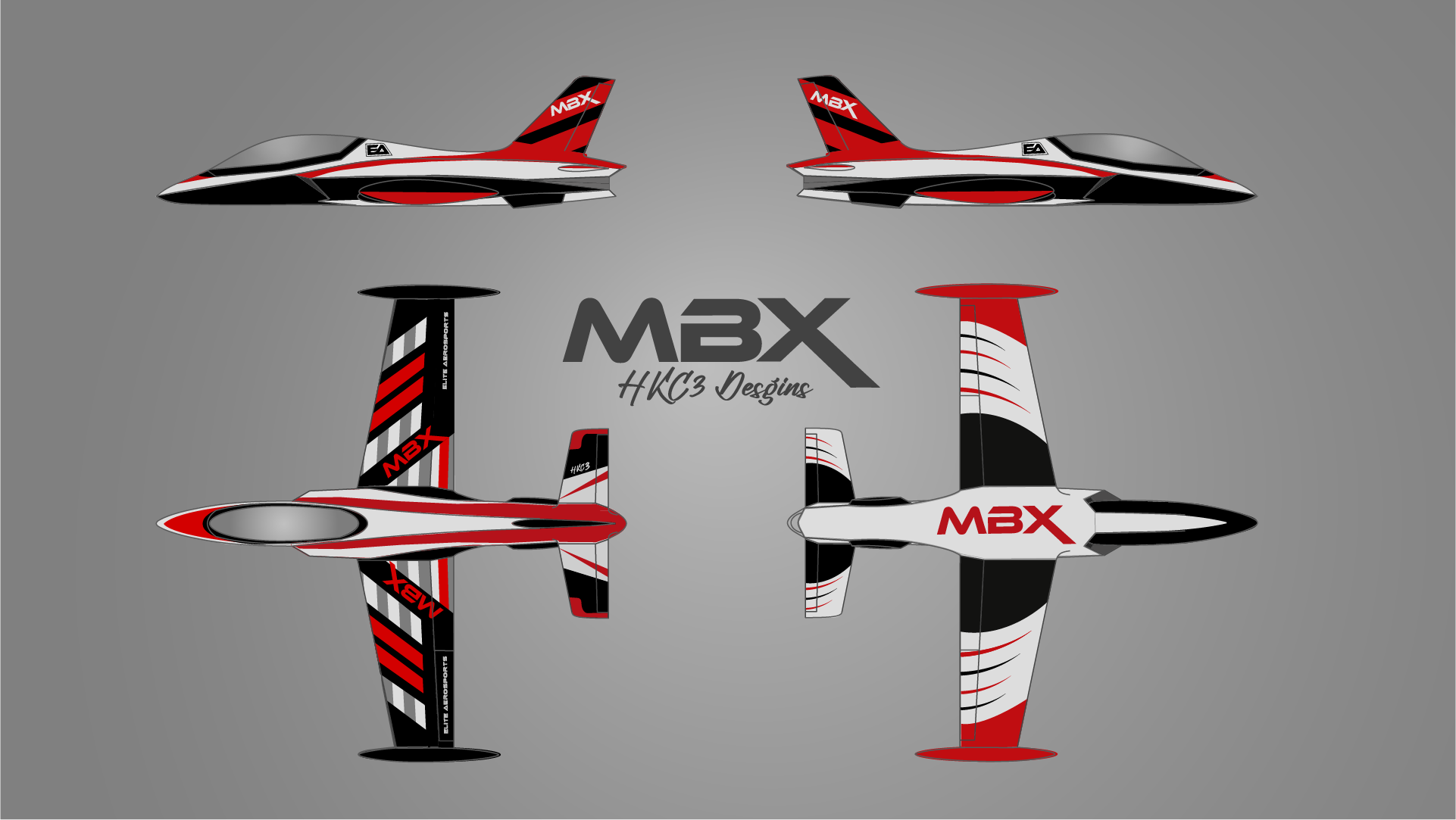

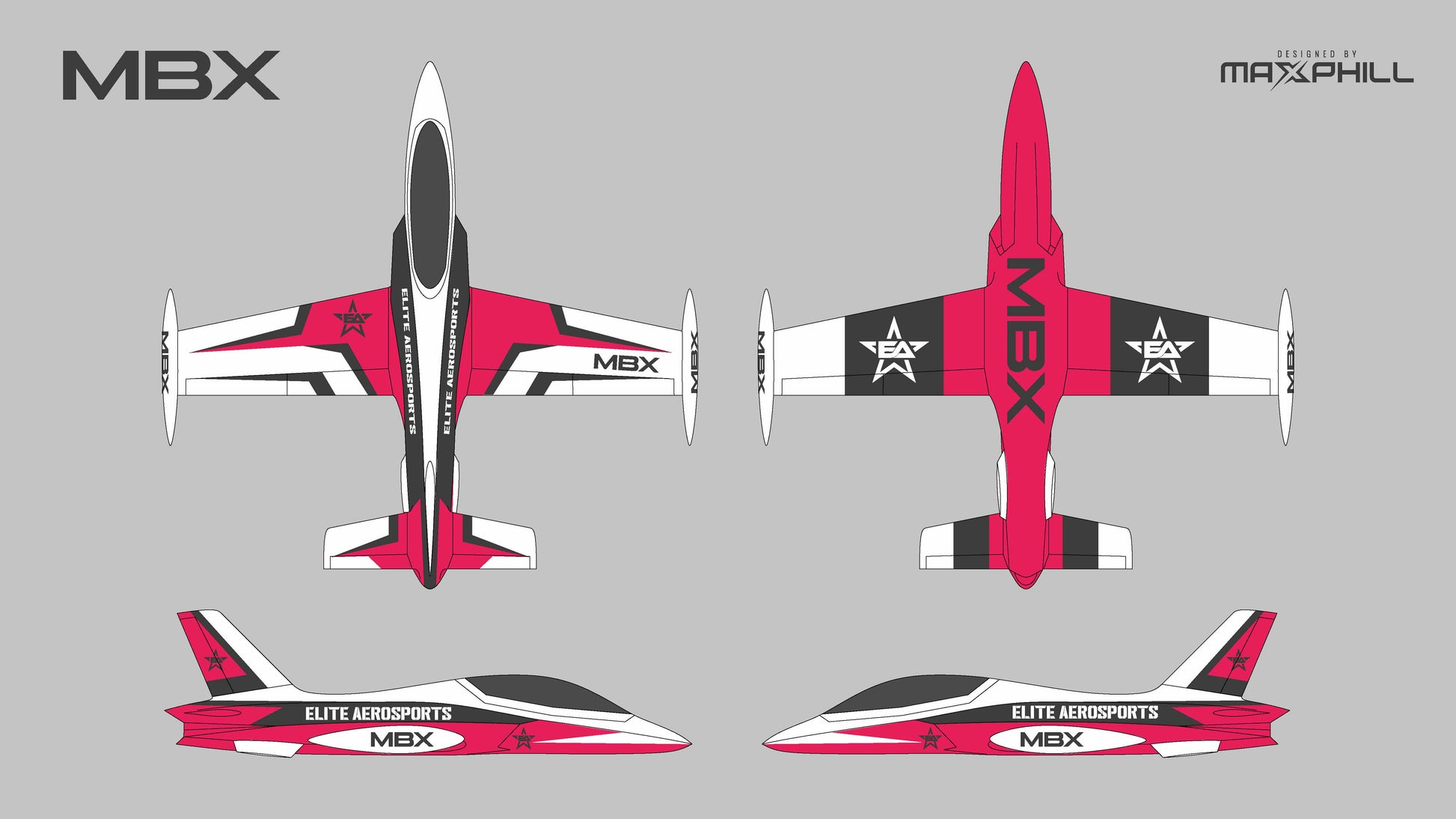

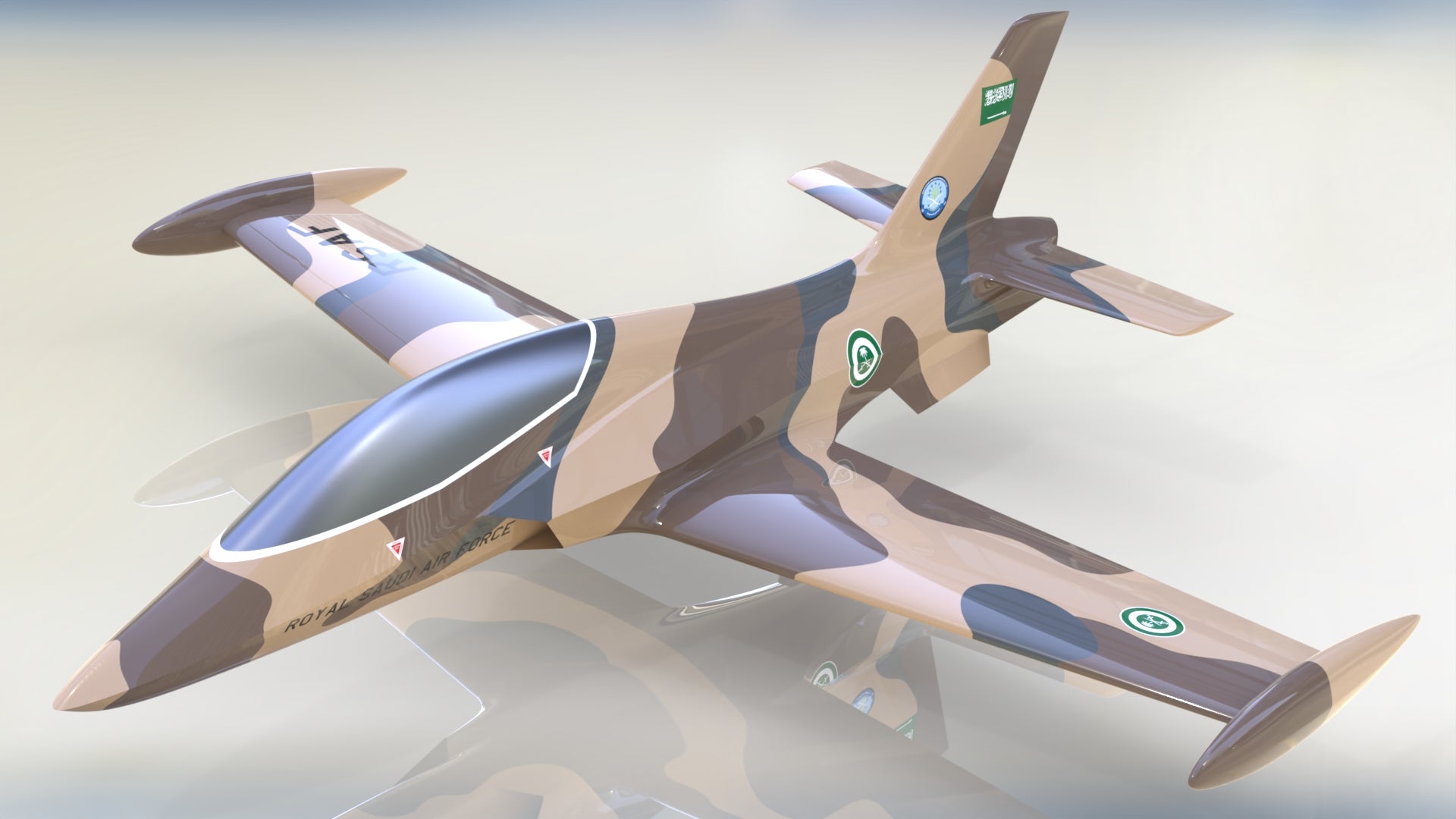

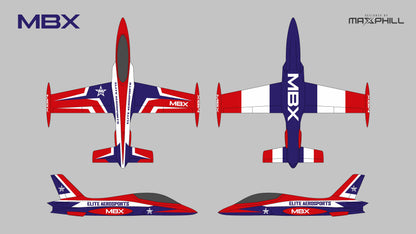

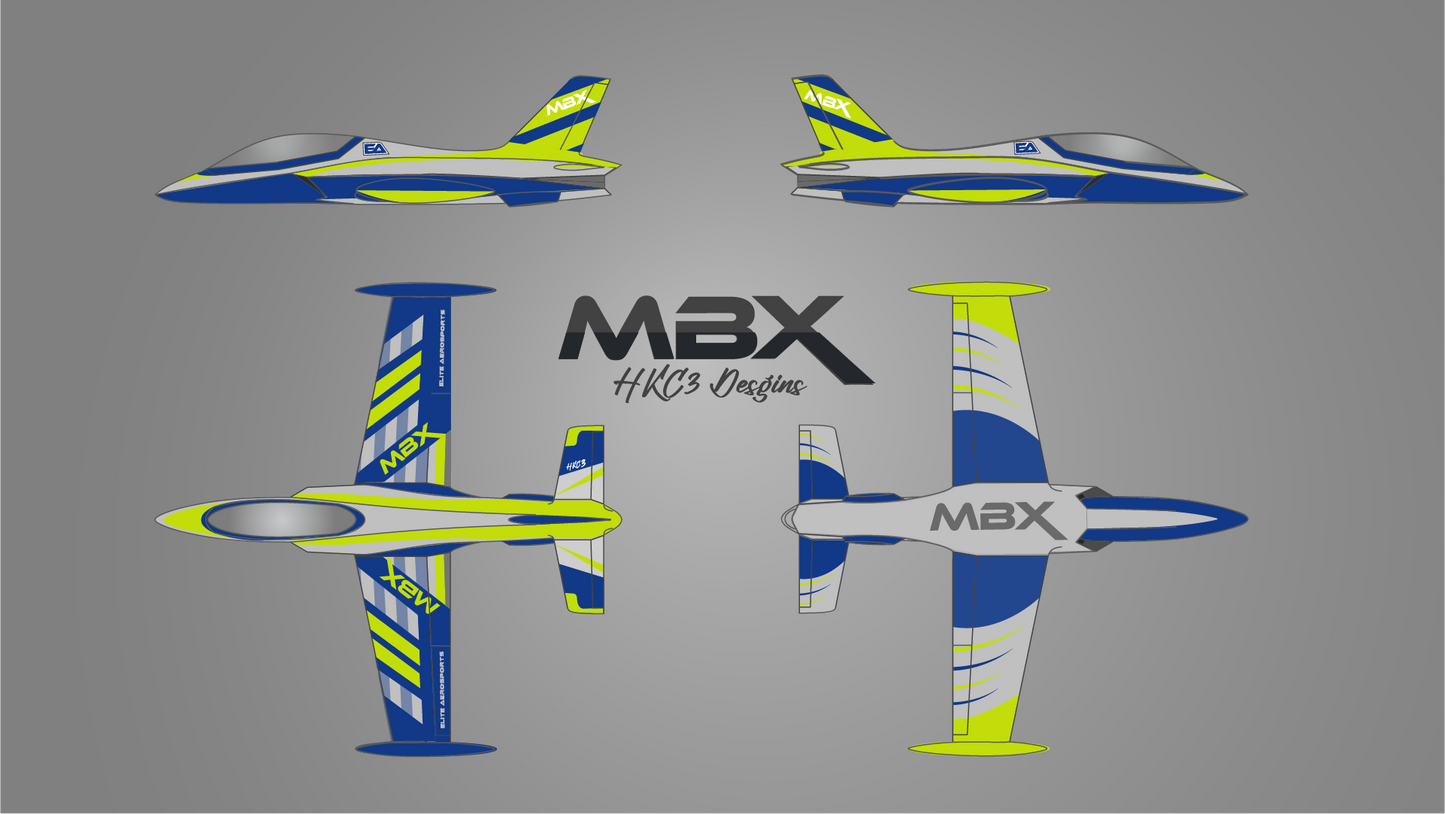

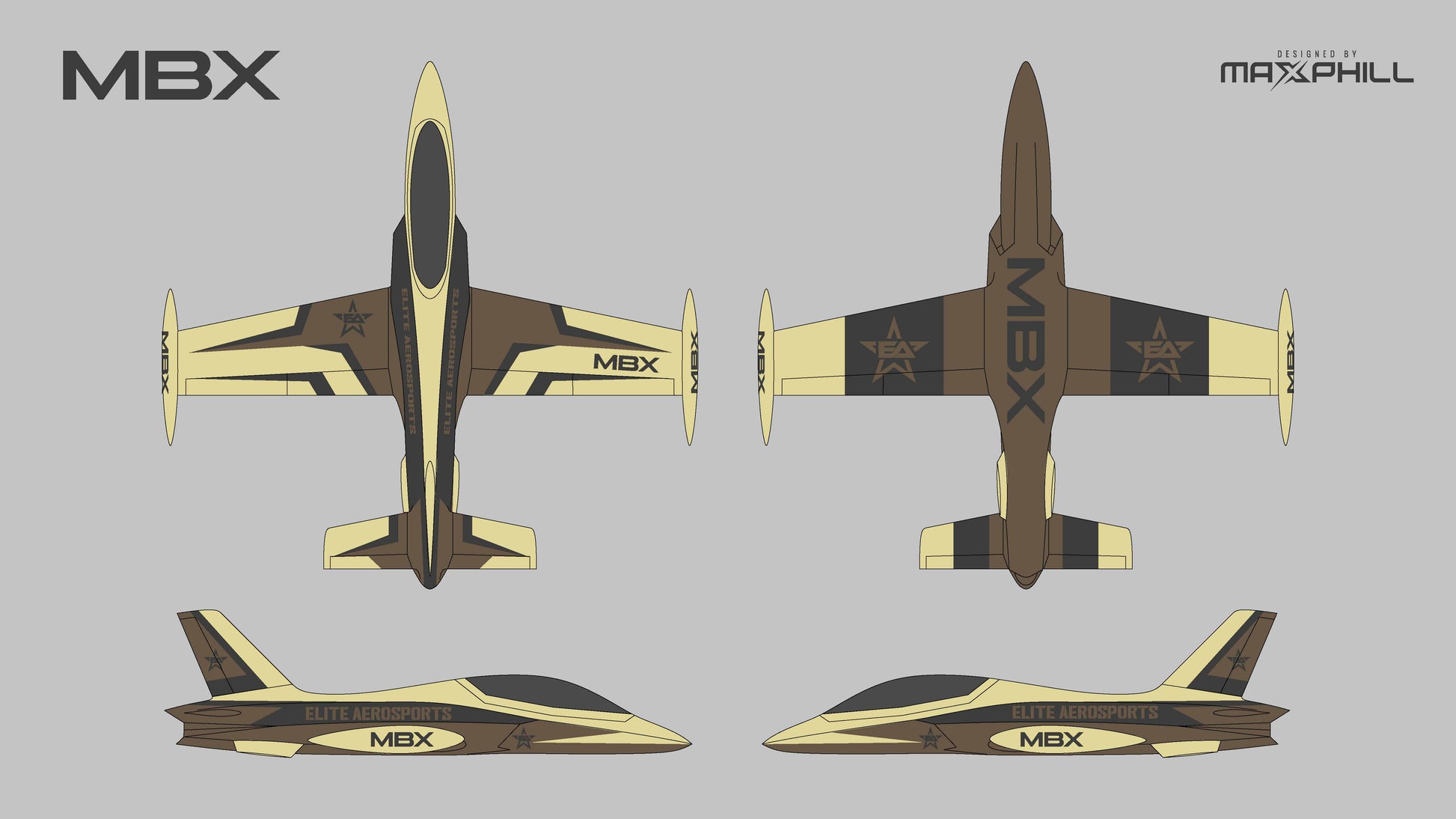

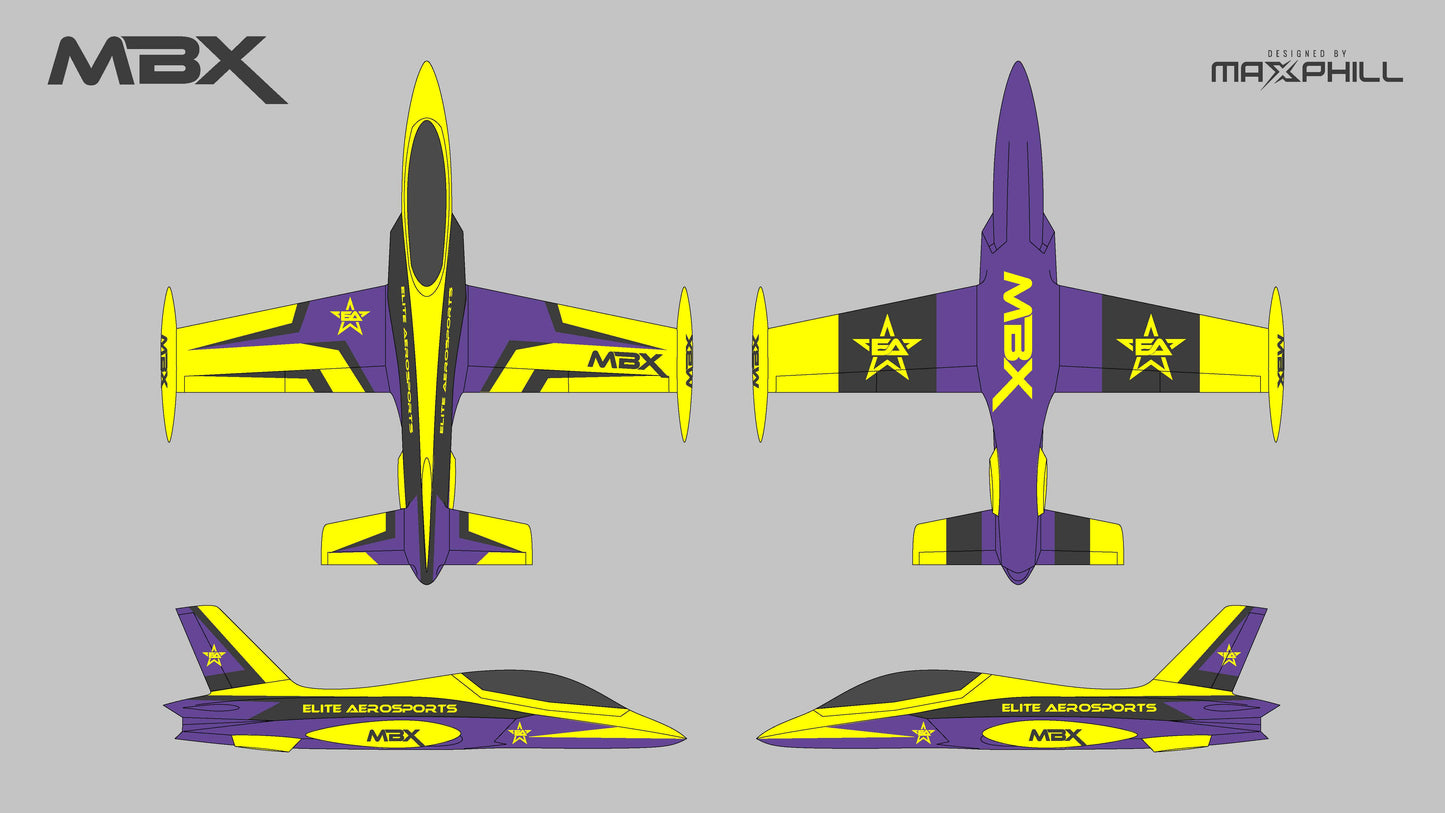

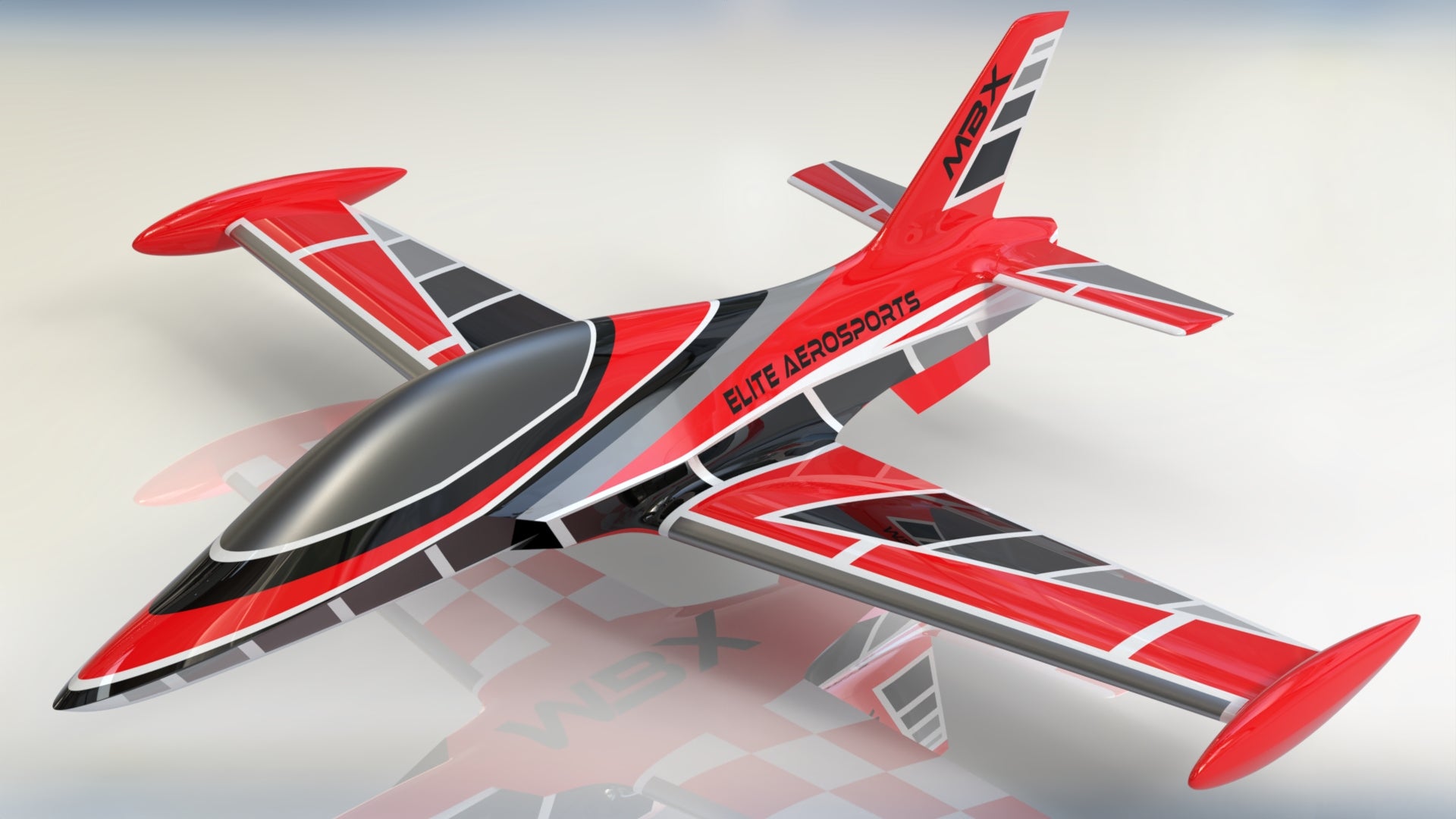

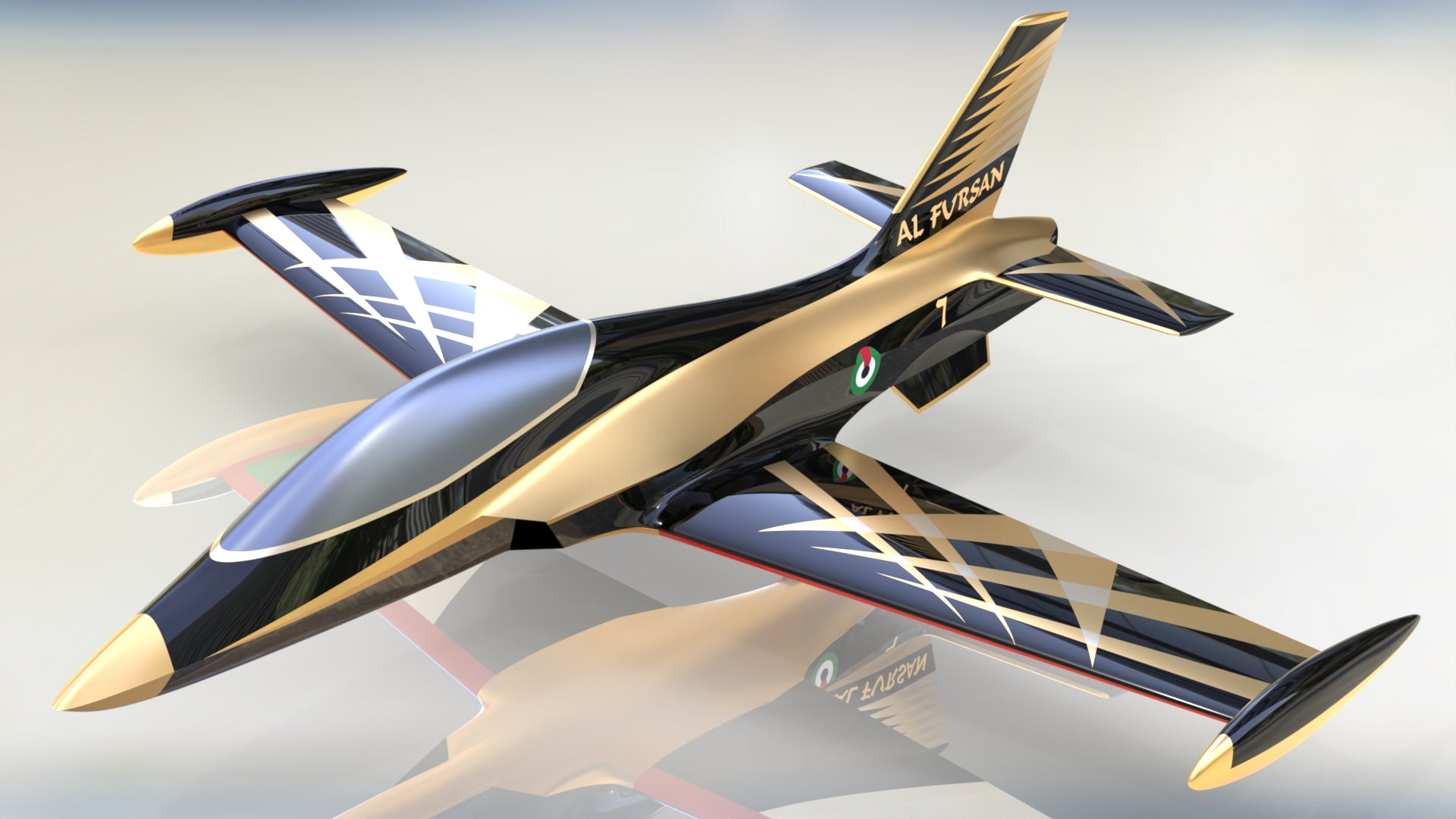

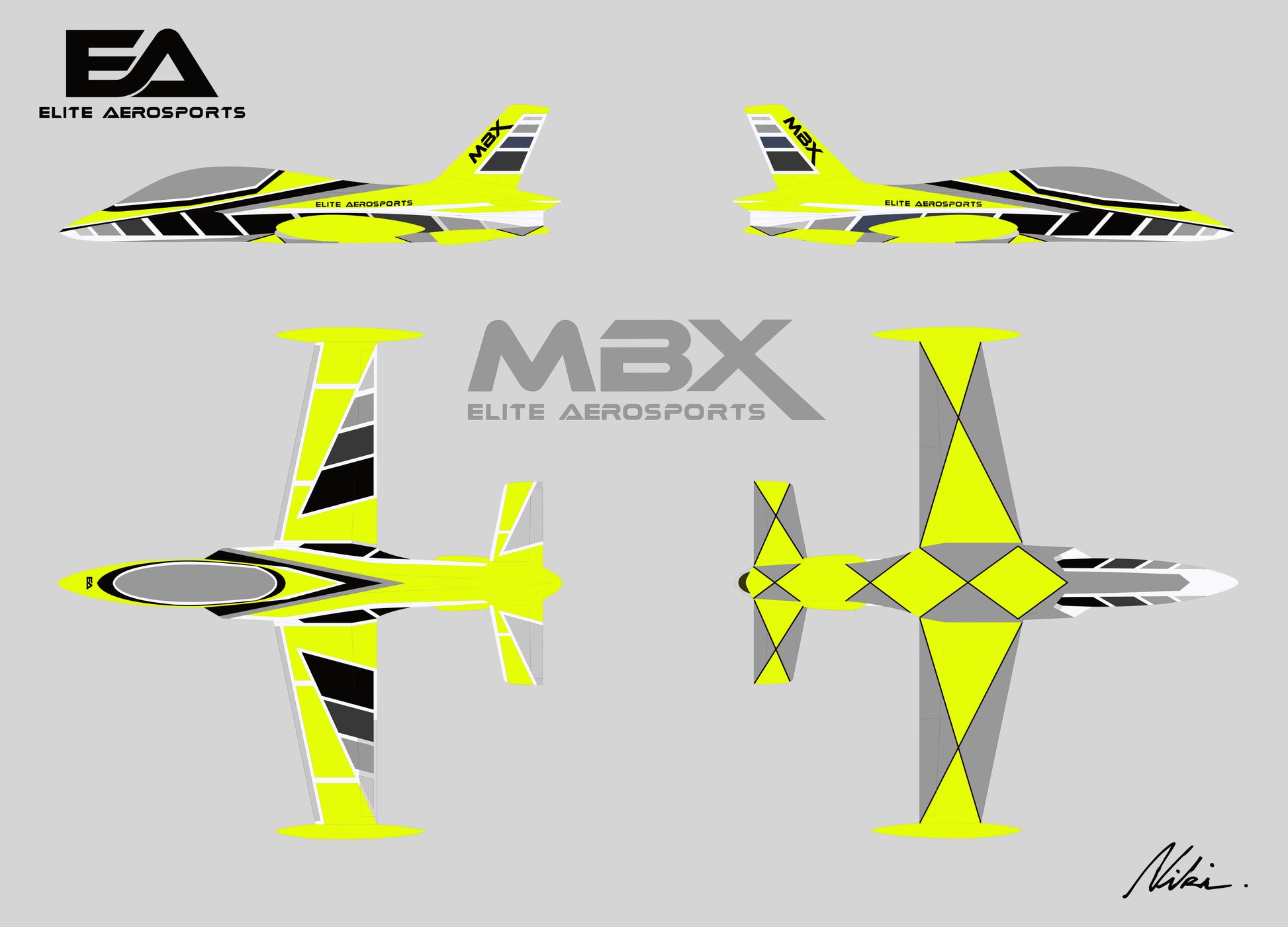

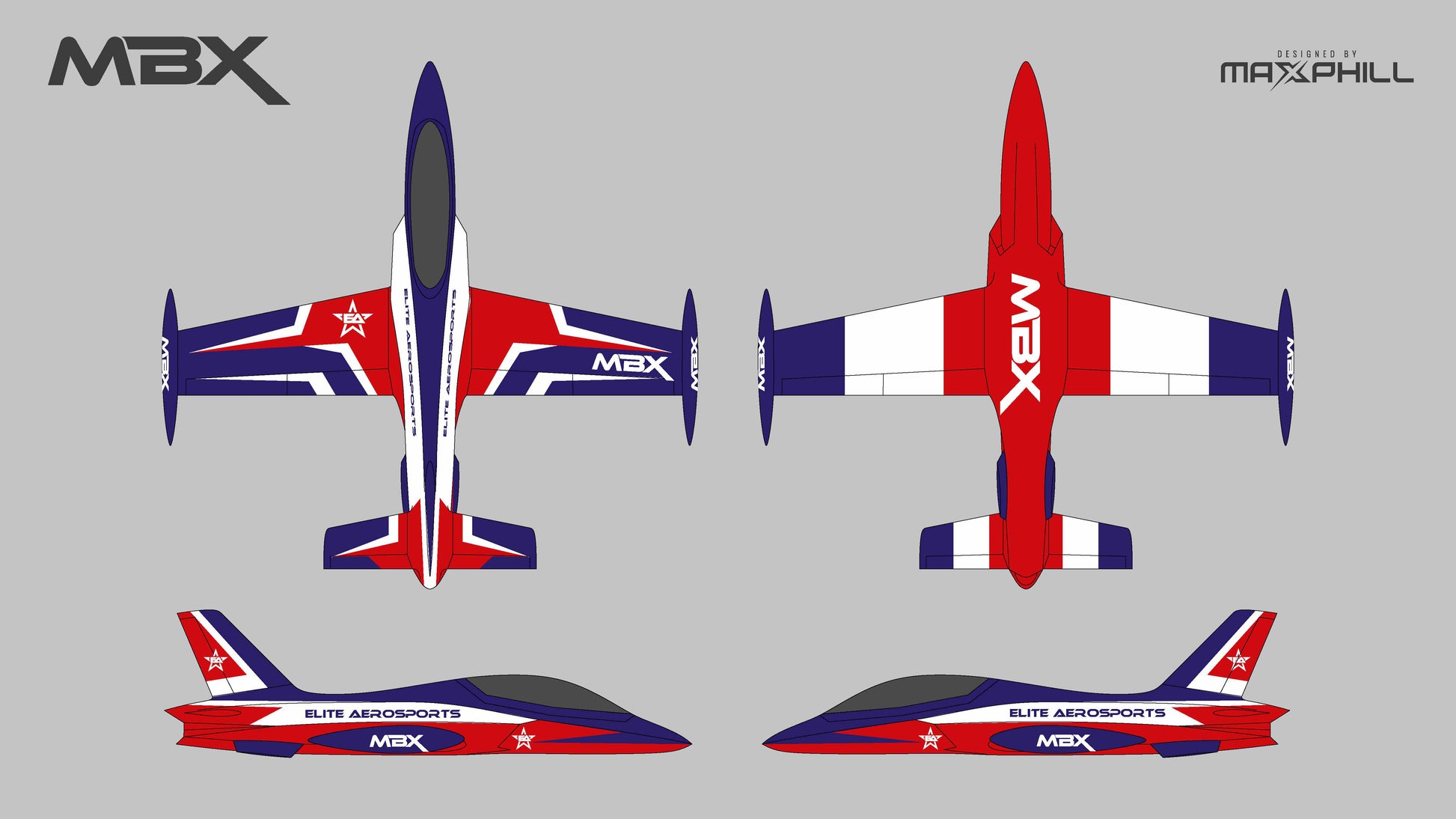

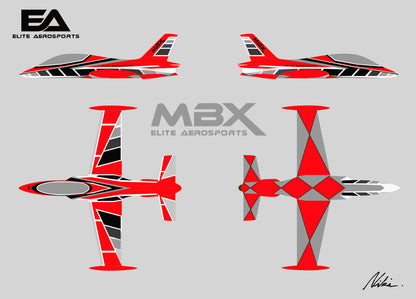

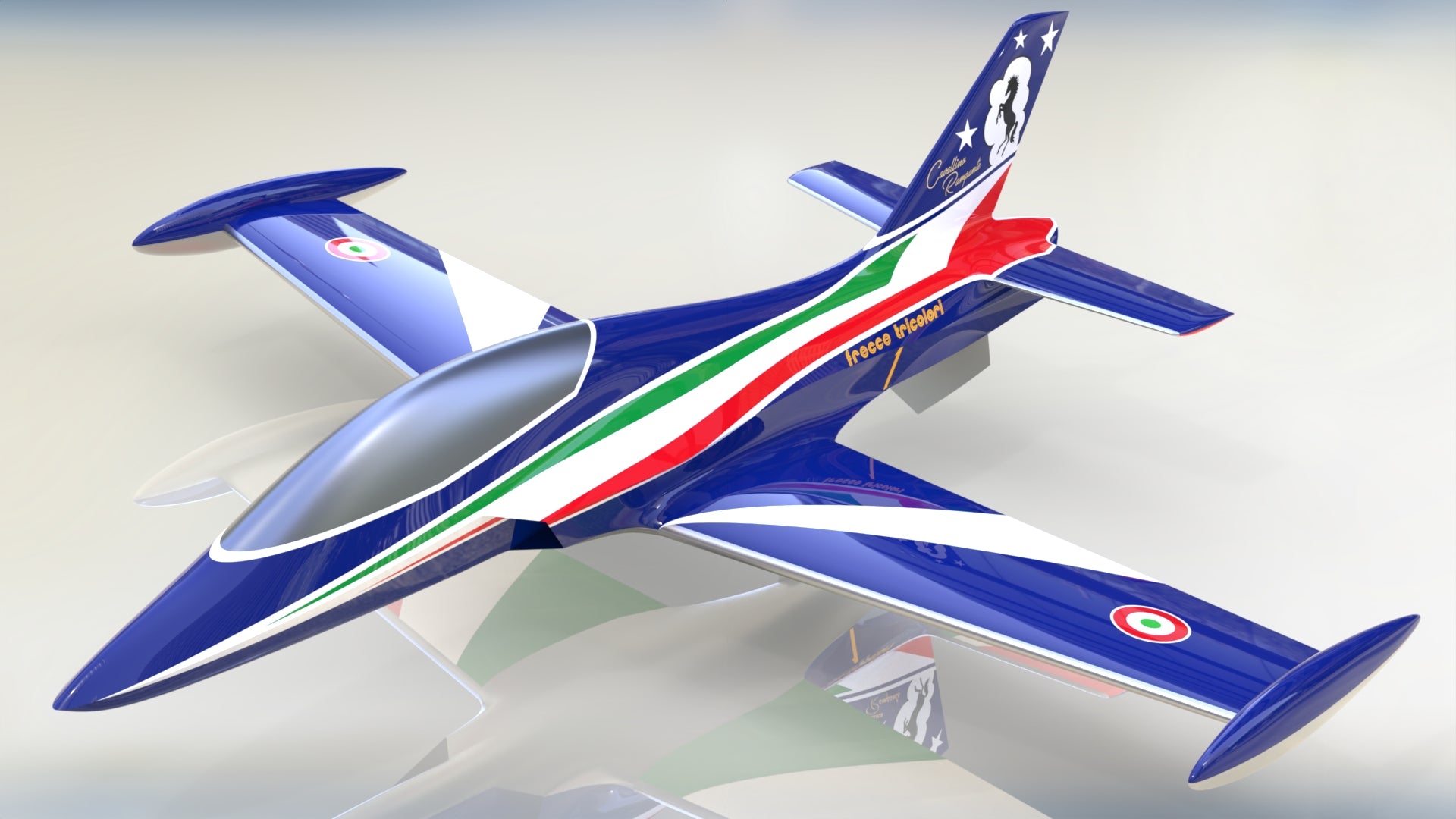

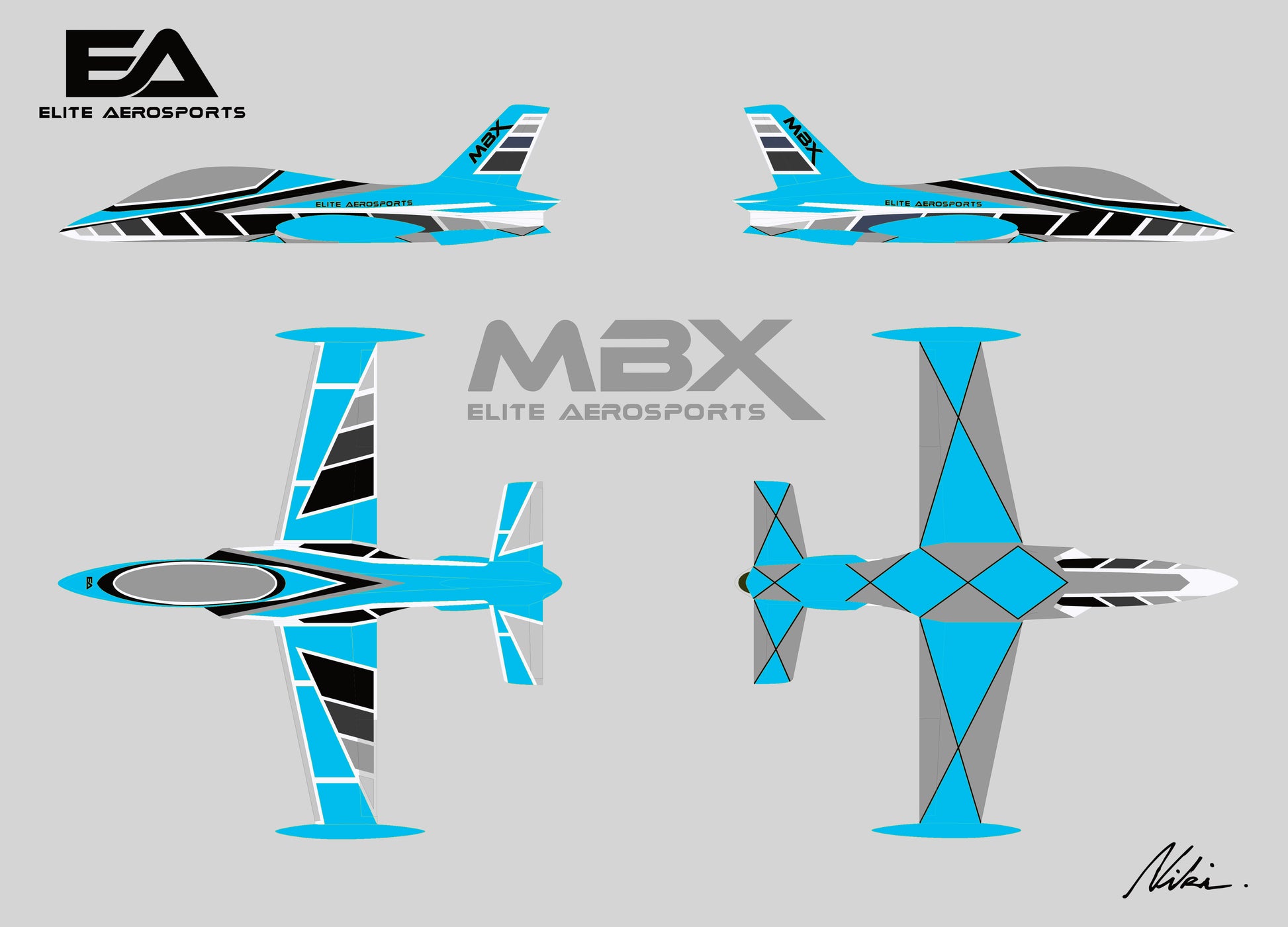

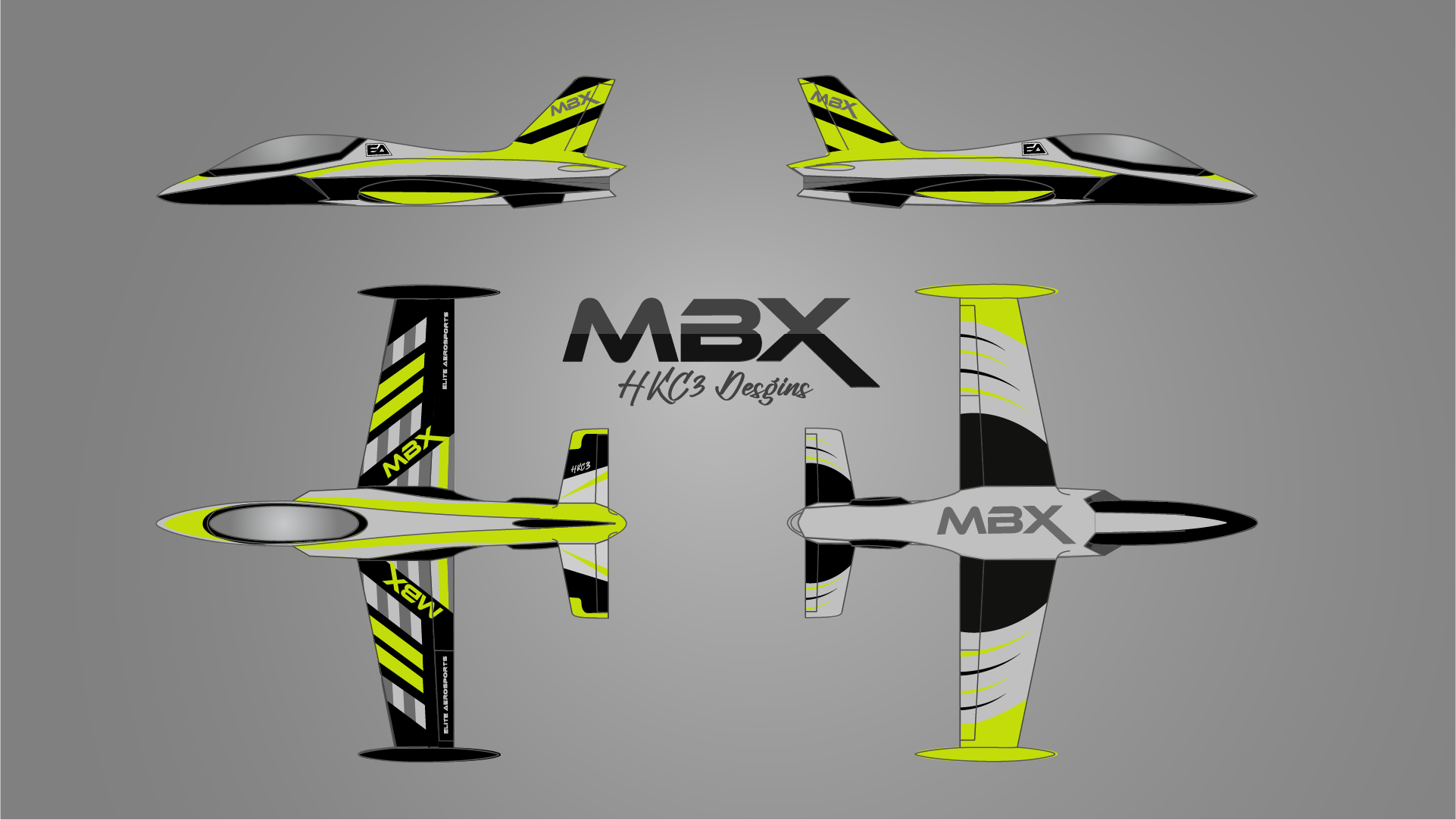

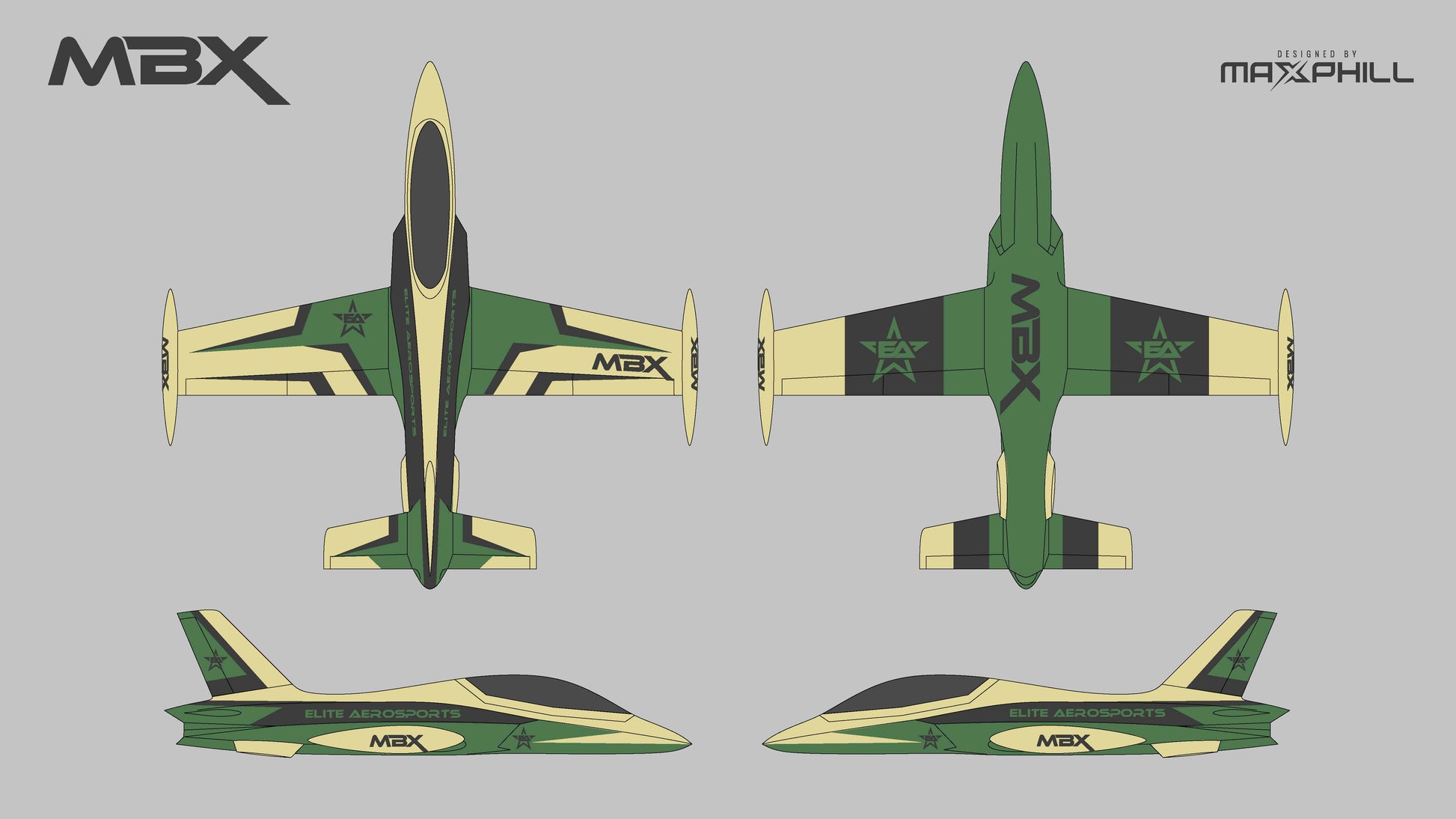

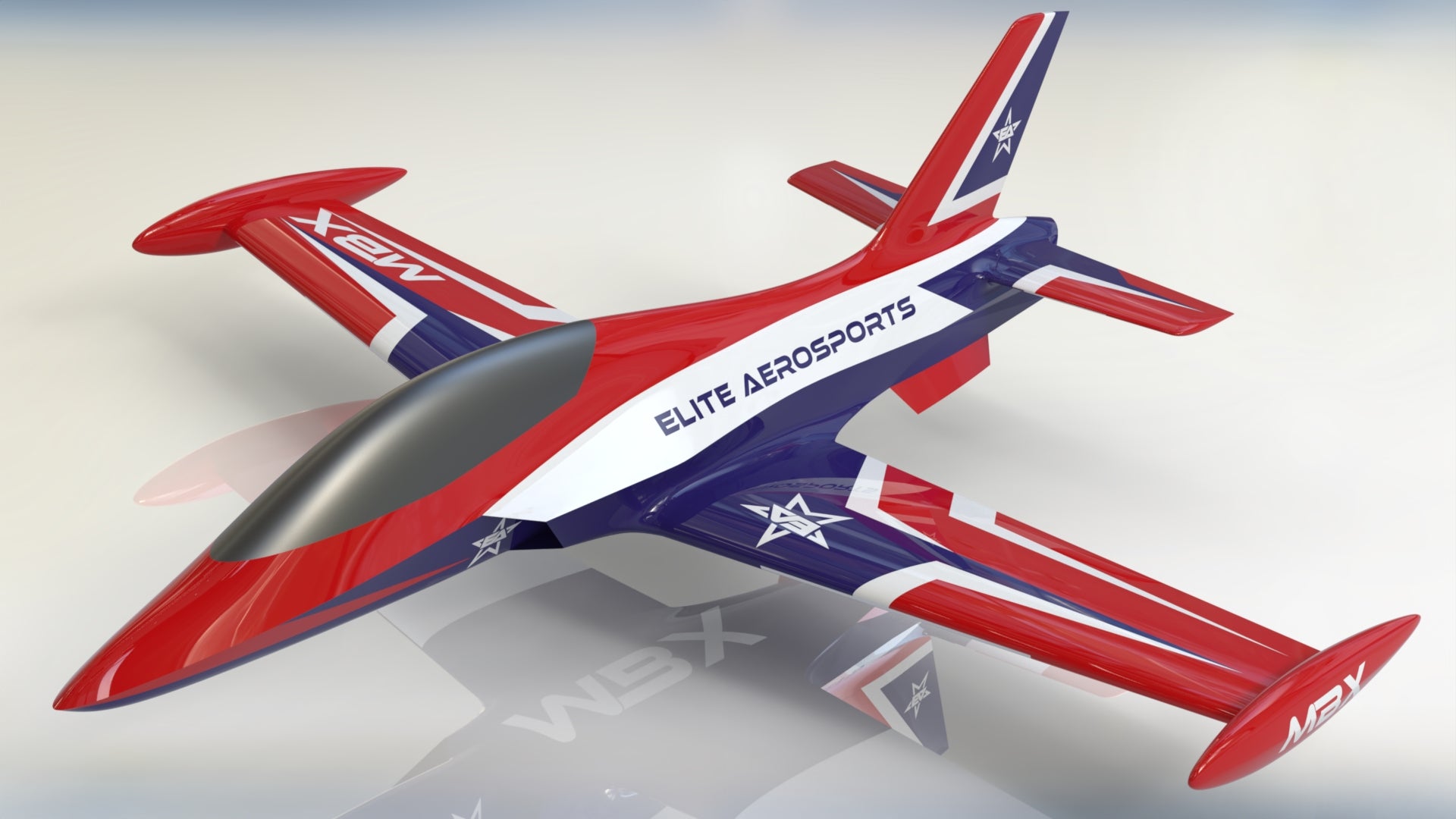

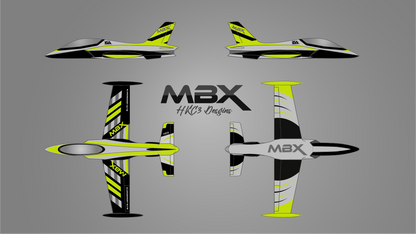

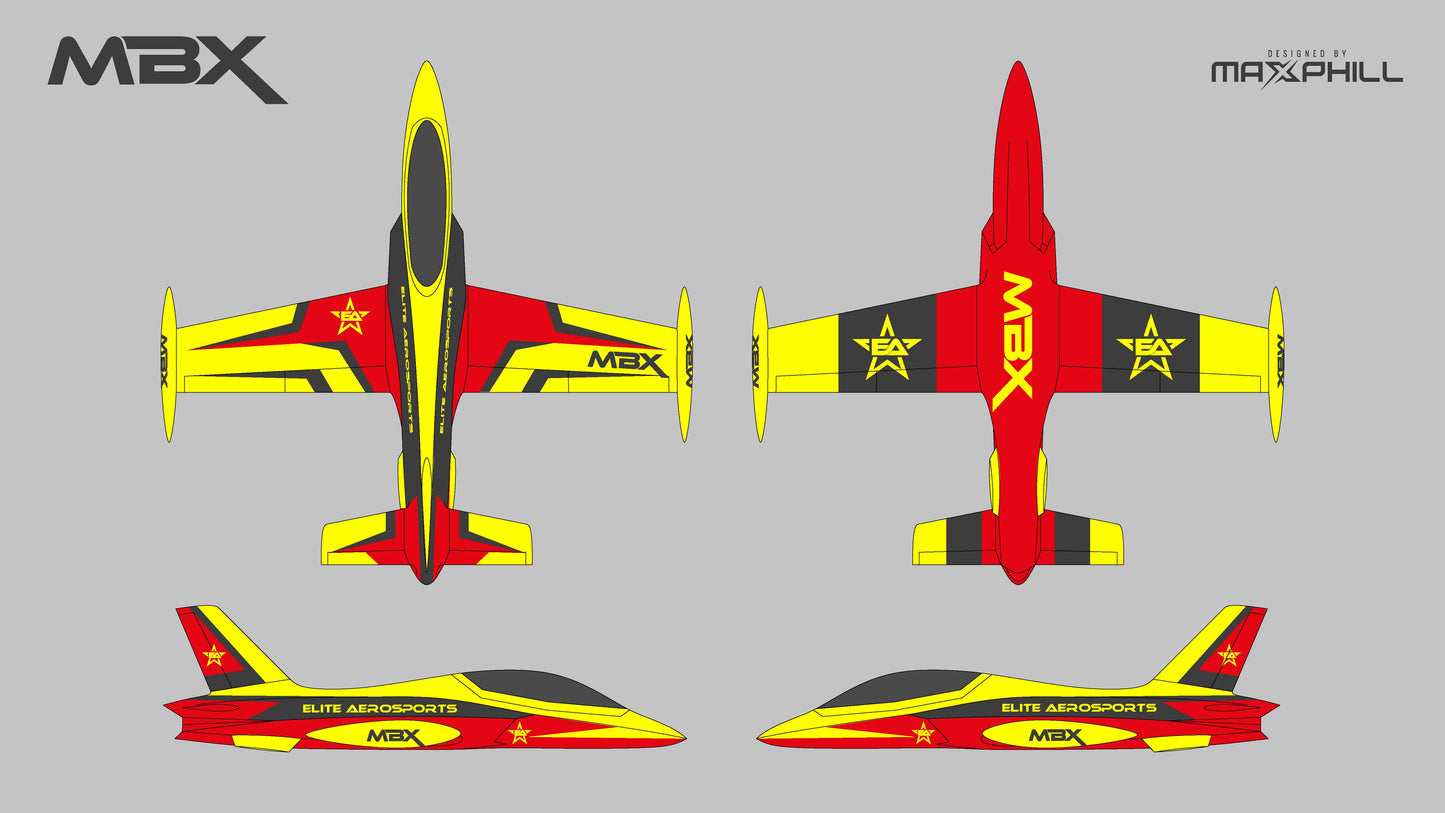

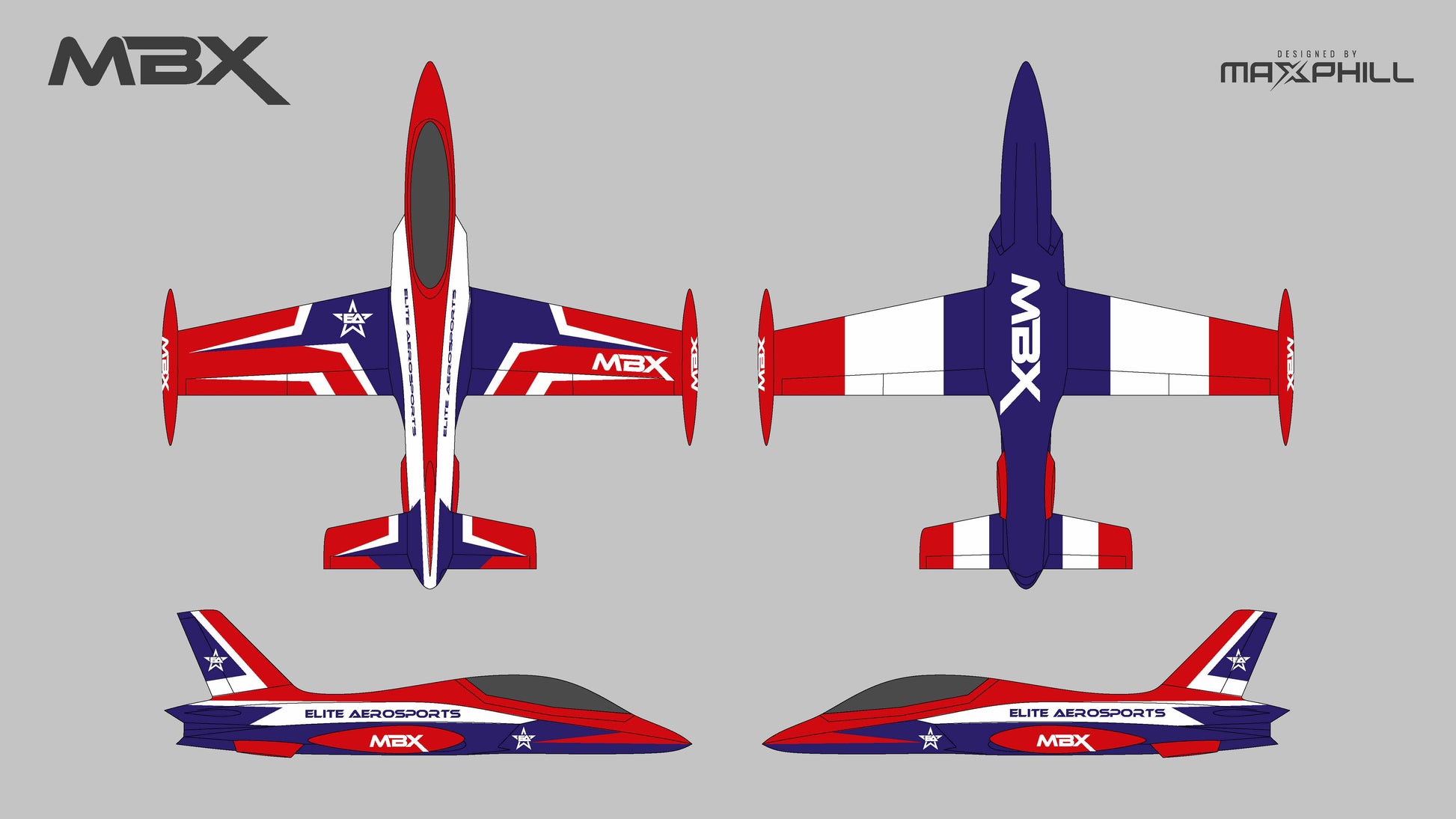

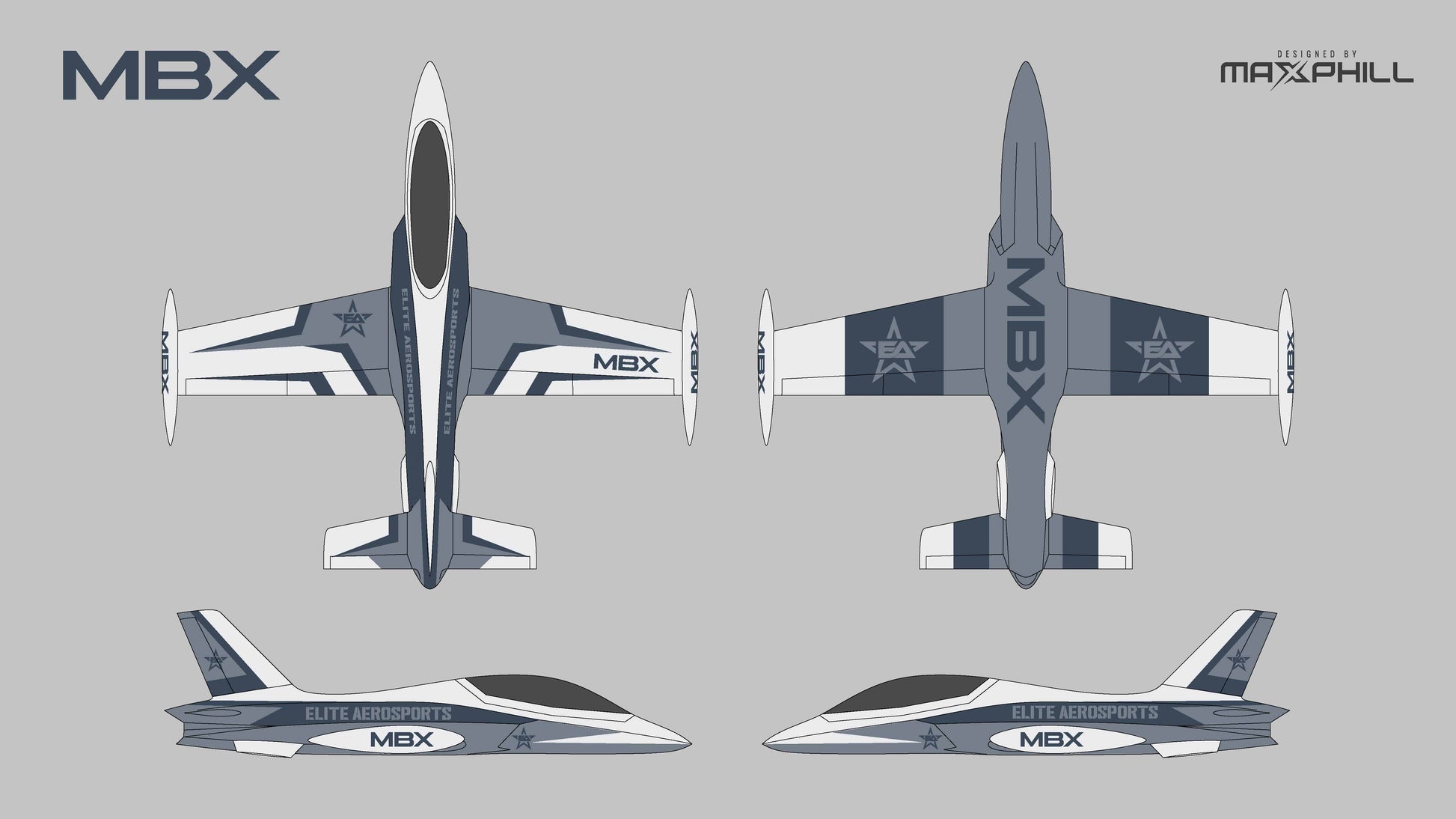

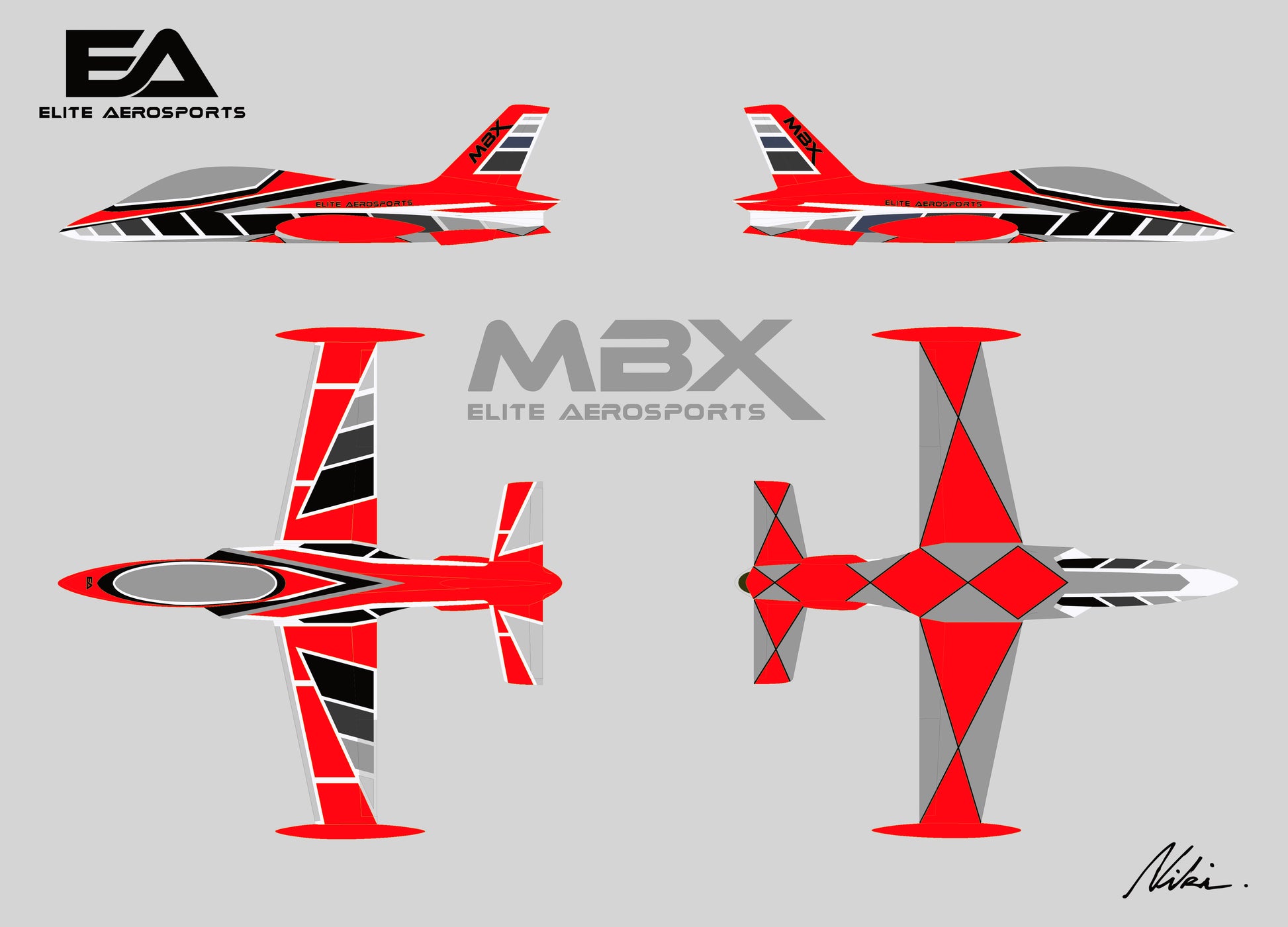

• Custom Paint Schemes: Available upon request
⸻
Optional Accessories
• Custom thrust pipe upgrade – $450
• Wire harness – $350
• Smoke system (tank + hardware) – $179
• Large UAT – $130
• Custom EA canvas wing/stab bags – $350

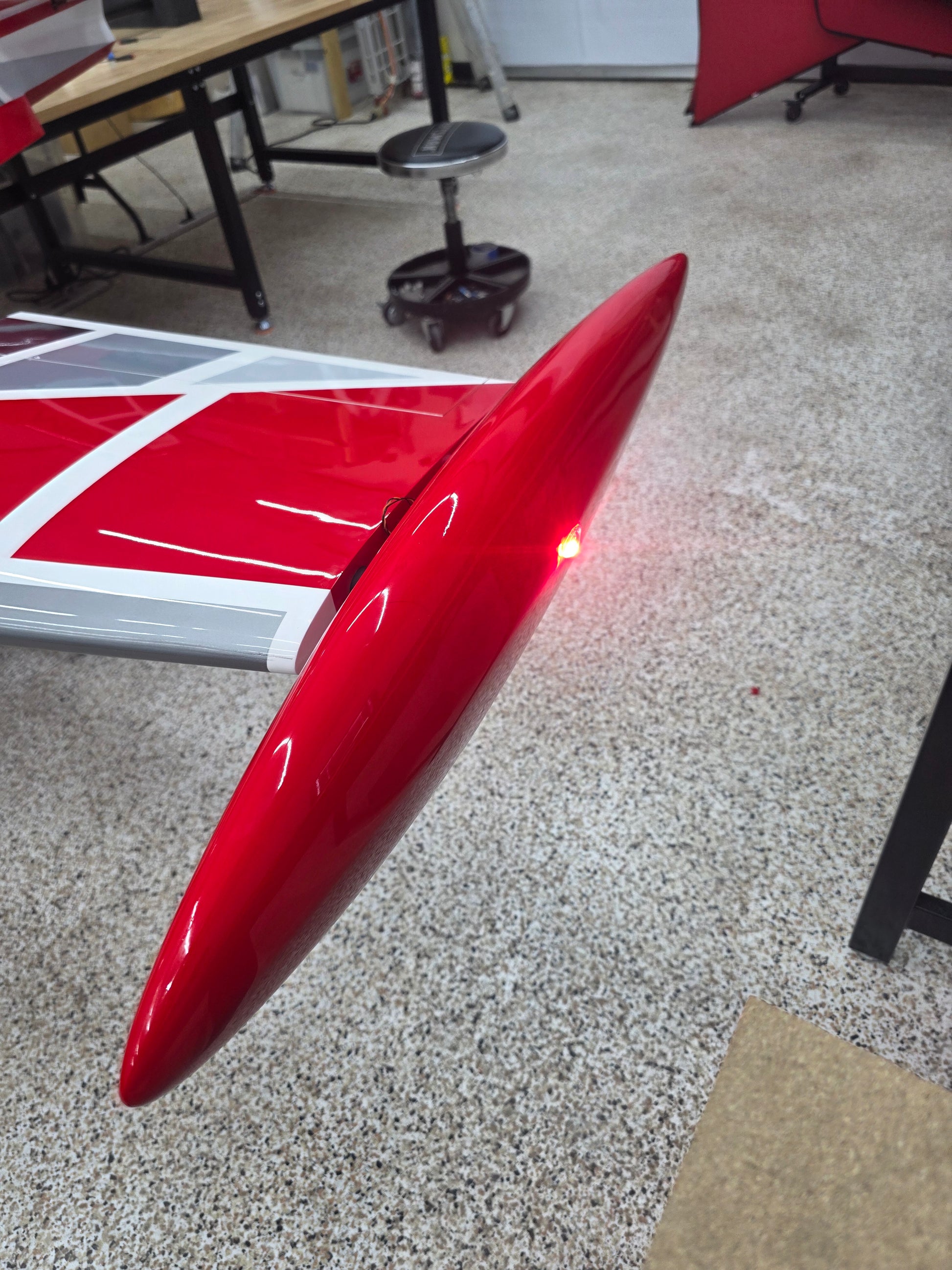

• Lighting systems – starting at $399
• Custom build service – starting at $1,500
• EA servos:
• 36KG BL HV – $169
• 55KG HV – $199
• KingTech Turbines available
• Electron SmartBox upgrade – $149
⸻
Availability
If the MBX is not currently in stock, contact us at info@eliteaerosports.com to reserve your preferred scheme and secure your order.
https://www.youtube.com/watch?v=Vmme7BjZy2Q
CG:
Back of wing tube
Throws:
Aileron: 15-25mm/from tip. low/high
Flaps: full 90mm from aileron. Mix 3-4mm down ele with full flap. Take off flaps 25mm from aileron
Elevator: 10.0-15.0mm from tip low/high
Rudder: 75mm plus from base
Expo:
Aileron 25%
Elevator 25%
Rudder 15%
Cortex settings:
Aileron Gain: 9
Aileron Stick Priority: 15
Aileron Lock In: 9
Elevator Gain:13
Elevator Stick Priority: 15
Elevator Lock in: 9
Rudder Gain: 15
Rudder Stick Priority: 15
Rudder Lock In: 9
Main Gain: 55
