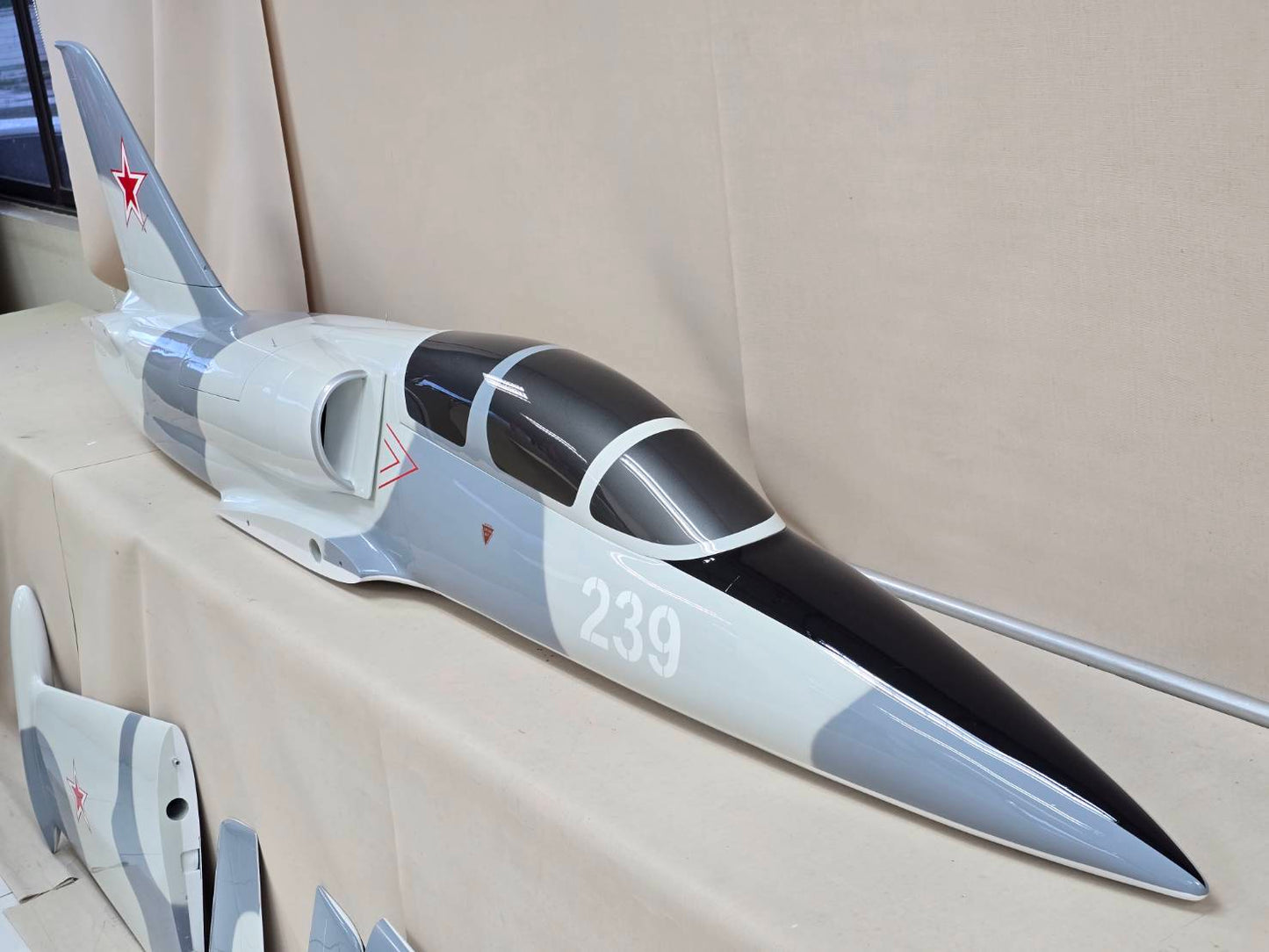

EA L39 Sport

EA L39 Sport Reno Racer NOW AVAILABLE!!

If item is not in stock please email us at info@eliteaerosports.com and lets get you ordered in your favorite scheme today!!

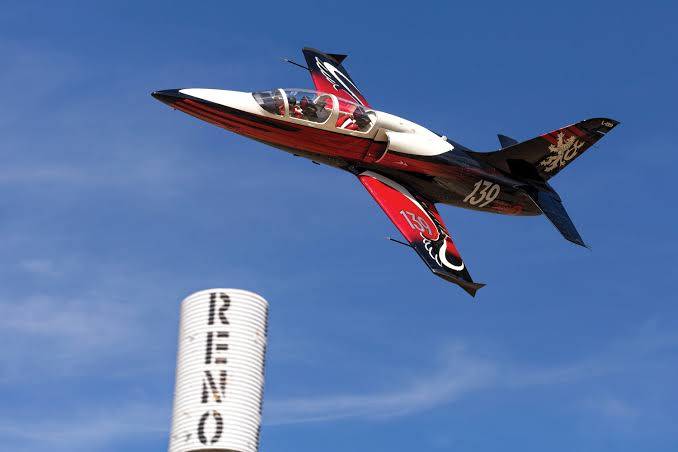

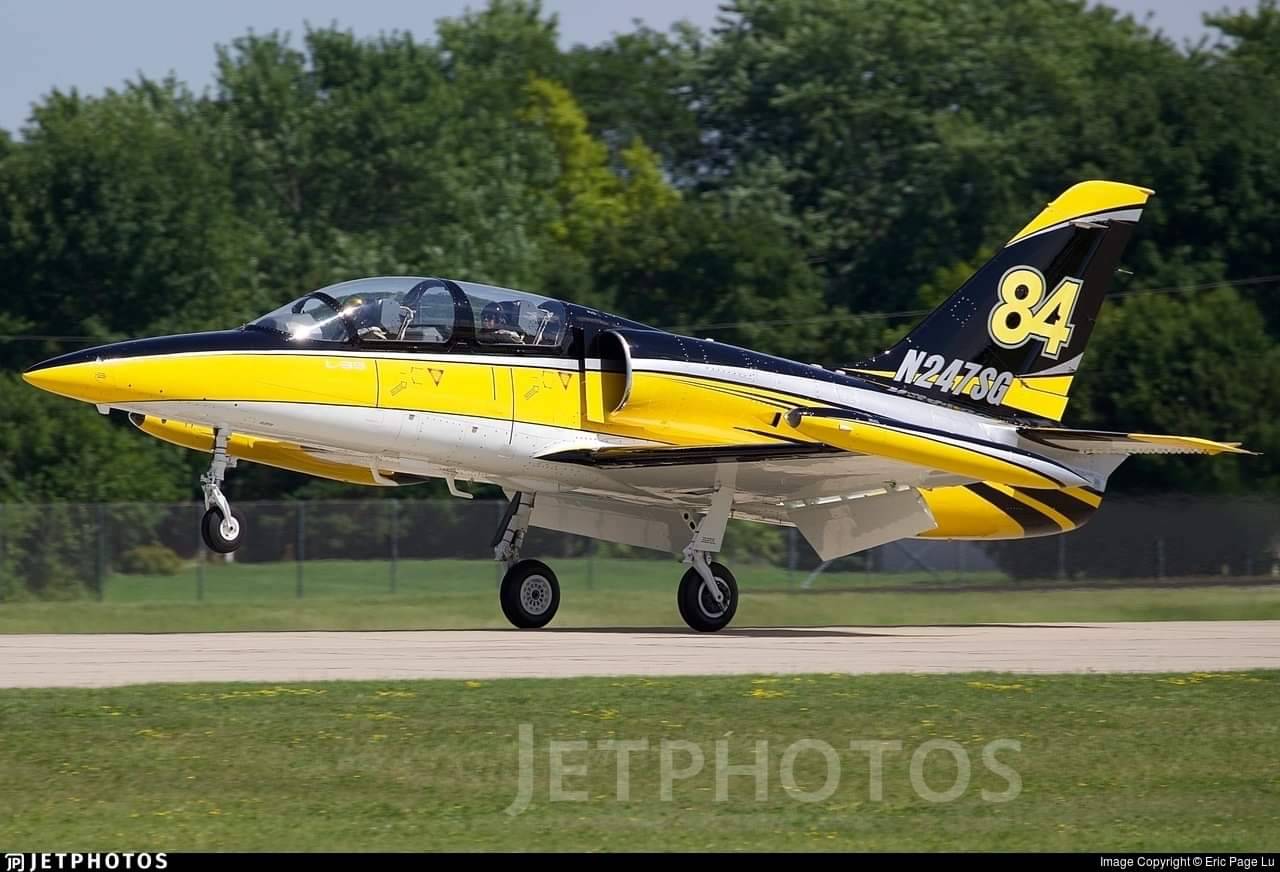

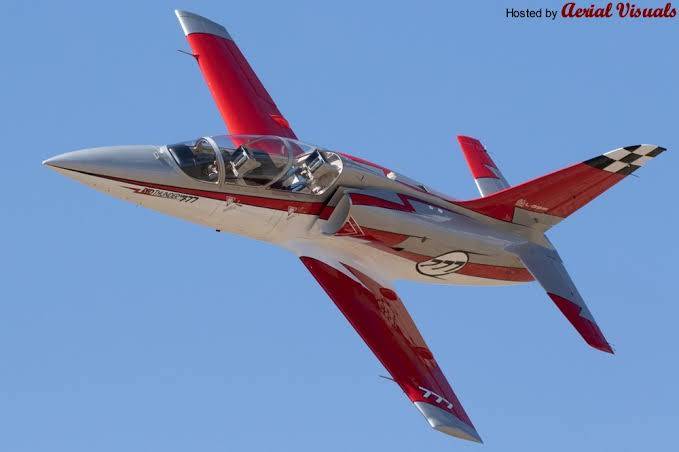

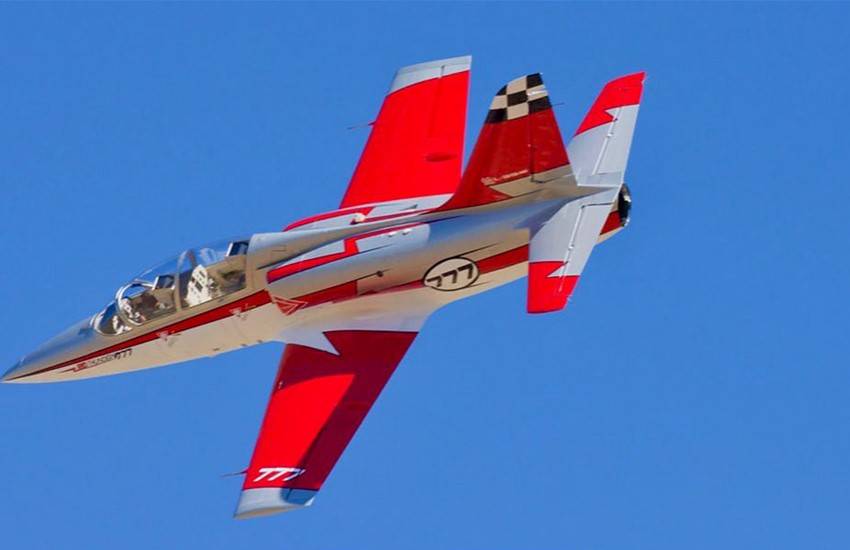

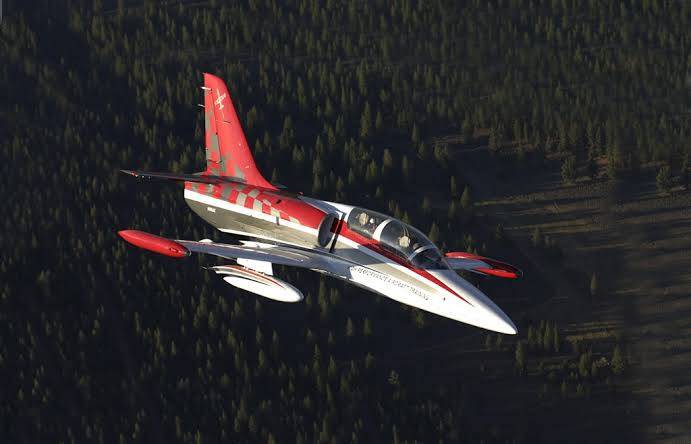

The New L39 Sport Reno Racer is our response to what the market has been asking for; more scale planes.  Next in line to follow the Viper Sport is the Reno Racer L39.  We decided to model the popular version of the racing version  L39.  Our L39 offers scale landing gear and optional gear doors.

The L39 has a very wide speed envelope, capable of very slow landings and slow flight but still achieves exhilarating high speed flight performance. One of the benefits of our L39 Sport is it that it is available in ARF form and also the very popular PNP version. This allows the model to go from un-boxing to the flying field in an incredibly short amount of time with just a few simple steps to complete in between. As with all EA products, our models are tested thoroughly and field proven ensuring your modeling experience with our products is a successful one.

Specifications:

• Wingspan: 1.73m /  68.1 inches
• Length: 2.24m / 88.2 inches
• Weight: 22-23 Lbs
• Power: 85-120N
• Fuel 2.7L

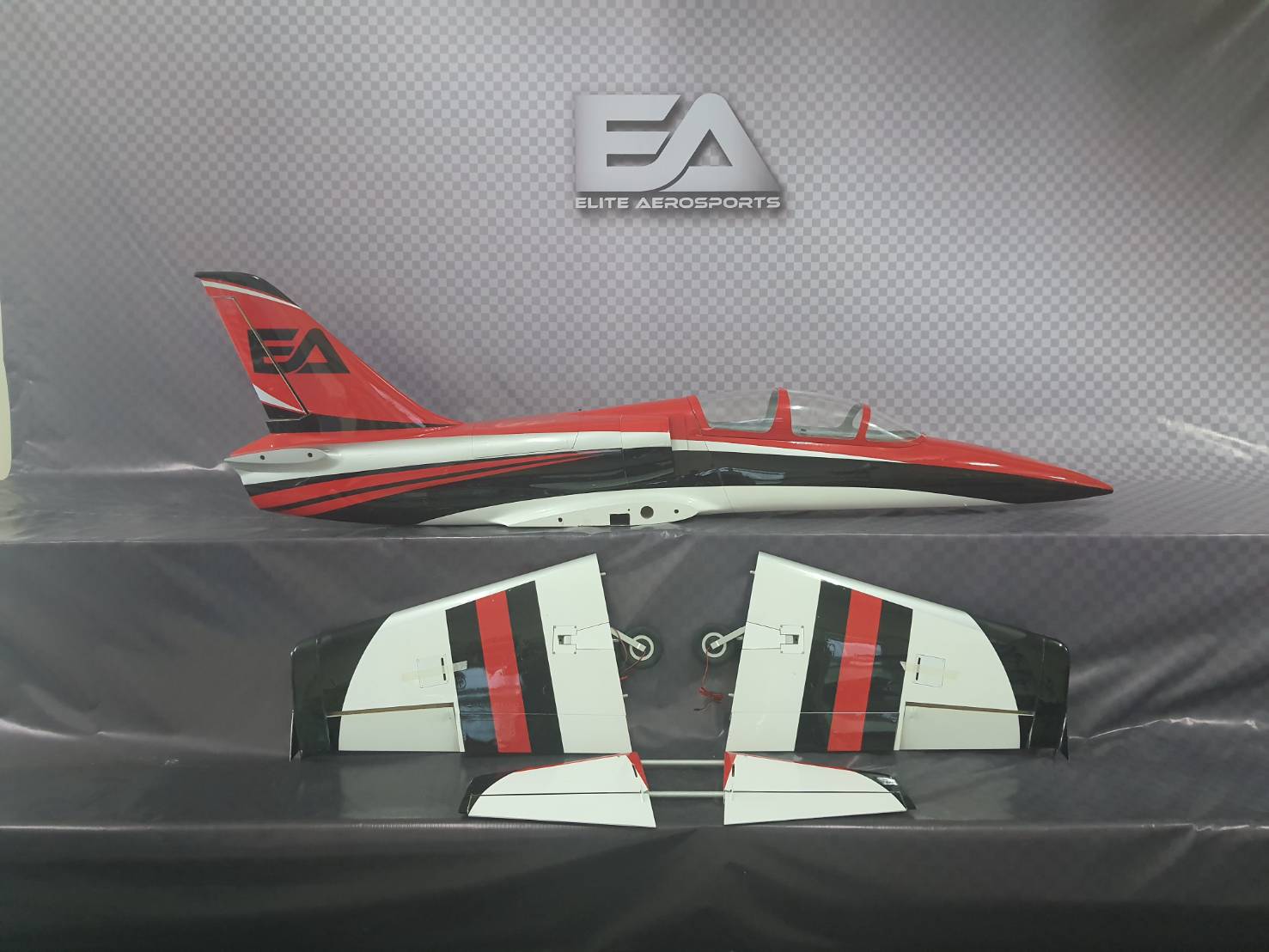

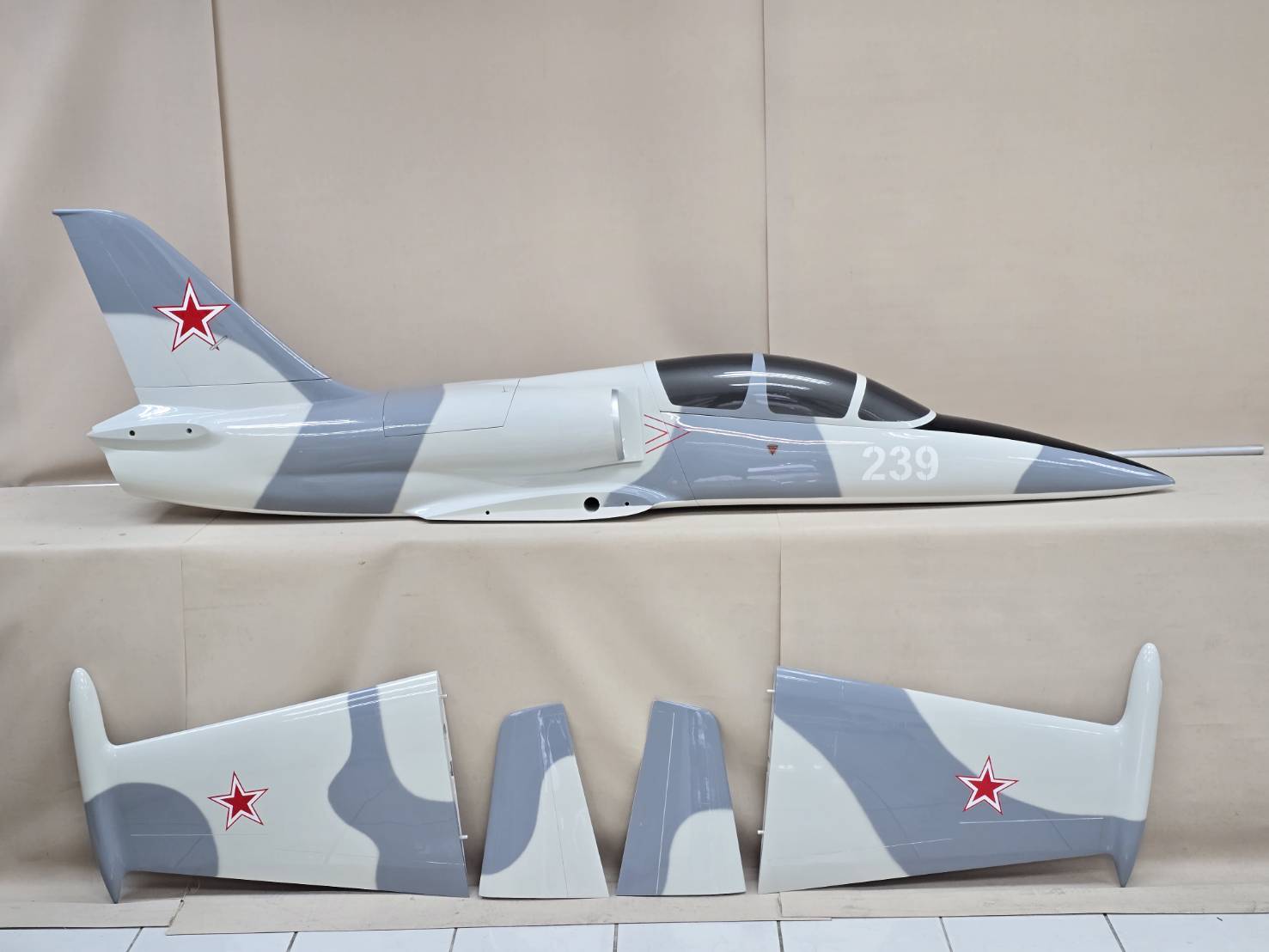

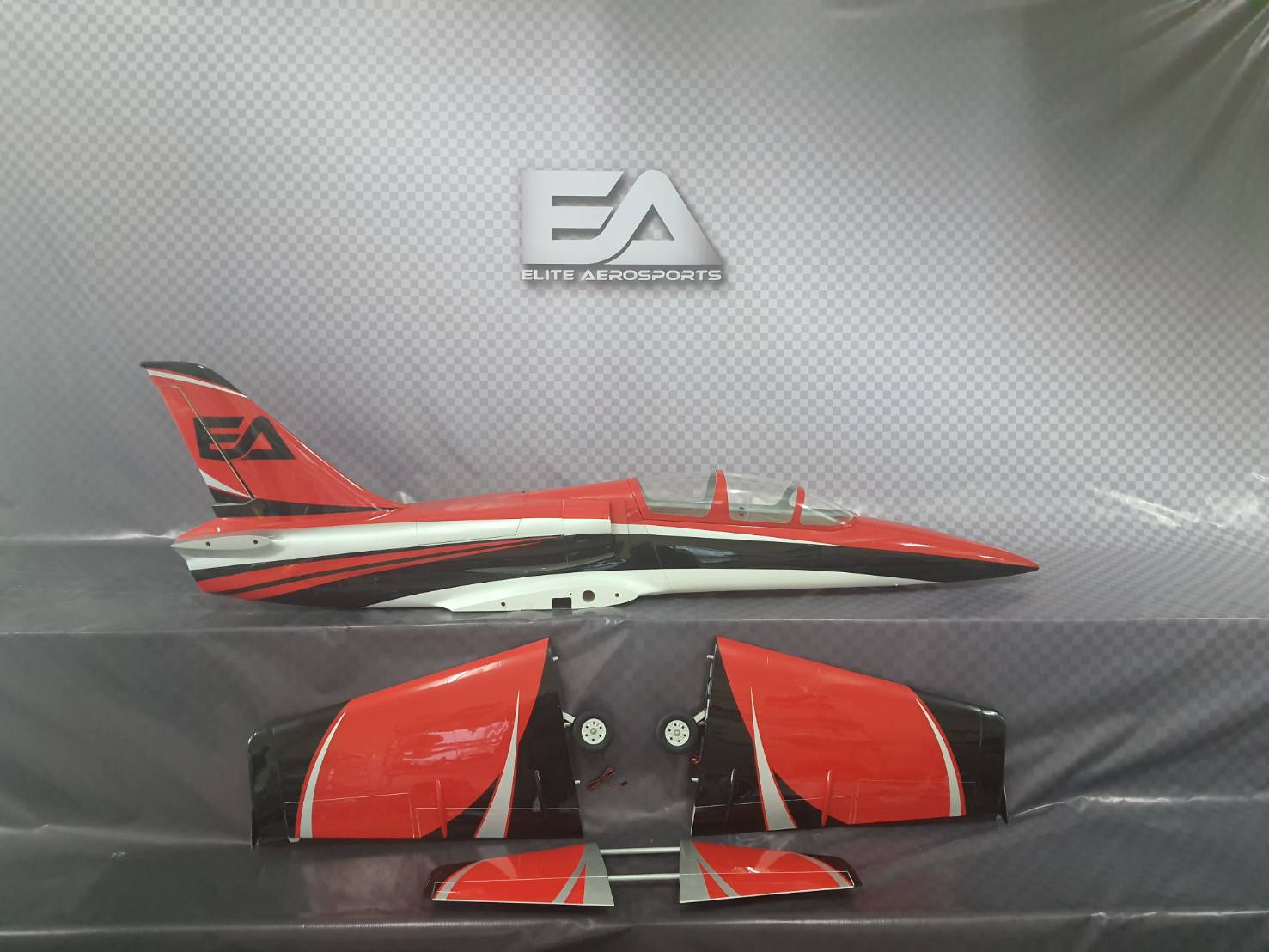

ARF version includes:

• L39 Kit
• Linkages
• 2.7L fuel tank

• Stainless dual wall thrust pipe

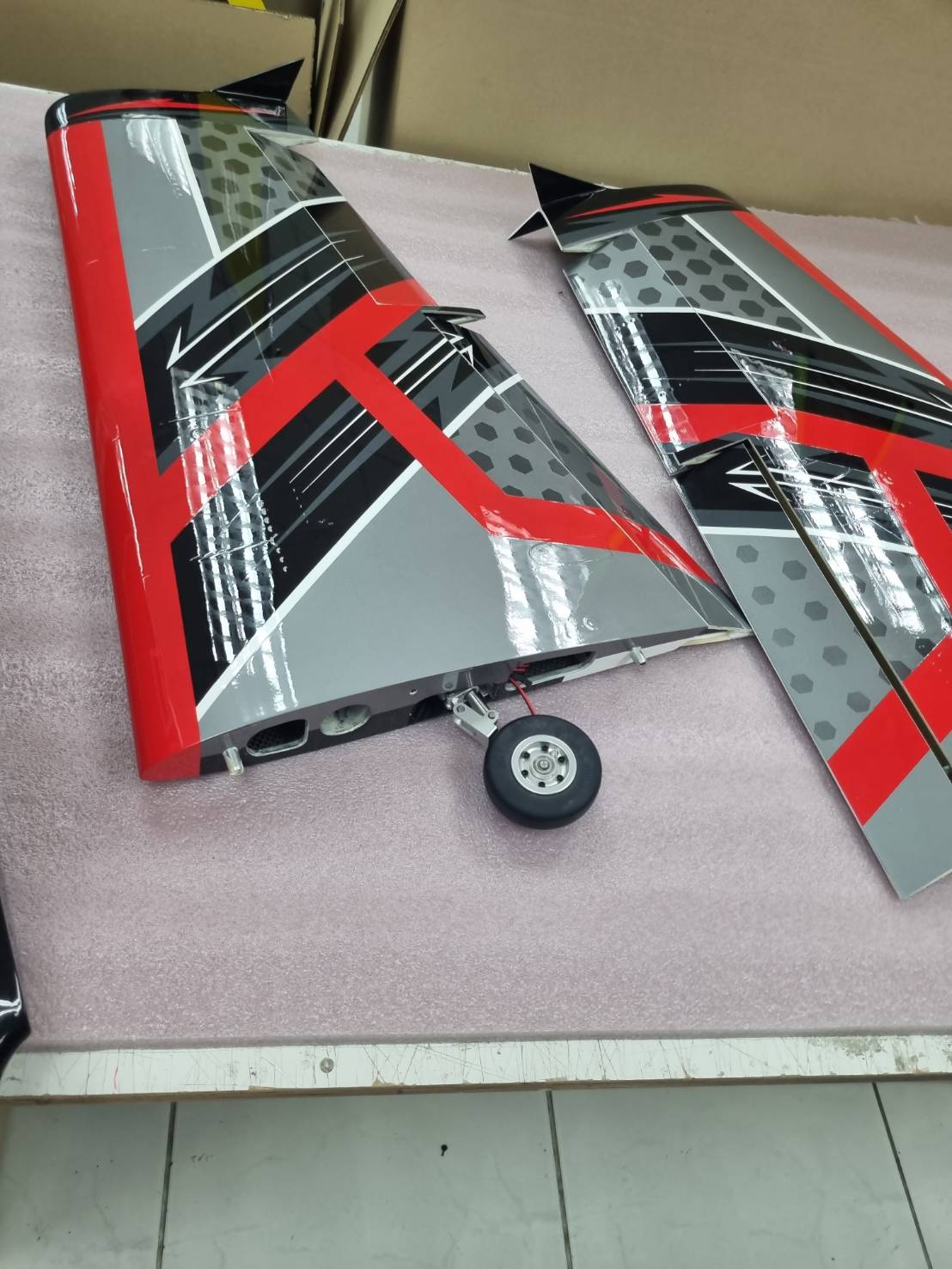

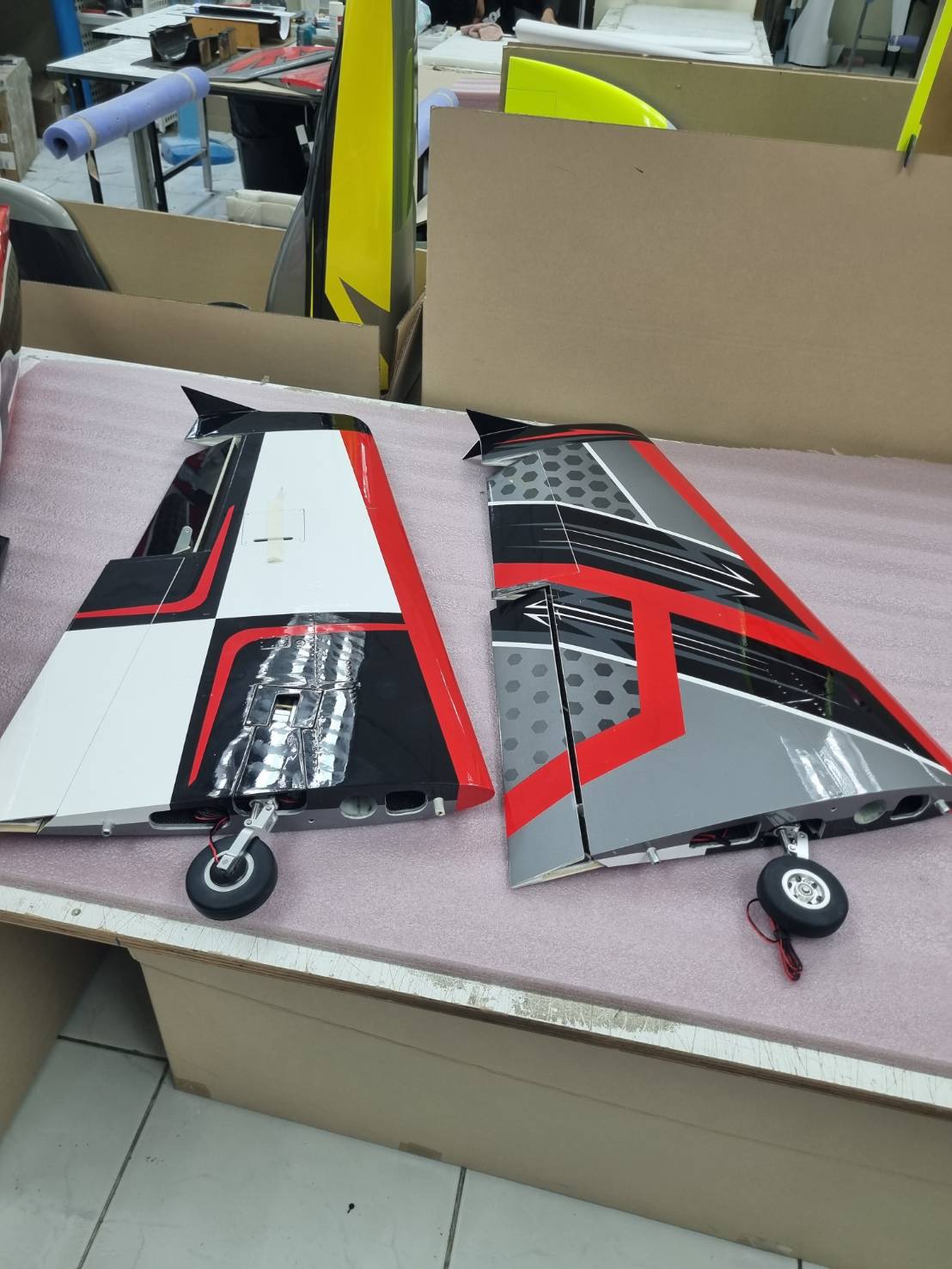

• Electric landing gear
• Standard Wing, fin and stab foil covers

• Hardware
• Sport Version comes with painted canopy and no doors and features struts door covers.

PNP version includes:

• Pre-made and installed linkages
• Aluminum Servo Arms

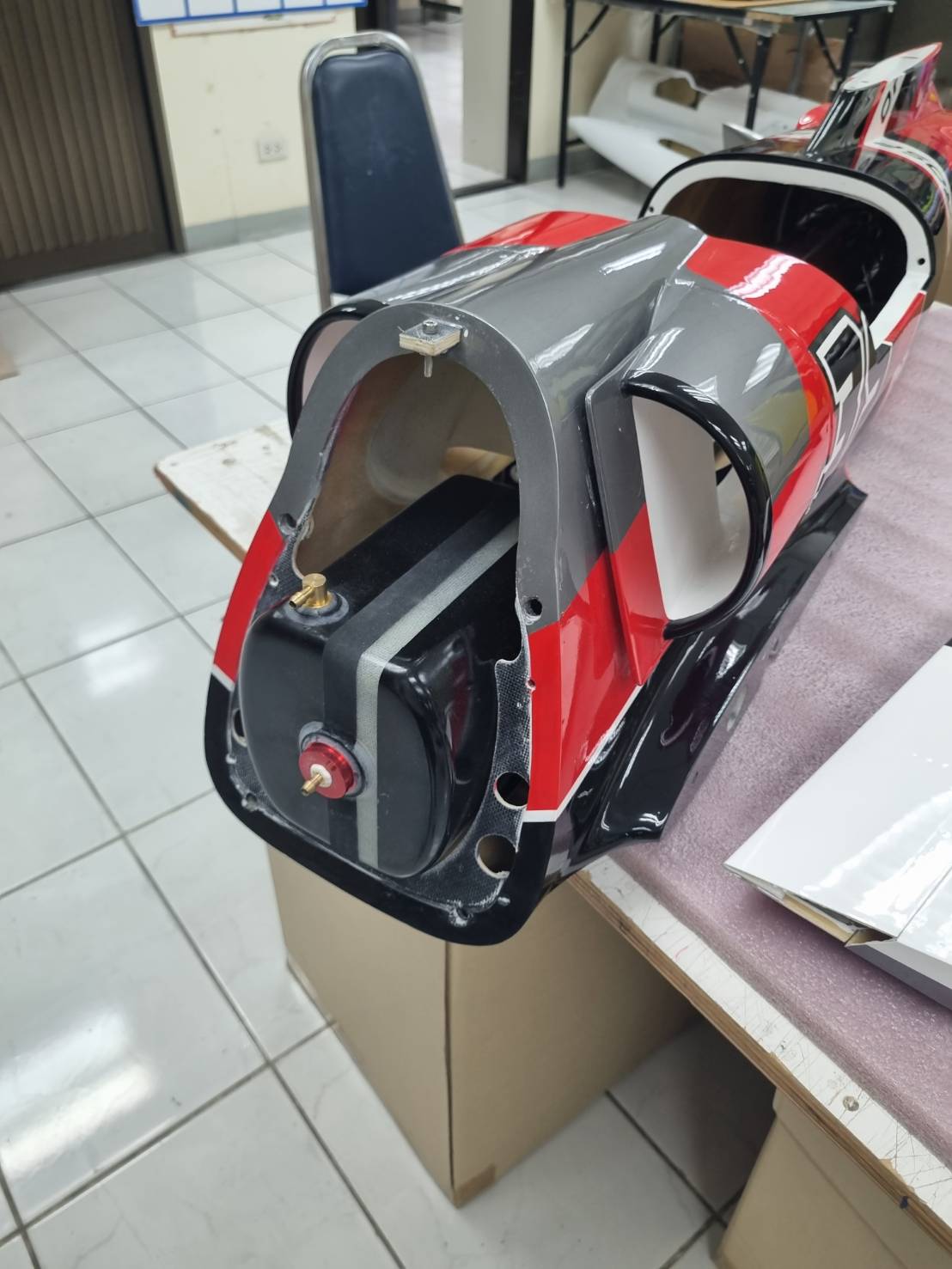

• Plumbed and installed fuel system including UAT
• Stainless dual wall thrust pipe Installed
• Electric landing gear and controller wired and installed
• 8 HV Servos wired and Installed
• Standard Wing, fin and stab covers
•


https://www.youtube.com/watch?v=tXKibQFWjcg

L39 Linkages, Throws and CG

 8 full size servos needed for ARF.

L39 Sport linkages:

Aileron: 90mm.     1.5 inch arm used inner hole

Flap: 105mm.    1 inch arm

Elevator: 75mm.   1.5 inch arm used inner hole

Rudder: 90mm.     1.5 inch arm and used inner hole and cut end of arm off

 Throws:

Aileron: High 28MM, 20mm Low from tip.  Expo 25%

Elevator: 20MM from tip, .  Expo 25%

Flaps: Takeoff: 20-25MM.  Full Flap: 65 to 70MM measured from aileron.  Slow flap system down to 4 seconds.  Mix in 3mm down with full flap.

Rudder 50MM.  Expo 15

CG:  wing tube

Cortex Main Gain: 37 to 40 with 130 newtons

Aileron Gain: 6

Aileron Stick Priority: 15

Aileron Lock in: 7

Elevator Gain: 12

Elevator Stick Priority: 15

Elevator Lock in: 7

Rudder Gain: 16

Rudder Stick Priority: 15

Rudder Lock in: 7

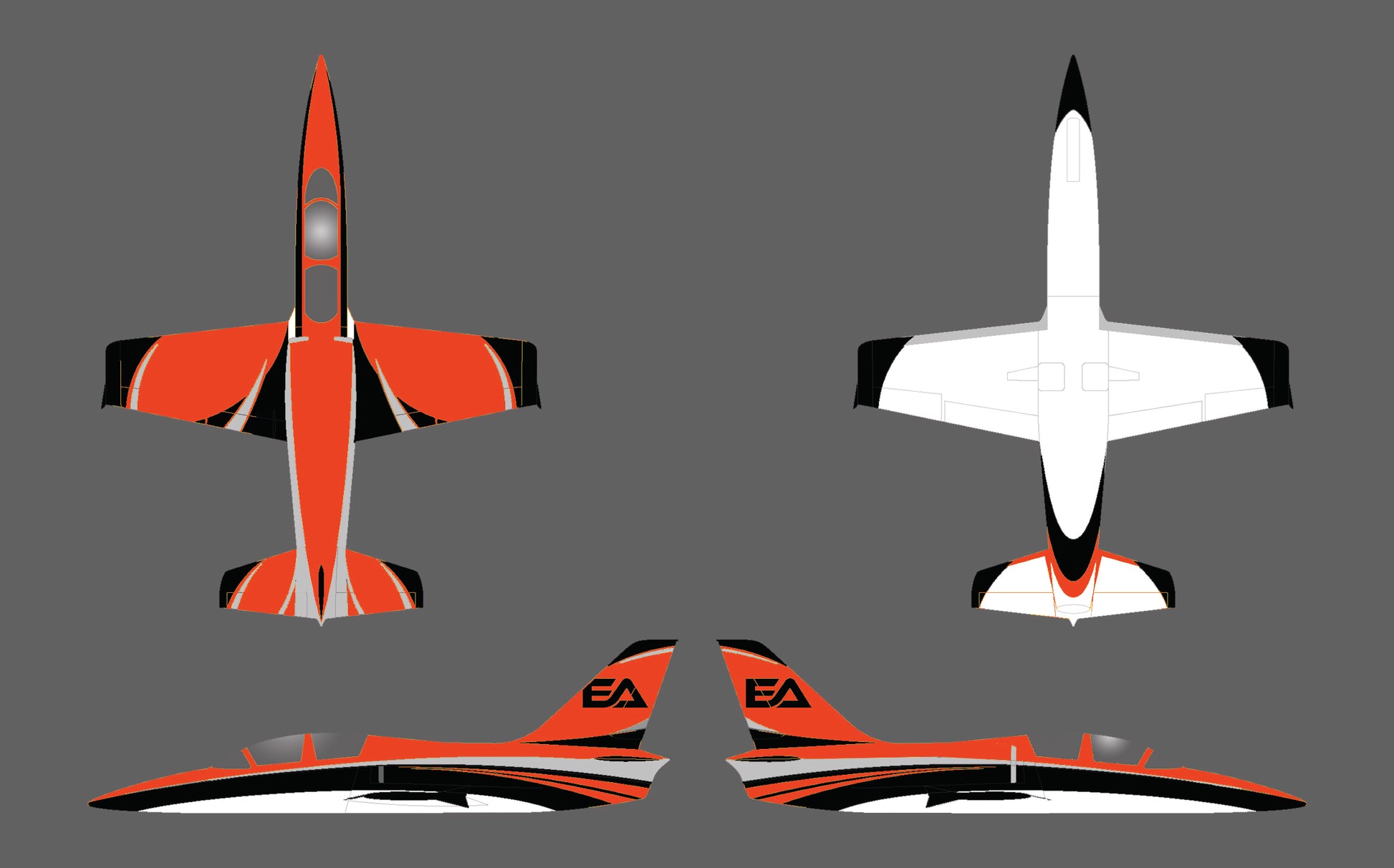

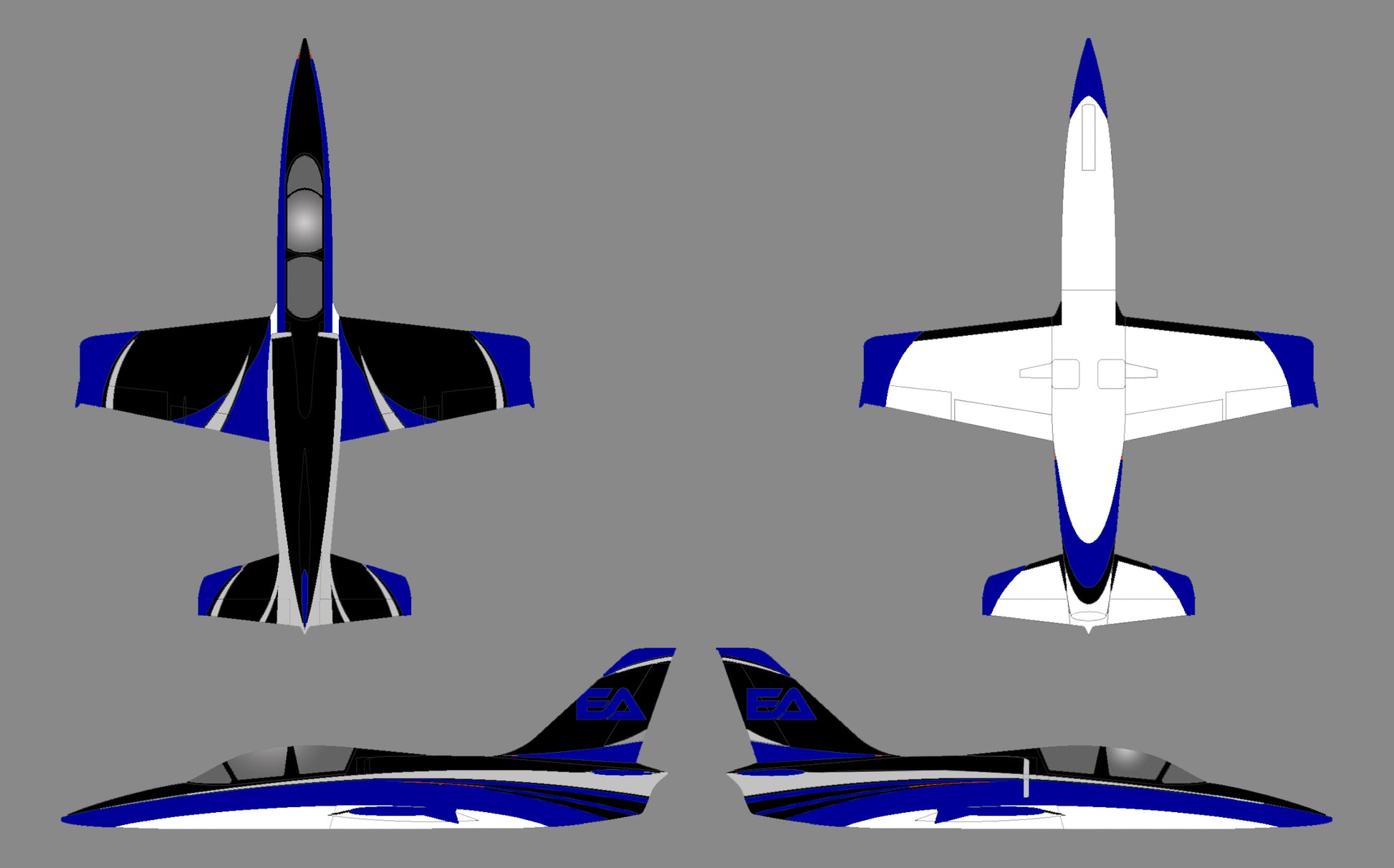

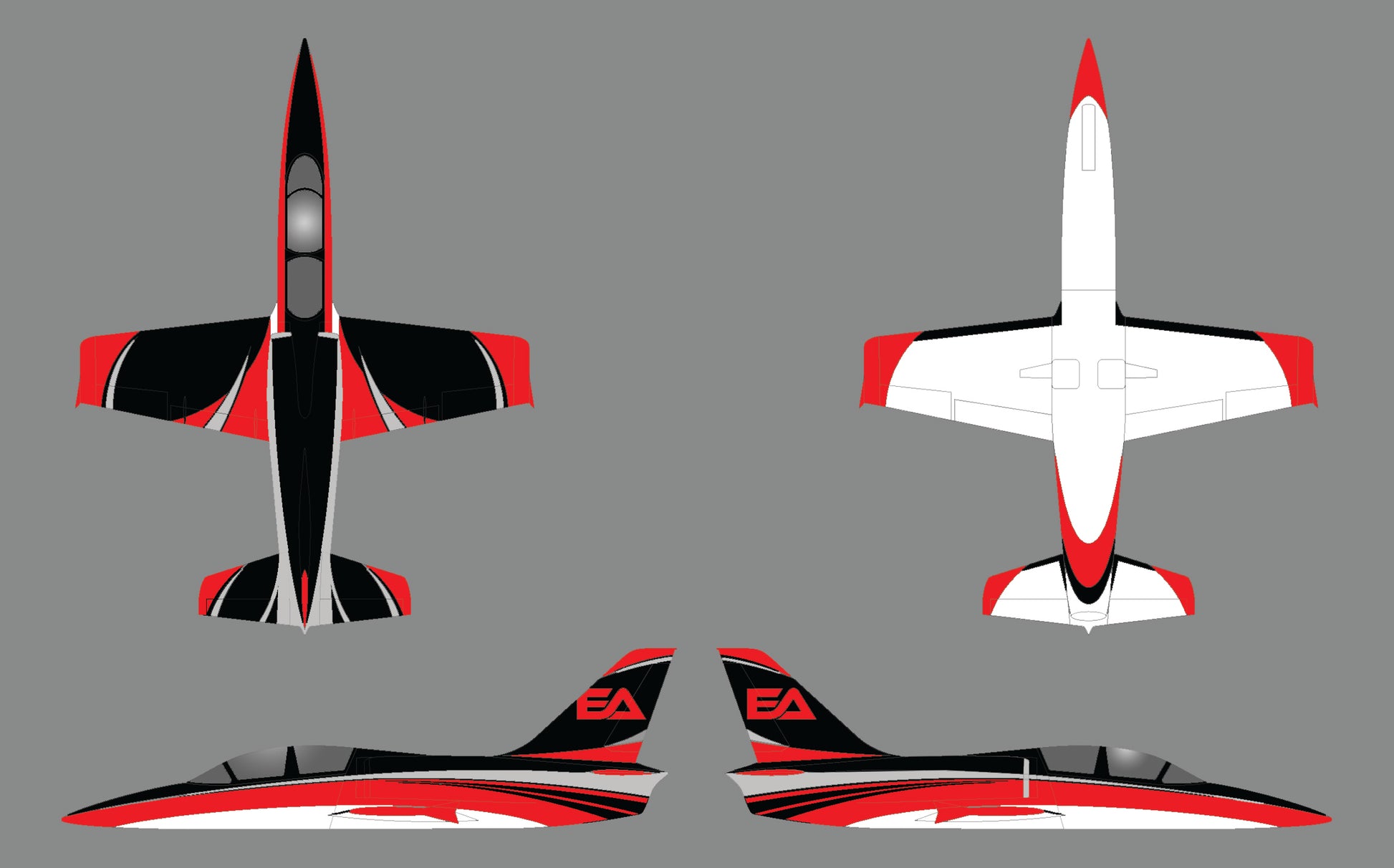

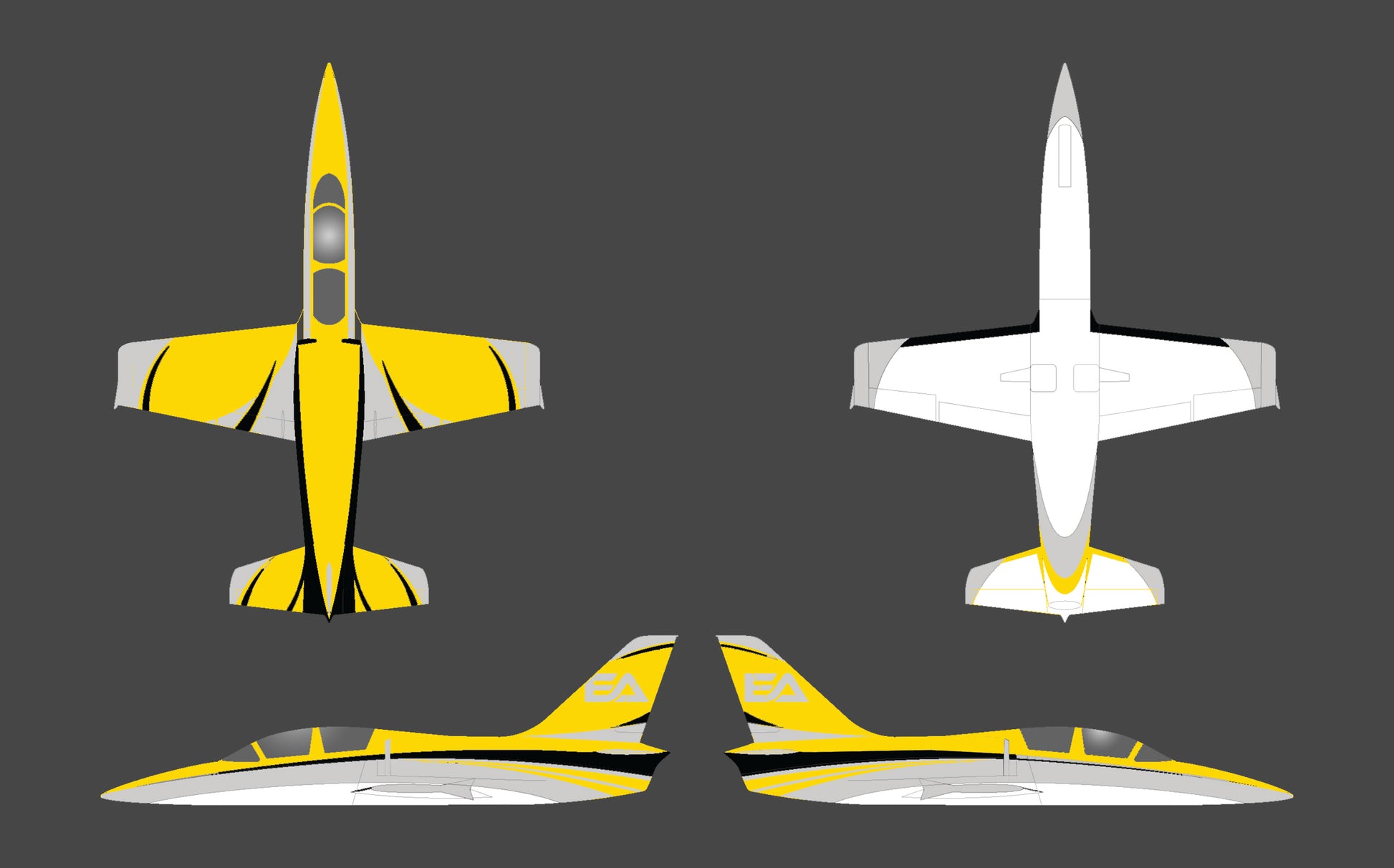

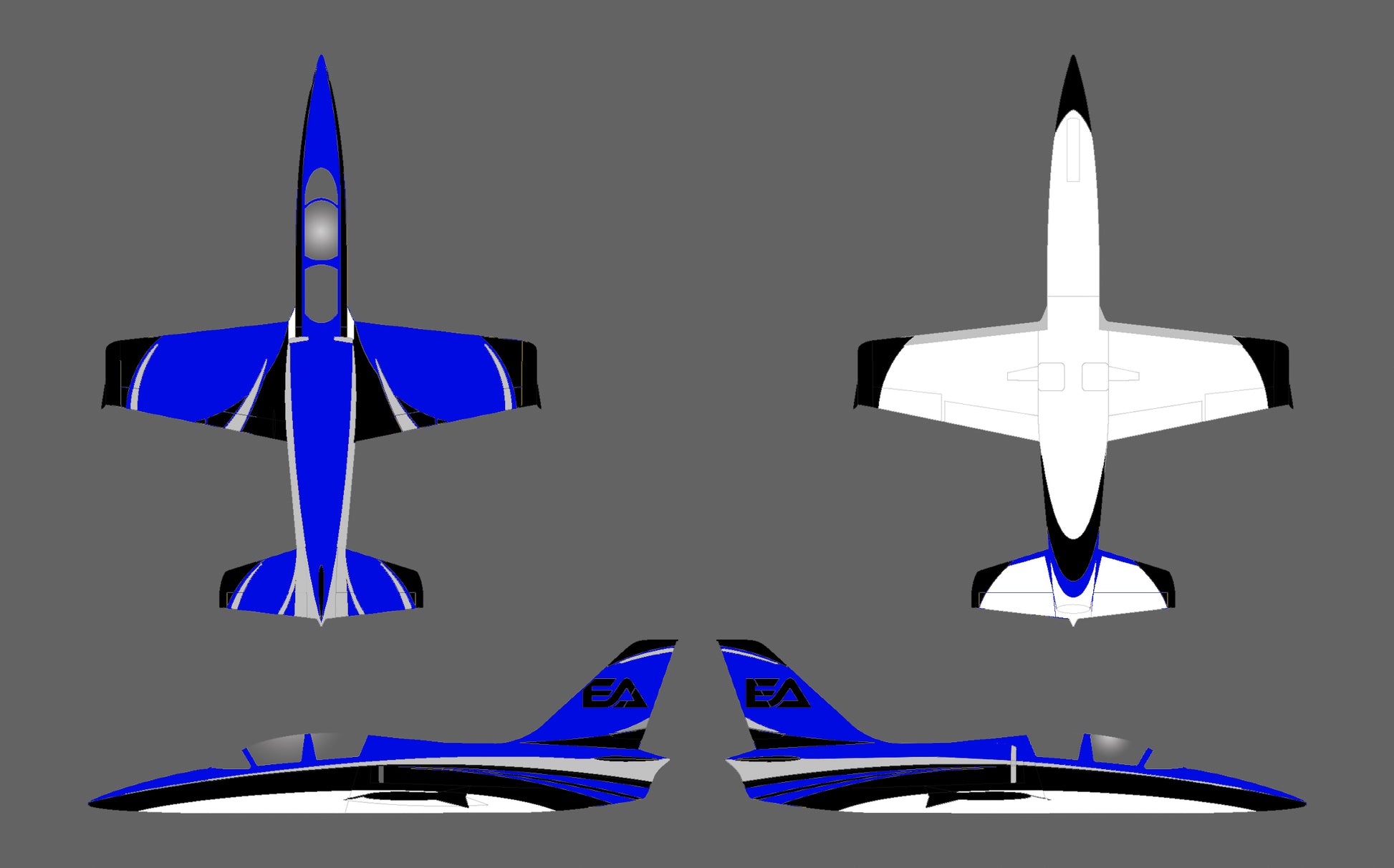

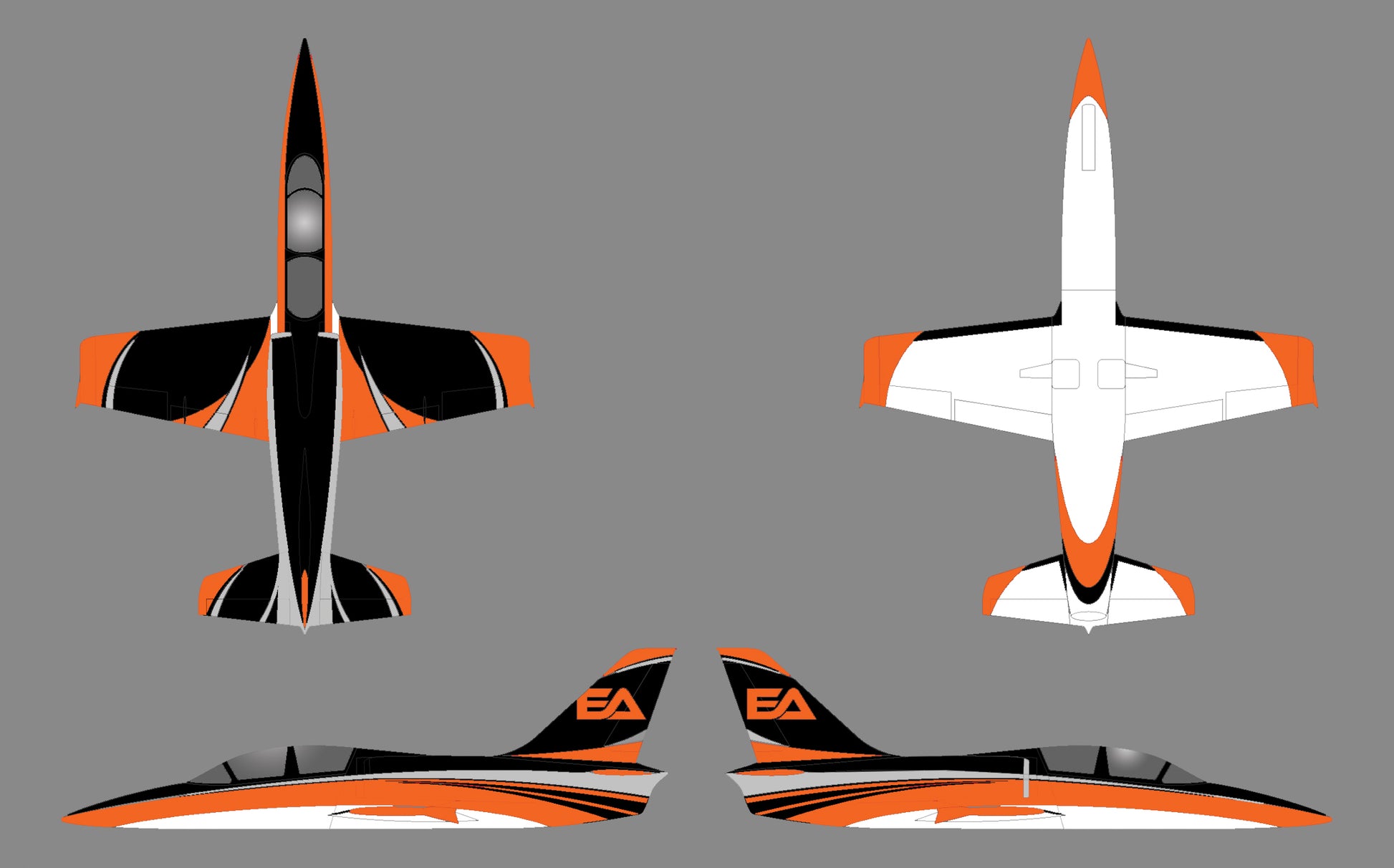

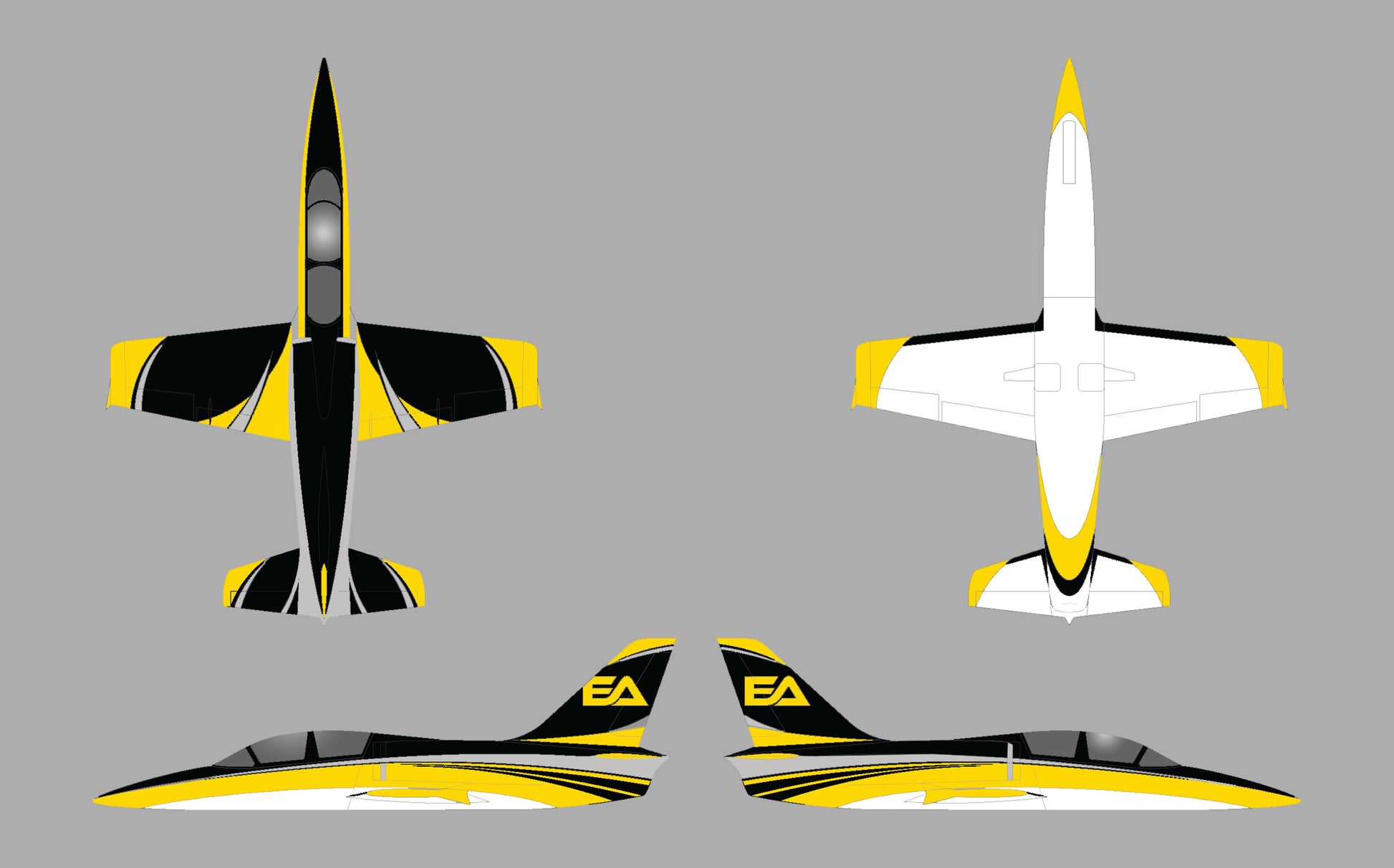

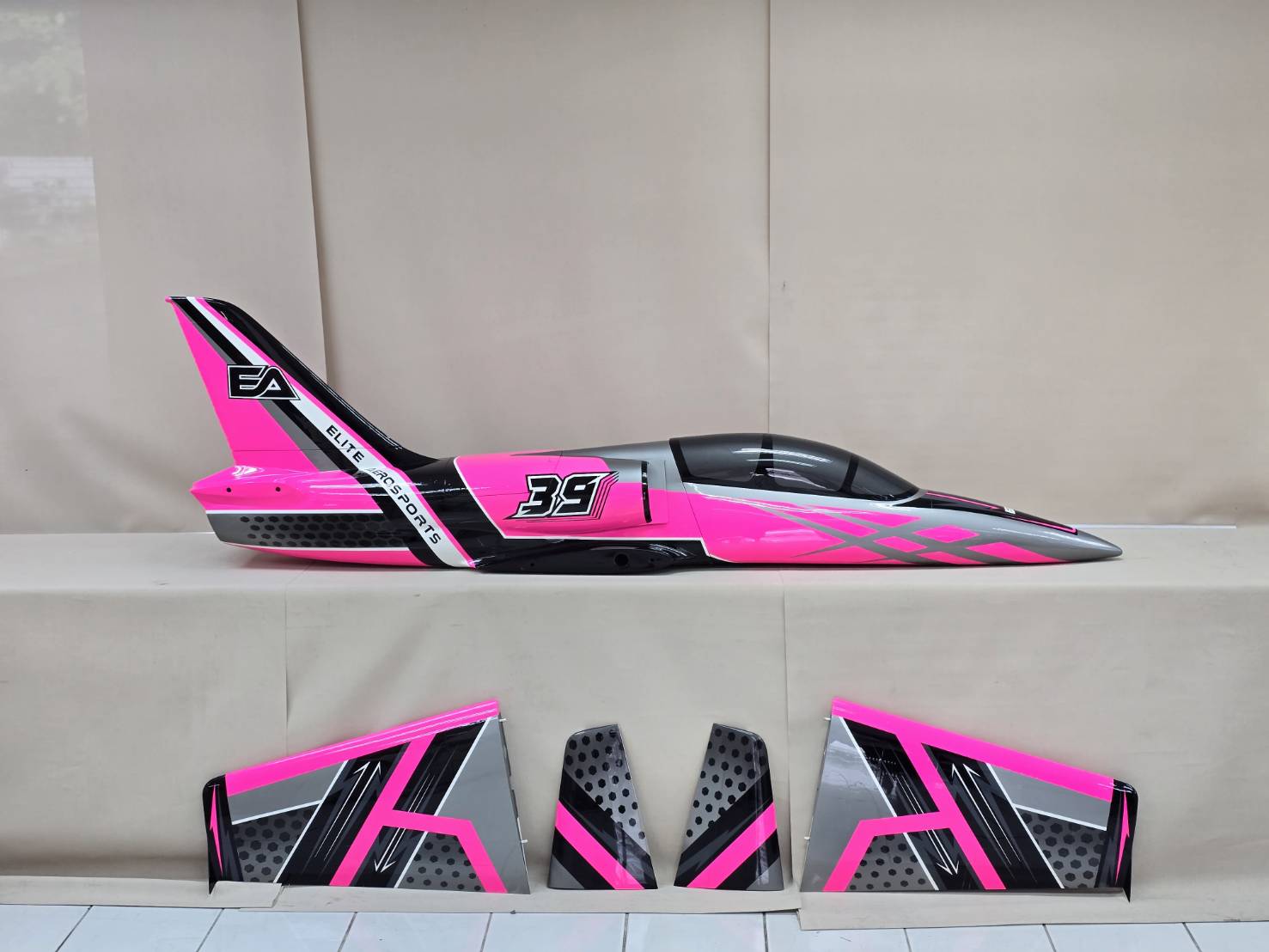

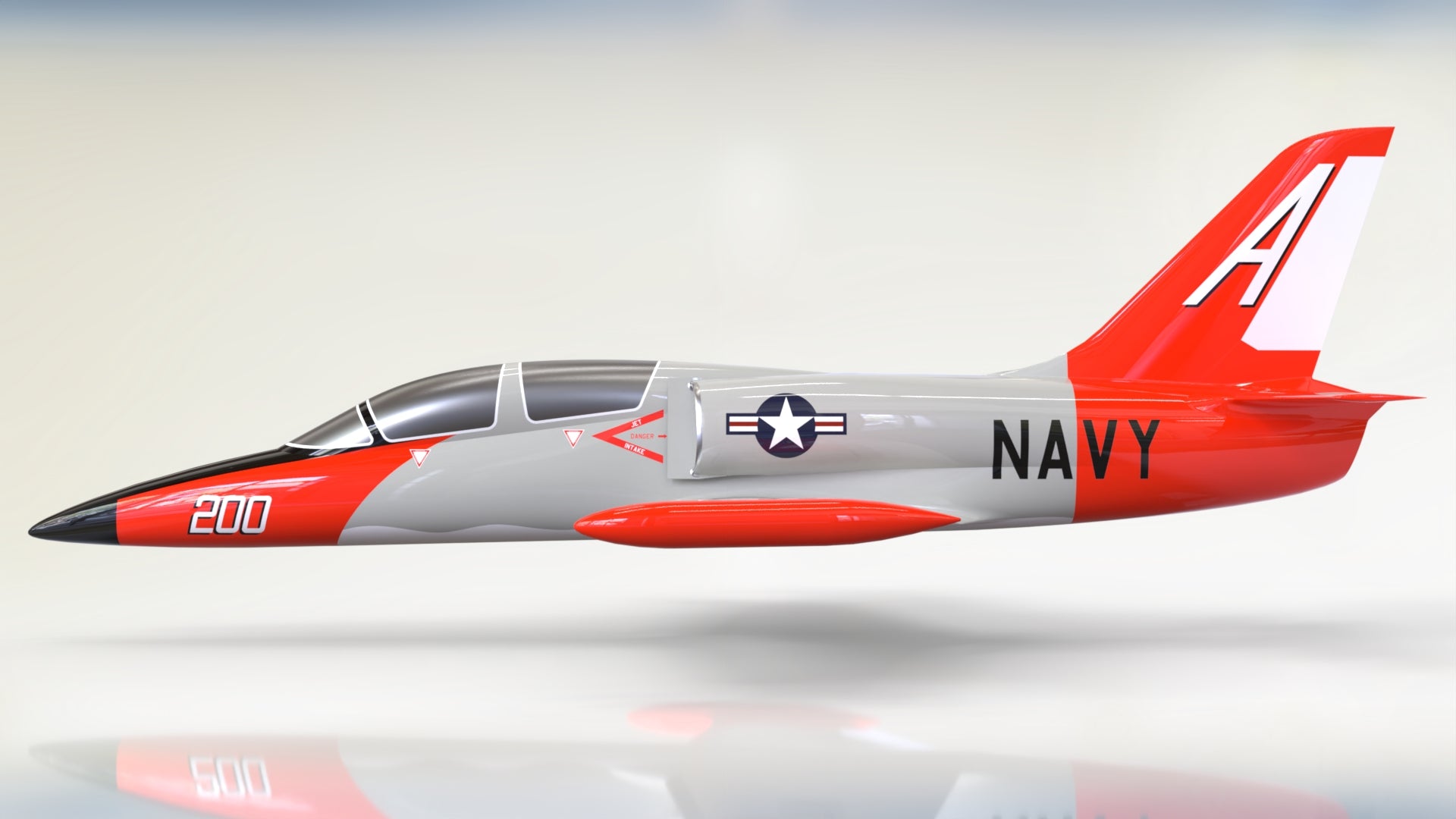

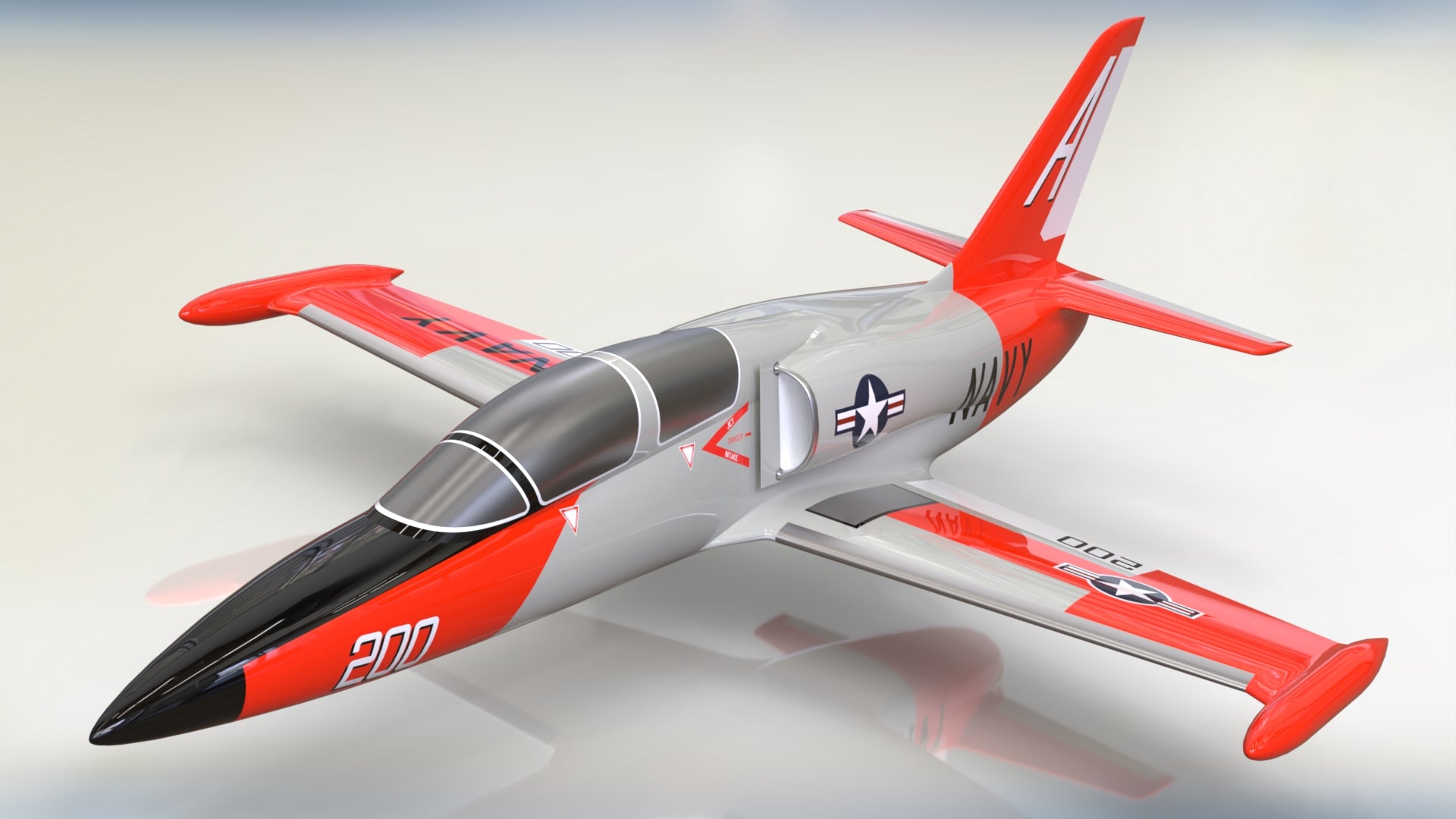

Custom schemes available.  Some schemes shown are custom.

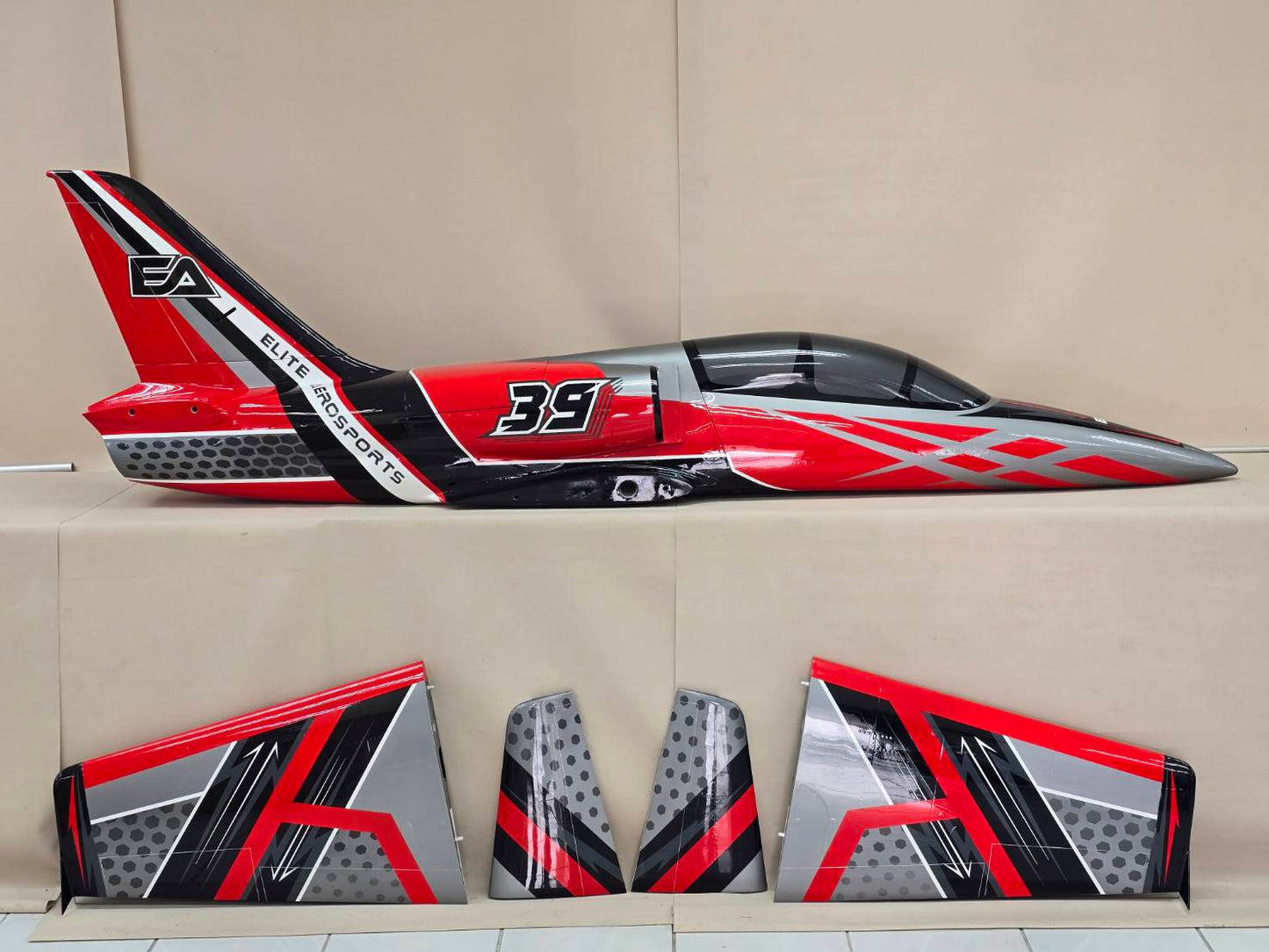

39 scheme is $300 extra

AIR Shipping cost $550
