Spektrum A6300 Ultra Torque High Speed Metal BL HV Servo
Spektrum A6300 Ultra Torque High Speed Metal BL HV Servo
Regular price
$179.99 USD
Regular price
Sale price
$179.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

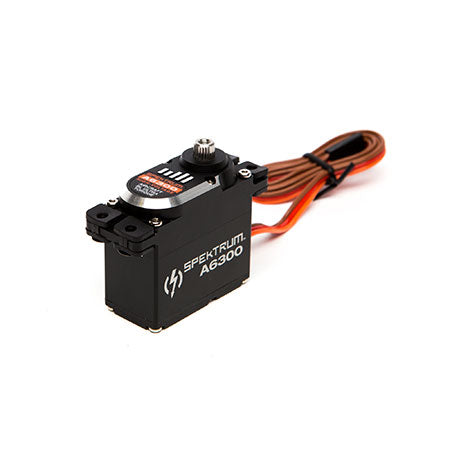

Spektrum A6300 Ultra Torque High Speed Metal BL HV Servo
KEY FEATURES
- High Voltage (HV) capable (6.0-8.4v input range)
- Outstanding torque and speed in a standard servo size (530 oz-in and .10 sec/60° @8.4v)
- Durable and long lasting brushless motor
- Low wear and tightly meshed all metal gear train
- Dual bearing supported drive train helps maximize smooth operation
- Aluminum servo case helps keep operating temperatures low
- Soft start helps prevent component and airframe damage during un-intentional initializations
- Over Current and Temperature protection
- Helpful initialization start tone lets pilot know when the servo is ready
- Integrated servo failsafe holds last known position if signal is lost and power is maintained
- Frequency: 200Hz to 333Hz
PRODUCT SPECIFICATIONS
- Size Category:
- Standard
- Type:
- Digital
- Application:
- Airplane
- Torque:
- 378.37 oz-in (27.26 kg-cm) @ 6.0V; 467.06 oz-in (33.65 kg-cm) @ 7.4V; 530.22 oz-in (38.20 kg-cm) @ 8.4V
- Speed:
- 0.14 sec/60 deg @ 6.0V; 0.11 sec/60 deg @7.4V; 0.10 sec/60 deg @ 8.4V
- Length:
- 1.57 in (40mm)
- Width:
- 0.79 in (20mm)
- Height:
- 1.49 in (37.8mm)
- Weight:
- 2.81 oz (79.80 g)
- Bushing Or Bearing:
- Bearing
- Bearing:
- Dual
- Motor Type:
- Brushless
- Connector Type:
- Z-Connector
- Gear Type:
- Metal
- Gear Material:
- Metal
- Voltage:
- 6.0-8.4V
- Deadband:
- 2 - 3 µs
